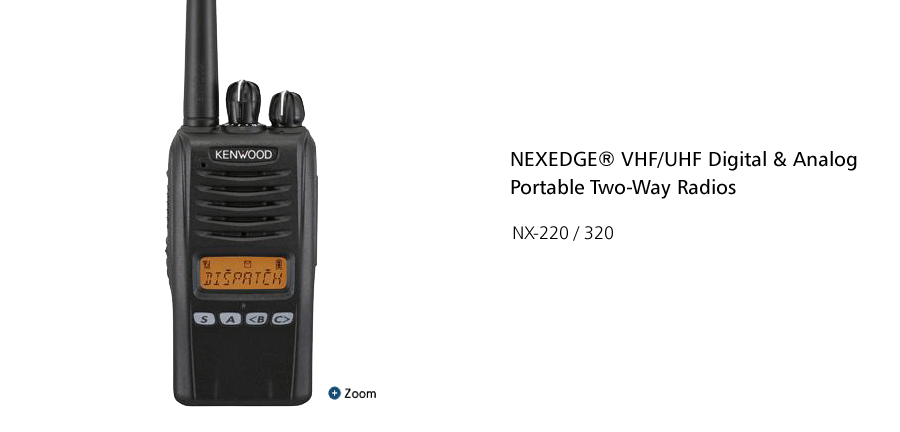

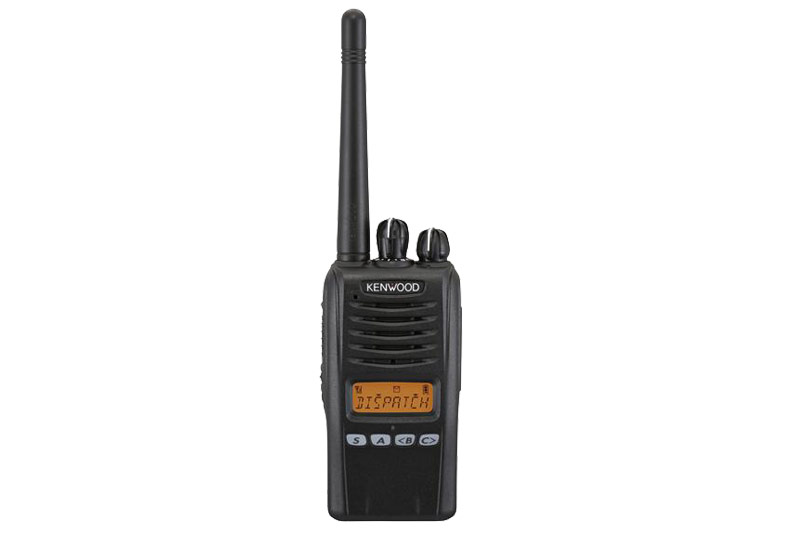

NX-220_320 VHF/UHF Digital & FM Portable Radios

KENWOOD is pleased to introduce the latest NEXEDGE® portables boasting a newly designed ultra-compact platform with all of the high performance RF specifications and MILSTD 810 & IP54/55 ruggedness of KENWOOD’s flagship NEXEDGE® models. These new models come in three user interface configurations, including the first NEXEDGE® non-display model for users that need a limited number of channels or trunked talk groups.

NX-220/320 VHF&UHF 5W radios deliver a cost benefit, full-featured digital portable radio solution to enterprise, local government and SMR subscribers. True to the NEXEDGE multi-system migration-ready tradition, analog, NXDN® conventional, and NXDN® trunking, are included in all models. The NX-220/320 NEXEDGE® models include the latest V2.5 enhancements such as OTAP over-the-air programming and ground-breaking NEXEDGE® enhanced audio refinements.

: - 5 W (136-174 MHz) Models
- 5 W (400-470, 450-520 MHz) Models
- 260 CH-GID / 128 Zones
- 64 CH-GID / 4 Zones (Non Display Version)
- 12-Key Keypad Models
- 8 Character Alphanumeric Aliases
- Backlit LCD and Keys
- Function/Status LCD Icons
- Transmit/Busy/Call Alert/Warn LED
- On/Off Volume Knob
- 16-Position Mechanical Selector
- 4 Front Programmable Keys
- 3 Side Programmable Keys
- Emergency/AUX Key
- Built-in Motion Sensor
- 500 mW Speaker Audio
- Zone/CH# Voice Announcement
- MIL-STD-810 C/D/E/F/G
- IP54/55 Water / Dust Intrusions

: MODELS
-  Model Type 1: 1 to 5 W (136-174 MHz)
-  Model Type 2: 1 to 5 W (400-470 MHz)
-  RF Power Output: 5 W/1 W
-  Channel/Zone Capability: 260 CH / 128 Zones
-  12-Key Keypad Model: Optional
KEYS & SWITCHES
-  Front Keys: 4 PF Keys
-  Side Keys: 3 PF Keys
-  Emergency/AUX Key: Yes
-  On/Off Volume Knob: Yes
GENERAL FEATURES & PROGRAMMING
-  Function/Status LCD Icons: Yes
-  Alphanumeric Aliases: 8 Character
-  LCD Battery Status Indicator: -
-  Low Battery Alert: Yes
-  Battery Saver (NA in Scan or Trunking): -
-  Date, 12/24 Hour Clock: -
-  CSA Approved: -
-  Intrinsically Safe Option: -
-  CSA, A and B, I.S. Certified: -
-  Dimensions (W x H x D) - Radio Only: 2.20 x 4.35 x 1.48 in
-  Weight (net) - Radio Only: 10.76 oz w/ KNB-55L
-  KENWOOD LTR Features: Yes
-  800 MHz: -
EMERGENCY & SAFETY FEATURES
-  MIL-STD: MIL-STD-810 C/D/E/F/G
-  IP-54/55 Water and Dust Intrusion: Yes
-  Immersion Option: -
DIGITAL
-  NXDN: Yes
-  P25: -
FleetSync®/II (FM)
-  FleetSync Capable: Yes
