Android Auto™ connection

Getting Started with Wired Connections

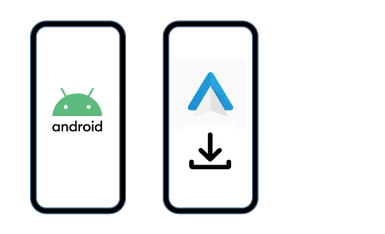

1 Setting on Android™ Smartphone/device

  1. 1) Check Android OS is updated to latest version.
    *Over Android 10 will have Android Auto app already.
    • An Android phone running Android 6.0 or higher, with an active data plan.
    • A high-quality USB cable.
    • For wireless connection, a compatible Android mobile device with an active dataplan. You can check which mobile devices are compatible at Get started with Android Auto
      (https://support.google.com/androidauto/answer/6348019)
  2. 2) Confirm Android Auto App is installed or install it on Google Play.

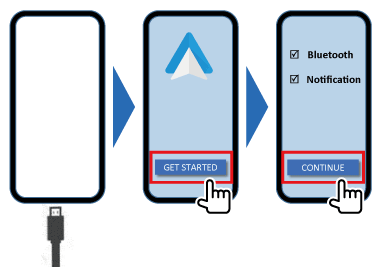

2 Connecting between Android Smartphone/device and Receiver

  1. 1) Connect an Android device compatible with Android Auto to the USB terminal using a USB cable (commercially available).
  2. 2) Confirm and follow the notification from the Android Smartphone/device.

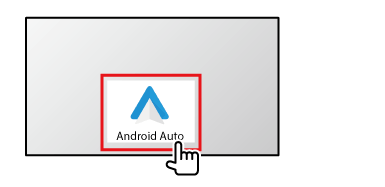

3 Start Android Auto on Receiver

  1. 1) Confirm and follow the notification from the Receiver.
  2. 2) Touch [Android Auto] on the HOME screen or the source/option selection screen.
  3. Start Android Auto

Preparation

Android Mode Select

  1. 1 Display the <Connections Setup> screen.
    1. 1) Press the [HOME] button.
    2. 2) Touch [Launcher icon] ➡ [Setup icon].
  2. 2 <Android Mode Select>
    Select Android device usage for Apps — either [Android Auto] (initial) or [Mirroring for Android].

* This support function is depending on the owned receiver's specification.

Android Auto Auto Launch

  1. 1 Display the <Connections Setup> screen.
    1. 1) Press the [MENU] button.
    2. 2) Touch [SETUP] ➡ [Connection].
  2. 2 <Android Auto Auto Launch>
    Select whether to display the Android Auto screen automatically. Default is "ON".

* This support function is depending on the owned receiver's specification.




• Google, Android, Android Auto, and Google Play are trademarks of Google LLC.
