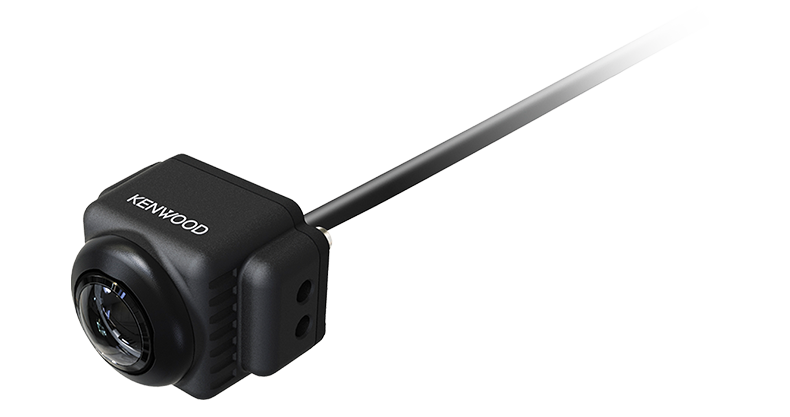

CMOS-740HDMulti-View Camera / HD Rear Camera
Displaying the image in true 1280 x 720 (720P) High Definition on compatible with DMX9720XS receiver.
WVGA Camera
HD Camera
— Reducing “Blown out Highlights” and “Crushed Blacks” —
HDR helps to reduce “blown out highlights” and “crushed blacks” and ensure clear images in challenging environments, including backlit scenes in daylight, streetlight scenes at night and places where light-dark contrast is particularly severe.

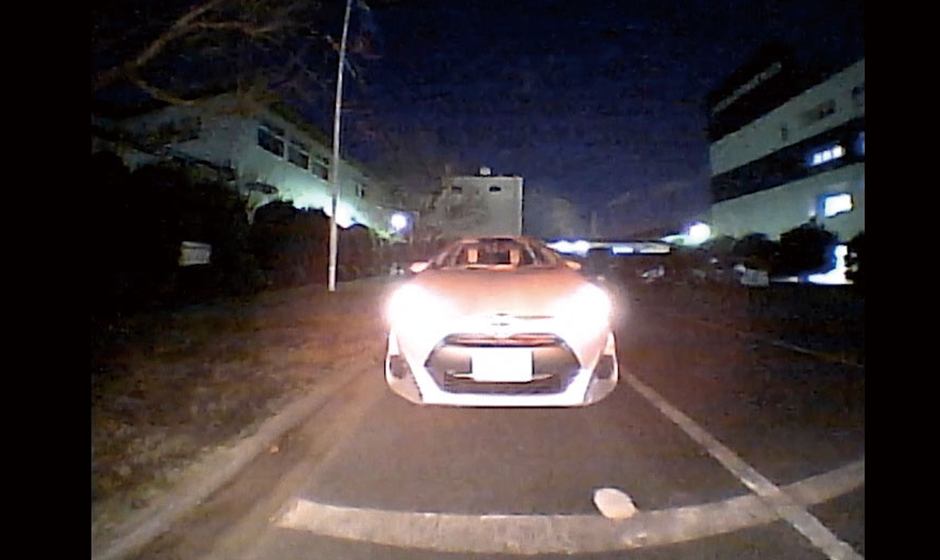

W/O HDR

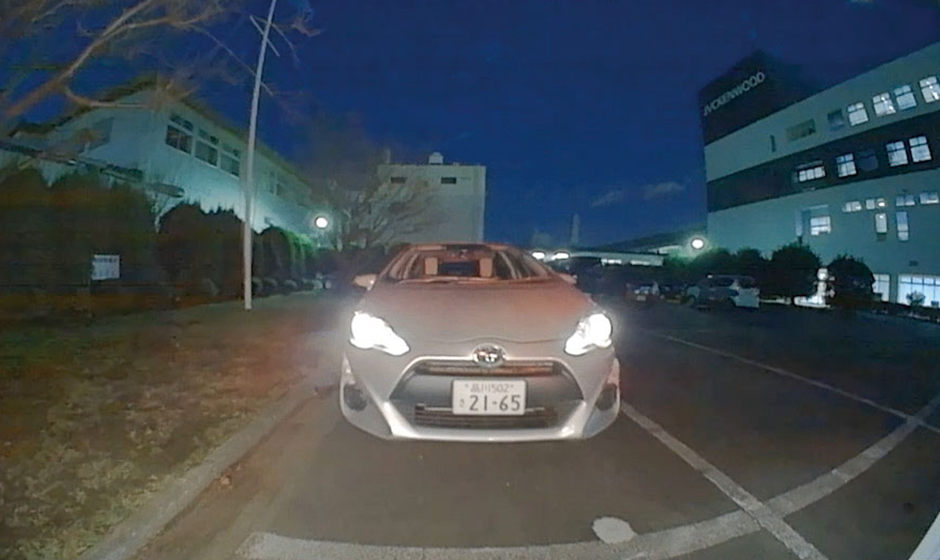

WITH HDR
Cameras work with both 12V and 24V applications.
| Photographed Image | HD (1280 x 720) |
|---|---|
| Lens | Wide angle, focal length: 1.86mm F:2.0 |
| Frame Rate | 30fps |
| Angles of View | Horizontal 180°/ Vertical 103° |
| Operating Voltage | 12V/24V |
| Operating Temperature | -22℉ to +185℉ / -30℃ to +85℃ |
| IPX | IP67 |
| Output | HD-TVI |
| Weight | 0.073lbs / 33.2g (without cable) |
| Dimensions (W x H x D) | 1-1/4" x 15/16" x 1" / 31.1mm x23.0mm x25.2mm |
| Cable Length | |
| Camera Unit side | 9.84ft / 3m |
| DC Box Unit side | 19.69ft / 6m |
| Other | 1.64ft / 0.5m |
CMOS-740HD
