DRV-A100

High Definition Recording with Easy Control

 Camera is equipped with 2.0 Megapixel Full Hi-Vision recording

  • DRV-A100 Zoom

    Dashboard Camera

    DRV-A100
    • 1 Megapixel Recording

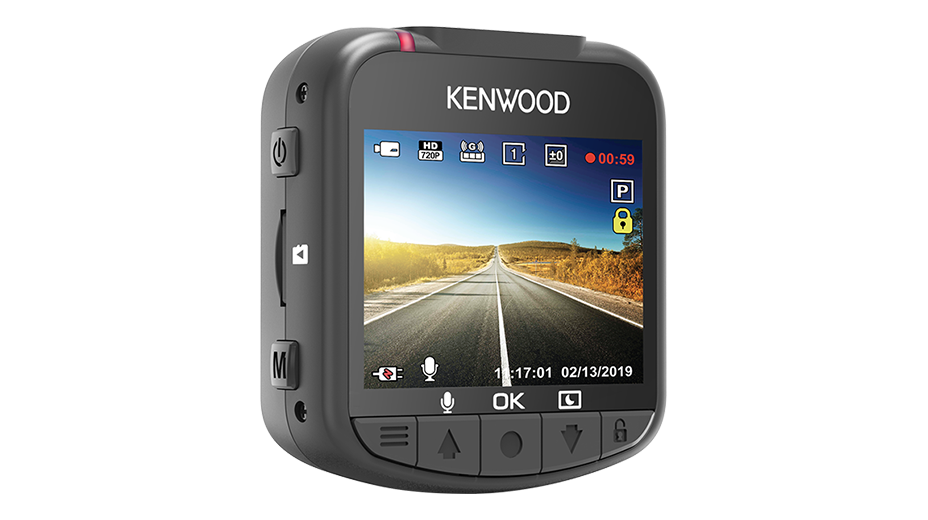

    • 2.0" LCD Display
    • Built-in G-Sensor
    • 12V / 24V Compatible
    • Parking Mode Recording
    • 16GB microSD Included
    Features Icons

    *Parking Mode Recording requires optional CA-DR1030 Hardwaire Kit

1 Megapixel Recording

1 Megapixel Recording provides High Resolution Recording

1 Megapixel High Definition recording captures clear video even while driving.


Supports micro SDXC/SDHC

MicroSDXCME
microSDXC/SDHC card 8GB to 32GB supported.

12V & 24V Compatible

Camera work with both 12V and 24V applications.

KENWOOD VIDEO PLAYER

KENWOOD VIDEO PLAYER

The KENWOOD VIDEO PLAYER is a desktop software for displaying video recorded with this device. Simply download the installer from https://www.kenwood.com/cs/ce/, then install according to the on-screen instructions.

PC Requirements
OS: Microsoft Windows 10, 8.1, 7*
*Windows 7 Service Pack 1 & Microsoft Visual C++must be installed.
OS: Apple Mac OS X 10.11 (El Capitan) or later.

Enhanced Vehicle Monitoring & Protection

Built-in G-Sensor

The DRV-A100 is equipped with a G-Sensor designed to detect a collision.
G-sensor

Parking Mode Recording

Parking Mode Recording

When the vehicle is parked and turned off, parking mode becomes active.  If the vehicle is subject to a collision or other physical impact, the cameras power on and automatically records 30 seconds of video.
PowerCable
*Parking Mode Recording requires opptional hardwaire kit: CA-DR1030

Super Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.
SuperCapacitor

2 Mounts Included

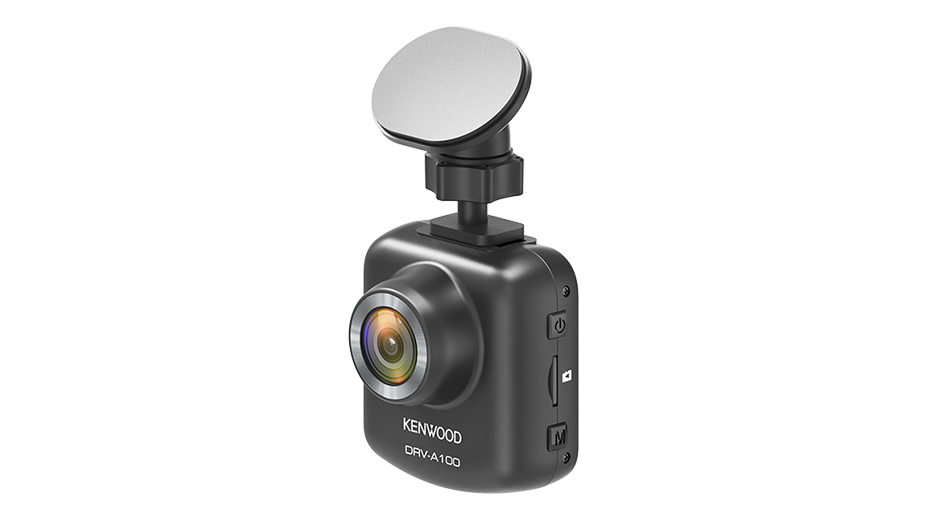

Suction Cup Style
Suction Cup Style
3M Tape Style
3M Tape Style

page top

DRV-A100

« scroll
DRV-A201
Hard Specification Screen size 2.0inches full color TFT
Operating voltage 5V / 2A; 12-24V DC
Current Consumption 280mA
Super Capacitor yes
Button Tact
Wireless Link -
Microphone Built-in
Speaker Built-in
GPS Receiver -
G-sensor Built-in
Collision sensitivity -4.0G to +4.0G (0.1G Step)
Image sensor 1/4 CMOS sensor
Valid Pixel 1M Pixels (1296x732)
Number of Pixel 1M Pixels (1280x720)
Angles of view Horizontal : 101° Vertical : 52° Diagonal :125°
Lens rotation -
Image reversal (Upside down) yes
Lens F2.4
Polarization Filter No
Operating temperature -10℃ to +60℃
Noise Protection yes
OSD Menu Language
Inmplemented languages EN/DE/FR/NL /IT/ES/PT/RU /PL/CZ/RO
Recording Specification Recording resolution 1280 x 720 HD
Frame rate -
HDR yes
WDR -
Recording Mode 1 / 3 / 5 min
Voice recording yes(ON/OFF)
Video format MPEG / AVI
Audio format Linear PCM
Picture format JPEG (Max.1280 x 720)
Recording media microSDHC 8GB to 32GB SDXC card, FAT32 only Class10
Port DC-IN mini USB-B type
AV Out/HD Out MiniJack
CAM In (Rear Cam) -
SD Slot microSD
Size Dimensions WxHxD (Main unit) 54mm*58m*37mm
Dimensions WxHxD (Bracket attached) 54mm*118.6mm*37mm
Weight (Main unit) 46g
Bundled Accessory SD Card microSD 16GB (Class 10)
DC Cable Cigar Lighter Car Charger Adapter (12-24V, 4m)
Car Mount Bracket Traditional Mount Mounting Bracket (3M tape & Suction Cup)
Manual /Warranty card Quick Start Guide Caution & CertificationWarranty Card(instruction manual on web
USB Cable yes/110cm
Spare 3M Adhesive Pad yes/2pcs
Cable Clips yes/4pcs
Optional Accessory Hardwire Kit CA-DR1030
Application PC Viewer Windows/Mac
Requirement for Windows Windows 10, 8.1, 7
Requirement for Mac Mac OS X 10.11 (El Capitan) or later
Languages for PC Viewer EN/DE/FR/NL /IT/ES/PT/RU /PL/CZ/RO
Smartphone App -
Requirement for Android -
Requirement for iOS -
Languages for Smartphone App -
