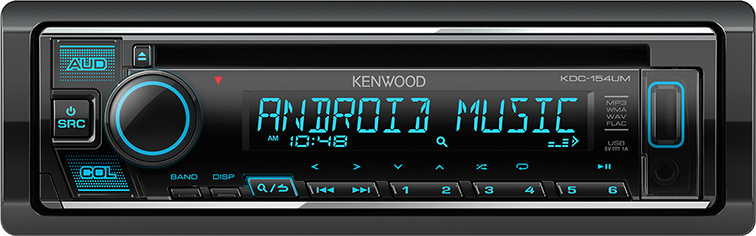

KDC-154UMUSB / CD Receiver

Detachable Faceplate
Direct Audio Control Key
Multi-Color Illumination
Front USB and AUX IN
3 Preouts 2.5V

Specialized USB Function

USB Connectivity for smart devices and compatible USB mass storage devices.

Playable USB Files

You can play back from USB devices audio files compressed in various formats.

Music Codec	Playable up to
FLAC	48kHz / 16bit
WAV	44.1kHz / 16bit
MP3	48kHz / 320kbps
WMA	48kHz / 192kbps

Android Music Playback (AOA2)

Supporting AOA2, install the KENWOOD Music Play app and connect your smartphone to the receiver via USB, and control your music directly from the receiver.

Front USB and AUX Input

Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your connected device.

Learn More

Other Useful Features

Learn about exciting product features and highlights.

Learn More

Multicolor Illumination

Bright variable color LEDs can be adjusted to match any color dash lighting.

Designed for Ease to Use

Direct Audio and color control keys allow you to access quickly to the sound and color tuning menu.

And Vertical Alignment LCD display secures higher visibility during day-time drive.

Learn More

CD Player	Yes
Key Illumination / LCD - LED Backlight	/
USB Terminal	x 1
Audio Decoder	FLAC / WAV / MP3 / WMA
Equalizer	3 Band
Audio Preout	2.5V / 3 Preouts
Remote Controller	Included

KENWOOD Car Electronics System

: PS Series.

: S Series.

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

« scroll

FM	Frequency Range(MHz) (Frequency step)		87.5MHz to 108.0MHz (50kHz)
	Usable Sensitivity S/N 30dB		0.71μV/75Ω
	Quieting Sensitivity DIN S/N 46dB		(2.0μV/75Ω）
	Frequency Response (±3.0dB)		30Hz to 15kHz
	S/N(dB)		64.0dB(MONO)
	Stereo Separation		40dB(1kHz)
MW (AM)	Frequency Range(kHz) (Frequency step)		531kHz to 1602kHz (9kHz)
MW (AM)	Usable Sensitivity (S/N 20dB)		28.2μV
CD	Laser Diode		GaAlAs
	Digital Filter(D/A)		8 Times OverSampling
	Spindle Speed		500 to 200rpm (CLV)
	Wow & Flutter		Below Mesurable Limit
	Frequency Response		20Hz to 20kHz(±1dB)
	Total Harmonic Distortion		0.01%(1kHz)
	S/N Ratio (dB)		92dB(1kHz)
	Dynamic Range		88dB
	Channel Separation		83dB
	MP3 Decode		Compliant with MPEG-1/2 Audio Layer-3
	WMA Decode		Compliant with WINDOWS MEDIA AUDIO
	AAC Decode		-
	WAV Decode		-
Preout Level(mV)/Load -Unbalanced			2500mV/10kΩ(CD)
Preout Impedance(Ω)			=<600Ω
Speaker Impedance(Ω)			4 to 8Ω
USB I/F	USB		USB 1.1 / 2.0 Full Speed
	File System		FAT12 / 16 / 32
	Maximum Supply current		DC5V(DC logo) 1A
	MP3 decode		Compliant with MPEG-1/2 Audio Layer-3
	WMA decode		Compliant with Windows Media Audio
	AAC Decode		-
	WAV Decode		Linear-PCM
	FLAC Decode		FLAC file (Up to 48kHz/16bit)
AUX Input	Frequency Response		20 to 20kHz ±3dB
	Input Maximum Voltage		1000mV
	Input Impedance		30kΩ
AMP	PWR(MAX)		50Wx4
AMP	Full Bandwidth Power (at less than 1%THD)		22Wx4
TONE	Bass		100Hz ±8dB
	Middle		2.5kHz ±8dB
	Treble		12.5kHz ±8dB
GENE	Operating voltage		12V DC car battery
	Installation Size	(W)	182mm
		(H)	53mm
		(D)	158mm
	Net Weight (Trim plate and Mounting sleeve: Included)		1.2(kg)
