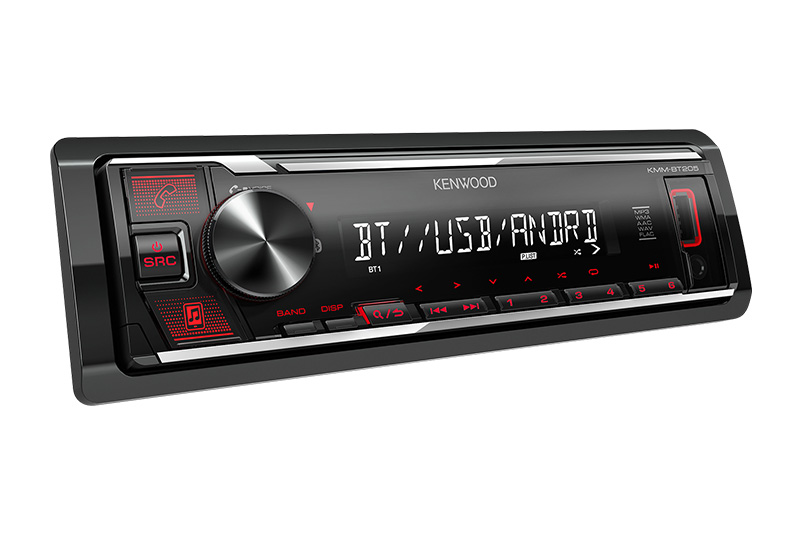

KMM-BT205USB Receiver
By connecting your smartphone and receiver wirelessly, your driving time will be more fun and convenient.
*1 Hands Free Key:Answer to a call
*2 Audio Streaming Key:Access to Bluetooth Audio source
Up to 5 Bluetooth® devices can be paired to the head unit at the same time. You can enjoy audio streaming just by switching the devices among your friends.
Automatically switch the paired 2 phones for incoming calls.
Download the free app “KENWOOD Remote“.
You can change audio sources or adjust audio settings like
“Time Alignment” or “13-Band EQ” from your smartphone.
Listen to popular music applications and music stored on your device with basic audio controls.
* Native music app control services like Spotify have now been discontinued by the service provider, so please select the Bluetooth audio source for music playback and basic control.
USB Connectivity for smart devices and compatible USB mass storage devices.
You can play back from USB devices audio files compressed in various formats.
| Music Codec | Playable up to |
|---|---|
| FLAC | 96kHz / 24bit |
| WAV | 44.1kHz / 16bit |
| AAC | 48kHz / 320kbps |
| MP3 | 48kHz / 320kbps |
| WMA | 48kHz / 192kbps |
Supporting AOA2, install the KENWOOD Music Play app and connect your smartphone to the receiver via USB, and control your music directly from the receiver.
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your connected device.
Direct Bluetooth keys allow you to access quickly to answering to and making a call, and entering Bluetooth Audio source.
And Vertical Alignment LCD display secures higher visibility during day-time drive.
To meet your high expectations.
| Key Illumination / LCD - LED Backlight |  / |
|---|---|
| Built-in Bluetooth | 2-Phone Hands Free / Music Mix / KENWOOD Remote App |
| Spotify Control | Full Control |
| USB Terminal | x 1 |
| Audio Decoder | FLAC / WAV / AAC / MP3 / WMA |
| Equalizer / Digital Time Alignment / 3-Way X'Over | 13 Band / Yes / Yes |
| Audio Preout | 2.5V / 1 Preout |
| Remote Controller | Optional |
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
| FM | Frequency Range (Frequency step) |
87.5MHz to 108.0MHz (50kHz) |
|---|---|---|
| Usable Sensitivity S/N30dB |
8.2dBf (0.71μV/75Ω) |
|
| Quieting Sensitivity DIN S/N 46dB |
17.2dBf (2.0μV/75Ω) |
|
| Frequency Response (±3.0dB) |
30Hz to 15kHz | |
| S/N | 64.0dB(MONO) | |
| Stereo Separation | 40dB(1kHz) | |
| AM | Frequency Range (Frequency step) |
Band 1(MW) / 531kHz to 1602kHz(9kHz) Band 2(SW1) / 2940kHz to 7735kHz(5kHz) Band 3(SW2) / 9500kHz to 10135kHz / 11580kHz to 18135kHz (5kHz) |
| Channel Space Selection | Band 1 / 9kHz Band 2/3 / 5kHz |
|
| Usable Sensitivity S/N:20dB |
29.0dBμ(28.2μV)：MW 30dBμ (32μV)：SW |
|
| Preout Level(mV)/Load -Unbalanced | 2500mV/10kΩ(USB) | |
| Preout Impedance(Ω) | ≦600Ω | |
| Speaker Impedance(Ω) | 4 to 8Ω | |
| USB I/F | USB | USB 1.1 / 2.0 Full speed |
| File System | FAT12 / 16 / 32 | |
| Maximum Supply current | DC5V(DC logo) 1.5A | |
| Frequency Response | 20Hz to 20kHz(±1dB) | |
| S/N Ratio (dB) | 99dB(1kHz) | |
| Dynamic Range | 93dB | |
| Channel Separation | 89dB | |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 | |
| WMA Decode | Compliant with Windows Media Audio | |
| AAC Decode | AAC-LC ".aac", ".m4a" files | |
| WAV Decode | Linear-PCM | |
| FLAC Decode | FLAC file (Up to 96kHz/24bit) | |
| AUX Input |
Frequency Response | 20Hz to 20kHz ±3dB |
| Input Maximum Voltage | 1000mV | |
| Input Impedance | 30kΩ | |
| AMP | Maximum Power | 50Wx4 |
| Full Bandwidth Power (at less than 1%THD) |
22Wx4 | |
| TONE | Band1 | 62.5Hz ±9dB |
| Band2 | 100Hz ±9dB | |
| Band3 | 160Hz ±9dB | |
| Band4 | 250Hz ±9dB | |
| Band5 | 400Hz ±9dB | |
| Band6 | 630Hz ±9dB | |
| Band7 | 1kHz ±9dB | |
| Band8 | 1.6kHz ±9dB | |
| Band9 | 2.5kHz ±9dB | |
| Band10 | 4kHz ±9dB | |
| Band11 | 6.3kHz ±9dB | |
| Band12 | 10kHz ±9dB | |
| Band13 | 16kHz ±9dB | |
| Bluetooth | Version | Bluetooth 3.0 |
| Frequency Range | 2.402 to 2.480GHz | |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Profile | HFP 1.6 (Hands Free Profile) | |
| SPP (Serial Port Profile) | ||
| PBAP (Phonebook Access Profile) | ||
| A2DP (Advanced Audio Distribution Profile) | ||
| AVRCP 1.5 (Audio/Video Remote Control Profile) | ||
| GENE | Operating voltage | 12V DC car battery |
| Installation Size (W) (H) (D) |
182mm 53mm 100mm |
|
| Net Weight (Trim plate and Mounting sleeve: Included) |
0.6(kg) | |
