Stage - Wide Range Hi-Quality Sound

If you want to replace your factory speakers with a discreet installation, the KENWOOD new S series speakers are ideal for their ease of installation with wide range high quality sound which we call “stage sounding”.

KFC-S1676EX

16cm 2Way Stage Sound Speaker

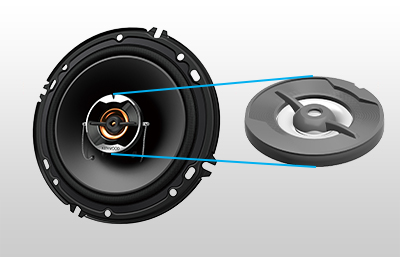

Sound Field Enhancer

enhances 5kHz and upper frequencies and reproduces life-like “stage” sounding.
Bigger Magnet Circuit

creates enough power to drive woofer cones and reproduce high-density sound.

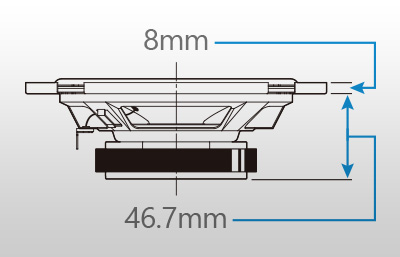

Shallow Depth

Easy to replace your factory speakers with a discreet installation.

Speaker Tech-Spec	KFC-S1676EX
Peak Input Power	330W
RMS Input Power	60W
Size	16cm 2Way
Tweeter Design	Balanced Dome
Tweeter Magnet Composition	Neodymium
Woofer Magnet Composition	FerriteΦ85 x t12
Nominal Impedance	4ohms
Frequency Response	80Hz - 22kHz
Sensitivity (dB/W at 1m)	87dB
Mounting Depth	46.7mm

KFC-S6976EX

6 x 9 inch 3Way Stage Sound Speaker

Speaker Tech-Spec	KFC-S6976EX
Peak Input Power	500W
RMS Input Power	80W
Size	6 x 9 inch 3Way
Tweeter Design	Cone
Tweeter Magnet Composition	Ferrite
Woofer Magnet Composition	FerriteΦ90 x t12
Nominal Impedance	4ohms
Frequency Response	44Hz - 18kHz
Sensitivity (dB/W at 1m)	87dB
Mounting Depth	79.3mm

KFC-S6966

6 × 9 inch 3Way Speaker

Speaker Tech-Spec	KFC-S6966
Peak Input Power	400W
RMS Input Power	45W
Size	6 x 9 inch 3Way
Tweeter Design	Cone
Tweeter Magnet Composition	Ferrite
Woofer Magnet Composition	FerriteΦ80 x t10
Nominal Impedance	4ohms
Frequency Response	35Hz - 20kHz
Sensitivity (dB/W at 1m)	91dB
Mounting Depth	76.8mm

KFC-S1666/1366/1066

16cm / 13cm / 10cm　2Way Speaker

Speaker Tech-Spec	KFC-S1666	KFC-S1366	KFC-S1066
Peak Input Power	300W	260W	220W
RMS Input Power	30W	30W	21W
Size	16cm 2Way	13cm 2Way	10cm 2Way
Tweeter Design	Balanced Dome	Balanced Dome	Balanced Dome
Tweeter Magnet Composition	Neodymium	Neodymium	Neodymium
Woofer Magnet Composition	FerriteΦ80 x t10	FerriteΦ70 x t10	FerriteΦ70 x t10
Nominal Impedance	4ohms	4ohms	4ohms
Frequency Response	40Hz - 22kHz	45Hz - 22kHz	50Hz - 22kHz
Sensitivity (dB/W at 1m)	90dB	89dB	88dB
Mounting Depth	43.2mm	43.7mm	43mm

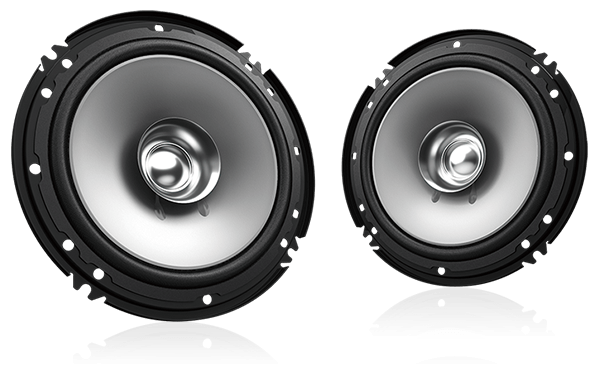

KFC-S1656G/1356G/1056G

16cm / 13cm / 10cm　Dual Cone Speaker

Speaker Tech-Spec	KFC-S1656G	KFC-S1356G	KFC-S1056G
Peak Input Power	300W	260W	220W
RMS Input Power	30W	30W	21W
Size	16cm Dual Cone	13cm Dual Cone	10cm Dual Cone
Tweeter Design	－	－	－
Tweeter Magnet Composition	－	－	－
Woofer Magnet Composition	FerriteΦ80 x t10	FerriteΦ70 x t10	FerriteΦ70 x t10
Nominal Impedance	4ohms	4ohms	4ohms
Frequency Response	40Hz - 18kHz	45Hz - 18kHz	50Hz - 18kHz
Sensitivity (dB/W at 1m)	90dB	89dB	88dB
Mounting Depth	43mm	43.5mm	43mm

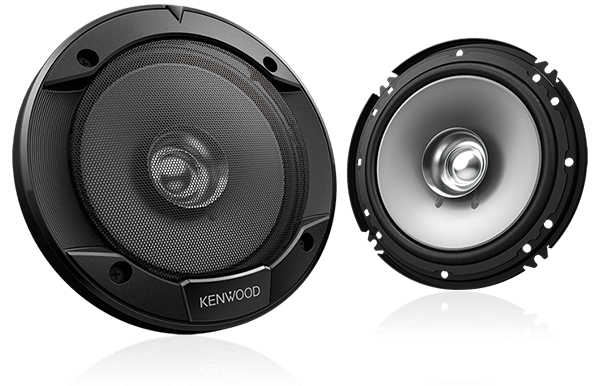

KFC-S1656/1056

16cm / 10cm　Dual Cone Speaker

Speaker Tech-Spec	KFC-S1656	KFC-S1056
Peak Input Power	300W	220W
RMS Input Power	30W	21W
Size	16cm Dual Cone	10cm Dual Cone
Tweeter Design	－	－
Tweeter Magnet Composition	－	－
Woofer Magnet Composition	FerriteΦ80 x t10	FerriteΦ70 x t10
Nominal Impedance	4ohms	4ohms
Frequency Response	40Hz - 18kHz	50Hz - 18kHz
Sensitivity (dB/W at 1m)	90dB	88dB
Mounting Depth	43mm	43mm

KFC-E715P

17cm Component Speaker

Speaker Tech-Spec	KFC-E715P
Peak Input Power	300W
RMS Input Power	30W
Size	17cm Component
Tweeter Design	PEI Balanced Dome
Tweeter Magnet Composition	Neodymium
Woofer Magnet Composition	Ferrite
Nominal Impedance	4ohms
Frequency Response	30Hz - 22kHz
Sensitivity (dB/W at 1m)	92dB
Mounting Depth	44mm

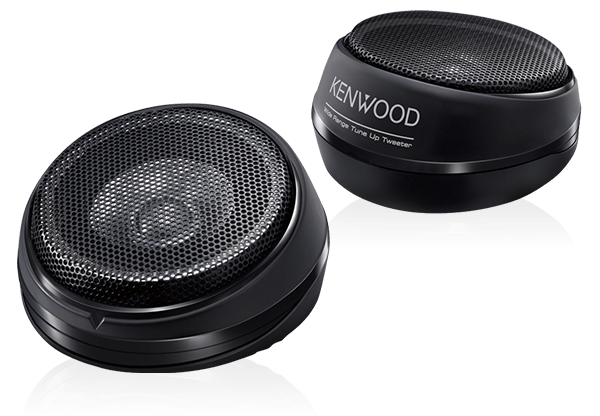

KFC-T40A

40mm Tweeter

Speaker Tech-Spec	KFC-T40A
Peak Power Handling	280W
RMS Power Handling	65W
Size	40mm Tweeter
Tweeter Design	PET Cone
Tweeter Magnet Composition	Ferrite
Woofer Magnet Composition	－
Nominal Impedance	6ohms
Frequency Response	3kHz – 20kHz
Sensitivity (1W / 1m)	90dB
Mounting Depth	－
