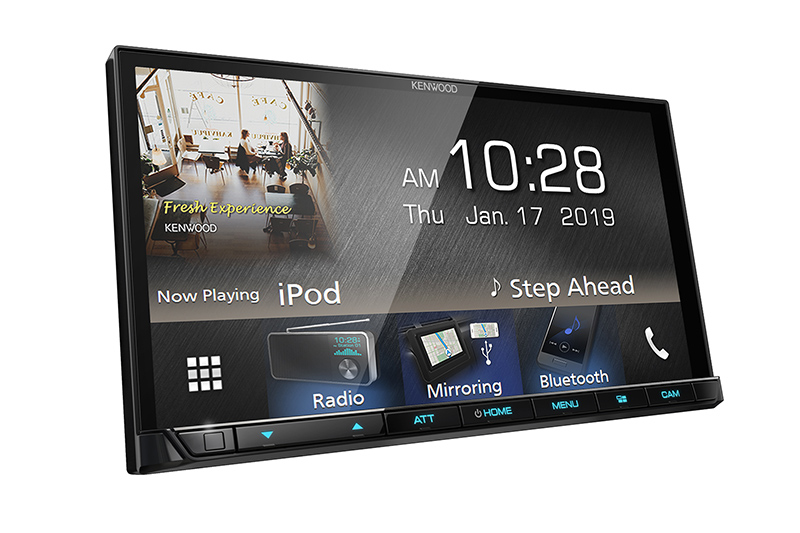

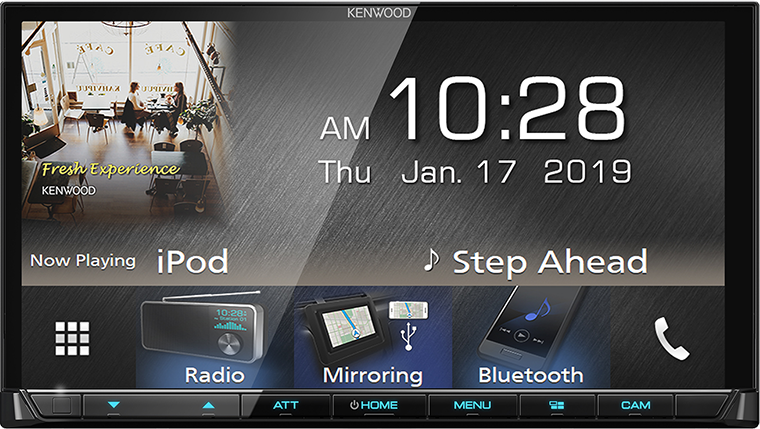

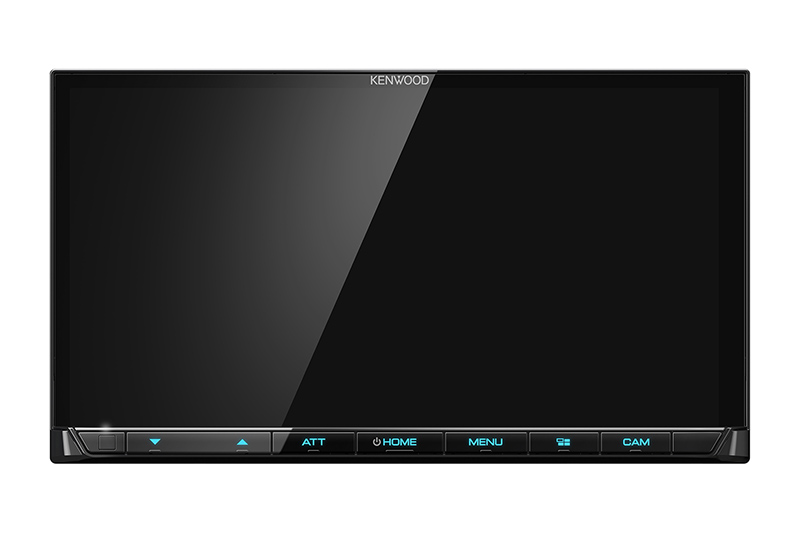

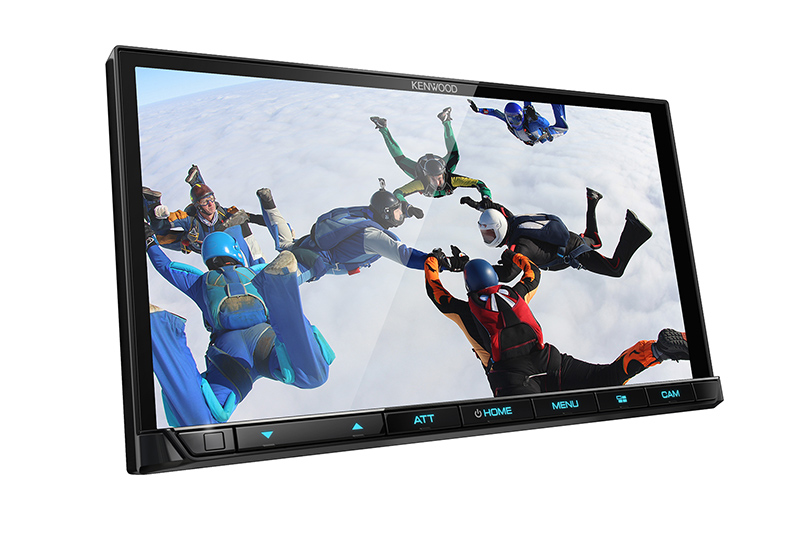

DMX7019BTMDigital Media Receiver with 7.0" WVGA
Superfine View Display
By connecting your smartphone and receiver wirelessly, your driving time will be more fun and convenient.
True Mirroring allows you to display and control your smartphone on a 7 series screen via USB. You can enjoy your favorite apps on a large display with impressive sound quality. Before starting True Mirroring, just install the free app “Mirroring for KENWOOD” on your smartphone and connect it to the 7 series head unit via Bluetooth as well as a USB cable.
USB Mirroring with iPhone have following restrictions:
1) During USB mirroring on iOS device, when a call is received, USB mirroring disconnects and needs to be manually reconnected.
2) USB Mirroring is not compatible with original Music application on the iPhone.
3) USB Mirroring is disconnected when the iPhone goes to the sleep mode.
Up to 5 Bluetooth devices can be paired to the head unit
at the same time. You can enjoy audio streaming just by switching the devices among your friends and family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Ability to control Spotify from your iPhone via USB/Bluetooth
or from your Android via Bluetooth to enjoy millions of songs you like.
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
To meet your high expectations.
You can play back from USB devices audio and video files compressed in various formats.
| Video Codec | Playable up to |
|---|---|
| MPEG4 | 1920 × 1080p |
| H.264 | 1920 × 1080p |
| MKV | 1920 × 1080p |
| WMV | 640 × 480p |
| Music Codec | Playable up to |
|---|---|
| FLAC | ～96kHz / ～24bit |
| WAV | ～96kHz / ～24bit |
USB sources are available on rear monitor via video output.

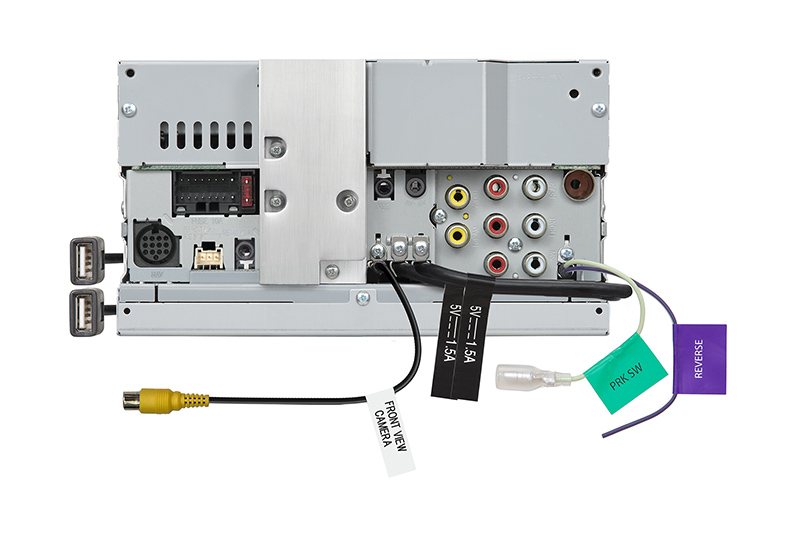

Two camera inputs provide users the ability to add both a front and rear camera for enhanced driver safety and convenience. Buit-in, adjustable parking guidelines further add to its effectiveness.
Play your music from one USB port and use the other to charge your device, or charge both at the same time.
The receivers can be installed in most Japanese and Korean vehicles easily.
Click here to learn more
It allows to set up easily the third party's navigation box.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
| Monitor Section | Picture size | 6.95 inches(diagonal) wide | |
|---|---|---|---|
| W x H | 156.6 mm x 81.6 mm | ||
| Display system | Transparent TN LCD panel | ||
| Drive system | TFT active matrix system | ||
| Number of pixels | 1,152,000 800H x 480V x RGB |
||
| Effective pixels | 99.99% | ||
| Pixel arrangement | RGB striped arrangement | ||
| Back lighting | LED | ||
| USB I/F Section | USB Standard | USB2.0 High Speed | |
| Compatible Devices | Mass storage class | ||
| File System | FAT 16/32, NTFS | ||
| Maximum Power Supply Current | DC5V (DC logo) = 1.5A | ||
| D/A Converter | 24bit | ||
| Audio Decoder | MP3/WMA/AAC(.m4a)/WAV/FLAC | ||
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | ||
| Frequency response | 96k Sampling | 20 - 20,000 Hz | |
| 48k Sampling | 20 - 20,000 Hz | ||
| 44.1k Sampling | 20 - 20,000 Hz | ||
| Total harmonic distortion 1kHz | 0.020% | ||
| Signal to Noise ratio | 104dB | ||
| Dynamic range | 90dB | ||
| Bluetooth Section | Technology | Bluetooth V3.0 | |
| Frequency | 2.402 - 2.480 GHz | ||
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | ||
| Maximum Communication range | Line of sight approx.10m (32.8ft) | ||
| Audio Codec | SBC/AAC | ||
| Profile | HFP(Hands Free Profile) 1.6 A2DP(Advanced Audio Distribution Profile) 1.3 AVRCP(Audio/Video Remote Control Profile) 1.5 GAP(Generic Access Profile) PBAP(Phonebook Access Profile) 1.2 SDP(Service Discovery Profile) SPP(Serial Port Profile) 1.2 |
||
| FM | Frequency range (Frequency step) |
87.5 MHz - 108.0 MHz (50 kHz) |
|
| Usable sensitivity | 6.2 dBf | ||
| S/N:30dB Dev. 22.5kHz | 0.56 μV / 75 Ohms | ||
| Quieting sensitivity | 15.2 dBf | ||
| DIN S/N:46dB Dev.40kHz | 1.58 μV / 75 Ohms | ||
| Frequency response (±3.0 dB) |
30 Hz - 15 kHz | ||
| S/N (dB) | 68 dB(MONO) | ||
| Selectivity | Over 80 dB(±400 kHz) | ||
| Stereo separation | 40 dB(1 kHz) | ||
| AM | Frequency range (Frequency step) |
531 kHz - 1602 kHz (9 kHz) |
|
| Usable sensitivity | 28.5μV | ||
| Video | Color system of external video input | NTSC/PAL | |
| External video input level (mini jack) | 1Vp-p / 75Ohms | ||
| External audio max input level (mini jack) | 2V / 25kOhms | ||
| Video Input level for Rear Camera (RCA jack) | 1Vp-p / 75Ohms | ||
| Video Input level for Front Camera (RCA jack) | 1Vp-p / 75Ohms | ||
| Video Output level (RCA jacks) | 1Vp-p / 75Ohms | ||
| Analog RGB input | 0.7Vp-p / 75Ohms | ||
| Audio | Maximum Power (Front&Rear) | 50Wx4 | |
| Full Bandwidth Power (Front&Rear) | 22Wx4 (at less than 1%THD) |
||
| Preout level(V) | 4V / 10kOhms | ||
| Preout Impedance(Ω) | =< 600 Ohms | ||
| Speaker Impedance(Ω) | 4-8 Ohms | ||
| Equalizer | BAND | 13Band | |
| Frequency(Hz) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | ||
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB] | ||
| 2Way X'Over | Tweeter Frequency(Hz) |
- | |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | ||
| Front (HPF) Frequency(Hz) |
Through/30/40/50/60/70/80/90/100/120/150/180/220/250 | ||
| Slope | -6/-12/-18/-24 [dB/Oct.] | ||
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | ||
| Rear (HPF) Frequency(Hz) |
Through/30/40/50/60/70/80/90/100/120/150/180/220/250 | ||
| Slope | -6/-12/-18/-24 [dB/Oct.] | ||
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | ||
| SW (LPF) Frequency(Hz) |
30/40/50/60/70/80/90/100/120/150/180/220/250/Through | ||
| Slope | -6/-12/-18/-24 [dB/Oct.] | ||
| Phase | Phase Inversion: Off/ On | ||
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | ||
| 3Way X'Over | Tweeter (HPF) Frequency(Hz) |
1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k | |
| Slope | -6/-12 [dB/Oct.] | ||
| Phase | Phase Inversion: Off/ On | ||
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | ||
| Mid Range (HPF) Frequency(Hz) |
Through/30/40/50/60/70/80/90/100/120/150/180/220/250 | ||
| Slope | -6/-12 [dB/Oct.] | ||
| Mid Range (LPF) Frequency(Hz) |
1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k/Through | ||
| Slope | -6/-12 [dB/Oct.] | ||
| Phase | Phase Inversion: Off/ On | ||
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | ||
| SW (LPF) Frequency(Hz) |
30/40/50/60/70/80/90/100/120/150/180/220/250/Through | ||
| Slope | -6/-12 [dB/Oct.] | ||
| Phase | Phase Inversion: Off/ On | ||
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | ||
| Position | 2Way: Front / Rear /Subwoofer Delay | 0 - 610cm (1.0cm Step) | |
| 3Way: Tweeter / Mid Range / SW Delay | 0 - 610cm (1.0cm Step) | ||
| Gain | -8 to 0dB | ||
| Subwoofer Level | -50 to +10dB | ||
| General | Operating voltage | 12 V DC car battery | |
| Installation Dimensions WxHxD (with Sleeve) |
178mm x 100mm x 162mm | ||
| Weight | Main unit | 2.0 kg | |
