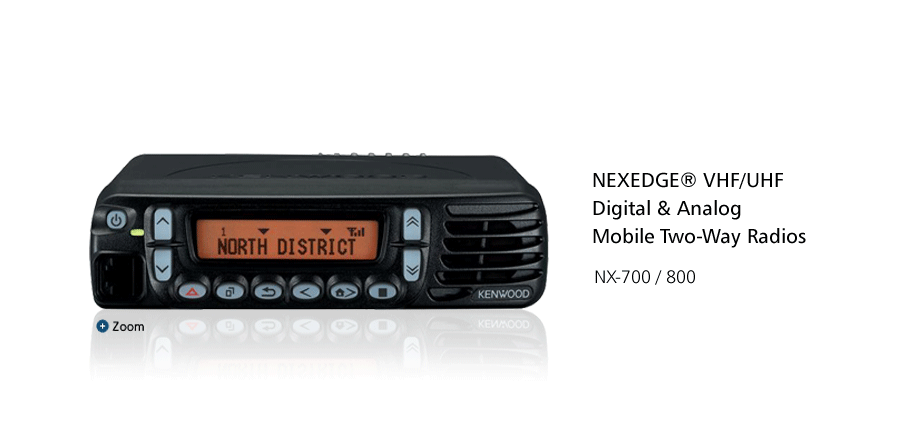

NX-700/800

NX-700/800

As smart in operation as they are in looks, these NX-700/800 radios feature everything necessary to take full advantage of both digital and analog operating modes. Mobile users will appreciate the large dot-matrix LCD, intuitive controls and multi-scan capabilities.

Features

- 30/50 W (136-174 MHz) Model
- 30/45 W (400/470, 450-520 MHz) Models
- 512-CH-GID / 128 Zones
- 14 Character Alphanumeric Aliases
- Dash & Remote Mount
- Programmable Function Keys
- Dual Priority Scan
- Emergengy/AUX Keys
- Enhanced KENWOOD Audio
- DB-25 Accessory Connector
- Cloning
- Voice inversion scrambler
- Front Panel Test & Tune
- Easy Option Port
- MIL-STD 810 C/D/E/F
- MIL-STD "Driven-Rain"
- FM Conventional & LTR Included
- NXDN Conventional Included
- Trunking Options Available
- FleetSync®/II digital signaling system includes PTT ID digital ANI (FM)
- Multi-Site IP Network Compatible
- MPT Option

General Features

MODELS
-  Model Type 1: 700 (136-174 MHz), 800 (450-520 MHz)
-  Model Type 2: 800 (400-470 MHz)
-  Model Type 3: -
-  RF Power Output: 30 W - 1 W
-  Channel/Zone Capability: 512 CH / 128 Zones
-  Mounting Options: Multiple Configurations
KEYS & SWITCHES
-  Up/Down Selectors: 4 Selectors
-  Front Keys: 6 PF Keys
-  AUX I/O's: 9 Programmable + 2 O
GENERAL FEATURES & PROGRAMMING
-  LCD: Backlit Dot Matrix LCD
-  3-Digit Sub-Display: Yes
-  Function/Status LCD Icons: Yes
-  Alphanumeric Aliases: 14 Character
-  Date, 12/24 Hour Clock: Yes
-  Transmit/Busy/Call Alert/Warn LED: Yes
-  Multi-Language Display: Yes
-  Ignition Sense: Yes
-  Public Address / Horn Alert Option: Yes
-  GPS Receiver Option: Yes
-  Dimensions (W x H x D): 6.30 x 1.77 x 6.18 in.
-  Weight (net) - Radio Only: 3.04 lbs.
-  MIL-STD: MIL-STD-810 C/D/E/F/G
-  800 MHz: -
-  KENWOOD LTR Features: Yes
DIGITAL
-  NXDN: Yes
-  P25: Optional
FleetSync®/II (FM)
-  FleetSync Capable: Yes
-  Caller ID Display: Yes
-  Short Text Messages: Yes
-  Status Messaging: Yes
