KAC-D3104
KAC-D3104

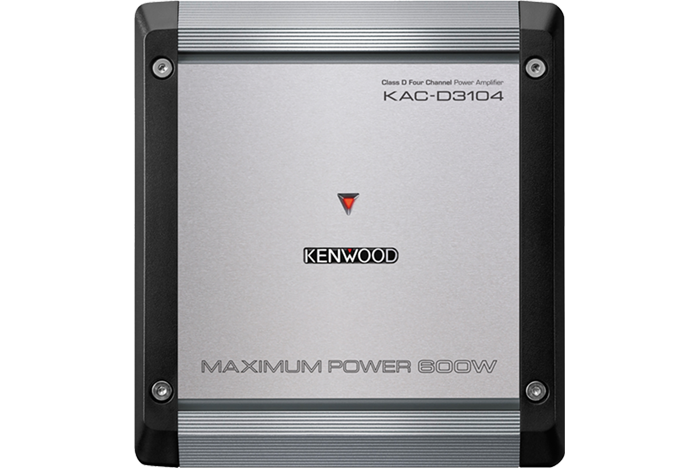

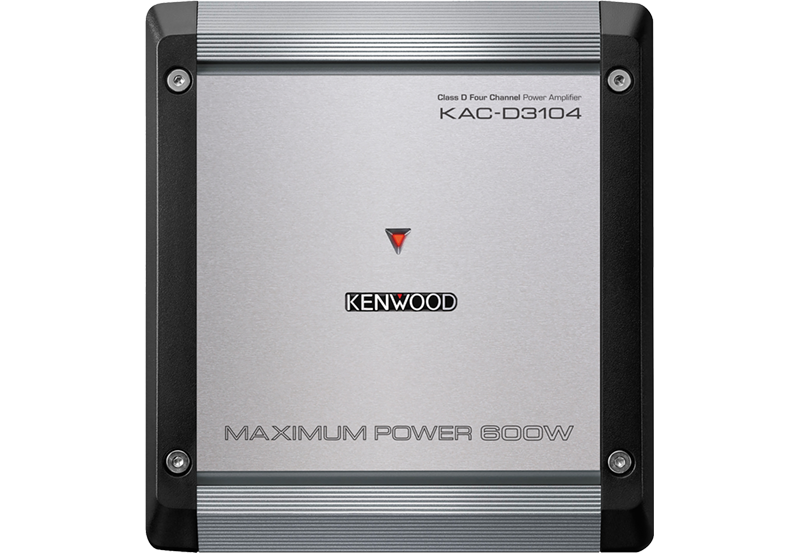

KAC-D3104Class D 4-Channel Power Amplifier

KAC-D3104
Zoom
  • Max Power 600W

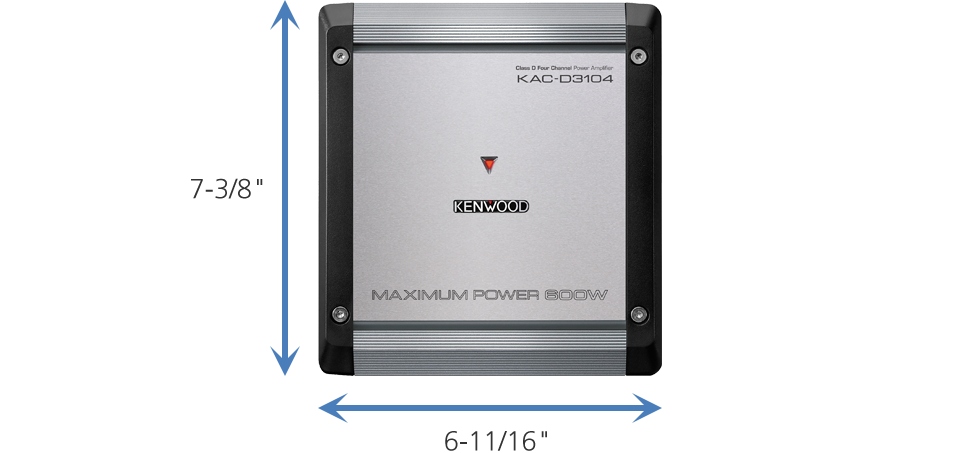

  • Size (inch) (W) 6-11/16" x (H) 2-3/16" x (D) 7-3/8"
  • Variable High & Low Pass Filter
  • Bass Boost

D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system.

Expanded Frequency Response

Supporting Hi-Res Audio, KAC-D3104 is ideal for high resolution audio playback as it features a frequency response that extends to 50kHz.

Dual Sigma Drive

This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.

Small Size Big Power

The KAC-D3104 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.

  • ① Fuse (20A x 2)
  • ② Battery Terminal (Power IN BATT.)
  • ③ Power Control Terminal (P.CON)
  • ④ Ground Terminal (GND)
  • ⑤ Speaker Output Terminals (A.ch / B.ch)
  • ⑥ Filter Frequency Control (A.ch / B.ch)
  • ⑦ Filter Switch (A.ch / B.ch)
    • ・HPF(High-Pass Filter ) Position
    • ・Off Position
    • ・LPF (Low-Pass Filter) Position
  • ⑧ Bass Boost Level Control (B.ch)
  • ⑨ Input Sensitivity Control (A.ch / B.ch)
  • ⑩ Line In Terminal (A.ch / B.ch)

General Features

KAC-D8105 KAC-D5101 KAC-D3104
MAX POWER 1600W 1000W 600W
RMS POWER OUTPUT (4Ω) 50W x 4 + 300W 300W 50W x 4
RMS POWER OUTPUT (2Ω) 75W x 4 + 500W 500W 75W x 4
RMS POWER OUTPUT Bridged 150W x 2 (Bridged) + 300W - 150W x 2 (Bridged)
Features Speaker Level Input Speaker Level Input Speaker Level Input
Signal Sensing Turn-On Signal Sensing Turn-On Signal Sensing Turn-On
Variable High Pass Filter Variable Low Pass Filter Variable High Pass Filter
Variable Low Pass Filter Bass Boost Variable Low Pass Filter
Bass Boost - Bass Boost
Dimensions (W)9” x (H)2-3/16” x (D)7-3/8”  (W)6-11/16” x (H)2-3/16” x (D)7-3/8”  (W)6-11/16” x (H)2-3/16” x (D)7-3/8”
Weight 4.5 lbs (2.0kg) 2.9 lbs ( 1.3kg) 2.9 lbs ( 1.3kg)
« scroll
CTA-2006 Primary Ratings Power Output 50 Watts RMS x 4 at 4 Ohms and ≤1%THD+N
Signal-to-Noise Ratio 80dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output MAX POWER 600W
Rated Power Output at 14.4V A/B (4 Ohms) 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
A/B (2 Ohms) 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
A/B (Bridged 4Ohms) 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications Signal to Noise Ratio 100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response 20Hz-50kHz (+0dB, -3dB)
Input Impedance 10k ohm
Speaker Impedance 4Ω (2Ω to 8Ω allowable)
Bridged Connection 4Ω to 8Ω allowable
Audio Section Low-Pass Filter 50Hz-200Hz, -12dB/oct (A/B)
High-Pass Filter 50Hz-200Hz, -12dB/oct (A/B)
Bass Boost 40Hz, 0dB - +18dB (Bch)
RCA Input Sensitivity 0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity 4.0[V] - 12.0 [V]
Terminals Battery & Ground M6 Screw Type Terminal Block
Speaker Output M4 Screw Type Terminal Block
General Dimensions(WxHxD) 6-11/16 x 2-3/16 x 7-3/8 [inch]
Operating Voltage 14.4V（11-16V allowable）
Current Consumption 25[A]
Key Features CTA-2006 Compliant
2 Ohms Load Capability
Speaker Level Input with Signal Sensing Turn-on
Power MOS-FET Switching Power Supply
Extruded Aluminum Heat Sink Design
