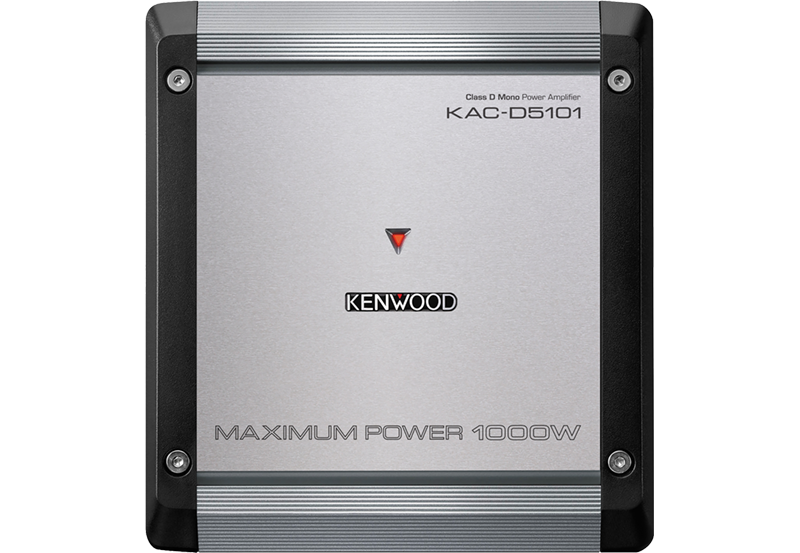

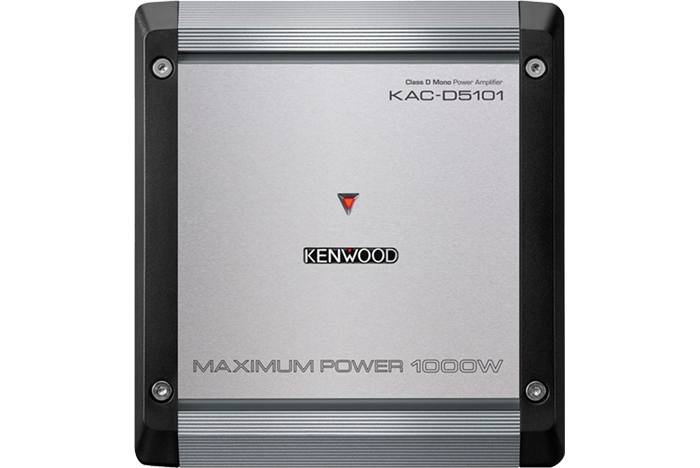

KAC-D5101Class D Mono Power Amplifier

Max Power 1000W
Size (inch) (W) 6-11/16" x (H) 2-3/16" x (D) 7-3/8"
Variable Low Pass Filter
Bass Boost

D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system.

Dual Sigma Drive

This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.

Small Size Big Power

The KAC-D5101 is small in size but with its tremendous sound output, it is extremely versatile. It can be installed in vehicles where space is limited and is perfect for vehicle owners who don't want to sacrifice cargo room or who prefer hidden installations.

① Fuse (30A x 2)
② Battery Terminal (Power IN BATT.)
③ Ground Terminal (GND)
④ Power Control Terminal (P.CON)
⑤ Speaker Output Terminals

⑥ LPF Frequency Control
⑦ Bass Boost Level Control
⑧ Input Sensitivity Control
⑨ Line In Terminal

General Features

	KAC-D8105	KAC-D5101	KAC-D3104
MAX POWER	1600W	1000W	600W
RMS POWER OUTPUT (4Ω)	50W x 4 + 300W	300W	50W x 4
RMS POWER OUTPUT (2Ω)	75W x 4 + 500W	500W	75W x 4
RMS POWER OUTPUT Bridged	150W x 2 (Bridged) + 300W	-	150W x 2 (Bridged)
Features	Speaker Level Input	Speaker Level Input	Speaker Level Input
	Signal Sensing Turn-On	Signal Sensing Turn-On	Signal Sensing Turn-On
	Variable High Pass Filter	Variable Low Pass Filter	Variable High Pass Filter
	Variable Low Pass Filter	Bass Boost	Variable Low Pass Filter
	Bass Boost	-	Bass Boost
Dimensions	(W)9” x (H)2-3/16” x (D)7-3/8”	(W)6-11/16” x (H)2-3/16” x (D)7-3/8”	(W)6-11/16” x (H)2-3/16” x (D)7-3/8”
Weight	4.5 lbs (2.0kg)	2.9 lbs ( 1.3kg)	2.9 lbs ( 1.3kg)

« scroll

CTA-2006-D Value	Maximum Dynamic Power	350W at 4ohms and ≤ 10% THD + N
	Continuous Power Output	300W at 4ohms and ≤ 1% THD + N
	Signal to Noise	83dBA reference 1 Watt RMS
Maximum Power Output	MAX POWER	1000W
Rated Power Output at 14.4V	SUB (4 Ohms)	300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
Rated Power Output at 14.4V	SUB (2 Ohms)	500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
Specifications	Signal to Noise Ratio	100dB (Reference: Rated Power into 4Ohms at 14.4V)
	Frequency Response	20Hz-200Hz (+0dB, -3dB)
	Input Impedance	10k ohm
	Speaker Impedance	4Ω (2Ω to 8Ω allowable)
	Bridged Connection	-
Audio Section	Low-Pass Filter	50Hz-200Hz, -24dB/oct
	High-Pass Filter	-
	Bass Boost	40Hz, 0dB - +18dB
	RCA Input Sensitivity	0.2[V] - 5.0 [V]
	Speaker Level Input Sensitivity	4.0[V] - 12.0 [V]
Terminals	Battery & Ground	M6 Screw Type Terminal Block
Terminals	Speaker Output	M4 Screw Type Terminal Block
General	Dimensions(WxHxD)	6-11/16 x 2-3/16 x 7-3/8 [inch]
	Operating Voltage	14.4V（11-16V allowable）
	Current Consumption	34 [A]
Key Features		CTA-2006 Compliant 2 Ohms Load Capability Speaker Level Input with Signal Sensing Turn-on Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design

Dual Sigma Drive

Small Size Big Power
