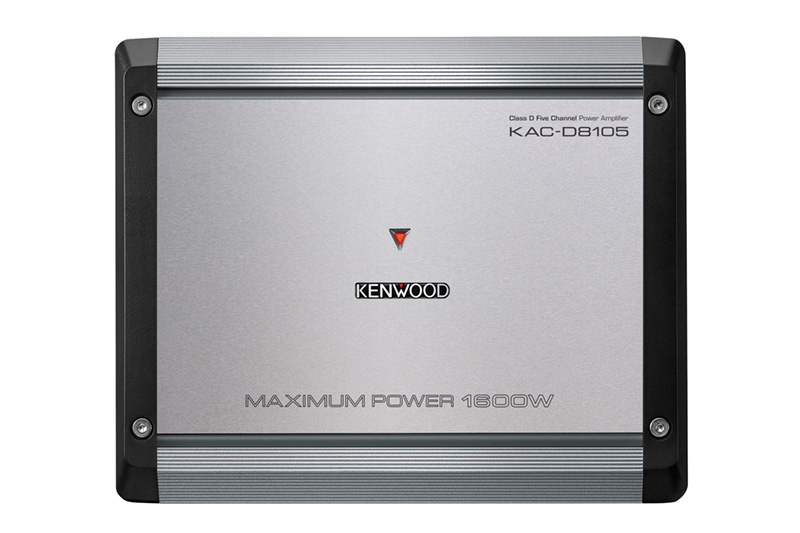

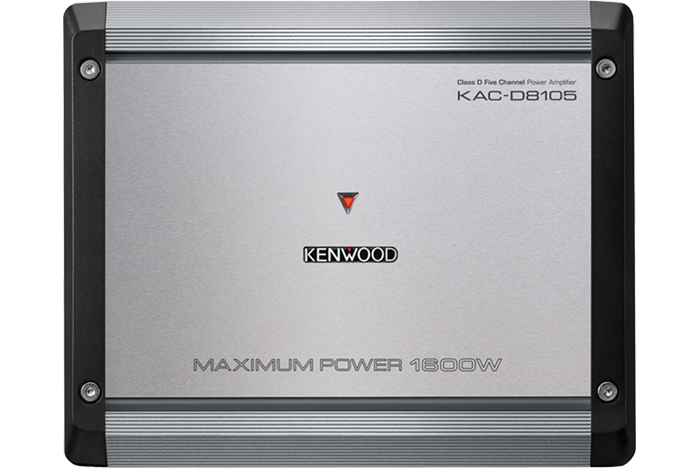

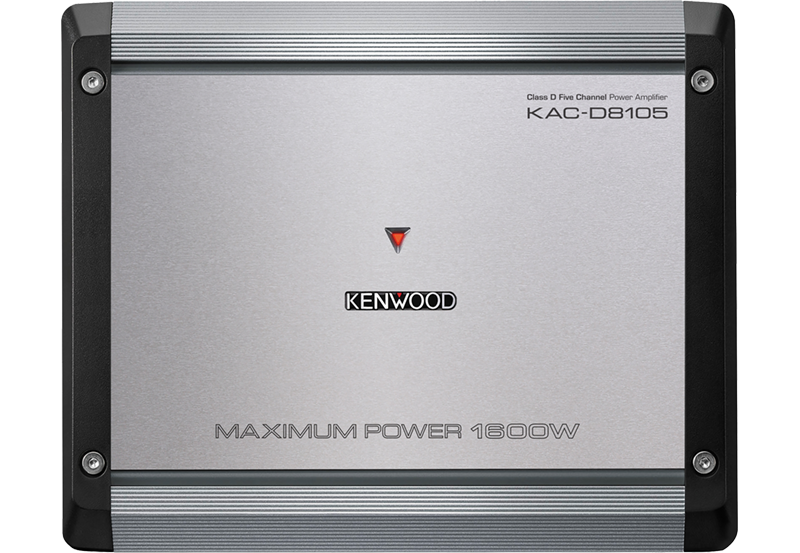

KAC-D8105Class D 5-Channel Power Amplifier
(Discontiuned)

Max Power 1600W
Size (inch) (W) 9" x (H) 2-3/16" x (D) 7-3/8"
Variable High & Low Pass Filter
Bass Boost

D Series Amplifiers provide a powerful solution in a compact design, ideal for upgrading your car audio system.

Expanded Frequency Response

Supporting Hi-Res Audio, KAC-D8015 is ideal for high resolution audio playback as it features a frequency response that extends to 50kHz.

Dual Sigma Drive

This advanced negative feedback circuit improves damping factor and increases accuracy and sound quality. When a signal is passed to a subwoofer, like a 50Hz note, the speaker will move and create the note. However, because the speaker has mass and a suspension, it won't stop moving once it's in motion. This extra movement (sound) creates a type of distortion that's not part of the original signal. The negative feedback circuit senses this unwanted movement and sends out an opposite pulse to stop the speaker like an electronic brake.

① Fuse (30A x 3)
② Battery Terminal (Power IN BATT.)
③ Power Control Terminal (P.CON)
④ Ground Terminal (GND)
⑤ Speaker Output Terminals (A.ch / B.ch)
⑥ Speaker Output Terminals (SUB)

⑦ HPF Frequency Control (A.ch / B.ch)
⑧ Filter Switch (A.ch / B.ch)
⑨ LPF Frequency Control (A.ch / B.ch)
⑩ Bass Boost Level Control (SUB)
⑪ Input Sensitivity Control (A.ch / B.ch / SUB)
⑫ Input Selector Switch
⑬ Line In Terminal

General Features

	KAC-D8105	KAC-D5101	KAC-D3104
MAX POWER	1600W	1000W	600W
RMS POWER OUTPUT (4Ω)	50W x 4 + 300W	300W	50W x 4
RMS POWER OUTPUT (2Ω)	75W x 4 + 500W	500W	75W x 4
RMS POWER OUTPUT Bridged	150W x 2 (Bridged) + 300W	-	150W x 2 (Bridged)
Features	Speaker Level Input	Speaker Level Input	Speaker Level Input
	Signal Sensing Turn-On	Signal Sensing Turn-On	Signal Sensing Turn-On
	Variable High Pass Filter	Variable Low Pass Filter	Variable High Pass Filter
	Variable Low Pass Filter	Bass Boost	Variable Low Pass Filter
	Bass Boost	-	Bass Boost
Dimensions	(W)9” x (H)2-3/16” x (D)7-3/8”	(W)6-11/16” x (H)2-3/16” x (D)7-3/8”	(W)6-11/16” x (H)2-3/16” x (D)7-3/8”
Weight	4.5 lbs (2.0kg)	2.9 lbs ( 1.3kg)	2.9 lbs ( 1.3kg)

« scroll

CTA-2006 Primary Ratings	Power Output	50 Watts RMS x 4 + 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
CTA-2006 Primary Ratings	Signal-to-Noise Ratio	80dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output	MAX POWER	1600W
Rated Power Output at 14.4V	A/B (4 Ohms)	50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
	A/B (2 Ohms)	75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
	SUB (4 Ohms)	300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
	SUB (2 Ohms)	500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
	A/B (Bridged 4Ohms)	150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications	Signal to Noise Ratio	100dB (Reference: Rated Power into 4Ohms at 14.4V)
	Frequency Response	20Hz-50kHz (+0dB, -3dB) A/B 20Hz-200Hz (+0dB, -3dB) SUB
	Input Impedance	10k ohm
	Speaker Impedance	4Ω (2Ω to 8Ω allowable)
	Bridged Connection	4Ω to 8Ω allowable
Audio Section	Low-Pass Filter	50Hz-200Hz, -24dB/oct (SUB)
	High-Pass Filter	50Hz-200Hz, -12dB/oct (A/B)
	Bass Boost	40Hz, 0dB - +18dB (SUB)
	RCA Input Sensitivity	0.2[V] - 5.0 [V]
	Speaker Level Input Sensitivity	4.0[V] - 12.0 [V]
Terminals	Battery & Ground	M6 Screw Type Terminal Block
Terminals	Speaker Output	M4 Screw Type Terminal Block
General	Dimensions(WxHxD)	9 x 2-3/16 x 7-3/8 [inch]
	Operating Voltage	14.4V（11-16V allowable）
	Current Consumption	58[A]
Key Features		CTA-2006 Compliant 2 Ohms Load Capability Speaker Level Input with Signal Sensing Turn-on Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design A B Sub Independent Gain Adjustment

Expanded Frequency Response

Dual Sigma Drive

General Features
