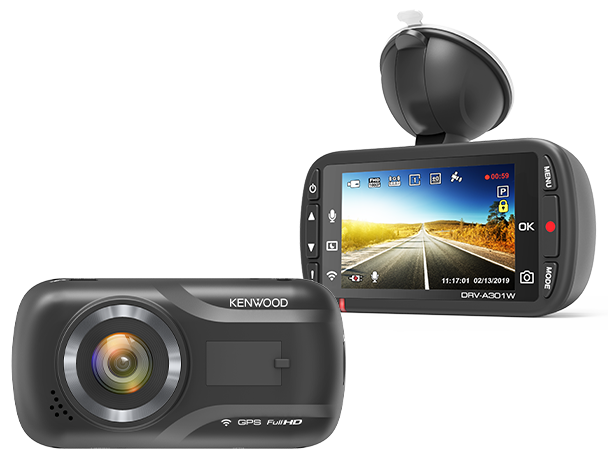

DRV-A301W

High Definition Recording & Wireless Link

 Camera is equipped with 2.0 Megapixel Full Hi-Vision recording and provides easy data transfer to your smartphone through Wireless Link.

  • DRV-A301W Zoom

    Dashboard Camera with Wireless Link

    DRV-A301W
    • 2 Megapixel Recording
    • HDR
    • 12V & 24V Compatible
    • Wireless Link
    • Built-in GPS
    • Built-in G-Sensor
    • Parking Mode Recording
    • 16GB microSD Included
    • Quick Release
    Features Icons

    *Parking Mode Recording requires optional CA-DR1030 power cable

2 Megapixel Recording

2 Megapixel Recording provides High Resolution Recording

2 Megapixel High Definition recording captures clear video even while driving.

full hivision
number plate

Capable of capturing a clear image of a license plate

HDR (High Dynamic Range) for Backlighting

Easily records clear images in dark or well lit settings without underexposing or overexposing the image.

without HDR
without HDR
with HDR
with HDR

Supports micro SDXC/SDHC

MicroSDXCME
  • microSDXC/SDHC card 8GB to 256GB supported.
  • SD Card Recorded File Capacity
  • 8GB Micro SD = 60 mins (1 minute x 60 recordings)
  • 16GB Micro SD = 120 mins (1 minute x 120 recordings)
  • 32GB Micro SD = 240 mins (1 minute x 240 recordings)
  • 64GB Micro SD = 480 mins (1 minute x 480 recordings)
  • 128GB Micro SD = 960 mins (1 minute x 960 recordings)
  • 256GB Micro SD = 1920 mins (1 minute x 1920 recordings)
  • *Based on default recording settings.

12V & 24V Compatible

truck
Cameras works with both 12V and 24V applications.

Enhanced Vehicle Monitoring & Protection

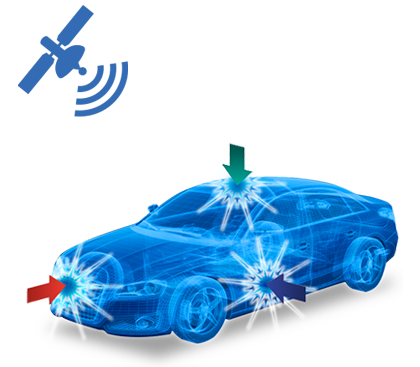

G-sensor & Built-in GPS

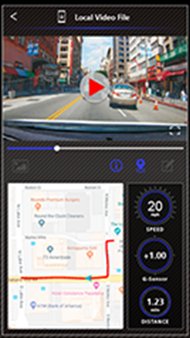

The DRV-A301W is equipped with a G-Sensor designed to detect a collision, and GPS that records speed, latitude, and longitude.
G-sensor

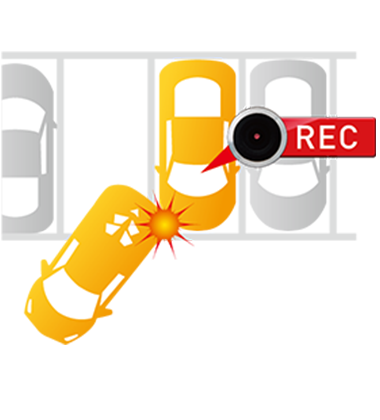

Parking Mode Recording

Parking Mode Recording

When the vehicle is parked and turned off, parking mode becomes active.  If the vehicle is subject to a collision or other physical impact, the cameras power on and automatically records 30 seconds of video.
PowerCable
*Parking Mode Recording requires optional CA-DR1030 power cable

Super Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.
SuperCapacitor

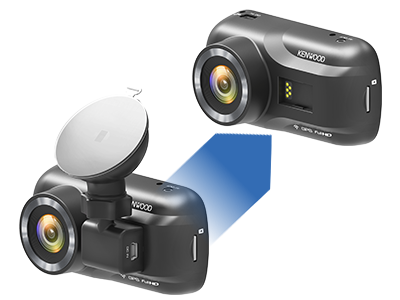

Quick Release

Magnetic Mount

Quickly place and remove the dash cam.
No cable to connect or disconnect from the dash cam.
Magnetic Mount

2 Mounts Included

3M Tape Style
3M Tape Style
Suction Cup Style
Suction Cup Style

page top

LinkedIn Instagram Facebook

LIVE CONNECTED. DRIVE CONNECTED.

DRV-A301W

« scroll
DRV-A501W
Hard Specification Screen size 2.7inches full color TFT
Operating voltage 5V / 2A; 12-24V DC
Current Consumption 380mA
Super Capacitor Yes
Button Tact
Wireless Link Yes
Microphone Built-in
Speaker Built-in
GPS Receiver Built-in
G-sensor Built-in
Collision sensitivity -4.0G to +4.0G (0.1G Step)
Image sensor 1/2.8 CMOS sensor
Valid Pixel 2.13M Pixels (1945x1097)
Number of Pixel 2M Pixels (1920x1080)
Angles of view Horizontal : 115° Vertical : 61° Diagonal :136°
Lens rotation -
Image reversal (Upside down) Yes
Lens F1.8
Polarization Filter No
Operating temperature -10℃ to +60℃
Noise Protection Yes
OSD Menu Language
Inmplemented languages EN/DE/FR/NL /IT/ES/PT/RU /PL/CZ/RO
Recording Specification Recording resolution 1920 x 1080 Full HD
Frame rate 30FPS
HDR Yes
WDR -
Recording Mode 1 / 3 / 5 min
Voice recording Yes(ON/OFF）
Video format H.264 / MPEG-4 AVC
Audio format Linear PCM
Picture format JPEG (Max.1920 x 1080)
Recording media microSDXC/SDHC card 8GB to 256GB Class10
Port DC-IN mini USB-B type
AV Out/HD Out MiniJack
CAM In -
SD Slot microSD
Size Dimensions WxHxD (Main unit) 92mm*46mm*37mm
Dimensions WxHxD (Bracket attached) 92mm*86mm*37.5mm
Weight　(Main unit) 82g
Bundled Accessory SD Card microSD 16GB (Class 10)
DC Cable Cigar Lighter Car Charger Adapter (12-24V, 4m)
Car Mount Bracket J Type Mount(Build-in GPS) Mounting Bracket (3M Tape & Suction Cup)
Manual /Warranty card Quick Start Guide
USB Cable Yes/110cm
Spare 3M Adhesive Pad Yes/2pcs
Cable Clips Yes/4pcs
Optional Accessory Hardwire Kit CA-DR1030
Application PC Viewer Windows/Mac
Requirement for Windows Windows 10, 8.1, 7
Requirement for Mac Mac OS X 10.11 (El Capitan) or later
Languages for PC Viewer EN/DE/FR/NL /IT/ES/PT/RU /PL/CZ/RO
Smartphone App Android/iOS
Requirement for Android Android 5.0.2 and above
Requirement for iOS iOS 9.0 and above
Languages for Smartphone App EN/DE/FR/NL /IT/ES/PT/RU /PL/CZ/RO
