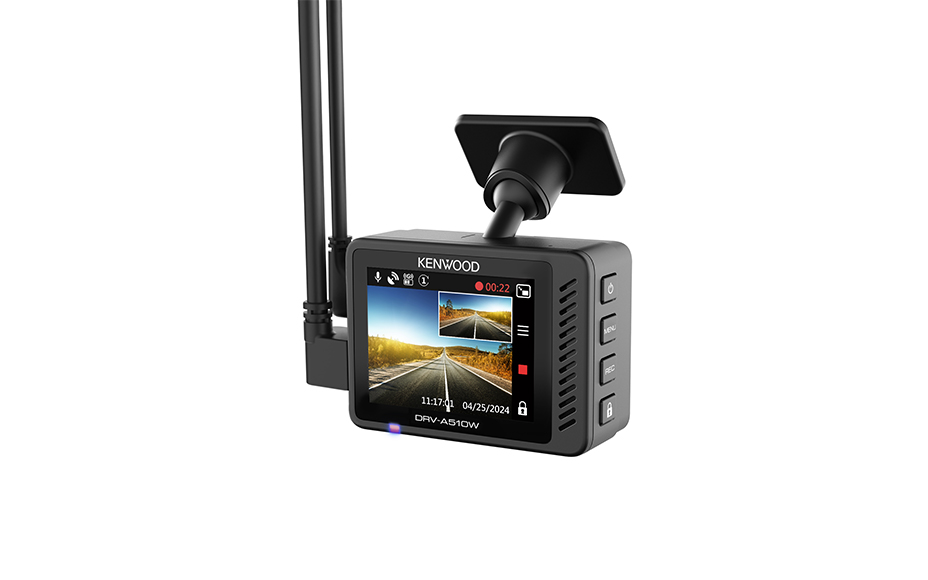

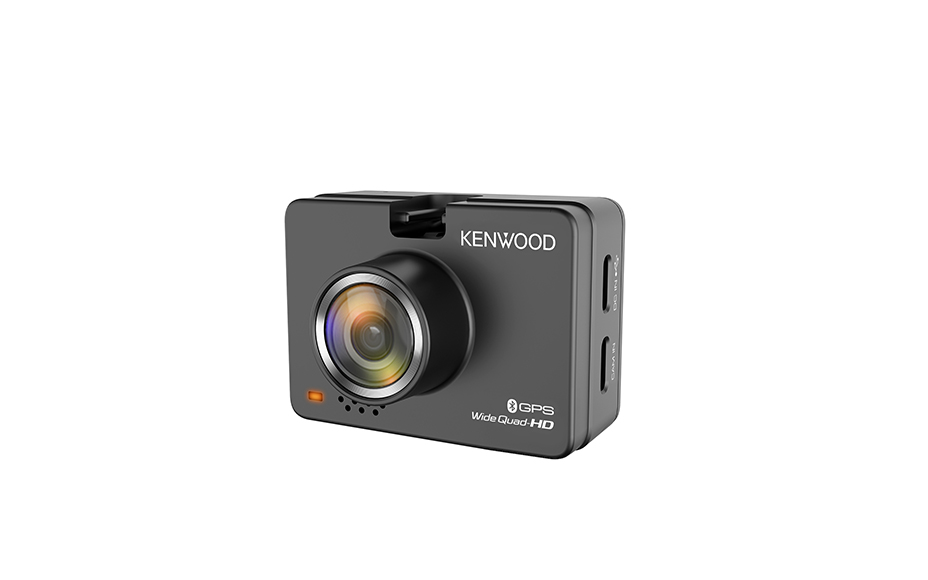

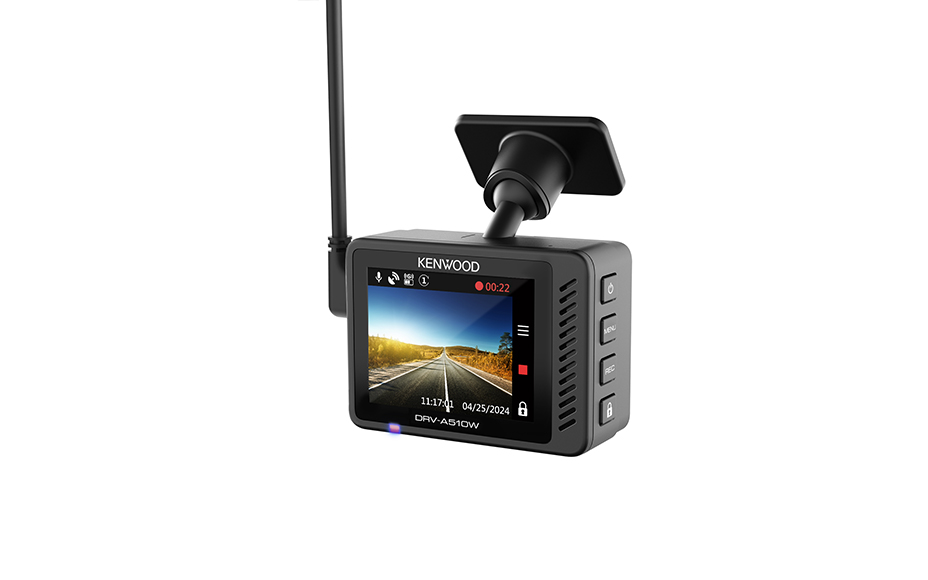

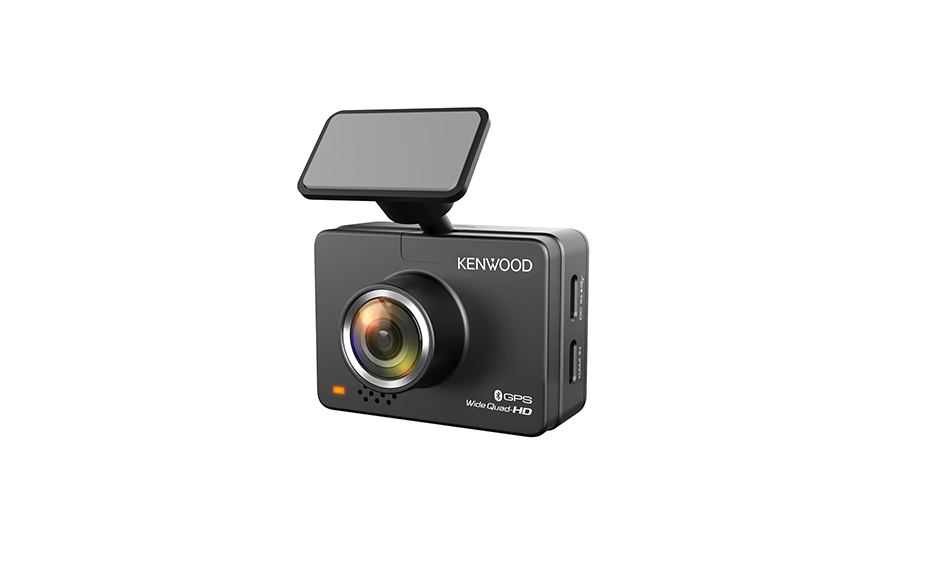

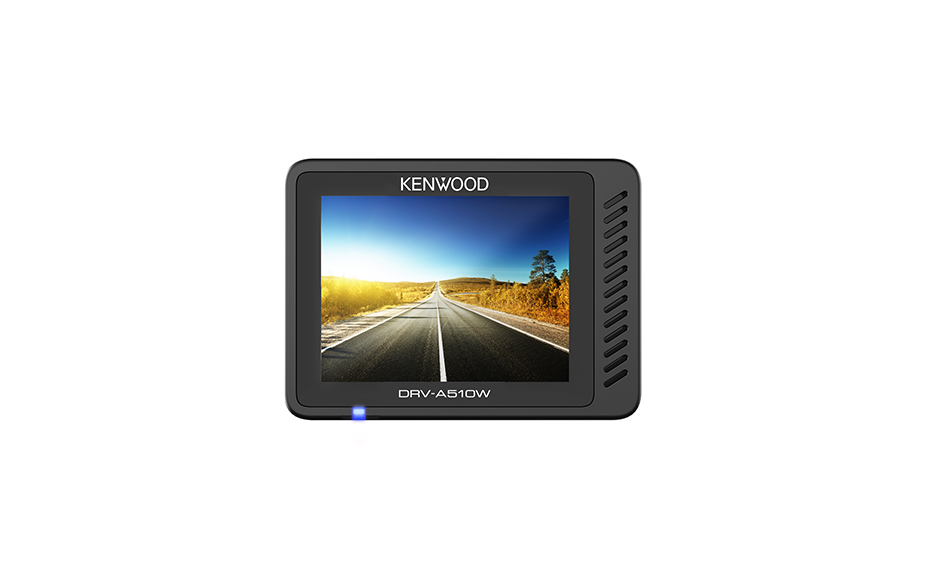

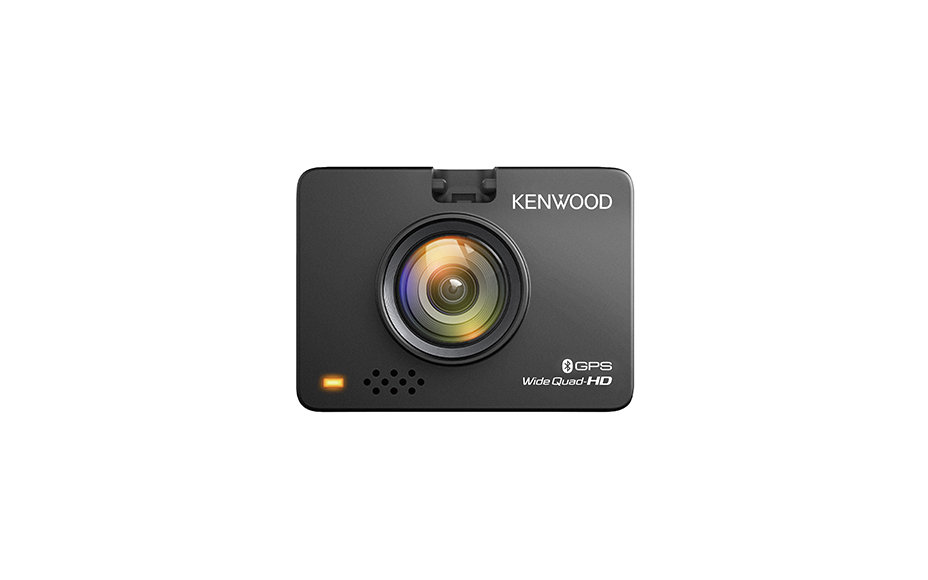

DRV-A510W

High Definition Recording & Wireless Link

Camera is equipped with 3.7 Megapixel Wide Quad Hi-Vision recording and provides easy data transfer to your smartphone through Wireless Link.

  • DRV-A510W Zoom

    GPS Integrated Dashboard Camera
    with Wireless Link

    DRV-A510W
    • 3.7 Megapixel Recording
    • 2.0" LCD Display
    • HDR
    • Wireless Link
    • Built-in G-Sensor & GPS
    • Parking Mode Recording*
    • Built-in Motion Sensor*
    • 12V & 24V Compatible
    • Optional Full HD Rear Cam
    Features Icons Features Icons

    *Parking Mode Recording & Mortion Detection Recording requires optional hardwire kit: CA-DR1130

3.7 Megapixel Recording

3.7 Megapixel Recording provides High Resolution Recording

3.7 Megapixel High Definition recording captures clear video even while driving.

Wide Quad HD
number plate

Capable of capturing a clear image of a license plate

Simulated Pictures

HDR (High Dynamic Range) for Backlighting

Easily records clear images in dark or well lit settings without underexposing or overexposing the image.

without HDR
without HDR
with HDR
with HDR
Simulated Pictures

Front & Rear View Recording

The DRV-A510W connects to the optional KCA-R110 rear camera, providing simultaneous recording in both the front and rear of your vehicle. The KCA-R110 includes a 26’ cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or outside of the vehicle where you would like to record.

 Front & Rear View Recording

Supports micro SDXC/SDHC

MicroSDXC TM
  • MicroSDXC/SDHC card 8GB to 256GB supported.
  • SD Card Recorded File Capacity
  • 32GB Micro SD = 190 mins of recording
  • 64GB Micro SD = 380 mins of recording
  • 128GB Micro SD = 760 mins of recording
  • 256GB Micro SD = 1560 mins of recording
  • *Based on default front recording settings.

12V & 24V Compatible

truck
Cameras works with both 12V and 24V applications.

Compact Design

Compact camera provides for a stealthy look and easier installation.

Enhanced Vehicle Monitoring & Protection

G-sensor & Built-in GPS

The DRV-A510W is equipped with a G-Sensor designed to detect a collision, and GPS that records speed, latitude, and longitude.
G-sensor

Parking Mode Recording

Parking Mode Recording

When the vehicle is parked and turned off, parking mode becomes active.If the vehicle is subject to a collision or other physical impact, the cameras power on and automatically record 30 seconds of video.
Optional CA-DR1130 Hardware kits requires for Parking Mode Recording.

Motion Detection Recording

In standby mode, if the device detects any moving objects, the camera will automatically record a 30-second video and then stop recording until there are no more moving objects.
Optional CA-DR1130 Hardware kits requires for Motion Detection Recording.
Motion Detection Recording
PowerCable
*Optional hardwire kit: CA-DR1130

Super Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.
SuperCapacitor

Other Features

Rear View Camera (Optional )

The Optional Full HD resolution rear camera KCA-R110 can be installed to DRV-A510W.
KCA-R110

page top

LIVE CONNECTED. DRIVE CONNECTED.

DRV-A510W

« scroll
Model Name   DRV-A510W
Hard specification Screen size 2 inches full color TFT
Operating voltage DC 5V
Current Consumption ~600mA
Super Capacitor Yes
Button Tact
Wireless Link Yes
Microphone Built-in
Speaker Built-in
GPS Receiver Built-in
G-sensor Built-in
Collision sensitivity -4.0G to +4.0G (0.1G Step)
Image sensor 1/2.8" Sony Starvis / IMX335
Valid Pixel 5.14M Pixels
(2616 x 1964)
Number of Pixel 3.7M Pixels
(2560 x 1440)
Angles of view Horizontal : 101.2°
Vertical : 73°
Diagonal : 136°
Image reversal Yes (Invert/Mirror)
Lens F1.8
Operating temperature -10℃ to +60℃
Noise Protection Yes
Motion sensor Yes
Waterproof -
OSD Menu Language Inmplemented languages EN/DE/FR/NL
/IT/ES/PT//PL/CZ/RO
Recording Specification Recording resolution 2560 x 1440 Quad HD
Frame rate 30FPS
HDR Yes
WDR Yes
Video Length 1min
Voice recording Yes (On/Off)
Video format H.265 / MP4
Audio Format AAC
Picture format JPEG
(Max. 2560 x 1440)
Recording media microSDXC/SDHC card
8GB to 256GB
Class10
UHS Speed Class 1 (U1)
UHS Speed Class 3 (U3)
Port DC-IN USB Type-C
CAM In USB Type-C
SD Slot Micro SD
Size Dimensions WxHxD (Bracket attached) 2-5/16" x 1-11/16" x 15/16"
(58.5mm × 42.8mm × 24.4mm)
Weight (Main unit) 0.154lbs (70g)
Bundled Accessory SD Card -
DC Cable 13.1ft (4m)
USB Cigar socket USB Type-A
Spare 3M Adhesive Pad Yes/2pcs
Cable Clips Yes/4pcs
Static Side Film Yes/1pcs
Manual /Warranty card Quick Start Guide
Caution & Certification
Warranty Card
(Instruction Manual on Web)
Optional Accessory Hardwire Kit CA-DR1130
Application PC Viewer Windows/Mac
Requirement for Windows Windows 11.10
Requirement for Mac Mac OS Monterey 12.0 later
Languages for PC Viewer EN/DE/FR/NL
/IT/ES/PT/PL/CZ/RO
Smartphone App Android/iOS
Requirement for Android Android 10.0.0 and above
Requirement for iOS iOS 15.0 and above
Languages for Smartphone App EN/DE/FR/NL
/IT/ES/PT/PL/CZ/RO
