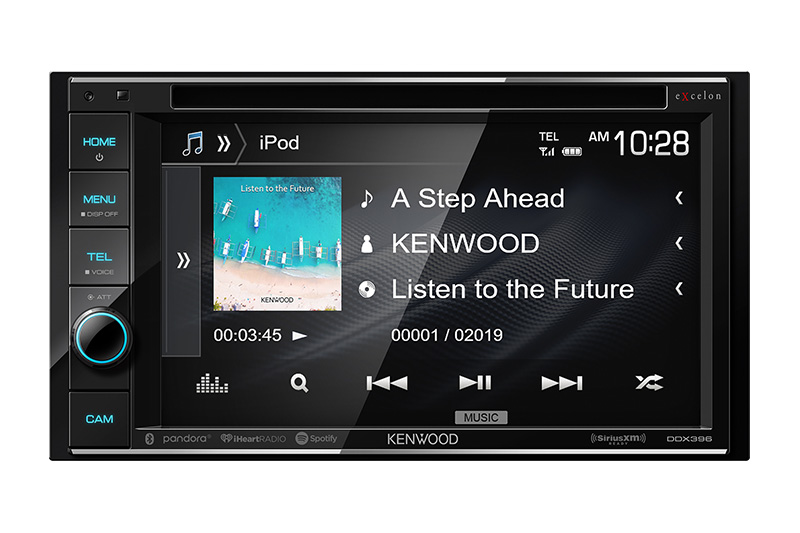

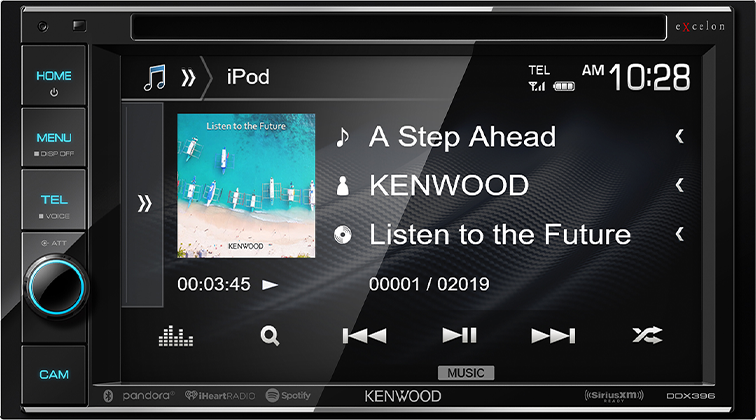

DDX3966.2” DVD Receiver with Bluetooth
Enjoy built-in Bluetooth for convenient access to hands-free calls
and streaming music, as well as the ability to use your
smartphone like a wireless remote control.
Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

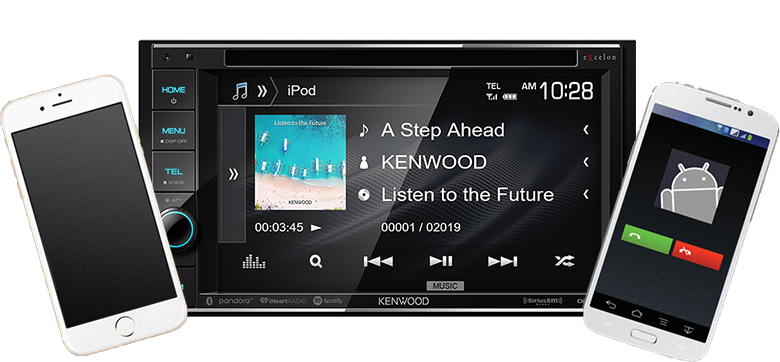

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Supporting AOA2, install the KENWOOD Music Play app and connect your smartphone to the receiver via USB, and control your music directly from the receiver.
Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 1.5A.
Search and select songs from your music collection through a Bluetooth connection.
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
Bright variable color LEDs can be adjusted to match any color dash lighting.
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Listen to popular music applications and music stored on your device with basic audio controls.
* Native music app control services like Spotify have now been discontinued by the service provider, so please select the Bluetooth audio source for music playback and basic control.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
| File format | High-Resolution Audio | Compression | Frequency |
|---|---|---|---|
| WAV | 〇 | - | 48kHz / 24bit 96kHz / 24bit |
| FLAC | 〇 | Lossless compression | |
| MP3 | - | Lossy compression | ～48kHz / ～16bit |
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
When an Automotive Data Solutions iDatalink Maestro RR is connected to a compatible KENWOOD receiver, it provides a seamless interface with factory infotainment features such as Satellite Radio, USB Media Player, Bluetooth hands-free and music streaming. Vehicle information such as HVAC, performance information, and TPMS can also be displayed.
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
| Monitor Section | ||
|---|---|---|
| Picture size | 6.2 inches(diagonal) wide | |
| W x H | 5-7/16 x 3-1/16 | |
| Display system | Transparent TN LCD panel | |
| Drive system | TFT active matrix system | |
| Number of pixels | 800H x 480V x RGB | |
| Pixel arrangement | RGB striped arrangement | |
| Back lighting | LED | |
| DVD Section | ||
| D/A Converter | 24Bit | |
| Audio Decoder | Linear PCM | |
| Dolby Audio | ||
| MP3/WMA/AAC(.m4a)/WAV | ||
| Video Decoder | MPEG1/MPEG2/JPEG | |
| Wow & Flutter | Below Measurable Limit | |
| Frequency response 96k Sampling | 20 - 22,000 Hz | |
| 48k Sampling | 20 - 22,000 Hz | |
| 44.1k Sampling | 20 - 20,000 Hz | |
| Total harmonic distortion 1kHz | 0.0001 | |
| Signal to Noise ratio | 90dB | |
| Dynamic range | 90dB | |
| DISC Format | DVD-Video/VIDEO-CD/CD-DA | |
| Sampling frequency | 44.1kHz/48kHz | |
| 96kHz | ||
| Quantifying bit number | 16/20/24bit | |
| USB I/F Section | ||
| USB Standard | USB2.0 Full Speed / High Speed | |
| Compatible Devices | Mass storage class | |
| File System | FAT 16/32 | |
| Maximum Power Supply Current | DC5V (DC logo) = 1.5A | |
| D/A Converter | 24bit | |
| Audio Decoder | MP3/WMA/AAC(.m4a/.aac)/WAV/FLAC | |
| Video Decoder | MPEG1/MPEG2/JPEG | |
| Bluetooth Section | ||
| Technology | Bluetooth V3.0 | |
| Frequency | 2.402 - 2.480 GHz | |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m (32.8ft) | |
| Audio Codec | SBC/AAC | |
| Profile | HFP(Hands Free Profile) 1.6 | |
| A2DP(Advanced Audio Distribution Profile) 1.3 | ||
| AVRCP(Audio/Video Remote Control Profile) 1.5 | ||
| GAP(Generic Access Profile) | ||
| PBAP(Phonebook Access Profile) 1.2 | ||
| SDP(Service Discovery Profile) | ||
| SPP(Serial Port Profile) 1.2 | ||
| FM | ||
| Frequency range | 87.9 MHz - 107.9 MHz | |
| (Frequency step) | (200 kHz) | |
| Usable sensitivity | 7.2 dBf | |
| S/N:30 dB | 0.63 μV / 75 Ohms | |
| Quieting sensitivity | 15.2 dBf | |
| S/N:50 dB | 1.58 μV / 75 Ohms | |
| Frequency response | 30 Hz - 15 kHz | |
| (±3.0 dB) | ||
| S/N (dB) | 68 dB(MONO) | |
| Selectivity | Over 80 dB(±400 kHz) | |
| Stereo separation | 40 dB(1 kHz) | |
| AM | ||
| Frequency range | 530 kHz - 1700 kHz | |
| (Frequency step) | (10 kHz) | |
| Usable sensitivity | 29 dBμ | |
| Video | ||
| Color system of external video input | NTSC/PAL | |
| External video input level (mini jack) | 1Vp-p / 75Ohms | |
| External audio max input level (mini jack) | 2V / 25kOhms | |
| Video Input level for Rear Camera (RCA jack) | 1Vp-p / 75Ohms | |
| Video Output level (RCA jacks) | 1Vp-p / 75Ohms | |
| Audio | ||
| Maximum Power (Front&Rear) | 50Wx4 | |
| Full Bandwidth Power (Front&Rear) | 22Wx4 | |
| (at less than 1%THD) | ||
| Preout level(V) | 5V / 10kOhms | |
| Preout Impedance(Ω) | =< 600 Ohms | |
| Speaker Impedance(Ω) | 4-8 Ohms | |
| Equalizer | ||
| BAND | 13Band | |
| Frequency(Hz) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | |
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 [dB] | |
| Q factor | 1.35/1.5/2.0 | |
| 2Way X'Over | ||
| Tweeter Frequency(Hz) | 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k | |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | |
| Front (HPF) Frequency(Hz) | Through/30/40/50/60/70/80/90/100/120/150/180/220/250 | |
| Slope | -6/-12/-18/-24 [dB/Oct.] | |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | |
| Rear (HPF) Frequency(Hz) | Through/30/40/50/60/70/80/90/100/120/150/180/220/250 | |
| Slope | -6/-12/-18/-24 [dB/Oct.] | |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | |
| SW (LPF) Frequency(Hz) | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through | |
| Slope | -6/-12/-18/-24 [dB/Oct.] | |
| Phase | Normal/Reverse | |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | |
| 3Way X'Over | ||
| Tweeter (HPF) Frequency(Hz) | 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k | |
| Slope | -6/-12 [dB/Oct.] | |
| Phase | Normal/Reverse | |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | |
| Mid Range (HPF) Frequency(Hz) | Through/30/40/50/60/70/80/90/100/120/150/180/220/250 | |
| Slope | -6/-12 [dB/Oct.] | |
| Mid Range (LPF) Frequency(Hz) | 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5kl/Through | |
| Slope | -6/-12 [dB/Oct.] | |
| Phase | Normal/Reverse | |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | |
| SW (LPF) Frequency(Hz) | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through | |
| Slope | -6/-12 [dB/Oct.] | |
| Phase | Normal/Reverse | |
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0 [dB] | |
| Position | ||
| 2Way: Front / Rear /Subwoofer Delay | 0 - 20.0ft (0.07ft Step) | |
| 3Way: Tweeter / Mid Range / SW Delay | 0 - 20.0ft (0.07ft Step) | |
| Gain | -8 to 0dB | |
| Subwoofer Level | -50 to +10dB | |
| General | ||
| Operating voltage | 12 V DC car battery | |
| Installation Dimensions WxHxD | 7 x 3-15/16 x 6-3/8 inch | |
| (with Sleeve) | 7-3/16 x 4-3/8 x 6-5/16 inch | |
| Weight Main unit | 4.4 lbs | |
| (Trimplate and sleeve : included) | ||
