DDX8906S
DDX8906S

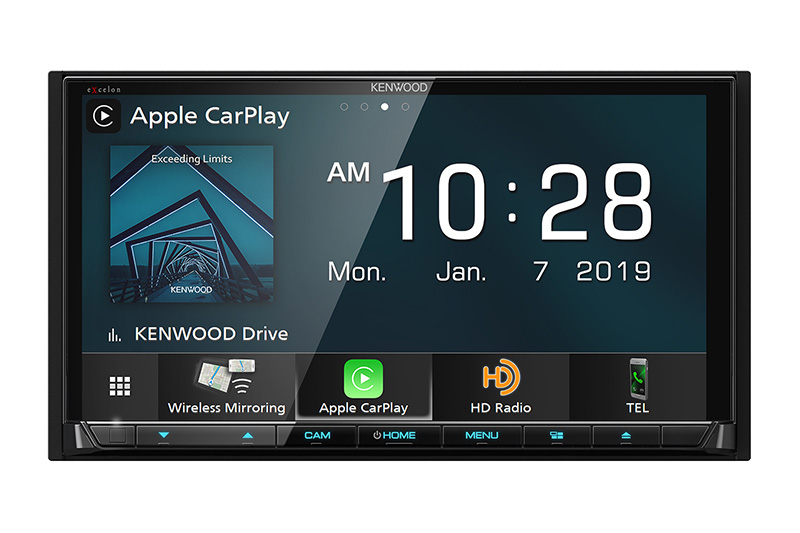

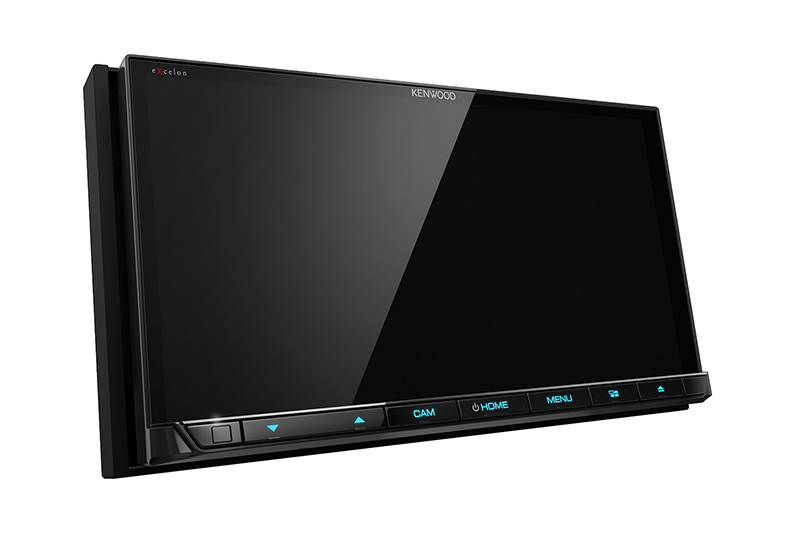

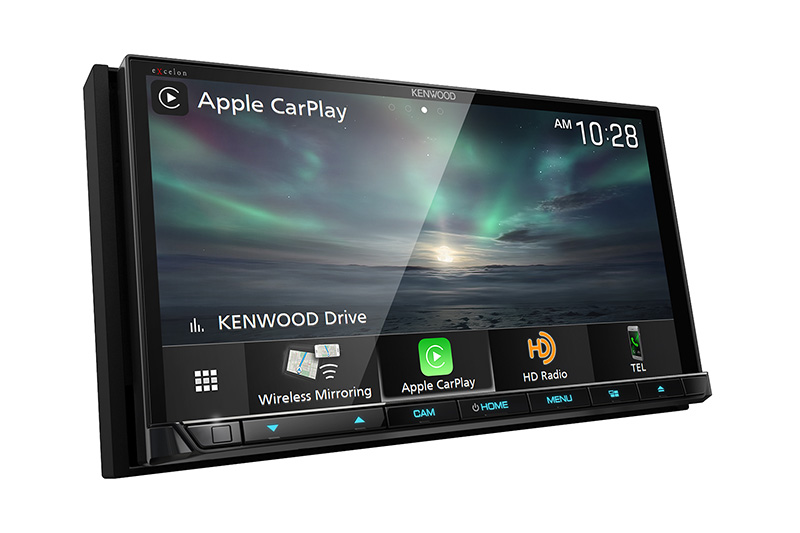

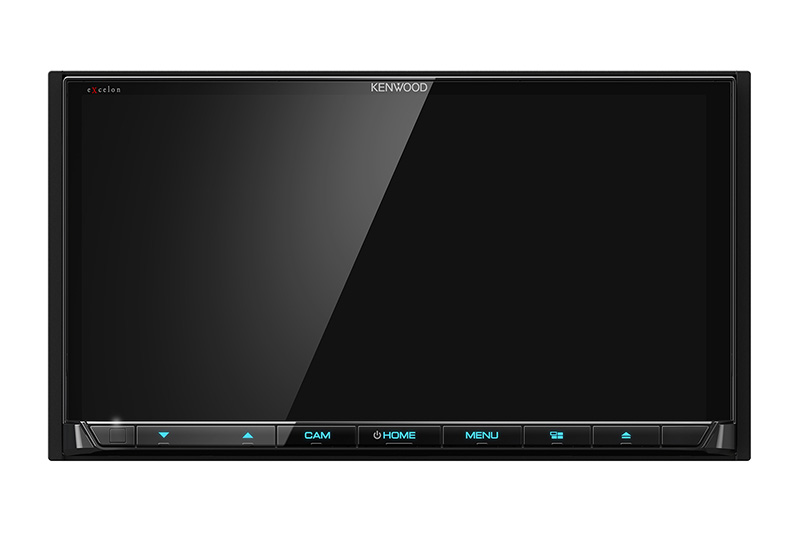

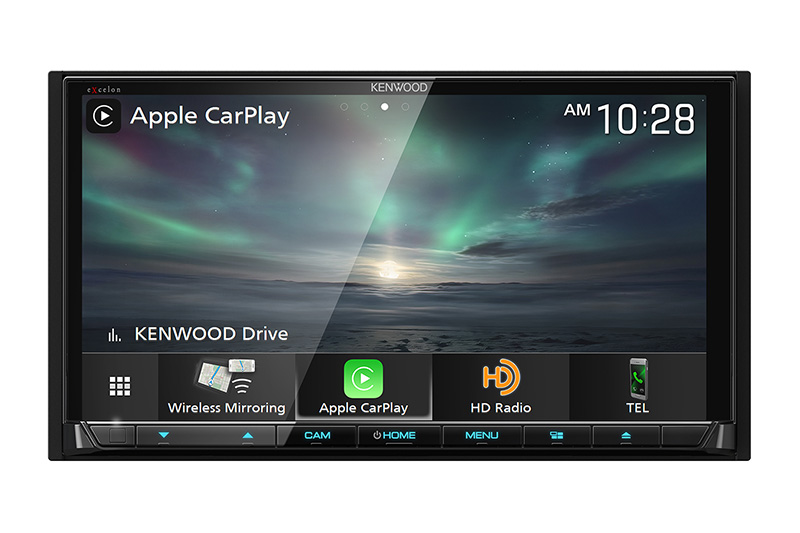

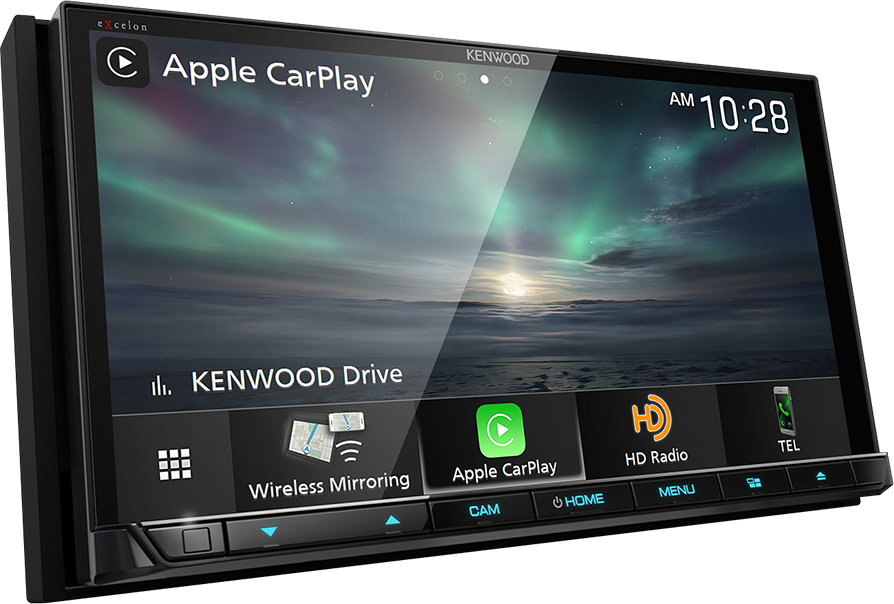

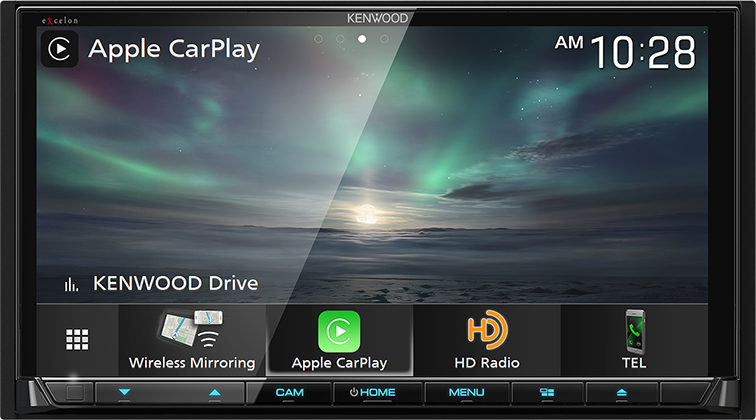

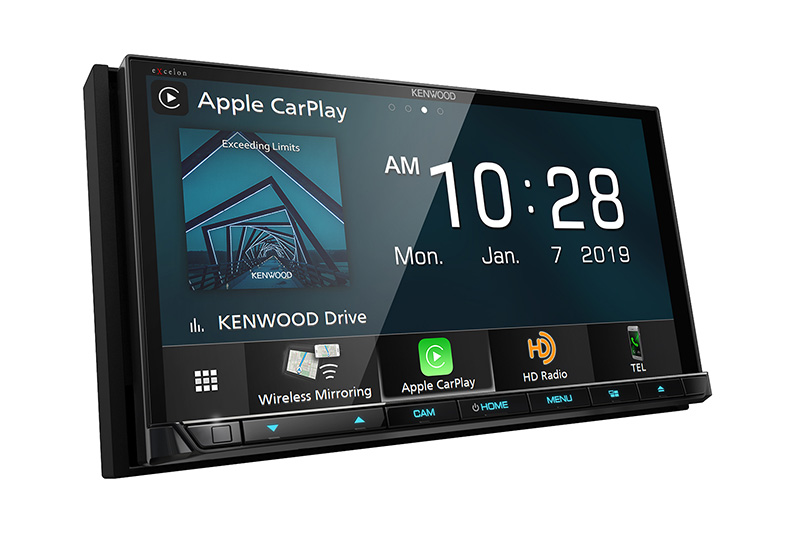

DDX8906SDVD Receiver with Bluetooth & HD Radio

  • 6.95" WVGA Monitor with Capacitive Touch Panel

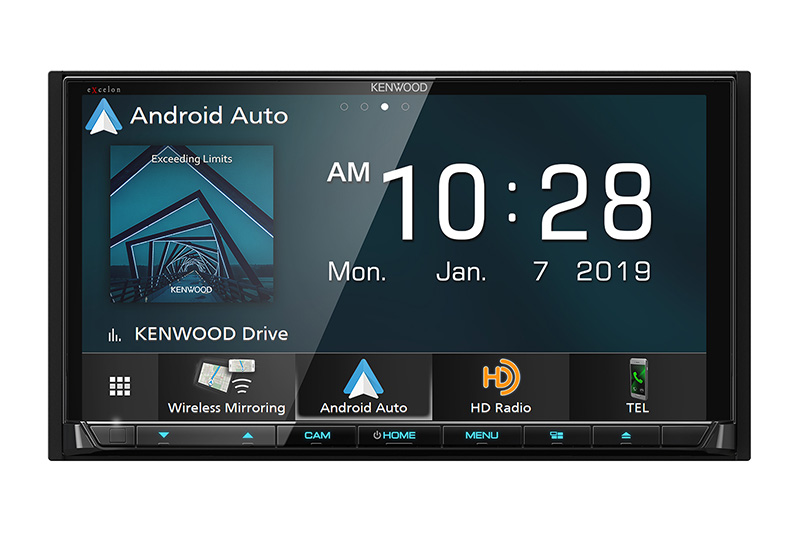

  • Android Auto™ & Android Auto™ Wireless Ready
  • Wired and Wireless Apple CarPlay™ Ready
  • High-Resolution Audio Ready
  • Wireless Mirroring for Android
  • Built-in Bluetooth, HD Radio & WiFi
  • Customizable Multi Widget Screen
  • 3 Preouts 5V

Features

Smartphone Connectivity

Enjoy built-in Bluetooth for convenient access to hands-free calls
and streaming music, as well as the ability to use your
smartphone like a wireless remote control.

Learn More

The Best Audio Experience

Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

Learn More

Safe Driving

Keeping you safe on the road ahead is our top priority.

Learn More

Additional Features

Learn about exciting product features and highlights.

Learn More

The above "referred" online retailers are authorized by KENWOOD.
They are listed here based upon meeting specific operational criteria and offer a very informative shopping experience,
along with exceptional customer service.

We want you to have the BEST product/support experience!

KENWOOD's manufacturer's warranty and any rebates offered by KENWOOD are not valid when purchased from an unauthorized dealer.
Buying from an unauthorized dealer also increases your risk of buying fake or counterfeit products.

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

  • Capacitive Touch Panel

    Clear glass display with swipe functionality provides superior picture and touch panel control.

  • Customizable Multi Widget

    Customize your Home Screen by selecting four shortcut/ information widgets. Widget options can include album art, clock, compass, photo frame, visualizer, and more.

  • Wireless Mirroring for Android

    Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.

  • Music Mix

    Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

  • Dual Phone Connection

    While you are connected through Bluetooth, with a touch of a button you can switch between two phones.

  • Remote App

    A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).

  • Wireless Music Browsing (AVRCP 1.5 / 1.6)

    Search and select songs from your music collection through a Bluetooth connection.

  • High Quality Sound Parts

    High quality sound parts (custom-made or carefully selected capacitor, gold plated preout, etc) are adopted to provide superior sound quality.

  • Graphic EQ / Digital Time Alignment

    13-Band equalizer and DTA gives optimal tuning enhancements for listeners.

  • FLAC Supported

    Compatible with various audio file formats from high-res FLAC and WAV, to MP3, WMA and AAC.

  • Dash Cam Ready

    Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.

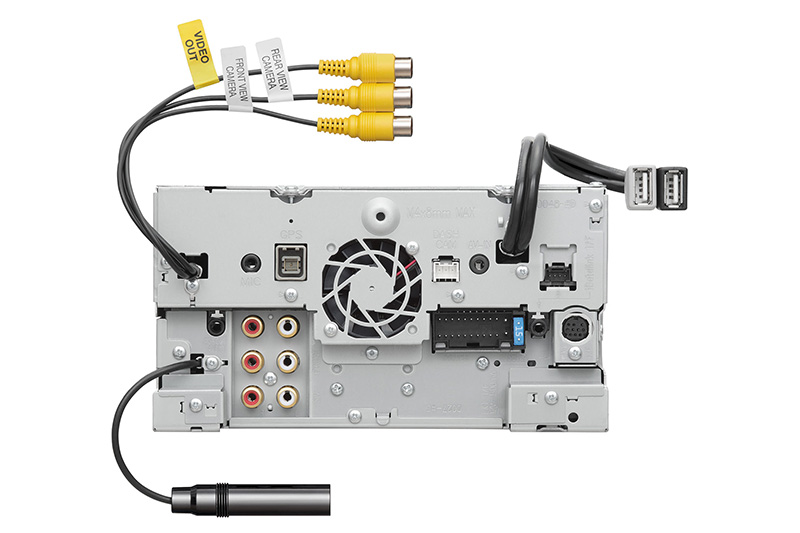

  • 3 Camera Inputs

    Optional camera connection method for up to 3 cameras in various configurations.

  • Parking Guide Lines

    Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.

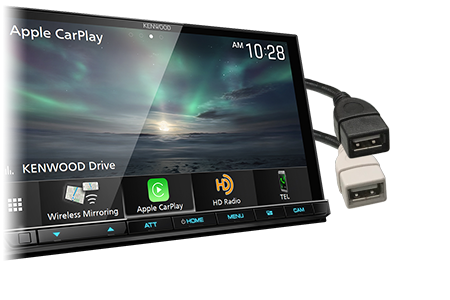

  • DUAL USB

    Multiple USB ports provide additional inputs for music sources or smartphone battery charging.

« scroll
Monitor Section
Picture size 6.95 inches(diagonal) wide
W x H 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16 inch
Display system TN LCD panel
Drive system TFT active matrix system
Number of pixels 1,152,000
800H x 480V x RGB
Effective pixels 99.99%
Pixel arrangement RGB striped arrangement
Back lighting LED
DVD Section
D/A Converter 24 / 32Bit
Audio Decoder Linear PCM
Dolby Audio
MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wow & Flutter Below Measurable Limit
Frequency response 96k Sampling 20 - 44,000 Hz
48k Sampling 20 - 22,000 Hz
44.1k Sampling 20 - 20,000 Hz
Total harmonic distortion 1kHz 0.010%
Signal to Noise ratio 90.5dB (DVD-Video 96k)
Dynamic range 89dB (DVD-Video 96k)
DISC Format DVD-Video / VIDEO-CD / CD-DA
Quantifying bit number 16 / 20 / 24bit
USB I/F Section
USB Standard USB2.0 High Speed
File System FAT 16/32, exFAT, NTFS
Maximum Power Supply Current DC5V=1.5A
D/A Converter 24/32Bit
Audio Decoder MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder MPEG1/2,MPEG4 / WMV / H.264 / MKV
Wireless Mirroring
Mode Sink
Copyright protection HDCP2.2
Touch Control UIBC
Wi-Fi
IEEE Standard 802.11 a/b/g/n/ac
Frequency Range Dual Band ( 2.4GHz / 5GHz )
Channels Auto(1-11ch)
Auto(149,153,157,161ch)
Transfer rates (MAX) 11a: 54 Mbps / 11b: 11 Mbps /
11g: 54 Mbps / 11n: 300 Mbps /
11ac: 867 Mbps
Output Power 2.4GHz/SISO 11b:14dBm±2dB / 11g:13dBm±2dB /
11n(20MHz):12dBm±2dB
Output Power 5GHz/SISO 11a:9dBm±2dB /
11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB /
11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB
Output Power 5GHz/MIMO 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB /
11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB
Bluetooth Section
Technology Bluetooth Ver5.0
Frequency 2.402 – 2.480 GHz
RF Output Power (E.I.R.P.) +4dBm (MAX), Power Class 2
Maximum Communication range Line of sight approx.10m(32.8ft)
Audio Codec SBC / AAC
Multi Profile Support Multi Profile
Profile HFP (V1.7) (Hands Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.6) (Audio/Video Remote Control Profile)
PBAP (Phonebook Access Profile)
DSP Section
Graphics equalizer BAND 13Band
frequency (Hz) (BAND1-13) 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X'Over HIGH PASS FILTER frequency Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE -6/-12/-18/-24[dB/Oct.]
3Way X'Over HIGH PASS FILTER frequency 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
SLOPE -12/-18/-24[dB/Oct.]
Band PASS FILTER frequency  Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
SLOPE -12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency 30/40/50/60/70/80/90/100/120/150/Through[Hz]
SLOPE -12/-18/-24[dB/Oct.]
Position Front / Rear /Subwoofer Delay 0 - 20.01ft (0.03or0.04ft Step)
Gain -8 to 0dB
Subwoofer Level -50 to +10dB
Digital FM
Frequency Range
(Frequency step)
87.9MHz - 107.9MHz
(200kHz)
Frequency Response
(±3.0 dB)
20Hz - 20kHz
S/N 80dB (STEREO)
Digital AM
Frequency Range
(Frequency step)
530kHz - 1700kHz
(10kHz)
Frequency Response
(±3.0 dB)
40Hz - 15kHz
S/N 80dB (STEREO)
FM
Frequency Range
(Frequency step)
87.9MHz - 107.9MHz
(200kHz)
Usable sensitivity 9.3dBf
S/N30dB 0.8μV/75Ω
Quieting sensitivity 10.2dBf
DIN S/N 46dB 1.13μV / 75Ohms
Frequency response
(±3.0dB)
30Hz - 15kHz
S/N (dB) 65dB (MONO)
Selectivity Over 80dB (±400kHz)
Stereo separation 45dB (1kHz)
AM
Frequency Range
(Frequency step)
530kHz - 1700kHz
(10kHz)
Usable sensitivity 28dBμ
Video
Color system of external video input NTSC/PAL
External video input level (Mini jacks) 1 Vp-p / 75 Ohms
External audio max input level (Mini jacks) 2 V / 25 kOhms
Video Input level (RCA jacks) 1 Vp-p / 75 Ohms
Video Output level (RCA jacks) 1 Vp-p / 75 Ohms
Audio Output level (Mini jacks) 0.9 V / 10 kOhms
Audio
Maximum Power Output (Front&Rear) 50Wx4
Typical Power Output (Front&Rear) Full Bandwidth Power
(at less than 1%THD)
22Wx4
Output frequency band 20 - 88,000Hz
Preout level (V) 5V / 10kOhms
Preout impedance (Ω) =< 300 Ohms
Speaker Impedance (Ω) 4-8 Ohms
General
Operating voltage 12V DC Car Battery
Maximum Current consumption 15A
Installation Dimensions  WxHxD 178mm x 100mm x 160mm
7 x 3-15/16 x 6-5/16 inch
(with Sleeve) 182mm x 112mm x 163mm
7-3/16 x 4-7/16 x 6-7/16 inch
Operational temperature range -10°C to +60°C
Weight Main unit 2.4 kg
5.3 lb
