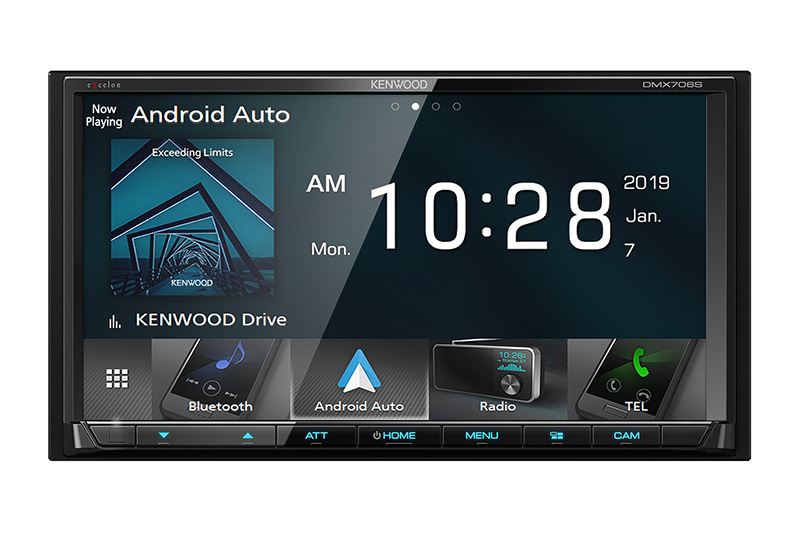

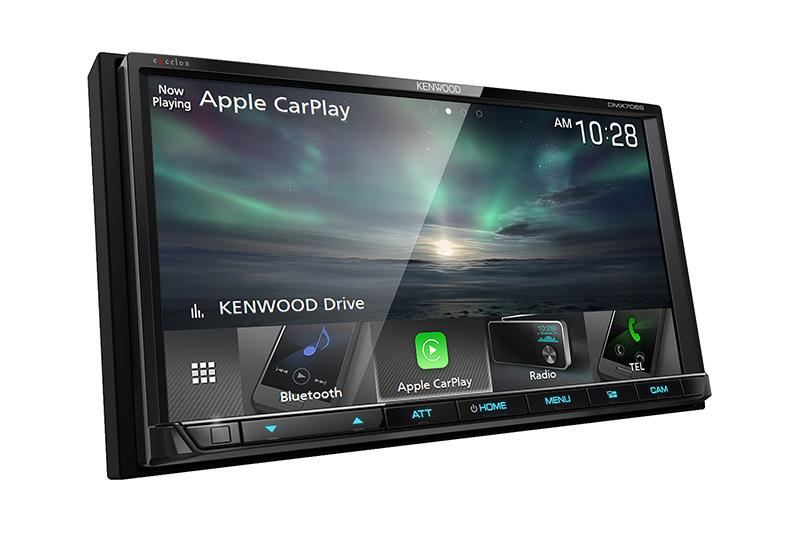

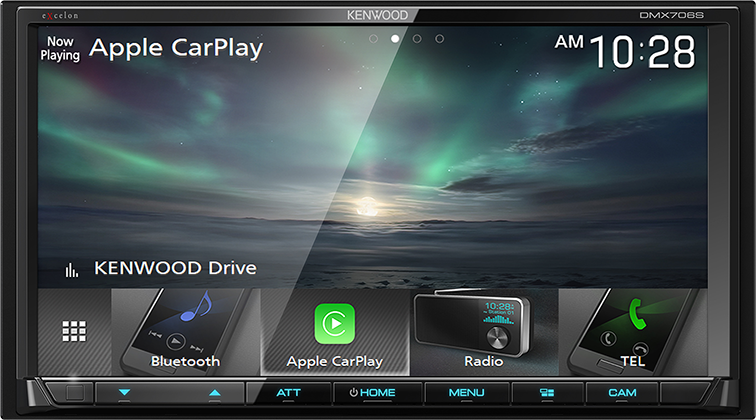

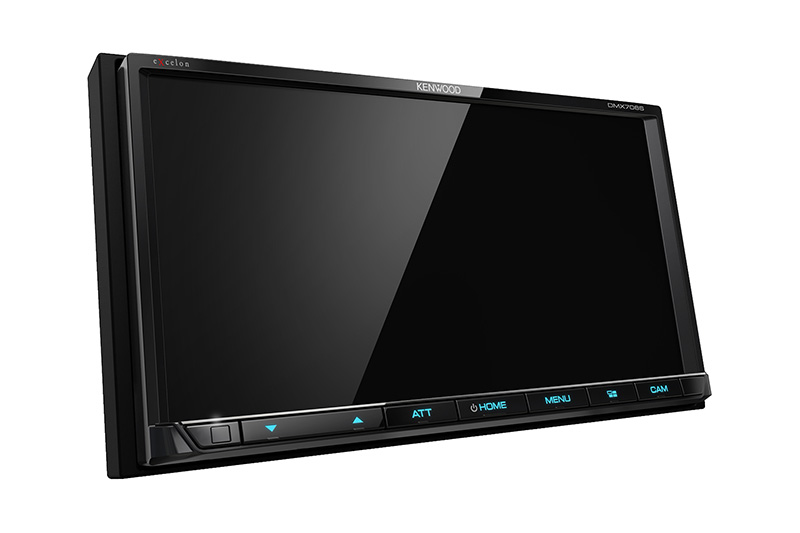

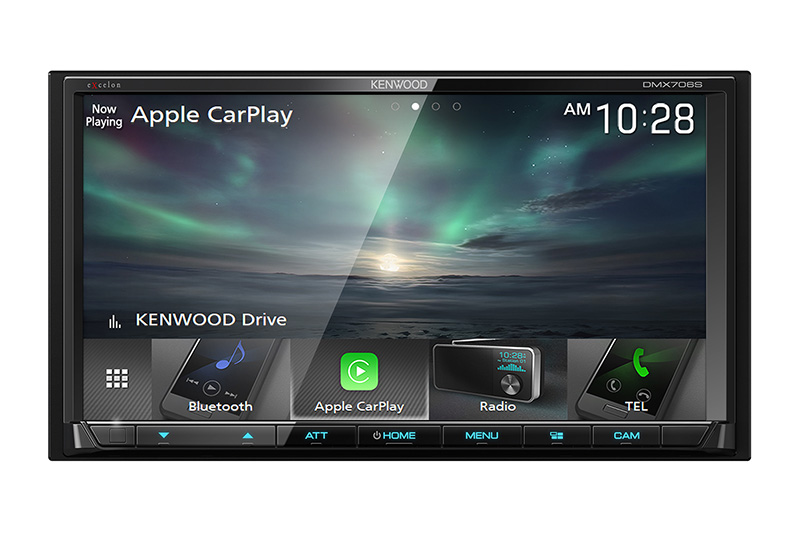

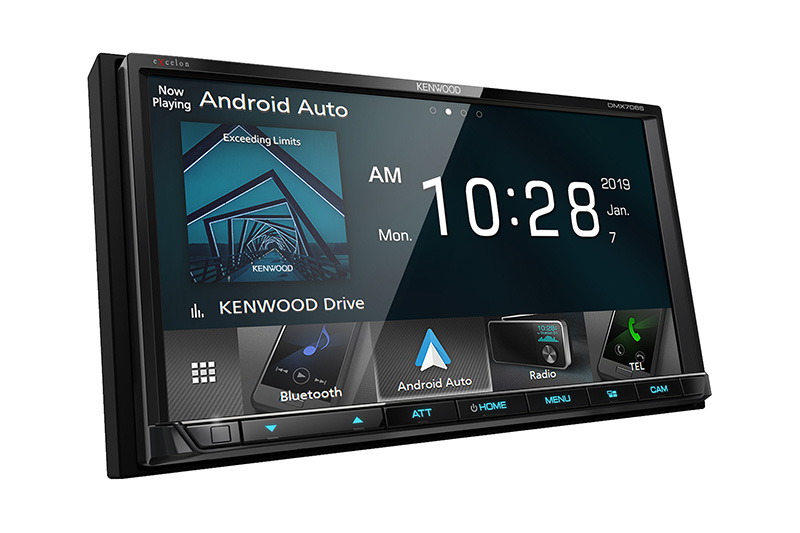

DMX706SDigital Multimedia Receiver with Bluetooth
Enjoy built-in Bluetooth for convenient access to hands-free calls
and streaming music, as well as the ability to use your
smartphone like a wireless remote control.
Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Search and select songs from your music collection through a Bluetooth connection.
High quality sound parts (custom-made or carefully selected capacitor, gold plated preout, etc) are adopted to provide superior sound quality.
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
Compatible with various audio file formats from high-res FLAC and WAV, to MP3, WMA and AAC.
Two camera inputs for front and rear cameras.
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver's display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.
Some features, applications, and services are not available in all areas.
For details, see:
https://www.apple.com/ios/feature-availability/#applecarplay-applecarplay
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD's multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. With the latest ANDROID OS version (PIE and higher), Google Maps™ and Waze™ are also supported.
Some Features, applications, and services are not available in all areas.
For details, see: https://www.android.com/auto
https://support.google.com/androidauto/answer/6348019?hl=en&ref_topic=6348027
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Listen to popular music applications and music stored on your device with basic audio controls.
* Native music app control services like Spotify have now been discontinued by the service provider, so please select the Bluetooth audio source for music playback and basic control.
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
To ensure the best possible sound quality, the receivers use custom-made and carefully selected parts, such as audio quality power supply capacitors, high quality coupling capacitors. These parts are further optimized through meticulous tuning of the component values and circuit paths.
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
| File format | High-Resolution Audio | Compression | Frequency |
|---|---|---|---|
| WAV | 〇 | - | ～192kHz / ～24bit |
| FLAC | 〇 | Lossless compression | |
| MP3 | - | Lossy compression | ～48kHz / ～16bit |
When an Automotive Data Solutions iDatalink Maestro RR is connected to a compatible KENWOOD receiver, it provides a seamless interface with factory infotainment features such as Satellite Radio, USB Media Player, Bluetooth hands-free and music streaming. Vehicle information such as HVAC, performance information, and TPMS can also be displayed.
Two camera inputs provide users the ability to add both a front and rear camera for enhanced driver safety and convenience. Built-in, adjustable parking guidelines further add to its effectiveness.
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
| Monitor Section | ||
|---|---|---|
| Picture size | 6.95 inches(diagonal) wide | |
| W x H | 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16 inch | |
| Display system | TN LCD panel | |
| Drive system | TFT active matrix system | |
| Number of pixels | 1,152,000 800H x 480V x RGB |
|
| Effective pixels | 99.99% | |
| Pixel arrangement | RGB striped arrangement | |
| Back lighting | LED | |
| USB I/F Section | ||
| USB Standard | USB2.0 High Speed | |
| File System | FAT 16/32, exFAT, NTFS | |
| Maximum Power Supply Current | DC5V=1.5A | |
| D/A Converter | 24/32Bit | |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis | |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | |
| Frequency response | 192k Sampling | 20 - 88,000 Hz |
| 96k Sampling | 20 - 44,000 Hz | |
| 48k Sampling | 20 - 22,000 Hz | |
| 44.1k Sampling | 20 - 20,000 Hz | |
| Total harmonic distortion 1kHz | 0.0001% | |
| Signal to Noise ratio | 98.5dB | |
| Dynamic range | 89dB | |
| Bluetooth Section | ||
| Technology | Bluetooth Ver4.1 | |
| Frequency | 2.402 – 2.480 GHz | |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Audio Codec | SBC / AAC | |
| Multi Profile Support | Multi Profile | |
| Profile | HFP (V1.7) (Hands Free Profile) SPP (Serial Port Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (V1.6) (Audio/Video Remote Control Profile) PBAP (Phonebook Access Profile) |
|
| DSP Section | ||
| Graphics equalizer | BAND | 13Band |
| frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | |
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] | |
| 2Way X'Over | HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] |
| SLOPE | -6/-12/-18/-24[dB/Oct.] | |
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] | |
| SLOPE | -6/-12/-18/-24[dB/Oct.] | |
| 3Way X'Over | HIGH PASS FILTER frequency | 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k |
| SLOPE | -12/-18/-24[dB/Oct.] | |
| Band PASS FILTER frequency | Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz] 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through |
|
| SLOPE | -12/-18/-24[dB/Oct.] | |
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/Through[Hz] | |
| SLOPE | -12/-18/-24[dB/Oct.] | |
| Position | Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) |
| Gain | -8 to 0dB | |
| Subwoofer Level | -50 to +10dB | |
| FM | ||
| Frequency Range (Frequency step) |
87.9MHz - 107.9MHz (200kHz) |
|
| Usable sensitivity | 9.3dBf | |
| S/N30dB | 0.8μV/75Ω | |
| Quieting sensitivity | 10.2dBf | |
| DIN S/N 46dB | 1.13μV / 75Ohms | |
| Frequency response (±3.0dB) |
30Hz - 15kHz | |
| S/N (dB) | 75dB (MONO) | |
| Selectivity | Over 80dB (±400kHz) | |
| Stereo separation | 45dB (1kHz) | |
| AM | ||
| Frequency Range (Frequency step) |
530kHz - 1700kHz (10kHz) |
|
| Usable sensitivity | 28dBμ | |
| Video | ||
| Color system of external video input | NTSC/PAL | |
| External video input level (Mini jacks) | 1 Vp-p / 75 Ohms | |
| External audio max input level (Mini jacks) | 2 V / 25 kOhms | |
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms | |
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms | |
| Audio Output level (Mini jacks) | 1.2 V / 10 kOhms | |
| Audio | ||
| Maximum Power Output (Front&Rear) | 50Wx4 | |
| Typical Power Output (Front&Rear) | Full Bandwidth Power (at less than 1%THD) 22Wx4 |
|
| Output frequency band | 20 - 88,000Hz | |
| Preout level (V) | 4V / 10kOhms | |
| Preout impedance (Ω) | =< 600 Ohms | |
| Speaker Impedance (Ω) | 4-8 Ohms | |
| General | ||
| Operating voltage | 12V DC Car Battery | |
| Maximum Current consumption | 10A | |
| Installation Dimensions WxHxD | 178mm x 100mm x 75mm 7 x 3-15/16 x 2-15/16 inch |
|
| (with Sleeve) | 182mm x 112mm x 73mm 7-3/16 x 4-7/16 x 2-7/8 inch |
|
| Operational temperature range | -10°C to +60°C | |
| Weight | Main unit | 1.1 kg 2.4 lb |
