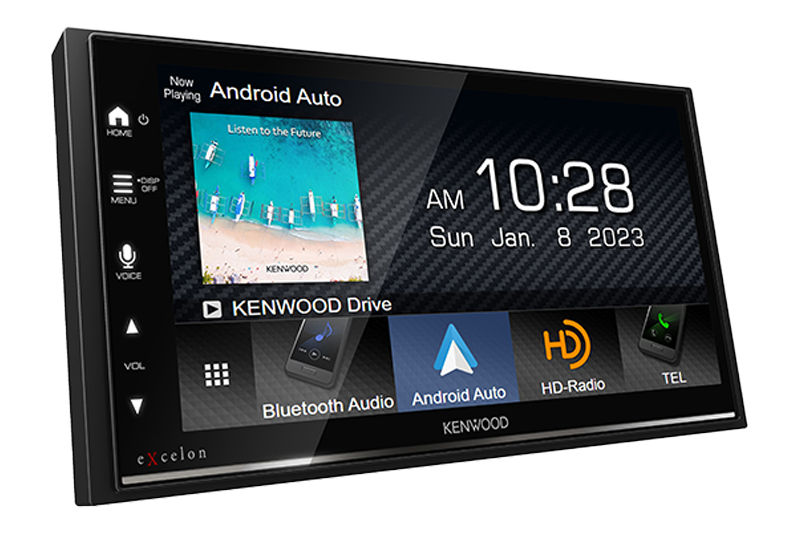

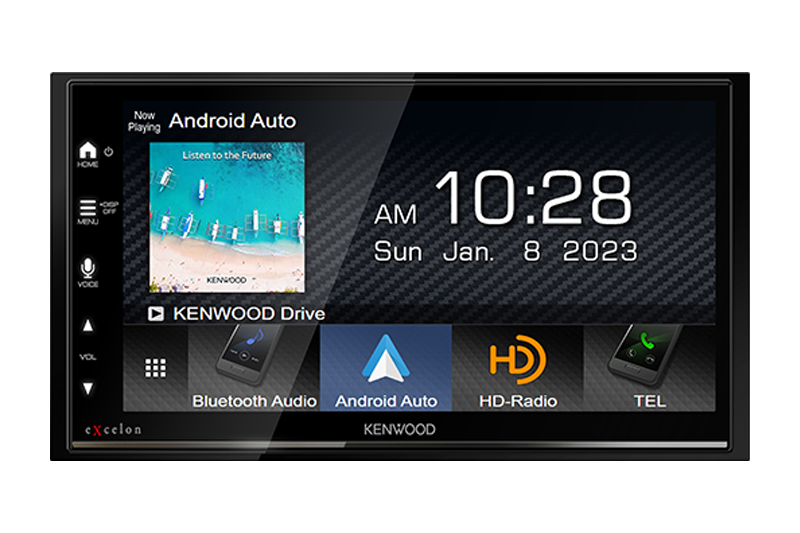

DMX709SMonitor with Receiver
6.8" Digital Multimedia Receiver

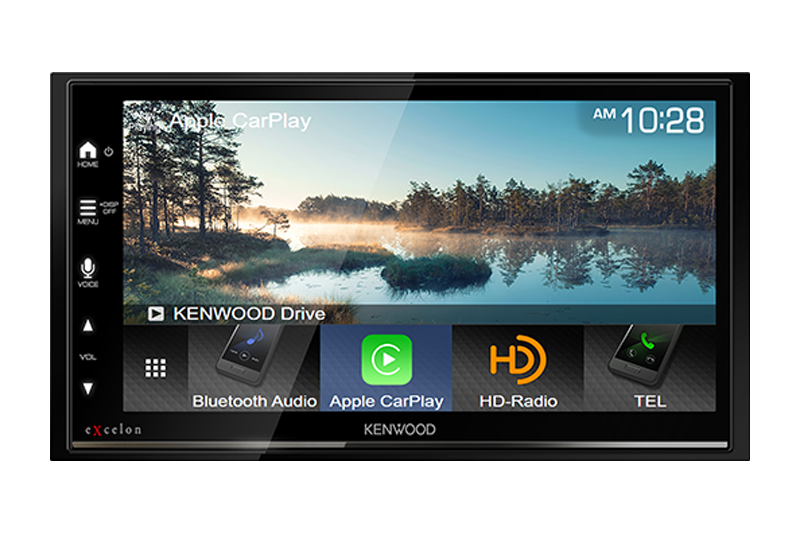

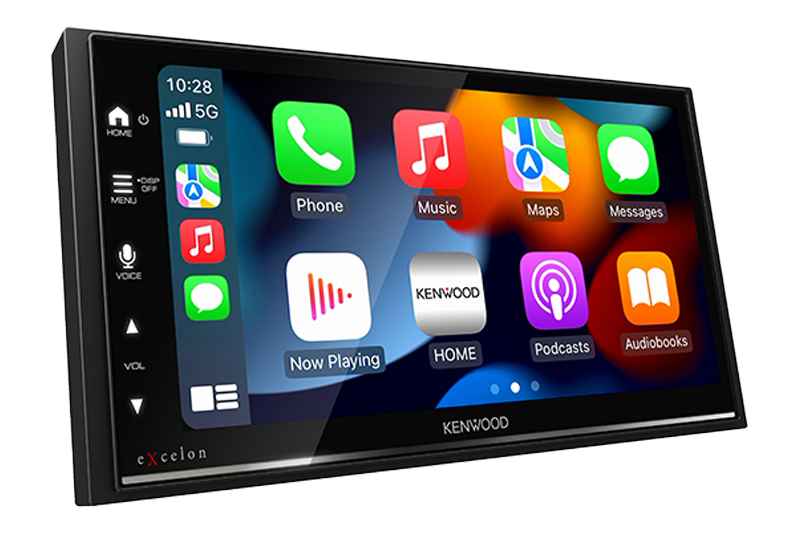

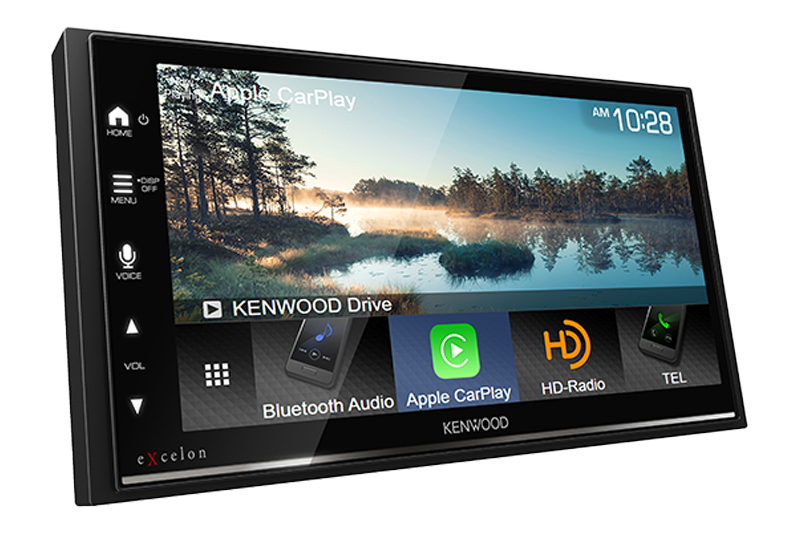

Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze.
- To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 6.0 or higher, and the Android Auto app.
Allows you to display and control your Android smartphone on the screen of the receiver.
You can enjoy your favorite apps on a large display and with impressive sound quality.
Before starting, just install the free app “Mirroring OA for KENWOOD” on your smartphone and connect it to
KENWOOD receiver via a USB cable and Bluetooth.
Mirroring for KENWOOD App
For more information, visit here.
Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the monitor. KCA-HD200 optional HDMI cable sold separately.
Listen to popular music applications and music stored on your device with basic audio controls.
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
You can play back from USB devices audio and video files compressed in various formats.
| Video Codec | Playable up to |
|---|---|
| MPEG4 | 1920 × 1080p |
| H.264 | 1920 × 1080p |
| MKV | 1920 × 1080p |
| WMV | 1920 × 1080p |
| Music Codec | Playable up to |
|---|---|
| FLAC | ～192kHz / ～24bit |
| WAV | ～192kHz / ～24bit |
Enhance your vehicle integration with the iDatalink Maestro RR/RR2 (sold separately). This system allows you to retain your factory steering wheel audio controls, factory amplifier, and secondary displays. Additionally, it can display crucial vehicle information, such as performance data, climate controls, and battery voltage, when connected to compatible vehicles. For added convenience, radar detector information can be shown on the screen when paired with a compatible K40 radar detector system (sold separately). With the iDatalink Maestro RR2, you can also integrate an Escort radar detector system (sold separately) for a seamless driving experience.
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
To enable a smarter driving experience, receivers featuring 3 camera inputs allow for the utmost in convenience, flexibility, and safety. With 3 camera inputs, you can connect a front camera, a rear camera and a third camera which can be used for trailers or caravans. Alternatively, 3 camera inputs support several other configurations, including the connection of 2 blind spot cameras and a reverse camera. Camera switching is available using on screen controls and manual switchers. A KENWOOD CA-C3AV Video AV Input cable (sold separately) is required to use the 3rd camera input.
Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.
Only 2-15/16" (75mm) of depth for more flexible installation.
This receiver unit can be operated using the optional remote control KCA-RCDV340.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
Clear glass display with swipe functionality that provides superior picture and touch panel control.
Solution for seamlessly displaying and controlling your smartphone apps on a screen via a USB connection on select Android devices.
Optional camera connection method for up to 3 cameras in various configurations.
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
Bright variable color LEDs can be adjusted to match any
color dash lighting.
With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
| Main Unit | Monitor Section | Picture size | 6.75 inches(diagonal) wide |
|---|---|---|---|
| W x H | 151.8 mm x 79.7 mm, 6 x 3-1/7 inch | ||
| Display system | TN LCD panel | ||
| Drive system | TFT active matrix system | ||
| Number of pixels | 1,152,000 | ||
| 800H x 480V x RGB | |||
| Effective pixels | 99.99% | ||
| Pixel arrangement | RGB striped arrangement | ||
| Back lighting | LED | ||
| USB I/F Section | Connector Type | Type-A | |
| USB Standard | USB2.0 Full Speed / High Speed | ||
| File System | FAT 16/32, exFAT | ||
| Maximum Power Supply Current | DC5V=1.5A | ||
| D/A Converter | 24Bit | ||
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC | ||
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | ||
| Frequency response 192k Sampling | 20 to 20,000 Hz | ||
| 96k Sampling | 20 to 20,000 Hz | ||
| 48k Sampling | 20 to 20,000 Hz | ||
| 44.1k Sampling | 20 to 20,000 Hz | ||
| Total harmonic distortion 1kHz | 0.010% | ||
| Signal to Noise ratio | 98.5dB | ||
| Dynamic range | 89dB | ||
| Bluetooth Section | Technology | Bluetooth Ver4.2 | |
| Frequency | 2.402 to 2.480 GHz | ||
| Maximum Communication range | Line of sight approx.10m(32.8ft) | ||
| Audio Codec | SBC / AAC | ||
| Multi Profile Support | Multi Profile | ||
| Profile | HFP (V1.8) (Hands Free Profile) | ||
| SPP (Serial Port Profile) | |||
| A2DP (V1.3.2) (Advanced Audio Distribution Profile) | |||
| AVRCP (V1.6.2) (Audio/Video Remote Control Profile) | |||
| PBAP (Phonebook Access Profile) | |||
| HDMI I/F Section | Connector Type | Type-D | |
| Input Resolution | VGA (640x480p @59.94Hz/60Hz) | ||
| 480p (720x480p @59.94Hz/60Hz) | |||
| Input Audio Type | 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM | ||
| DSP Section | Equalizer | 13Band | |
| Band Frequency | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k[Hz] | ||
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] | ||
| Tweeter Gain | -8/-7/-6/-5/-4/-3/-2/-1/0[dB] | ||
| HPF Frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] | ||
| Slope | -6/-12/-18/-24[dB/Oct.] | ||
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0dB | ||
| LPF Frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250Hz/Through | ||
| Slope | -6/-12/-18/-24dB/Oct. | ||
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0dB | ||
| Phase | Normal/Reverse | ||
| Tweeter HPF Frequency | 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k[Hz] | ||
| Slope | -6/-12[dB/Oct.] | ||
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0[dB] | ||
| Phase | Normal/Reverse | ||
| Mid Range HPF Frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] | ||
| Slope | -6/-12[dB/Oct.] | ||
| Mid Range LPF Frequency | 1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k/Through[Hz] | ||
| Slope | -6/-12[dB/Oct.] | ||
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0[dB] | ||
| Phase | Normal/Reverse | ||
| Subwoofer LPF Frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] | ||
| Slope | -6/-12[dB/Oct.] | ||
| Gain | -8/-7/-6/-5/-4/-3/-2/-1/0[dB] | ||
| Phase | Normal/Reverse | ||
| Digital FM | Frequency Range | 87.9MHz to 107.9MHz | |
| (Frequency step) | (200kHz) | ||
| Frequency Response | 20 Hz to 20 kHz | ||
| (±3.0 dB) | |||
| S/N | 75dB(STEREO) | ||
| Digital AM | Frequency Range | 530kHz to 1700kHz | |
| (Frequency step) | (10kHz) | ||
| Frequency Response | 40Hz to 15kHz | ||
| (±3.0 dB) | |||
| S/N | 70 dB(STEREO) | ||
| FM | Frequency Range | 87.9MHz to 107.9MHz | |
| (Frequency step) | (200kHz) | ||
| Usable sensitivity | 7.2 dBf | ||
| S/N:30dB | 0.63 μV / 75 Ohms | ||
| Quieting sensitivity | 15.2 dBf | ||
| DIN S/N:46dB | 1.58μV/75Ohms | ||
| Frequency response | 30Hz to 15kHz | ||
| (±3.0dB) | |||
| S/N(dB) | 68dB(MONO) | ||
| Selectivity | Over 80dB (±400kHz) | ||
| Stereo separation | 40dB(1kHz) | ||
| AM | Frequency range | 530kHz to 1700kHz | |
| (Frequency step) | (10kHz) | ||
| Usable sensitivity | 29dBμ(28.2μV) | ||
| Video | Color system of external video input | NTSC/PAL | |
| External video input level (RCA jacks) | 1Vp-p/75Ohms | ||
| External video input level (Mini jacks) | 1Vp-p/75Ohms | ||
| External audio max input level (RCA jacks) | - | ||
| External audio max input level (Mini jacks) | 2V/25kOhms | ||
| Video Input level (RCA jacks) | 1Vp-p/75Ohms | ||
| Video Output level (RCA jacks) | 1Vp-p/75Ohms | ||
| Audio Output level (RCA jacks) | - | ||
| Audio Output level (Mini jacks) | - | ||
| Analog RGB input | - | ||
| Audio | Maximum Power Output (Front&Rear) | 50Wx4 | |
| Typical Power Output (Front&Rear) | Full Bandwidth Power | ||
| (at less than 1%THD) | |||
| 22Wx4 | |||
| Output frequency band | 20 to 88,000Hz | ||
| Preout level (V) | 5V / 10kOhms | ||
| Preout impedance (Ω) | =< 600 Ohms | ||
| Speaker Impedance (Ω) | 4 to 8 Ohms | ||
| General | General | Operating voltage | 12V DC Car Battery |
| Installation Dimensions WxHxD | 180mm x 100mm x 75mm | ||
| (Main Unit Installation size) | 7-1/16. x 3-15/16 x 2-15/16 inch | ||
| (with Sleeve) | 182mm x 111mm x 74mm | ||
| 7-3/16 x 4-3/8 x 2-15/16 inch | |||
| Weight Main unit | 1.2kg | ||
| 2.7lb | |||
| (Trim plate and Mounting sleeve: Included) |
