XR speakers are precisely designed for High-Resolution audio to create a truly authentic listening experience with every detail and nuance.
XR-1701High-Resolution Audio Certified
6-1/2" 2-way Speakers

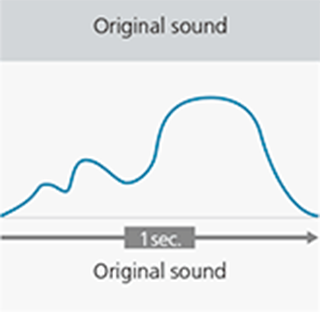

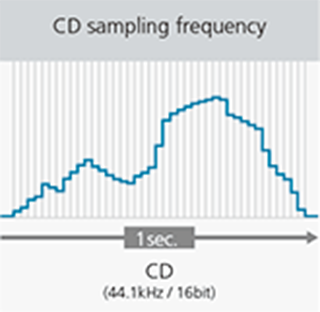

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.
The glass fiber cone combines high-strength with lightweight materials, allowing the speaker to reproduce all sounds from impactful bass notes to delicate tones.

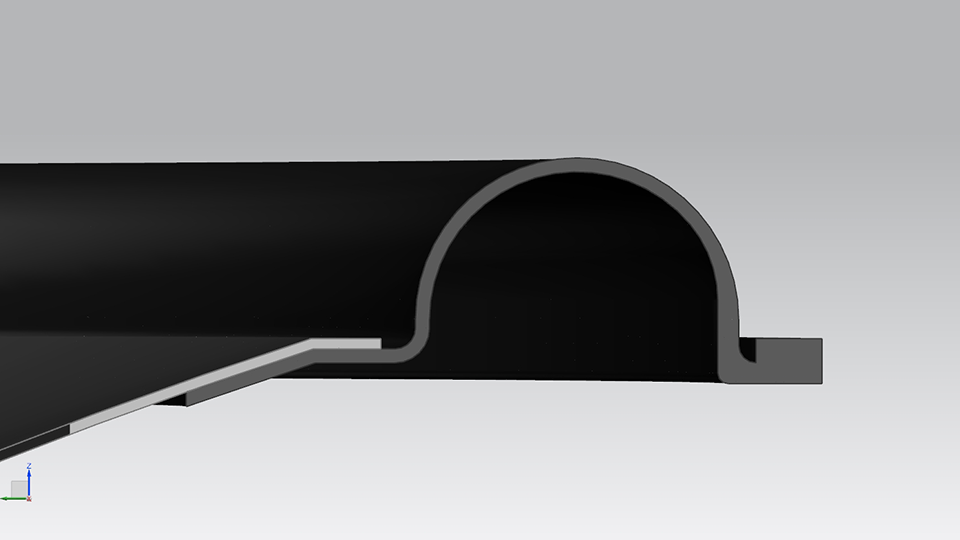

Asymmetrical thickness of the surround roll shape provides better focussed bass.

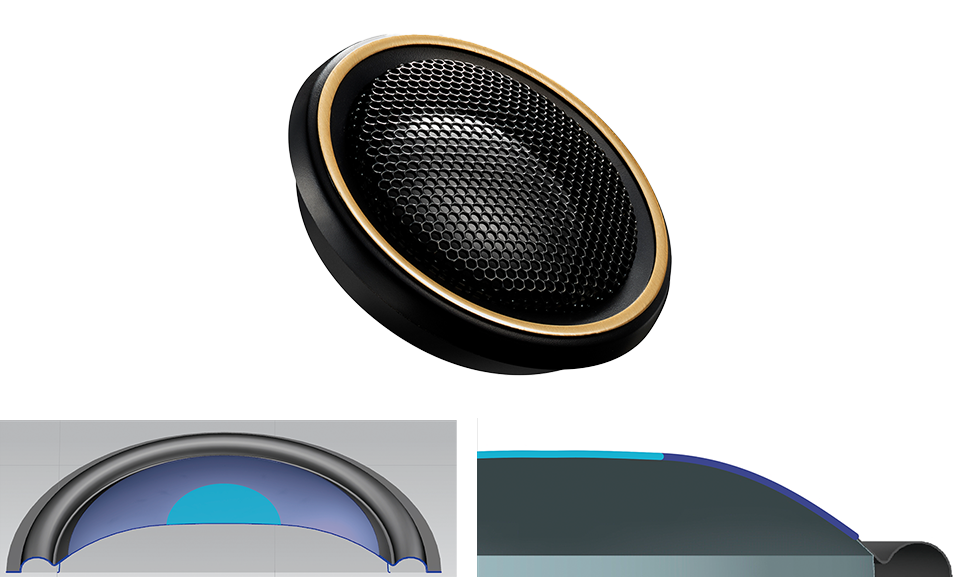

1-3/16” (30mm) tweeters have a larger surface area than most tweeters which allows clear reproduction of vocal sound up through ultra high frequency range.
With its compound curvature diaphragm, a large 1-3/16” (30mm) titanium hard dome provides the ultimate in high frequency performance.

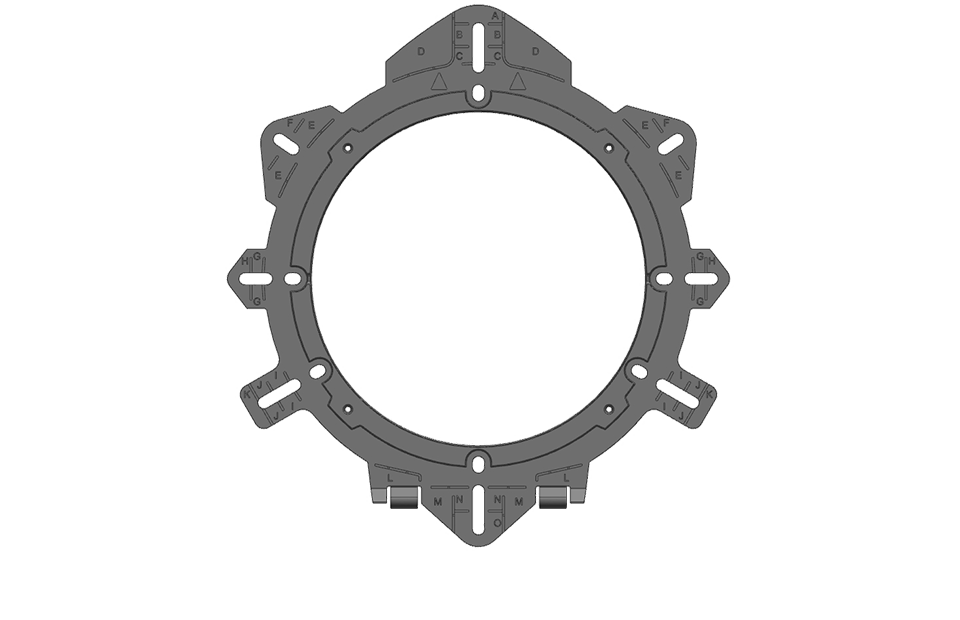

A multi-bracket is included to make installation easier in a varierty of vehicle types.
| Peak Input Power | 300W |
|---|---|
| Rated Input Power | 100W |
| Impedance | 3Ω |
| Woofer Features | 6-1/2 inch Glass Fiber Cone |
| Tweeter Features | 1-3/16inch Hard Dome |
| Specifications | |
| Sensitivity | 87 dB/ W / m |
| Frequency Response | 45Hz-40kHz (-10dB) |
| Cutout Diameter | 5-1/2 inch |
| Mounting Depth | 2-5/16 inch |
| Power Handling | Power Handling | Peak Input Power | 300W | |
|---|---|---|---|---|
| Frequency Response | 45 Hz~40,000 Hz (-10dB) | |||
| CTA Standards | RMS Power | 100Watts RMS | ||
| Impedance | 3Ω | |||
| Sensitivity | 87dB/ W at 1 m | |||
| Frequency Response | 64 Hz~35,000 Hz (-3dB) | |||
| Woofer | Diaphragm | Glass Fiber | ||
| Size | 165 mm | 6-1/2 inch | ||
| Surround | Rubber | |||
| Magnet | Ferrite | φ90 x t15 | ||
| Tweeter | Diaphragm | Titanium Dome | ||
| Size | 30mm | 1-3/16inch | ||
| Magnet | Neodymium | |||
| Network | Tweeter | HPF | -12dB/oct | |
| Dimension | Width | 180 mm | 7-1/16 inch | |
| Height | 180 mm | 7-1/16 inch | ||
| Depth | 83.5 mm | 3-5/16 inch | ||
| Cut-out Diameter | 140 mm | 5-1/2 inch | ||
| Height from the mounting surface with Grille | 24.5 mm | 15/16 inch | ||
| Height from the mounting surface without Grille | 21 mm | 13/16 inch | ||
| Mounting Depth | 59 mm | 2-5/16 inch | ||
| Weight | Net Weight with Grille | 1,130ｇ | 2.5 lb | |
| Net Weight without Grille | 1,050g | 2.3 lb | ||
| Gross Weight | 3.4 kg | 7.5 lb | ||
| Accessory | Grille Assy 2pcs | |||
| Bracket (WF) 2pcs | ||||
| Adhesive Tape 1set | ||||
| Tapping Screw (φ4x25mm) 12pcs | ||||
| Tapping Screw (φ4x18mm) 8pcs | ||||
| Speed Nut (φ4) 16pcs | ||||
| Manual | ||||
| Warranty Card | ||||
