DDX9707SDVD Receiver with Bluetooth
Enjoy built-in Bluetooth for convenient access to hands-free calls
and streaming music, as well as the ability to use your
smartphone like a wireless remote control.
Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation
Customize your Home Screen by selecting four shortcut/ information widgets. Widget options can include album art, clock, compass, photo frame, visualizer, and more.
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
USB Mirroring via USB for iPhone & Android, 2-way Touch Control for Android.
Optional camera connection method for up to 4 cameras in various configurations.
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.
Multiple USB ports provide additional inputs for music sources or smartphone battery charging.
Bright variable color LEDs can be adjusted to match any color dash lighting.

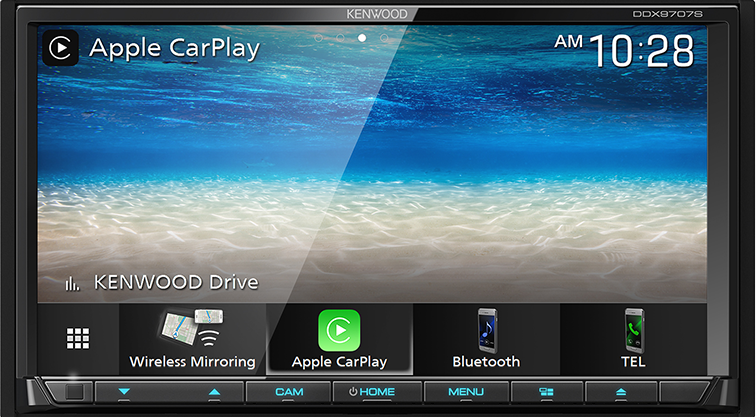

Apple CarPlay™ is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported.
New KENWOOD Wi-Fi receivers now support Apple CarPlay™
wirelessly (compatible phone required).

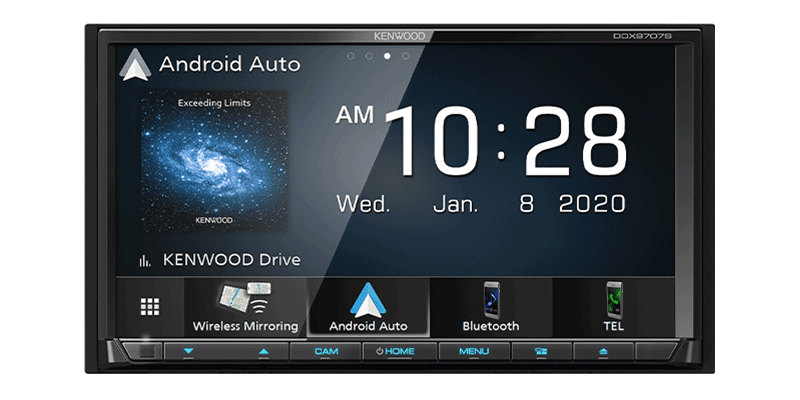

Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. New KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required).
To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 5.0 or higher, and the Android Auto app.
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
True Mirroring allows you to display and control your smartphone on the receiver screen via USB. You can enjoy your favorite apps on a large display with impressive sound quality. Before starting True Mirroring, just install the free app “Mirroring for KENWOOD” on your smartphone and connect it to the receiver via Bluetooth as well as a USB cable.
USB Mirroring with iPhone has the following restrictions:
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
High-Resolution Audio is high-quality sound that far exceeds CD standards, and can play 192kHz / 24Bit sampling DSP. It captures and beautifully expresses details and nuances from the ultra-high to low frequencies.
* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Compatible with a broad range of audio file formats such as FLAC and WAV, to MP3, WMA and AAC.
| File format | High-Resolution Audio | Compression | Frequency |
|---|---|---|---|
| WAV | 〇 | - | ～192kHz / ～24bit |
| FLAC | 〇 | Lossless compression | |
| MP3 | - | Lossy compression | ～48kHz / ～16bit |
You can play back from USB devices audio and video files compressed in various formats.
| Video Codec | Playable up to |
|---|---|
| MPEG4 | 1920 × 1080p |
| H.264 | 1920 × 1080p |
| MKV | 1920 × 1080p |
| WMV | 1920 × 1080p |
USB sources are available on rear monitor via video output. The powerful Dual USB provides max 1.5A quick charge for selected Android and 1.0A charge for iPhone.
| Music Codec | Playable up to |
|---|---|
| FLAC | ～192kHz / ～24bit |
| WAV | ～192kHz / ～24bit |
When an Automotive Data Solutions iDatalink Maestro RR is connected to a compatible KENWOOD receiver, it provides a seamless interface with factory infotainment features such as Satellite Radio, USB Media Player, Bluetooth hands-free and music streaming. Factory driver assistance systems and cameras are also retained and work as they did originally. Parking sensor display and dynamic parking guide lines are also added in supported vehicles on the rear camera screen. Vehicle information such as HVAC, performance information, and TPMS can also be displayed. Radar detector information can also be displayed on the screen when used with a compatible K40 or ESCORT* radar detector system. ESCORT compatible with Maestro RR2 only.
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a front camera, a KENWOOD dashboard camera (DRV-N520 sold separately), and rear and side (blind spot) cameras. Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front camera, and a reverse camera. Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).
*The KENWOOD CA-C3AV cable (sold separately) is required to use the 4th camera input
Full HD video recording is available with a compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.
You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, and more.
Play your music from one USB port and use the other to charge your device, or charge both at the same time.
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
This receiver unit can be operated using the optional remote control KNA-RCDV331.
| Monitor Section | Picture size | 6.95 inches(diagonal) wide |
| W x H | 156.6 mm x 81.6 mm , 6-3/16 x 3-3/16 inch | |
| Display system | TN LCD panel | |
| Drive system | TFT active matrix system | |
| Number of pixels | 1,152,000 | |
| 800H x 480V x RGB | ||
| Effective pixels | 99.99% | |
| Pixel arrangement | RGB striped arrangement | |
| Back lighting | LED | |
| DVD Section | D/A Converter | 24 / 32Bit |
| Audio Decoder | Linear PCM | |
| Dolby Audio | ||
| MP3 / WMA / AAC / WAV / FLAC / Vorbis | ||
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | |
| Wow & Flutter | Below Measurable Limit | |
| Frequency response 96k Sampling | 20 - 44,000 Hz | |
| 48k Sampling | 20 - 22,000 Hz | |
| 44.1k Sampling | 20 - 20,000 Hz | |
| Total harmonic distortion 1kHz | 0.010% | |
| Signal to Noise ratio | 90.5dB (DVD-Video 96k) | |
| Dynamic range | 89dB (DVD-Video 96k) | |
| DISC Format | DVD-Video / VIDEO-CD / CD-DA | |
| Quantifying bit number | 16 / 20 / 24bit | |
| USB I/F Section | USB Standard | USB2.0 High Speed |
| File System | FAT 16/32, exFAT, NTFS | |
| Maximum Power Supply Current | DC5V=1.5A | |
| D/A Converter | 24/32Bit | |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis | |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | |
| Wireless Mirroring Section | Mode | Sink |
| Copyright protection | HDCP2.2 | |
| Touch Control | UIBC | |
| Wi-Fi | IEEE Standard | 802.11 a/b/g/n/ac |
| Frequency Range | Dual Band ( 2.4GHz / 5GHz ) | |
| Channels | Auto(1-11ch) | |
| Auto(149,153,157,161ch) | ||
| Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / | |
| 11g: 54 Mbps / 11n: 300 Mbps / | ||
| 11ac: 867 Mbps | ||
| Output Power 2.4GHz/SISO | 11b:14dBm±2dB / 11g:13dBm±2dB / | |
| 11n(20MHz):12dBm±2dB | ||
| Output Power 5GHz/SISO | 11a:9dBm±2dB / | |
| 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB / | ||
| 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB | ||
| Output Power 5GHz/MIMO | 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB / | |
| 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB | ||
| Bluetooth Section | Technology | Bluetooth Ver5.0 |
| Frequency | 2.402 – 2.480 GHz | |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Audio Codec | SBC / AAC | |
| Multi Profile Support | Multi Profile | |
| Profile | HFP (V1.7) (Hands Free Profile) | |
| SPP (Serial Port Profile) | ||
| A2DP (Advanced Audio Distribution Profile) | ||
| AVRCP (V1.6) (Audio/Video Remote Control Profile) | ||
| - | ||
| PBAP (Phonebook Access Profile) | ||
| DSP Section | Graphics equalizer | |
| BAND | 13Band | |
| frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | |
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] | |
| 2Way X'Over | ||
| HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] | |
| SLOPE | -6/-12/-18/-24[dB/Oct.] | |
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] | |
| SLOPE | -6/-12/-18/-24[dB/Oct.] | |
| Position | ||
| Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) | |
| Gain | -8 to 0dB | |
| Subwoofer Level | -50 to +10dB | |
| Digital FM | Frequency Range | 87.9MHz - 107.9MHz |
| (Frequency step) | (200kHz) | |
| Frequency Response | 20Hz - 20kHz | |
| (±3.0 dB) | ||
| S/N | 80dB (STEREO) | |
| Digital AM | Frequency Range | 530kHz - 1700kHz |
| (Frequency step) | (10kHz) | |
| Frequency Response | 40Hz - 15kHz | |
| (±3.0 dB) | ||
| S/N | 80dB (STEREO) | |
| FM | Frequency Range | 87.9MHz - 107.9MHz |
| (Frequency step) | (200kHz) | |
| Usable sensitivity | 9.3dBf | |
| S/N30dB | 0.8μV/75Ω | |
| Quieting sensitivity | 10.2dBf | |
| DIN S/N 46dB | 1.13μV / 75Ohms | |
| Frequency response | 30Hz - 15kHz | |
| (±3.0dB) | ||
| S/N (dB) | 65dB (MONO) | |
| Selectivity | Over 80dB (±400kHz) | |
| Stereo separation | 45dB (1kHz) | |
| AM | Frequency Range | 530kHz - 1700kHz |
| (Frequency step) | (10kHz) | |
| Usable sensitivity | 28dBμ | |
| Video | Color system of external video input | NTSC/PAL |
| External video input level (RCA jacks) | - | |
| External video input level (Mini jacks) | 1 Vp-p / 75 Ohms | |
| External audio max input level (RCA jacks) | - | |
| External audio max input level (Mini jacks) | 2 V / 25 kOhms | |
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms | |
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms | |
| Audio Output level (RCA jacks) | - | |
| Audio Output level (Mini jacks) | 0.9 V / 10 kOhms | |
| Analog RGB input | - | |
| Audio | Maximum Power Output (Front&Rear) | 50Wx4 |
| Typical Power Output (Front&Rear) | Full Bandwidth Power | |
| (at less than 1%THD) | ||
| 22Wx4 | ||
| Output frequency band | 20 - 88,000Hz | |
| Preout level (V) | 4V / 10kOhms | |
| Preout impedance (Ω) | =< 300 Ohms | |
| Speaker Impedance (Ω) | 4-8 Ohms | |
| General | ||
| Installation Dimensions WxHxD | 178mm x 100mm x 160mm | |
| 7 x 3-15/16 x 6-5/16 inch | ||
| (with Sleeve) | 182mm x 112mm x 163mm | |
| 7-3/16 x 4-7/16 x 6-7/16 inch | ||
| Weight Main unit | 2.4 kg | |
| 5.3 lb | ||
| (Excluding trim plate and sleeve) | ||
