DNX775RVSGPS Navigation System
6.95" Digital Multimedia Receiver
The DNX775RVS includes Garmin's advanced GPS RV/Truck navigation.
Simply enter your vehicle profile information (customizable by height,
width, weight and number of axles) and find RV/Truck accessible routes suitable for
the size and weight of your RV/Truck.
Enjoy built-in Bluetooth for convenient access to hands-free calls
and streaming music, as well as the ability to use your
smartphone like a wireless remote control.
Sound quality enthusiasts will love the playback support of Hi-Res Audio music,
featuring compatibility with FLAC and DSD files. Simple touch screen sound customization
is also available with its built-in 13 Band EQ and Digital Time Alignment.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
A clear screen designed to reduce glare that includes a resistive touch sensor for accurate control during operation
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Search and select songs from your music collection through a Bluetooth connection.
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
Compatible with various audio file formats from high-res FLAC and WAV, to MP3, WMA and AAC. Also plays DSD (Direct Stream Digital) files with a broader reproduction frequency band for life-like high-res sound reproduction.
Dash Camera (DRV-N520) can be controlled and viewed from the touch screen.
Two camera inputs for front and rear cameras. A rear view camera can be used for the front as it has the ability to reverse the image.
Parking Guidelines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
Lane Assist guides you to the correct lane for an approaching turn or exit, making unfamiliar intersections and exits easy to navigate.
Multiple USB ports provide additional inputs for music sources or smartphone battery charging.
Bright variable color LEDs can be adjusted to match any color dash lighting.

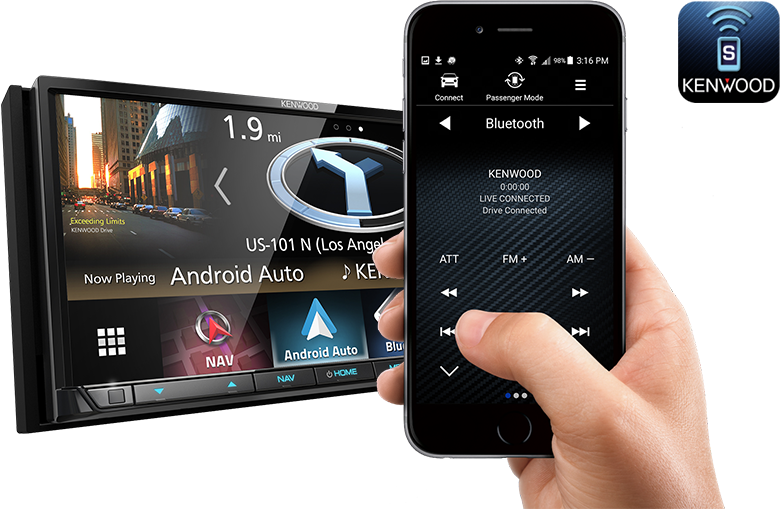

A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Garmin Photo Real Junction View shows what complex interchanges look like before you arrive.
The DNX775RVS can be mirrored on an Android tablet(OS 7.0+) and you can control select reciever functions from the tablet via Wi-Fi, using the KENWOOD Screen Control app.
Click here for more information.
HOME key, Vol +/-available from Screen Control App.
*Other hard key operations are not available.
Equipped with the industry leading Garmin navigation software, offering a variety of display options to make your driving easier such as Lane Assist.
Full HD video recording is available in a compact windshield mount that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.
Two camera inputs provide users the ability to add both a front and rear camera for enhanced driver safety and convenience.
When an Automotive Data Solutions iDatalink Maestro RR is connected to a compatible KENWOOD receiver, it provides a seamless interface with factory infotainment features such as Satellite Radio, USB Media Player, Bluetooth hands-free and music streaming. Vehicle information such as HVAC, performance information, and TPMS can also be displayed.
WebLink is the new way to get the most out of your in-car receiver. Download the KENWOOD WebLink app and you can connect your smartphone via USB to access some of your favorite apps such as YouTube and Yelp.
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD's multimedia receivers combine Android Auto's intuitive voice controlled interface, a large touch screen and superior sound quality, making it the perfect complement for your in-car life.
*Android Auto may not be available on all devices and may not be available in all countries or regions. For details about Android Auto, visit https://www.android.com/auto/ and https://support.google.com/androidauto.
Some Features, applications, and services are not available in all areas.
For details, see: https://www.android.com/auto
https://support.google.com/androidauto/answer/6348019?hl=en&ref_topic=6348027
Apple CarPlay is the smarter and safer in-vehicle interface to operate your iPhone, and the experience is taken to another level when featured in a KENWOOD multimedia receiver. Simply talk to Siri, or touch the receiver's display and get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music all in a way that allows you to stay focused on the road.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
* The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.
Compatible with various audio file formats from high-res FLAC and WAV, to MP3, WMA and AAC. Also plays DSD (Direct Stream Digital) files with a broader reproduction frequency band for life-like high-res sound reproduction.
| File format | High-Resolution Audio | Compression | Frequency |
|---|---|---|---|
| DSD | 〇* | - | 2.8MHz / 1bit 5.6MHz / 1bit 11.2MHz / 1bit |
| WAV | 〇 | - | 48kHz / 24bit 96kHz / 24bit 192kHz / 24bit |
| FLAC | 〇 | Lossless compression | |
| MP3 | - | Lossy compression | ～48kHz / ～16bit |
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
| Monitor Section | ||
|---|---|---|
| Picture size | 6.95 inches(diagonal) wide | |
| W x H | 6-3/16 x 3-3/16 inch | |
| Display system | TN LCD panel | |
| Drive system | TFT active matrix system | |
| Number of pixels | 1,152,000 800H x 480V x RGB |
|
| Effective pixels | 99.99% | |
| Pixel arrangement | RGB striped arrangement | |
| Back lighting | LED | |
| DVD Section | ||
| D/A Converter | 24 / 32Bit | |
| Audio Decoder | Linear PCM | |
| Dolby Audio | ||
| MP3 / WMA / AAC / WAV / FLAC / Vorbis | ||
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | |
| Wow & Flutter | Below Measurable Limit | |
| Frequency response | 96k Sampling 20 - 44,000 Hz | |
| 48k Sampling 20 - 22,000 Hz | ||
| 44.1k Sampling 20 - 20,000 Hz | ||
| Total harmonic distortion 1kHz | 0.010% | |
| Signal to Noise ratio | 90.5dB (DVD-Video 96k) | |
| Dynamic range | 89dB (DVD-Video 96k) | |
| DISC Format | DVD-Video / VIDEO-CD / CD-DA | |
| Quantifying bit number | 16 / 20 / 24bit | |
| USB I/F Section | ||
| USB Standard | USB2.0 High Speed | |
| File System | FAT 16/32, exFAT, NTFS | |
| Maximum Power Supply Current | DC5V=1.5A | |
| D/A Converter | 24/32Bit | |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis / DSD | |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | |
| SD Section | ||
| SD Standard | SD / SDHC / SDXC | |
| Compatible File System | FAT 16/32, exFAT, NTFS | |
| Capacity | Maximum 2T Byte | |
| Data Transfer Rate | Maximum 25MB/sec | |
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis / DSD | |
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | |
| Wi-Fi | ||
| IEEE Standard | 802.11 a/b/g/n | |
| Frequency Range | Dual Band ( 2.4GHz / 5GHz ) | |
| Channels | Auto(1-11ch) Auto(149,153,157,161ch) |
|
| Transfer rates (MAX) | 11a:54 Mbps / 11b: 11 Mbps 11g: 54 Mbps / 11n:150 Mbps |
|
| Output Power | 11a:14dBm±2dB / 11b: 17dBm±2dB 11g:15dBm±2dB / 11n:14dBm±2dB |
|
| Bluetooth Section | ||
| Technology | Bluetooth Ver3.0 | |
| Frequency | 2.402 – 2.480 GHz | |
| Output Power | +4dBm (MAX),0dBm (AVE) Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Audio Codec | SBC / AAC | |
| Multi Profile Support | Multi Profile | |
| Profile | HFP (V1.6) (Hands Free Profile) | |
| SPP (Serial Port Profile) | ||
| A2DP (Advanced Audio Distribution Profile) | ||
| AVRCP (V1.5) (Audio/Video Remote Control Profile) | ||
| PBAP (Phonebook Access Profile) | ||
| DSP Section | ||
| Graphics equalizer | ||
| BAND | 13Band | |
| frequency (Hz) (BAND1-7,1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | |
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] | |
| 2Way X'Over | ||
| HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] | |
| SLOPE | -6/-12/-18/-24[dB/Oct.] | |
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] | |
| SLOPE | -6/-12/-18/-24[dB/Oct.] | |
| Position | ||
| Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) | |
| Gain | -8 to 0dB | |
| Subwoofer Level | -50 to +10dB | |
| FM | ||
| Frequency Range | 87.9MHz - 107.9MHz | |
| (Frequency step) | (200kHz) | |
| Usable sensitivity | 9.3dBf | |
| S/N30dB | 0.8μV/75Ω | |
| Quieting sensitivity | 10.2dBf | |
| DIN S/N 46dB | 1.13μV/75Ohms | |
| Frequency response | 30Hz - 15kHz | |
| (±3.0dB) | ||
| S/N (dB) | 75dB (MONO) | |
| Selectivity | Over 80dB (±400kHz) | |
| Stereo separation | 45dB (1kHz) | |
| AM | ||
| Frequency Range | 530kHz - 1700kHz | |
| (Frequency step) | (10kHz) | |
| Usable sensitivity | 28dBμ | |
| Video | ||
| Color system of external video input | NTSC/PAL | |
| External video input level (Mini jacks) | 1 Vp-p / 75 Ohms | |
| External audio max input level (Mini jacks) | 2 V / 25 kOhms | |
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms | |
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms | |
| Audio Output level (Mini jacks) | 1.2 V / 10 kOhms | |
| Audio | ||
| Maximum Power Output (Front&Rear) | 50Wx4 | |
| Typical Power Output (Front&Rear) | Full Bandwidth Power | |
| (at less than 1%THD) | ||
| 22Wx4 | ||
| Output frequency band | 20 - 88,000Hz | |
| Preout level (V) | 4V / 10kOhms | |
| Preout impedance (Ω) | =< 300 Ohms | |
| Speaker Impedance (Ω) | 4-8 Ohms | |
| Navigation Section | ||
| Receiver | High-sensitivity GPS receiver | |
| Receiving frequency | 1575.42MHz (C/A code ) | |
| Acquisition Times | Cold: 29 seconds(typ) | |
| All satellites at -130dBm Without aiding |
||
| Update Rate | 1/second, continuous | |
| Accuracy | Position: < 2.5meters,CEP, at -130dBm | |
| Accuracy | Velocity: 0.1meter/sec | |
| Positioning Method | GPS | |
| Antenna | External GPS Antenna | |
| General | ||
| Operating voltage | 14.4V (10.5V to 16V) | |
| Maximum Current consumption | 15A | |
| Installation Dimensions WxHxD | 7 x 3-15/16 x 6-5/16 inch | |
| Operational temperature range | -10°C to +60°C | |
| Weight | Main unit | 5.5 lb |
