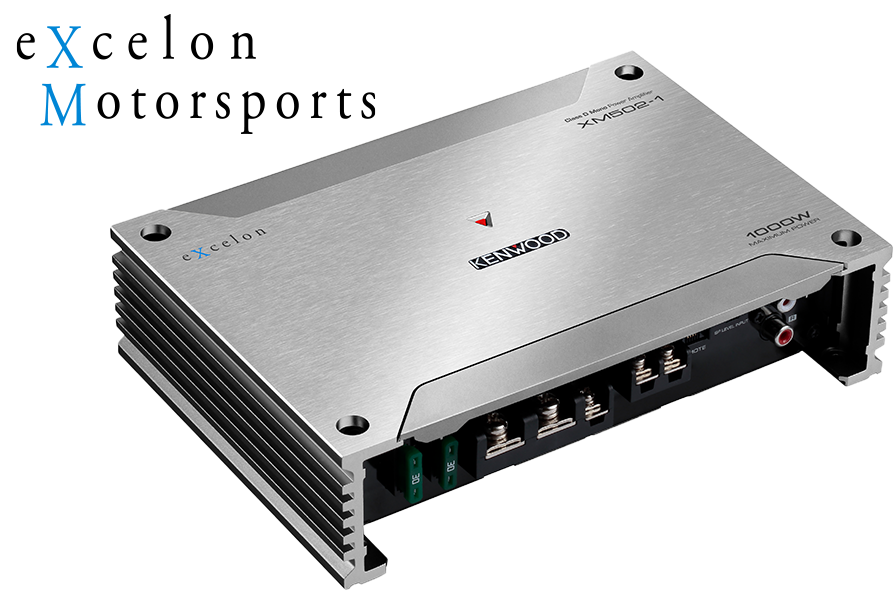

XM502-1Class D Mono Power Amplifier
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.
PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.
When the Infrasonic Filter Switch is turned on, the amplifier cuts off the low frequencies below 25Hz, which makes the amplifier’s power supply and output devices more efficient, providing clear bass output.
Improved moisture resistance of the circuit boards to prevent corrosion.
All control holes,RCA, wired remote and Speaker Level input terminals are coverd with caps and plastic covers to avoid from moisture and dust.
Detachable sliding terminal cover offers a sleek design and easier installation.
All terminals and connections are on one side for easier installation and a cleaner look.
Improved Signal to Noise Ratio
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.
*Control unit does not support conformal coarting or water-proof.
| XM802-5 | XM502-1 | XM302-4 | |
|---|---|---|---|
| MAX POWER | 1600W | 1000W | 600W |
| RMS POWER OUTPUT (4Ω) | 50W x 4 + 300W | 300W | 50W x 4 |
| RMS POWER OUTPUT (2Ω) | 75W x 4 + 500W | 500W | 75W x 4 |
| RMS POWER OUTPUT Bridged | 150W x 2 (Bridged) + 300W | - | 150W x 2 (Bridged) |
| Features | Speaker Level Input | Speaker Level Input | Speaker Level Input |
| Signal Sensing Turn-On | Signal Sensing Turn-On | Signal Sensing Turn-On | |
| Variable High Pass Filter | Variable Low Pass Filter | Variable High Pass Filter | |
| Variable Low Pass Filter | Infrasonic Filter | Variable Low Pass Filter | |
| Conformal Coating | Conformal Coating | Conformal Coating | |
| Bass Boost | Bass Boost | Bass Boost | |
| Optional Wired Remote Ready | Optional Wired Remote Ready | ||
| Dimensions | (W)9-3/4" x (H) 2-1/16” x (D)6-5/8” | (W)8-3/8” x (H)2-1/16” x (D)5-7/8” | (W)8-3/8” x (H)2-1/16” x (D)5-7/8” |
| Weight | 4.6 lbs ( 2.1 kg) | 3.3 lbs ( 1.5 kg) | 3.1 lbs ( 1.4 kg) |
| CTA-2006-D Value | Maximum Dynamic Power | 350W at 4ohms and ≤ 10% THD + N |
|---|---|---|
| Continuous Power Output | 300W at 4ohms and ≤ 1% THD + N | |
| Signal to Noise | 85dBA reference 1 Watt RMS | |
| Maximum Power Output | MAX POWER | 1000W |
| Rated Power Output at 14.4V | A/B (4 Ohms) | - |
| A/B (2 Ohms) | - | |
| SUB (4 Ohms) | 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD) | |
| SUB (2 Ohms) | 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD) | |
| A/B (Bridged 4Ohms) | - | |
| Specifications | Signal to Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Frequency Response | 20Hz-200Hz (+0dB, -3dB) | |
| Frequency Response | - | |
| Input Impedance | 10k ohm | |
| Speaker Impedance | 4Ω (2Ω to 8Ω allowable) | |
| Bridged Connection | - | |
| Audio Section | Low-Pass Filter | 50Hz-200Hz, -24dB/oct |
| High-Pass Filter | - | |
| Bass Boost | 40Hz, 0dB - +18dB | |
| Infrasonic Filter | 25Hz, -24dB | |
| RCA Input Sensitivity | 0.2[V] - 5.0 [V] | |
| Speaker Level Input Sensitivity | 4.0[V] - 12.0 [V] | |
| Terminals | Battery & Ground | M6 Screw Type Terminal Block |
| Speaker Output | M4 Screw Type Terminal Block | |
| General | Dimensions(WxHxD) | (W)8-3/8” x (H)2-1/16” x (D)5-7/8” |
| Dimensions(WxHxD) | (W) 213mm x (H) 53mm x (D) 149mm | |
| Weight | 3.3 lbs ( 1.5kg) | |
| Operating Voltage | 14.4V（11-16V allowable） | |
| Current Consumption | 25 [A] | |
| Key Features | CTA-2006 Compliant 2 Ohms Load Capability One Sided Connection Speaker Level Input with Signal Sensing Turn-on Signal Sensing Turn-On Remote Level Control Ready ( Optional KCA-RC01A) Terminal Cover Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design |
|
XM502-1
