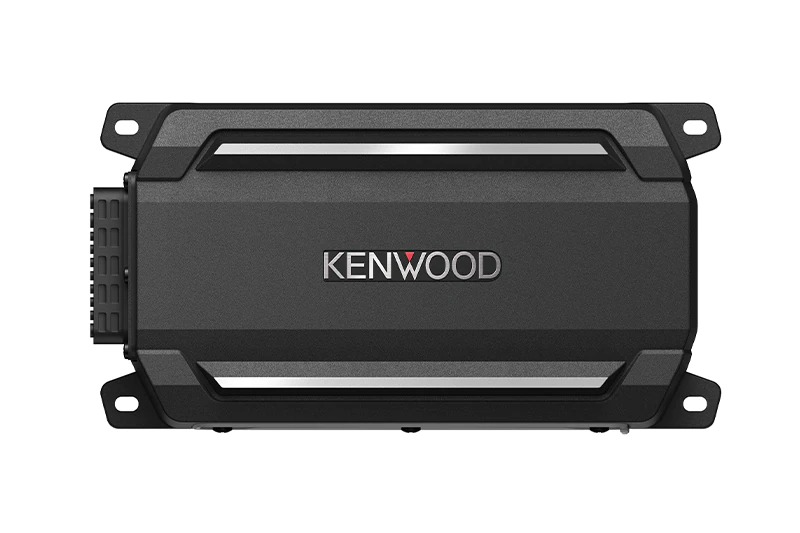

KAC-M5001Compact Mono Digital Amplifier

Your EVERWHERE Audio Experience

KAC-M5001

IP67/IP66 Certified Waterproof & Dustproof
RMS 200W (4Ω)
RMS 300W (2Ω)
Speaker Level Input
Signal Sensing Turn-on
Wired Level Control Included
(W)7-13/16” x (H)1-15/16” x (D)4-1/8”

EXTREME Durability

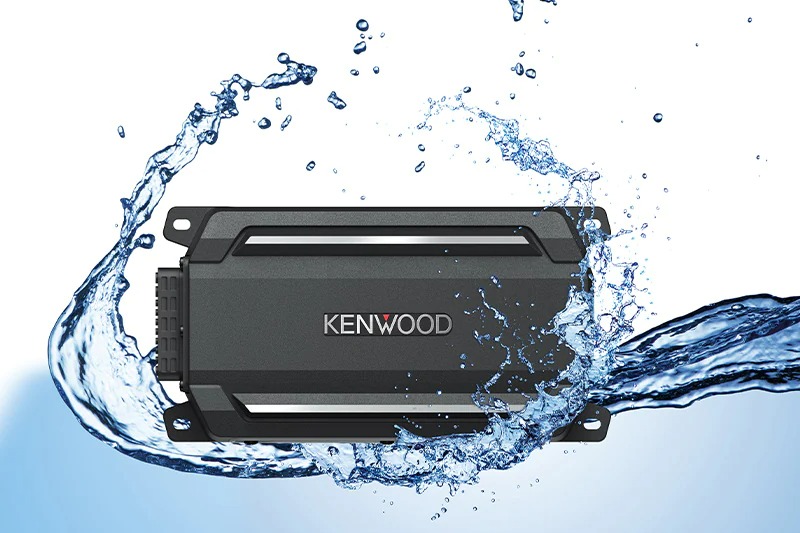

WaterPROOF & DustPROOF

IPX7/IPX6/IP6X certified. The amplifier can be submerged in up to 3.3 feet of water for 30 minutes, and can resist high-pressure, heavy sprays of water.

Salt Spray PROOF

ASTM B117 salt spray (or salt fog) corrosion testing ensures the amplifier will not corrode or fail in saltwater and other harsh environments.

Vibration PROOF

Thick 1/4" die-cast frame suppresses vibration.

Raised drain tunnel prevents moisture buildup.

ULTIMATE Performance

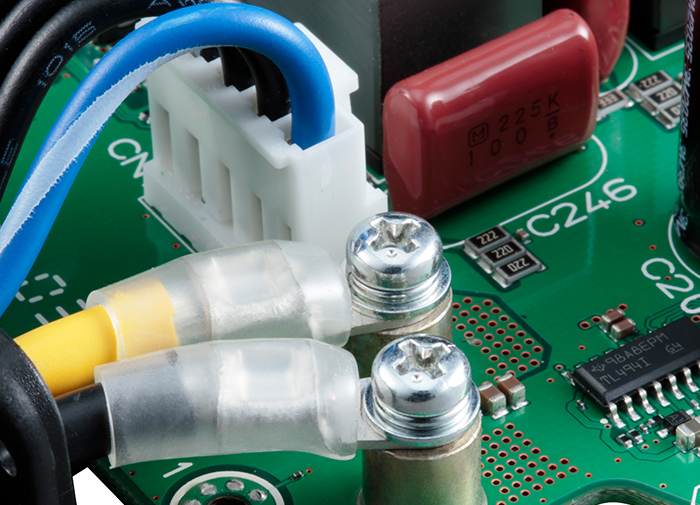

Increased Power Flow

Metal studs enable high current flow for connections between the amplifier and battery, resulting in powerful bass reproduction.

High Quality Capacitors

PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

Magnetic Shielding

Magnetic shields for the output coils reduce radiated noise, further contributing to smooth and accurate bass frequency signals.

Selectable Connection

Speaker Level Input

If your receiver does not have RCA outputs, you can connect your speaker cables directly to the KAC-M5001's RCA cables to use as an audio signal input.

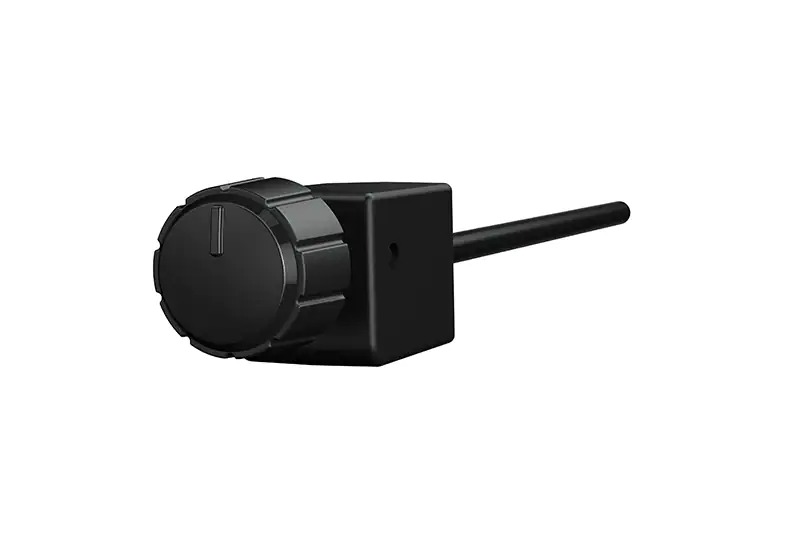

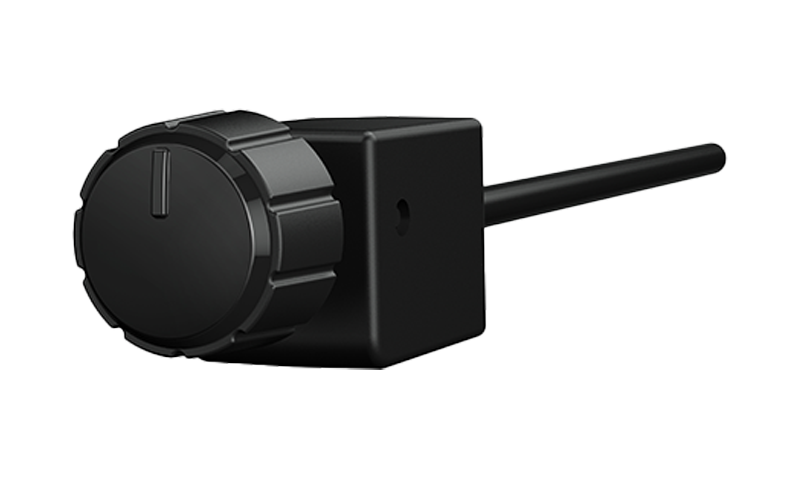

Wired Level Control Included

Waterproof certified wired remote level control allows you to easily adjust the subwoofer volume.

System EXPANSION Ready

KENWOOD Audio Receivers and the KAC-M5024BT have RCA outputs to expand the system to connect to the KAC-M5001 mono amplifier and subwoofer.

＊Subwoofers pictured here are not water-resistant

x2 Paired Parallel Speaker cables

for easier connection to 2 subwoofers or a single Dual Voice Coil subwoofer.

Take CONTROL

General Features

Max Power	600W
RMS Power	300W (2Ω)
RMS Power	200W (4Ω)
S/N	Signal to Noise Ratio: 78 dB
Size	(W)7-13/16” x (H)1-15/16” x (D)4-1/8”
Low Pass Filter	50Hz-200Hz, -24dB/oct
Inflasonic Filter	20Hz, -24dB/oct
Other Features	Class-D Amplifier
	IP67/IP66 Waterproof & Dustproof
	ASTM B117 Salt Spray Proof (Amplifier)
	Variable Low Pass Filter
	Bridgeable
	Wired Level Control Included

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

: Speakers

: Amplifiers

« scroll

Amplifier Type	Class D
CTA-2006-D Value	Maximum Dynamic Power	220W at 4ohms and ≤ 10% THD + N
	Continuous Power Output	200W at 4ohms and ≤ 1% THD + N
	Signal to Noise	78dBA reference 1 Watt RMS
Maximum Power Output	MAX POWER	600W
RMS Power at 14.4V	4 Ohms	200Watts RMS x 1 at 4 Ohms, 20-200Hz , ≤1% THD+N
RMS Power at 14.4V	2 Ohms	300Watts RMS x 1 at 2 Ohms, 100Hz, ≤1%THD+N
Specifications	Signal to Noise Ratio	97dB (Reference: Rated Power into 4Ohms at 14.4V)
	Frequency Response	20Hz-200Hz (+0dB, -3dB)
	Input Impedance	10k ohm
	Speaker Impedance	4Ω ( 2Ω to 8Ω allowable)
Audio Section	Low-pass Filter	50-200Hz, -24dB/oct
	High-pass Filter	-
	Infrasonic Filter	20Hz, -24dB/oct
	Bass Boost Control	40/60/80Hz, 0dB - +18dB
	RCA Input Sensitivity	0.2 (V) - 5.0 (V)
	Speaker Level Input Sensitivity	4.0 (V) - 12.0 (V)
Terminal	Battery & Ground	12" 10-gauge Pigtail Cable with Molded Strain Relief Bushing
	Speaker Output	12" 18-gauge x2(Parallel) Pigtail Cable with Molded Strain Relief Bushing
	Line In (Pigtail RCA)	Yes
	Pre Out (Pigtail RCA)	No
	Speaker Input (Pigtail RCA In)	Yes
	Connector for Wired Remote Controller	Pigtail Connector (4pin)
General	Dimensions(WxHxD)	198[mm] x 48.5 [mm] x 104 [mm]
		7-13/16" x 1-15/16" x 4-1/8"
	Weight (kg)	1.2 [kg] 2.7 [lbs]
	Operating Voltage	14.4V (11-16V allowable)
	Current Consumption	14A
	Fuse	40A
Key Features	CTA-2006 Compliant
	Class D
	Power MOS-FET Switching Power Supply
	2 Ohms Load Capability
	One-Sided Connection
	Line Input Terminals
	Speaker Level Input
	Signal Sensing Turn-on
	Remote Level Control
	Terminal Cover

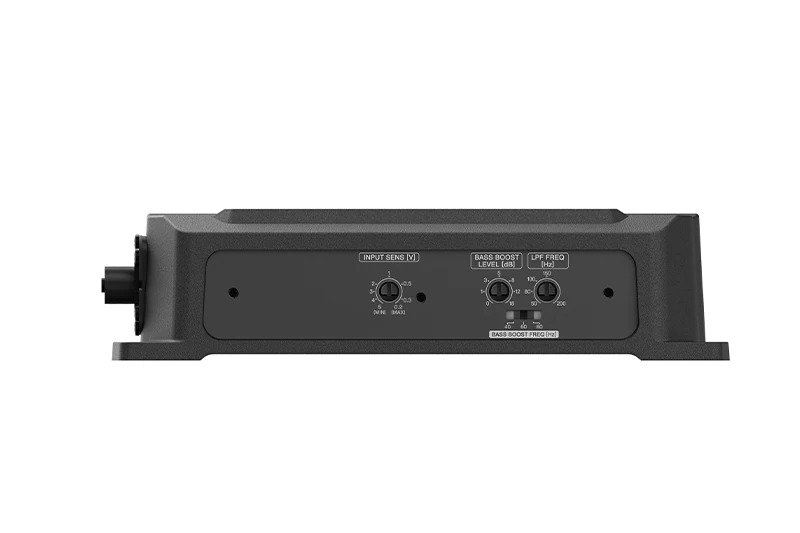

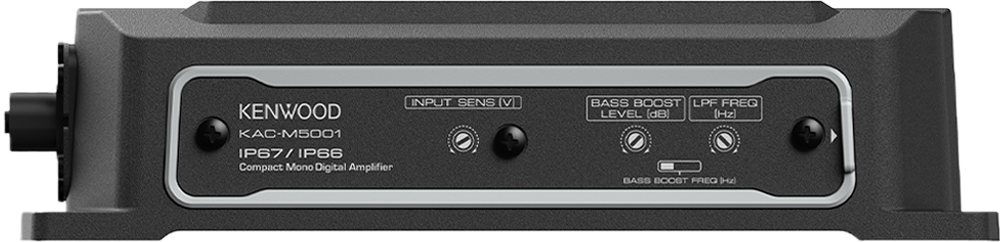

	Audio Controls on the Side
	Corrosion-Resistant Sealed Cast Aluminum Chassis
	Drain Tunnel
	Water-proof & Dust-proof (Main Unit/DC cable)
	Water-proof (Remote Control)
	ASTM B117 (Main Unit)
	UV Resistant ( Remote Control)
Other Features	Fuse Rubber Cover
Accessories	Wired Remote Control Unit with Attached 23.6' (6m) Cable
	Nut,1pc and Washer,1pc for remote unit mounting
	Stainless Steel Self-tapping Screw (Φ4 x 16mm) 4pcs
	4" Plastic Wire Tie, 1pc
	Instruction Manual
	Warranty Card
