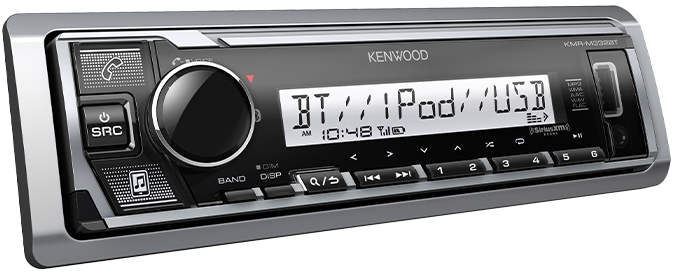

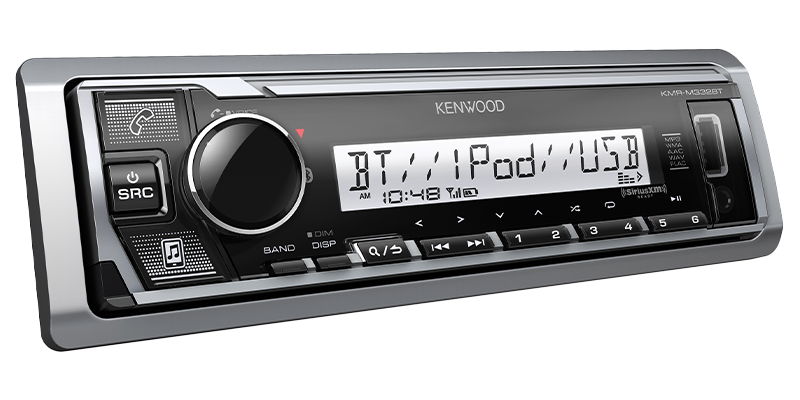

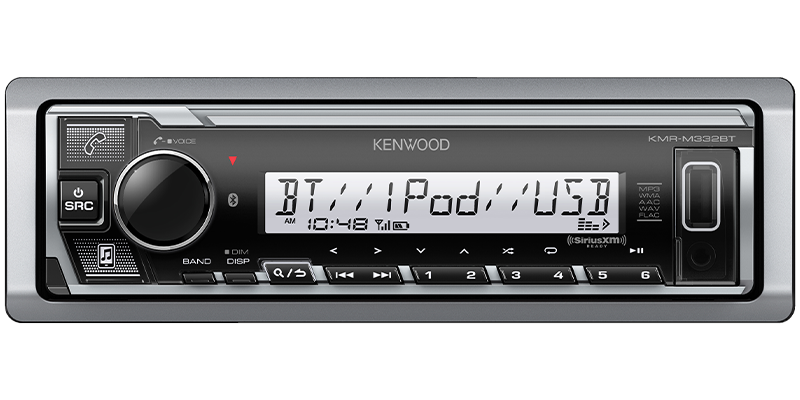

KMR-M332BTDigital Media Receiver
with Bluetooth
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Listen to popular music applications and music stored on your device with basic audio controls.
Direct Bluetooth keys allow you to access quickly to answering to and making a call, and entering Bluetooth Audio source.
And Vertical Alignment LCD display secures higher visibility during day-time drive.
Easy front panel connection for your compatible USB- enabled devices. These include Mass Storage Class devices like iPods, smartphones, and USB flash drives. The USB input will allow you to charge and control the music playback of your select devices.
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Compatible with a broad range of audio file formats from FLAC and WAV, to MP3, WMA and AAC.
| Music Codec | Playable up to |
|---|---|
| FLAC | ～96kHz / ～24bit |
| WAV | ～44.1kHz / ～16bit |
| MP3 | ～48kHz / ～320kbps |
| WMA | ～48kHz / ～192kbps |
| AAC | ～48kHz / ～320kbps |
Sound coming from a variety of speakers located within your car are time aligned to arrive at your ear at exactly the same time.
Drive EQ boosts specific frequencies in the audio signal to compensate the negative impact of road noise.

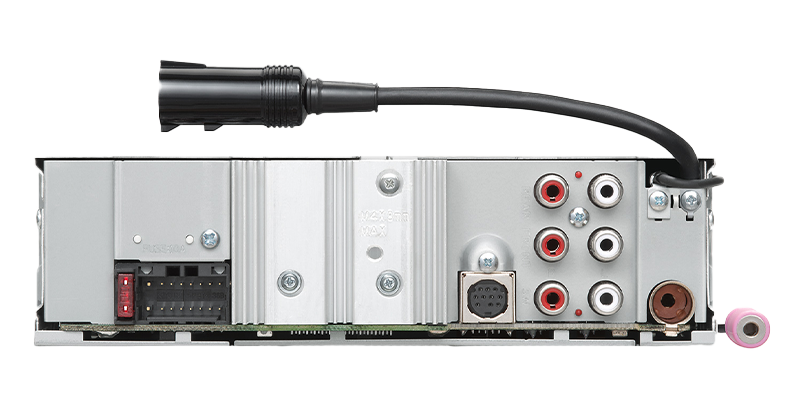

The KENWOOD receiver has RCA outputs to expand the system to connect to an additional amplifier or powered subwoofer.
Bright variable color LED's can be adjusted to match your environment.
With audio receivers shorter in depth, installation is made easier in a wider range of cars.
Improved moisture resistance of the circuit boards to prevent corrosion.
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
On-screen display menu now available in Spanish and French.
Remote control and remote extension cables are optionally available.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
Improved moisture resistance of the circuit boards to prevent corrosion.
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
Bright variable color LEDs can be adjusted to match any color dash lighting.
With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
| FM | Frequency Range(MHz) | 87.9MHz to 107.9MHz |
| (Frequency step) | (200kHz) | |
| Usable Sensitivity | 8.2dBf | |
| S/N:30dB | (0.71μV/75Ω） | |
| Quieting Sensitivity | 17.2dBf | |
| DIN S/N:46dB | (2.0μV/75Ω） | |
| Frequency Response(±3.0dB) | 30Hz to 15kHz | |
| S/N(dB) | 64.0dB(MONO) | |
| Stereo Separation | 40dB(1kHz) | |
| MW (AM) |
Frequency Range(kHz) | 530kHz to 1700kHz |
| (Frequency step) | (10kHz) | |
| Usable Sensitivity | 29dBμ (28.2μV) | |
| (S/N 20dB) | ||
| Preout Level(mV)/Load -Unbalanced | 4000mV/10kΩ | |
| Preout Impedance(Ω) | =<600Ω | |
| Speaker Impedance(Ω) | 4 to 8Ω | |
| USB I/F | USB | USB 1.1 / 2.0 High Speed |
| File System | FAT12 / 16 / 32 | |
| Maximum Supply current | DC5V(DC logo) 1.5A | |
| Frequency Response | 20Hz to 20kHz(±1dB) | |
| S/N Ratio (dB) | 98dB(1kHz) | |
| Dynamic Range | 93dB | |
| Channel Separation | 91dB | |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 | |
| WMA Decode | Compliant with Windows Media Audio | |
| AAC Decode | AAC-LC ".aac",".m4a" files | |
| WAV Decode | Linear-PCM | |
| FLAC Decode | FLAC file (Up to 24bit/96kHz) | |
| AUX Input |
Frequency Response | 20Hz to 20kHz ±3dB |
| Input Maximum Voltage | 1000mV | |
| Input Impedance | 30kΩ | |
| AMP | PWR(MAX) | 50Wx4 |
| Full Bandwidth Power (at less than 1%THD) |
22Wx4 | |
| TONE | Band1 | 62.5Hz ±9dB |
| Band2 | 100Hz ±9dB | |
| Band3 | 160Hz ±9dB | |
| Band4 | 250Hz ±9dB | |
| Band5 | 400Hz ±9dB | |
| Band6 | 630Hz ±9dB | |
| Band7 | 1kHz ±9dB | |
| Band8 | 1.6kHz ±9dB | |
| Band9 | 2.5kHz ±9dB | |
| Band10 | 4kHz ±9dB | |
| Band11 | 6.3kHz ±9dB | |
| Band12 | 10kHz ±9dB | |
| Band13 | 16kHz ±9dB | |
| Bluetooth | Version | Bluetooth 4.2 |
| Frequency Range | 2.402 to 2.480GHz | |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Profile | HFP 1.7.1 (Hands Free Profile) | |
| SPP(Serial Port Profile) | ||
| PBAP(Phonebook Access Profile) | ||
| A2DP(Advanced Audio Distribution Profile) | ||
| AVRCP 1.6.1 (Audio/Video Remote Control Profile) | ||
| GENE | Operating voltage | 12V DC car battery |
| Installation Size (W) (H) (D) |
182(mm) 7-3/16(in) 53(mm) 2-1/16(in) 100(mm) 3-15/16(in) |
|
| Net Weight | 0.7(kg) 1.5(lbs) (Trim plate and Mounting sleeve: Included) |
|
