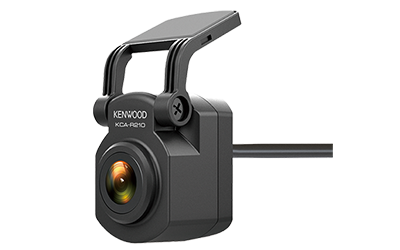

KCA-R210

KCA-R210

KCA-R210
Zoom

KCA-R210
Optional Rear View Camera
for DRV-A610W

FullHD 2560×1440

Optional Rear View Recording

Connect KCA-R210 to connectable DRV-A610W to record in front and behind of your vehicle, all at the same time. KCA-R210 includes a 8m cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or outside of the vehicle where you would like to record.

Front & Rear View Recording

8m Rear Camera Cable

motorhome
8m power & video cable enable you to install the rear camera inside or outside of your car, truck, or RV.

IP67 Waterproof & Dustproof

KCA-R210 carry an IP67, meaning that camera can be submerged in up to 1m of water for 30 minutes. The Camera is also fully sealed and protected against dust entry.

2 Rear Camera Brackets Included for
Various Installation

Adhesive & Screw Bracket

　
Adhesive Mount
Adhesive Mount
Screw Mount
Screw Mount

Double-joint Bracket

Screw Mount
Screw Mount

Adjustable Mounting Holder

Adjustable Rear Camera mounting holder enables to change
the viewing position changes to various angles.

page top

Youtube

LIVE CONNECTED. DRIVE CONNECTED.

KCA-R210

« scroll
Model Name   KCA-R210
Hard specification Operating voltage DC 5V
Current Consumption ~450mA
Image sensor Galaxy Core / GC4663 1/3"
Valid Pixel 4M Pixels
(2576 x 1472)
Number of Pixel 4M Pixels
(2560 x 1440)
Angles of view Horizontal : 105°
Vertical : 56.8°
Diagonal : 123.6°
Image reversal Yes (Invert/Mirror)
Lens F2.0
Operating temperature -10℃ to +60℃
Noise Protection Yes
Waterproof IP67
Recording Specification Recording resolution 2560 x 1440 Quad HD
Frame rate 30FPS
HDR Yes
WDR -
Video format H.264 / MP4
Size Dimensions WxHxD
(Bracket attached)		 with bracket: 1-1/16 x 2 x 1-1/4"
(27.6mm x 31.7mm x 50.0mm)
Weight (Main unit)
 0.66 lbs (300g)
Bundled Accessory DC Cable 18ft (5.5m)
Bracket Vertical Bracket and screws
(For out of car)
Spare 3M Adhesive Pad Yes/2pcs
Manual /Warranty card Instruction Manual
Warranty Card
