KFC-S503P

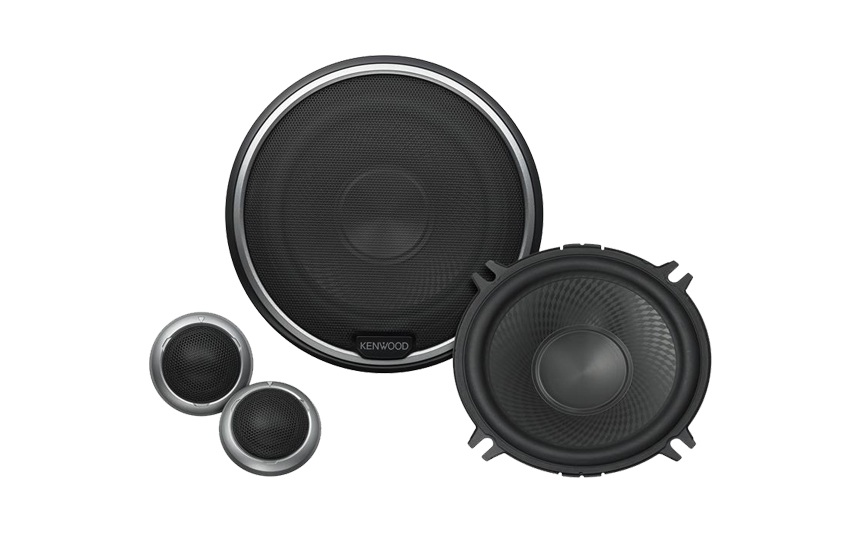

High Performance Component speaker KFC-S503P

Polypropylene Cone with Diamond-Array Pattern

Ribbed diamond shapes help increase rigidity, improve voice coil motion response and reproduce better bass and mid-range response and sound clarity as a result.

25mm Soft Dome Tweeter offers wide bandwidth and tremendous detail

Includes a flush mount bracket with “Swivel” function for a better adjustment of tweeter direction.
Also includes a free-location mount bracket for effortless installation.

High quality “In-line" X´over network

will help you shorten the installation time.

Peak Input Power

240W

Rated Input Power

45W (CEA Spec.)

Woofer Features

130mm PP cone woofer
Diamond Array Pattern Diaphrgm

Tweeter Features

25mm Swivel Soft Dome tweeter

Crossover Network Features

In-line Network

General Features

Component 2way speaker System
Supplied with a Pair of Grille
Include OEM Location Tweeter Bracket

Specifications

Sensitivity: 86dB at 1m
Frequency Response: 63-24k Hz
Impedance: 4 ohms
Size(WHD): 132.0mm x 132.0mm x 65.3mm
Mounting Depth: 60.0mm
Net Weight: 760g (with Grille)
Magnet Weight: 245g
