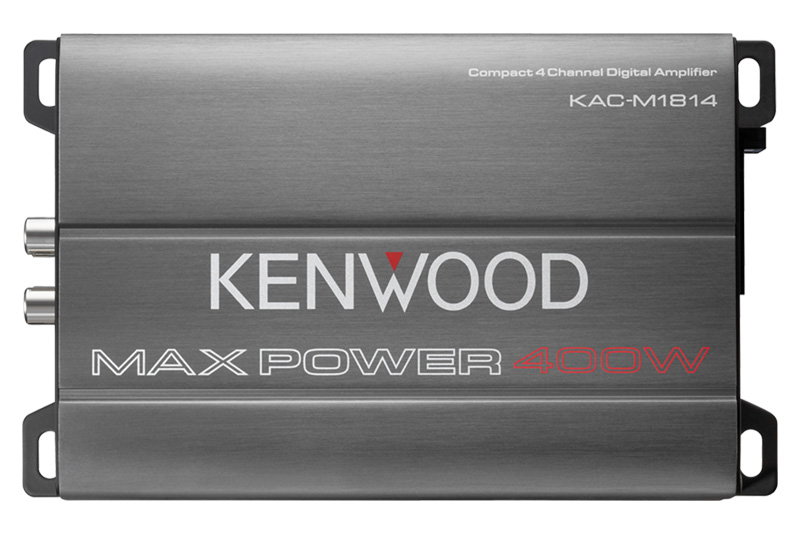

KAC-M1814Compact 4-Channel Digital Amplifier
KAC-M1814 Compact Class-D amplifier supports louder volume for Car, Marine and Motorsports users with low-noise.
Plastic covered connector helps to keep out water and dust.
Conformal Coating provides vibration resistance and helps prevent the PCB from rusting.

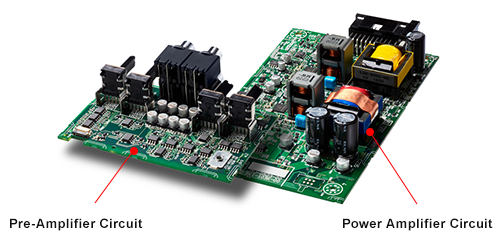

Pre-amp and Power-amp sections are separated to reduce radiation noise.
Compact design with controlable interface to adjust the sound from a receiver.
① Filter Frequency Control (A.ch/B.ch)
② Filter Switch to apply HPF / OFF / LPF (A.ch/B.ch).
③ Line In terminal
④ Input Sensitivity Control (A.ch/B.ch)
| Max Power | 400W |
|---|---|
| RMS Power | 45W x 4 (4Ω） |
| 45W x 4 (2Ω） | |
| 90W x 2 (Bridged) | |
| S/N | Signal to Noise Ratio: 98 dB |
| Size | (W)145mm x (H) 45mm x (D)99mm |
| Low Pass Filter | 50Hz-200Hz, -12dB/oct (A/B) |
| High Pass Filter | 50Hz-200Hz, -12dB/oct (A/B) |
| Speaker Level Input | |
| Signal Sensing Turn-On | |
| Variable High & Low Pass Filter | |
| Bridgeable | |
| Conformal Coating |
| Amplifier Type | Class D | |
|---|---|---|
| CEA-2006 Primary Ratings | Power Output | 45Watts RMS x 4 at 4 Ohms, ≤1%THD+N |
| Signal-to-Noise Ratio | 82dBA (Reference: 1Watt into 4Ohms) | |
| Maximum Power Output | MAX POWER | 400W |
| RMS Power at 14.4V | A/B (2 Ohms) | 45Watts RMS x 4 at 4 Ohms, 1kHz , ≤1% THD+N |
| A/B (Bridged 4Ohms) | 90Watts RMS x 2 at 4 Ohms, 1kHz, ≤1%THD+N | |
| Specifications | Signal to Noise Ratio | 98dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Frequency Response | 20Hz-20kHz (+0dB, -1dB) | |
| Input Impedance | 10k ohm | |
| Speaker Impedance | 4Ω ( 2Ω to 8Ω allowable) | |
| Bridged Connection | 4Ω to 8Ω allowable | |
| Audio Section | Low-pass Filter | 50-200Hz, -12dB/oct (A/B CH) |
| High-pass Filter | 50-200Hz, -12dB/oct (A/B CH) | |
| RCA Input Sensitivity | 0.2 (V) - 5.0 (V) | |
| Speaker Level Input Sensitivity | 4.0 (V) - 12.0 (V) | |
| Terminal | Connector with DC Cable | Yes |
| RCA | A/B | |
| General | Dimensions(WxHxD) | 145[mm] x 45 [mm] x 99 [mm] |
| (W)145mm x (H) 45mm x (D)99mm | ||
| Weight (kg) | 0.7 [kg] 1.5 [lbs] | |
| Operating Voltage | 14.4V（11-16V allowable） [V] | |
| Current Consumption | 15 [A] | |
| Key Features | CTA-2006 Compliant | |
| Class D | ||
| 2 Ohms Load Capability | ||
| Speaker Level Input | ||
| Signal Sensing Turn-on | ||
| Variable Low-Pass / High-Pass Filter | ||
| Key Features | Conformal Coating | |
| Terminal Cover | ||
| Power MOS-FET Switching Power Supply | ||
| Extruded Aluminum Heat Sink Design | ||
| A B Independent Gain Adjustment | ||
| Accessroies | DC cable 1.5m (5 ft) | ● 1pc |
| RCA cable 1m (3.3 ft) | ● 2pcs | |
| Self-tapping screws φ4x 16 mm | ● 4pcs | |
| Wire band 350mm (13-3/4 inch) | ● 2pcs | |
| Wire band 100mm (3-15/16 inch) | ● 2pcs | |
| Protective cover | ● 2pcs | |
