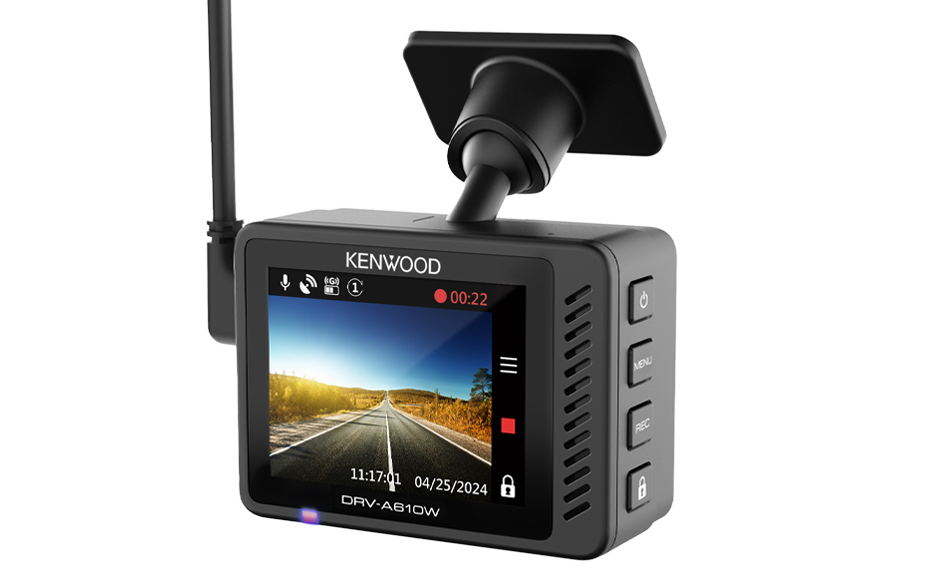

DRV-A610W + KCA-R210

High Definition Recording & Wireless Link

Dual Camera package is equipped with 8.3 Megapixel 4K (Front Camera) and 3.7 Megapixel Wide Quad Hi-Vision (Rear Camera) recording and provides easy data transfer to your smartphone through Wireless Link.

  • DRV-A610W + KCA-R210 Zoom

    GPS Integrated Dashboard Camera
    Front & Rear Camera Package

    DRV-A610W + KCA-R210
    • 8.3M & 3.7M Recording
    • 2.0" LCD Display
    • WDR (Front) HDR (Rear)
    • Wireless Link
    • Built-in G-Sensor & GPS
    • Parking Mode Recording*
    • Built-in Motion Sensor*
    • 64GB microSD Included
    • IP67 (Rear Cam)
    Features Icons Features Icons

    *Parking Mode Recording & Mortion Detection Recording requires optional hardwire kit: CA-DR1130

8.3 & 3.7 Megapixel Recording

8.3 & 3.7 Megapixel Recording provides High Resolution Recording

8.3 & 3.7 Megapixel High Definition recording captures clear video even while driving.

4K
Front Camera
Wide Quad-HD
Rear Camera
number plate

Capable of capturing a clear image of a license plate

Simulated Pictures

HDR (High Dynamic Range) &
WDR (Wide Dynamic Range) for Backlighting

Easily records clear images in dark or well lit settings without underexposing or overexposing the image.

Without HDR/WDR
Without HDR/WDR
With HDR/WDR
With HDR/WDR
Simulated Pictures

Front & Rear View Recording

The DRV-A610W + KCA-R210 includes 2 dash cams: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time. The rear dash cam includes a 26’ cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or outside of the vehicle where you would like to record.

 Front & Rear View Recording

Supports micro SDXC/SDHC

MicroSDXCME Logo
  • MicroSDXC/SDHC card 8GB to 256GB supported.
  • SD Card Recorded File Capacity
  • 32GB Micro SD = 120 mins of recording
  • 64GB Micro SD = 240 mins of recording
  • 128GB Micro SD = 480 mins of recording
  • 256GB Micro SD = 960 mins of recording
  • *Based on default front recording settings.

26'(8m) Rear Camera Cable

8m power & video cable enable you to install the rear camera inside or outside of your car, truck, or RV.
motorhome

12V & 24V Compatible

Cameras work with both 12V and 24V applications.

Compact Front & Rear Cameras

Compact camera provides for a stealthy look and easier installation.

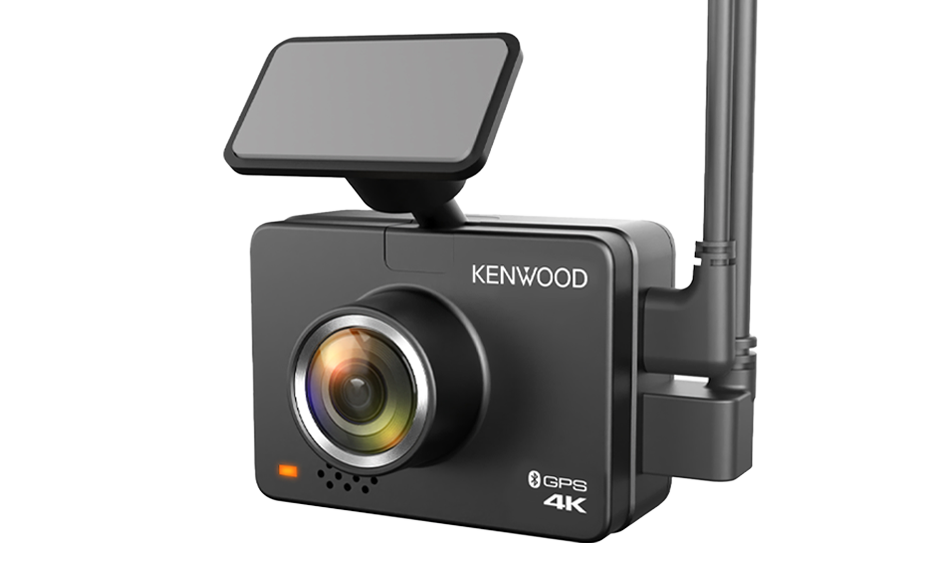

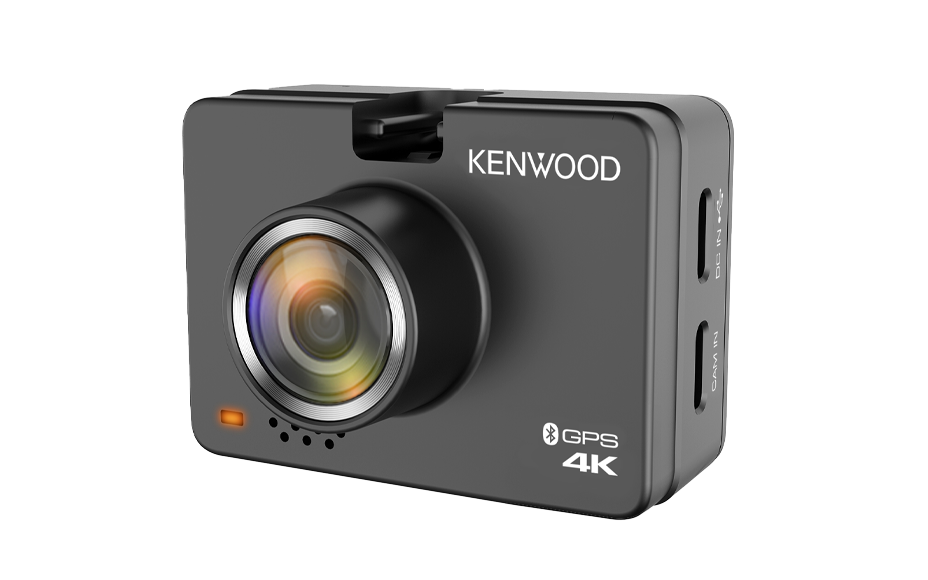

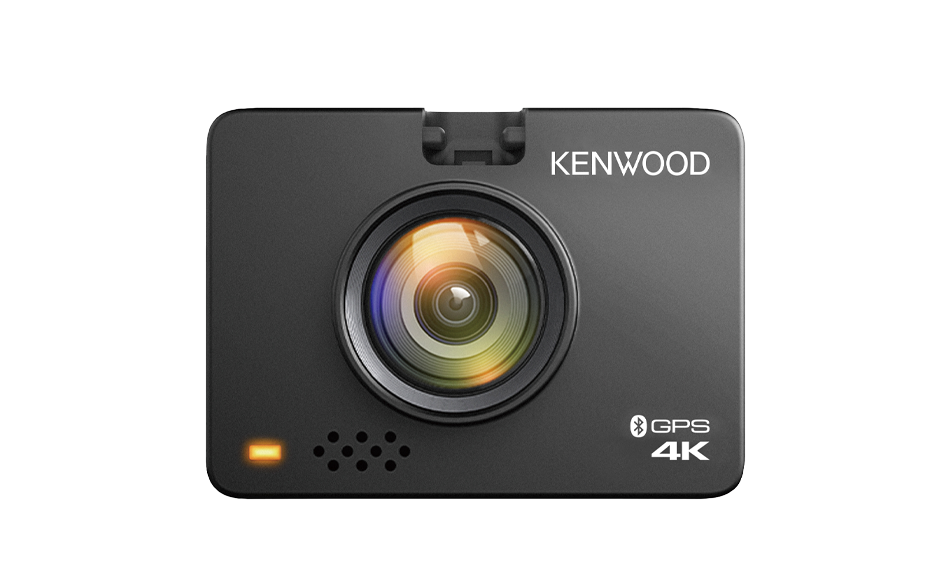

Front Camera
Rear Camera

Enhanced Vehicle Monitoring & Protection

G-sensor & Built-in GPS

The DRV-A610W is equipped with a G-Sensor designed to detect a collision, and GPS that records speed, latitude, and longitude.
G-sensor

Parking Mode Recording

Parking Mode Recording

When the vehicle is parked and turned off, parking mode becomes active. If the vehicle is subject to a collision or other physical impact, the cameras power on and automatically record 30 seconds of video.
Optional CA-DR1130 Hardware kits requires for Parking Mode Recording.

Motion Detection Recording

In standby mode, if the device detects any moving objects, the camera will automatically record a 30-second video and then stop recording until there are no more moving objects.
Optional CA-DR1130 Hardware kits requires for Motion Detection Recording.
Motion Detection Recording
PowerCable
*Optional hardwire kit: CA-DR1130

Super Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.
SuperCapacitor

Adjustable Installation Settings

IP67 Waterproof & Dustproof

The Rear Camera carry an IP67, meaning that camera can be submerged in up to 1m feet of water for 30 minutes.
The Camera is also fully sealed and protected against dust entry.

2 Rear Camera Brackets Included for
Various Installation

Adhesive & Screw Bracket

AdhesiveMount
Adhesive Mount
ScrewMount
Screw Mount

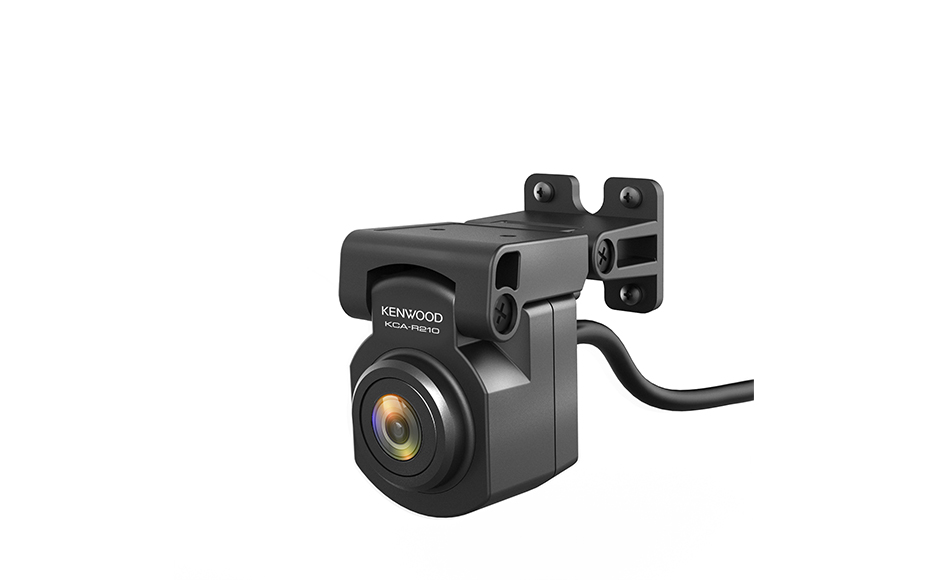

Double-joint Bracket

ScrewMount
Screw Mount

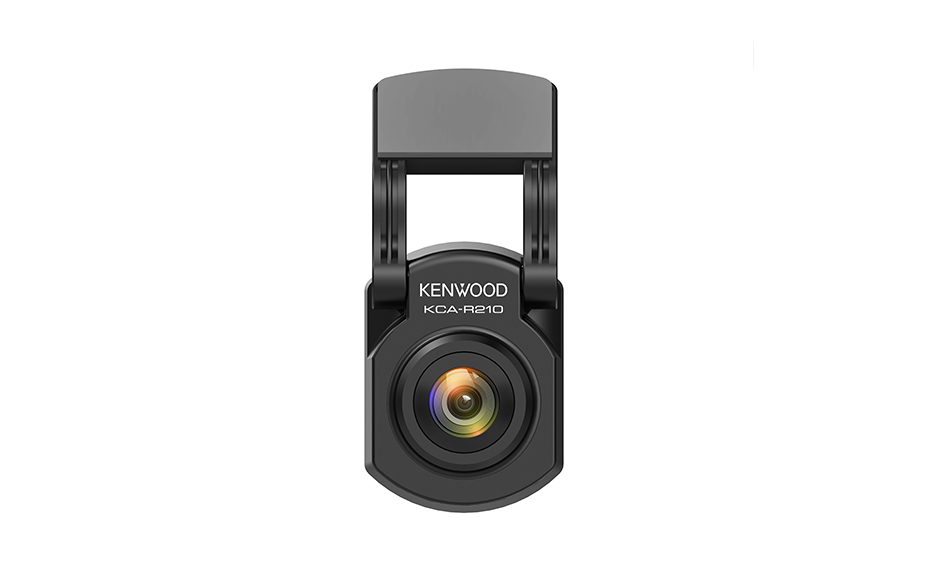

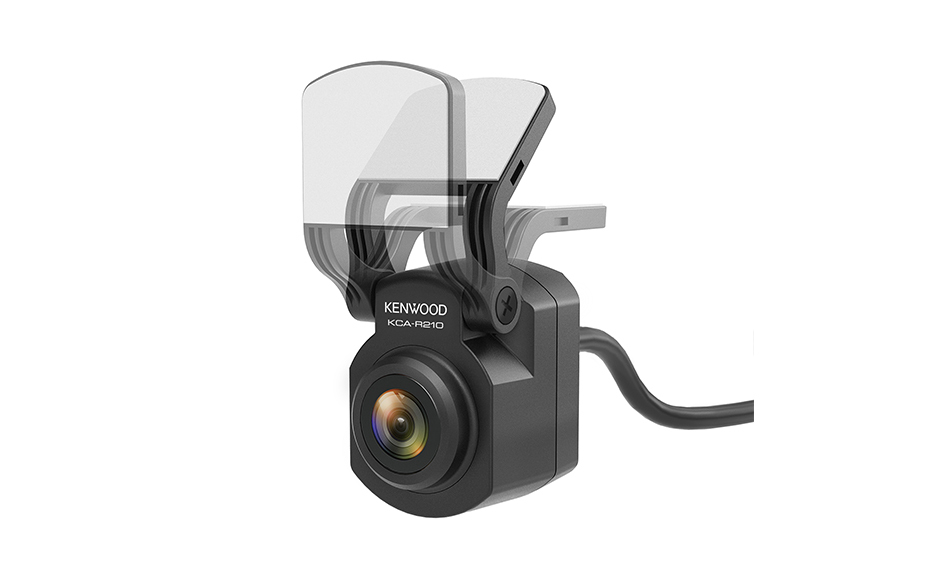

Adjustable Mounting Holder (Rear Camera)

 Adjustable Rear Camera mounting holder enables to change
the viewing position changes to various angles.

page top

LIVE CONNECTED. DRIVE CONNECTED.

DRV-A610W + KCA-R210

« scroll
Model Name DRV-A610W + KCA-R210
Front Camera Rear Camera
Hard specification Screen size 2 inches full color TFT -
Operating voltage DC 5V DC 5V
Current Consumption ~630mA ~450mA
Super Capacitor Yes -
Button Tact -
Wireless Link Yes -
Microphone Built-in -
Speaker Built-in -
GPS Receiver Built-in -
G-sensor Built-in -
Collision sensitivity -4.0G to +4.0G (0.1G Step) -
Image sensor 1/2.8" Sony Starvis / IMX415 1/3" Galaxy Core / GC4663
Valid Pixel 8.40M Pixels
(3864x2176)
4M Pixels
(2576x1472)
Number of Pixel 8.29M Pixels
(3840x2160)
4M Pixels
(2560x1440)
Angles of view Horizontal : 113°
Vertical : 60°
Diagonal : 135.6°
Horizontal : 105°
Vertical : 56.8°
Diagonal : 123.6°
Image reversal  Yes (Invert/Mirror) -
Lens F1.8 F2.0
Operating temperature -10℃ to +60℃ -10℃ to +60℃
Noise Protection Yes Yes
Motion sensor Yes Yes
Waterproof - IP67
OSD Menu Language Inmplemented languages EN/DE/FR/NL
/IT/ES/PT//PL/CZ/RO
-
Recording Specification Recording resolution 3840 x 2160 4K 2560 x 1440 Quad HD
Frame rate   30FPS 30FPS
HDR - Yes
WDR Yes -
Video Length 1min -
Voice recording Yes (On/Off) -
Video format H.265 / MP4 H.264 / MP4
Audio Format AAC -
Picture format JPEG
(Max.3840 x 2160)
-
Recording media microSDXC/SDHC card
8GB to 256GB
UHS Speed Class 3 (U3)
-

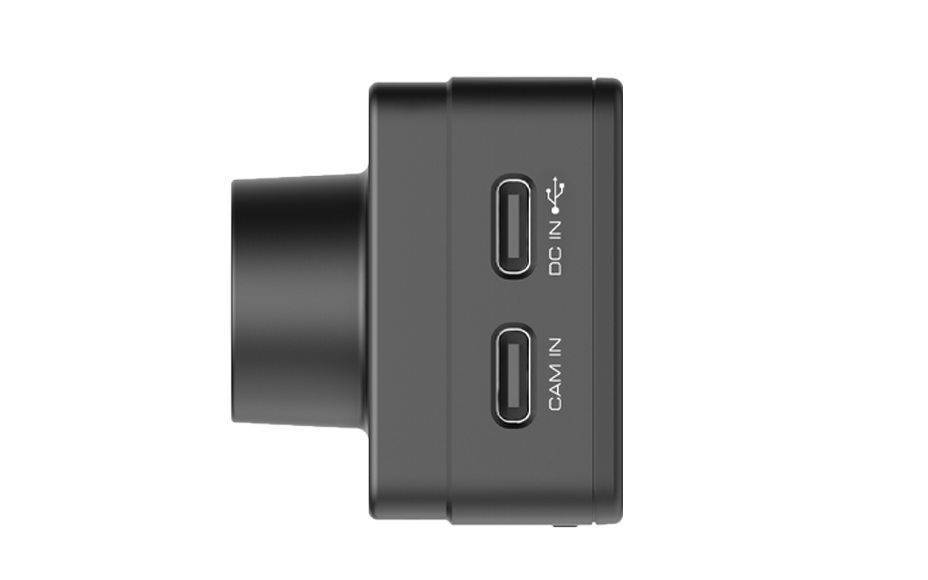

Port DC-IN USB Type-C -
CAM In USB Type-C -
SD Slot Micro SD -

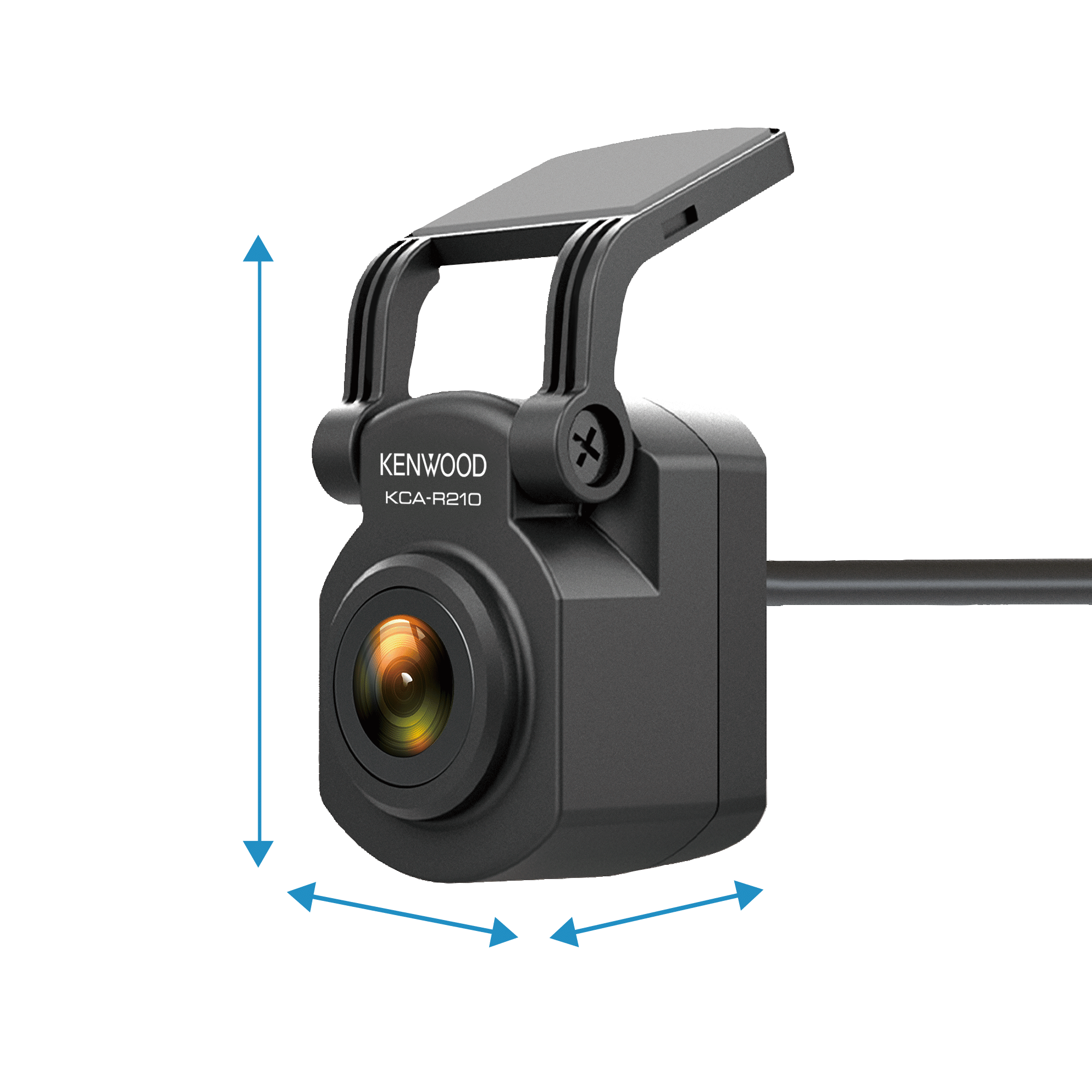

Size Dimensions WxHxD (Bracket attached) 58.5mm x 42.8mm x 24.4mm 27.6mm x 31.7mm x 50.0mm
Weight (Main unit) 72g 300g
Bundled Accessory SD Card 64GB -
DC Cable 13.1ft (4m) 18ft (5.5m)
USB Cigar socket USB Type-A -
Spare 3M Adhesive Pad Yes/2pcs Yes/2pcs
Cable Clips Yes/4pcs -
Static Side Film   Yes/1pcs -
Bracket - Vertical Bracket and screws
(For out of car)
Manual /Warranty card Quick Start Guide
Caution & Certification
Warranty Card
(Instruction Manual on Web)
Instruction Manual
Warranty Card
Optional Accessory Hardwire Kit CA-DR1130 -
Application PC Viewer Windows/Mac -
Requirement for Windows Windows 11.10 -
Requirement for Mac Mac OS Monterey 12.0 later -
Languages for PC Viewer EN/DE/FR/NL
/IT/ES/PT/PL/CZ/RO
-
Smartphone App Android/iOS -
Requirement for Android Android 10.0.0 and above -
Requirement for iOS   iOS 15.0 and above -
Languages for Smartphone App EN/DE/FR/NL
/IT/ES/PT/PL/CZ/RO
-
