With more information to play with, high-resolution audio tends to boast greater detail and texture, you'll hear every song in all its detailed glory - just as the artist intended - for sound that's more engaging, dynamic and lifelike.
More detail, more clarity. KENWOOD understands the true value and potential of High-Resolution Audio, which is why we’ve developed High-Resolution Audio certified products for KENWOOD loyal customers who want to listen music in the best sound quality.
*The product with this logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.
Cooling Fan allows the amplifier to operate at comfortable temperature levels even under the most stressful conditions.
High Density Construction to achieve best sounding and have one of the smallest footprints in this class.

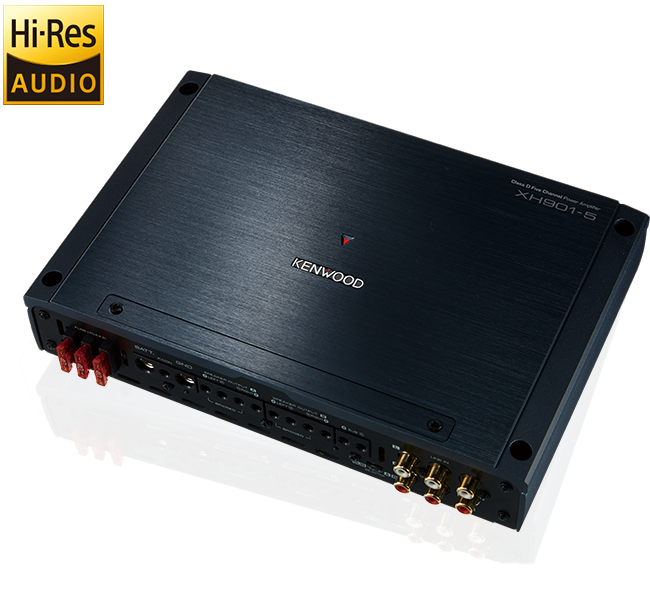

Hi-Resolution Audio Certified
D-Class 5ch Amplifier
Hi-Resolution Audio Certified
D-Class 4ch Amplifier
| Amplifier Tech-Spec | XH901-5 | XH401-4 |
|---|---|---|
| Maximum Output Power | 1800W | 800W |
| RMS Power at 4ohms | 60W x 4ch + 400W | 75W x 4ch |
| RMS Power at 2ohms | 75W x 4ch + 600W | 100W x 4ch |
| Bridged at 4ohms | 150W x 2ch + 400W | 200W x 2ch |
| Frequency Response | 20Hz - 50kHz | 20Hz - 50kHz |
| High Pass Filter | 50Hz - 200Hz, -12dB/oct | 50Hz - 200Hz, -12dB/oct (Low Range) 2.5kHz - 10kHz, -12dB/oct (High Range) |
| Low Pass Filter | 50Hz - 200Hz, -24dB/oct | 50Hz - 200Hz, -12dB/oct (Low Range) 2.5kHz - 10kHz, -12dB/oct (High Range) |
| Speaker Level Input | Yes | Yes |
| Signal to Noise Ratio | 100dB | 100dB |
| Dimensions W x D x H (mm) | 260 x 169 x 51 | 220 x 169 x 35 |
Hi-Resolution Audio Certified
Compact D-Class 4ch Amplifier
| Amplifier Tech-Spec | X3001-4 |
| Maximum Output Power | 600W |
| RMS Power at 4ohms | 50W x 4ch |
| RMS Power at 2ohms | 75W x 4ch |
| Bridged at 4ohms | 150W x 2ch |
| Frequency Response | 20Hz - 50kHz |
| High Pass Filter | 50Hz - 200Hz, -12dB/oct. |
| Low Pass Filter | 50Hz - 200Hz, -12dB/oct. |
| Speaker Level Input | Yes |
| Signal Sensing Turn-on | Yes |
| Signal to Noise Ratio | 90dB |
| Dimensions (W x D x H)mm | 213 x 149 x 53 |
| Weight | 1.4kg |
| Amplifier Tech-Spec | X802-5 | X502-1 | X302-4 |
| Maximum Output Power | 1600W | 1000W | 600W |
| RMS Power at 4ohms | 50W x 4ch +300W | 300W | 50W x 4ch |
| RMS Power at 2ohms | 75W x 4ch +500W | 500W | 75W x 4ch |
| Bridged at 4ohms | 150W x 2ch +300W | - | 150W x 2ch |
| Frequency Response | 20Hz - 50kHz | 20Hz - 200Hz | 20Hz - 50kHz |
| High Pass Filter | 50Hz - 200Hz, -12dB/oct. | - | 50Hz - 200Hz, -12dB/oct. |
| Low Pass Filter | 50Hz - 200Hz, -24dB/oct. | 50Hz - 200Hz, -24dB/oct. | 50Hz - 200Hz, -12dB/oct. |
| Speaker Level Input | Yes | Yes | Yes |
| Signal Sensing Turn-on | Yes | Yes | Yes |
| Signal to Noise Ratio | 100dB | 100dB | 100dB |
| Dimensions (W x D x H)mm | 248 x 169 x 53 | 213 x 149 x 53 | 213 x 149 x 53 |
Optional wired remote level control for X802-5 and X502-1 allows you to easily adjust the subwoofer volume.

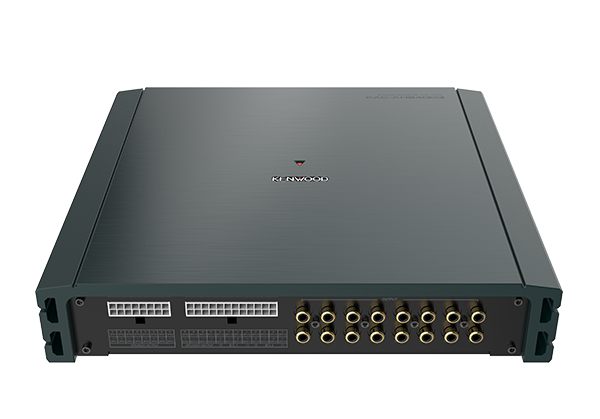

16ch Advanced Sound Processor Amplifier
Large-size toroidal transformer ensures stable power supply.
High winding density and low magnetic leakage improve power conversion efficiency and make the sound more natural and powerful.
Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.
| Technical Specifications | KAC-XH840D3 |
|---|---|
| Amplifier Inputs | 16ch |
| Analog Inputs | 2ch (RCA) |
| Optical Input | 1ch |
| Coaxial Input | 1ch |
| Analog Outputs | 16ch (RCA) |
| Speaker Outputs | 16ch (8x 25W + 8x 80W) (@4Ω Bridge 2 x 160W 1% THD) |
| Frequency Response | 20Hz～20kHz |
| EQ | 31-Band |
| Signal-to-noise ratio S/N-(Amplifier) |
≥92dB |
| Signal-to-noise ratio S/N-(RCA) |
≥98dB |
| Operating Voltage | DC 9V～16V |
| Additional Features | HOST/ACC Startup selection, Overheat and overcurrent protection, USB connection, Work indicator External Controller, External Bluetooth interface, Custom interface (PC software, APP) |
| Dimmensions(W x D x H) | 290mm x 275mm x55 mm |
| Weight | 6.2kg |
D-Class Mono Amplifier
| Amplifier Tech-Spec | XR600-1 |
|---|---|
| Maximum Output Power | 1200W |
| RMS Power at 4ohms | 400W x 1ch |
| Filter | LPF |
| Dimensions W x D x H (mm) | 220 x 169 x 35 |
Hi-Res Audio Certified.
17cm Component Speaker
For more information
Hi-Res Audio Certified.
17cm 2-way Speaker
For more information
| Speaker Tech-Spec | KFC-XH170C | KFC-XH170 |
|---|---|---|
| Peak Input Power | 300W | 300W |
| RMS Input Power | 100W | 100W |
| Size | 17cm | 17cm |
| Tweeter Design | 30mm Titanium Dome | 30mm Titanium Dome |
| Tweeter Magnet Composition | Neodymium | Neodymium |
| Woofer Design | 165mm Glass Fiber Cone | 165mm Glass Fiber Cone |
| Woofer Magnet Composition | Ferrite | Ferrite |
| Nominal Impedance | 3ohms | 3ohms |
| Frequency Response | 43Hz-40kHz(-10dB) | 45Hz-40kHz(-10dB) |
| Sensitivity (dB/W at 1m) | 87dB | 87dB |
| Mounting Depth | 59mm | 59mm |
