DRV-A700WDP

High Definition Recording & Wireless Link

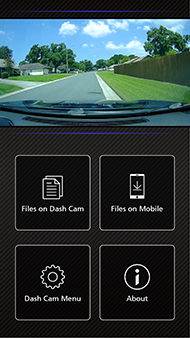

 Dual Camera package is equipped with 3.7 Megapixel※ Wide Quad Hi-Vision (Front Camera) and 2.0 Megapixel High-Vision (Rear Camera) recording and provides easy data transfer to your smartphone through Wireless Link. ※In Dual Camera Mode, both cameras maximum recording resolution is 2.0 Megapixel.  Rear cam must be turned off in menu setting to enable front cam 3.7 Megapixel recording.

  • DRV-A700WDP Zoom

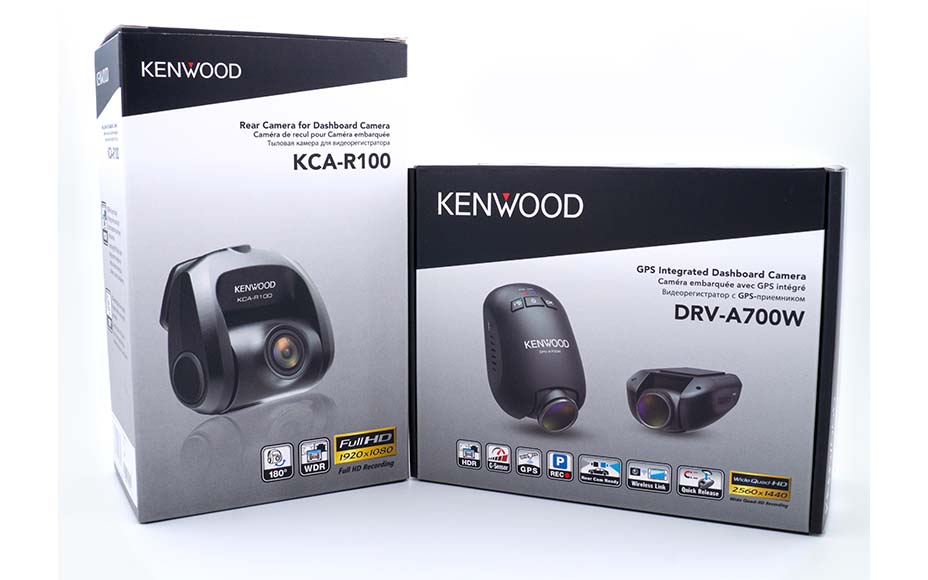

    Front & Rear Camera Package

    DRV-A700WDP
    • 3.7M & 2.0M Recording
    • Wireless Link
    • HDR/WDR
    • Built-in GPS & G-Sensor
    • 12V & 24V Compatible
    • Adjustable Lens Rotation
    • Parking Mode Recording
    • 16GB Micro SD Included
    • Quick Release
    Features Icons

    Buy Now

    Product Registration

3.7 & 2.0 Megapixel Recording

3.7 & 2.0 Megapixel Recording provides High Resolution Recording

3.7 and 2.0 Megapixel High Definition recording captures clear video even while driving.

Wide Quad-HD
Front Camera
full hivision
Rear Camera
number plate

Capable of capturing a clear image of a license plate

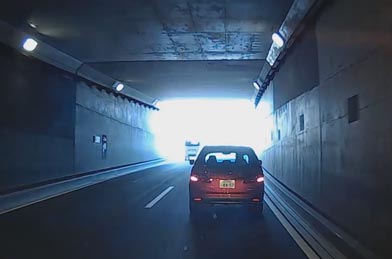

HDR (High Dynamic Range) &
WDR (Wide Dynamic Range) for Backlighting

Easily records clear images in dark or well lit settings without underexposing or overexposing the image.

Without HDR
Without HDR/WDR
With HDR
With HDR/WDR

Front camera switches to WDR when rear camera is connected

Front & Rear View Recording

 The DRV-A700WDP includes 2 dash cams: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time.  The rear dash cam includes a 26’ cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or anywhere else in the vehicle where you would like to record. When in Dual Camera Recording Mode, both cameras maximum recording resolution is 2.0 Megapixel (Full HD). Rear cam must be turned off in menu setting to enable front cam 3.7 Megapixel recording.

Front & Rear View Recording

Polarized Filter Included (Front Camera)

Simply attach PL filter to front of lens to reduce windscreen glare/reflection.
The filter has a rotating bezel, so that you can setup the reflection free lens exactly how you need in your vehicle..
without PL Filter
(without PL Filter)
with PL Filter
(with PL Filter)

Supports micro SDXC/SDHC

MicroSDXCME Logo
  • microSDXC/SDHC card 8GB to 256GB supported.
  • SD Card Recorded File Capacity
  • 8GB Micro SD = 47 mins (1 minute x 47 recordings)
  • 16GB Micro SD = 94 mins (1 minute x 94 recordings)
  • 32GB Micro SD = 141 mins (1 minute x 141 recordings)
  • 64GB Micro SD = 376 mins (1 minute x 376 recordings)
  • 128GB Micro SD = 752 mins (1 minute x 752 recordings)
  • 256GB Micro SD = 1504 mins (1 minute x 1504 recordings)
  • *Based on default recording settings.

26'(8m) Rear Camera Cable

26' (8m) power & video cable enable you to install the rear camera inside your car, truck, or RV.

Do not install the camera outside of your vehicle.

12V & 24V Compatible

Cameras work with both 12V and 24V applications.

Adjustable Lens Rotation

Adjustable Lens enables viewing position change by up to -90 to 40 degrees.

Enhanced Vehicle Monitoring & Protection

G-sensor & Built-in GPS

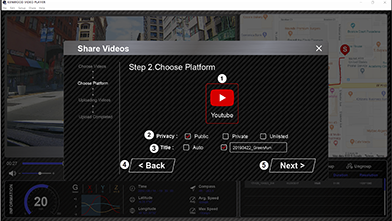

The DRV-A700WDP is equipped with a G-Sensor designed to detect a collision, and GPS that records speed, latitude, and longitude. KENWOOD DASH CAM MANAGER is a PC application that displays video recorded by the dash cam. KENWOOD DASH CAM MANAGER can be downloaded from the JVCKENWOOD website.
G-sensor
Parking Mode Recording

Parking Mode Recording

When the vehicle is parked and turned off, parking mode becomes active.  If the vehicle is subject to a collision or other physical impact, the camera powers on and automatically records 30 seconds of video.

Super Capacitor

If power is lost, this prevents the recorded video file from being corrupted, as it provides enough power to allow the video file to close properly.
SuperCapacitor

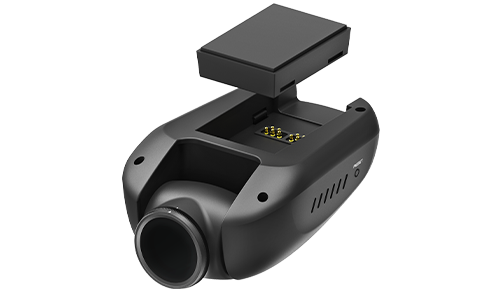

Quick Release

Magnetic Mount

Quickly place and remove the dash cam.
No cable to connect or disconnect from the dash cam.
Magnetic Mount

Adjustable Mounting Holder (Rear Camera)

Adjustable Rear Camera mounting holder enables viewing position change by up to 180 degrees.

BACK TO TOPpage top

  • Facebook
  • Twitter
  • Youtube
  • Instagram

Sign-Up For Our Newsletter!!

LIVE CONNECTED. DRIVE CONNECTED.

DRV-A700WDP

« scroll
Front Camera Rear Camera
Hard Specification Screen size - -
Operating voltage 5V / 2A; 12-24V DC DC 5V
Current Consumption 320mA 110mA
Super Capacitor Yes -
Button Tact -
Wireless Link Yes -
Microphone Built-in -
Speaker Built-in -
GPS Receiver Built-in -
G-sensor Built-in -
Collision sensitivity -4.0G to +4.0G (0.1G Step) -
Image sensor 1/2.8 CMOS sensor 1/2.8 CMOS sensor
Valid Pixel 5.14M Pixels(2616 x 1964) 2.12M Pixels(1936x1097)
Number of Pixel 3.7M Pixels (2560 x 1440) 2M Pixels(1920x1080)
Angles of view Horizontal : 114° Vertical : 82° Diagonal :154° Horizontal : 129° Vertical : 66° Diagonal :161°
Lens rotation Yes Yes(180∘)
Image reversal (Upside down) Yes -
Lens F1.8 F2.0
Polarization Filter Bundled No
Operating temperature -10℃ to +60℃ -10℃ to +60℃
Noise Protection Yes Yes
OSD Menu Language Inmplemented languages EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO -
Recording　Specification Recording resolution Single:2560 x 1440 Quad HD Dual:Full HD(Front) +Full HD(Rear) 1920 x 1080 Full HD
Frame rate 30FPS 30FPS
HDR Yes -
WDR Yes -
Recording Mode 1 / 3 / 5 min -
Voice recording Yes(ON/OFF） -
Video format H.264 / MOV H.264 / MOV
Audio format Linear PCM Linear PCM
Picture format JPEG (Max.2560 x 1440) -
Recording media microSDXC/SDHC card 8GB to 256GB Class10 -
Port DC-IN mini USB-B type -
AV Out/HD Out HDMI -
AV In (Rear Cam) Yes -
SD Slot microSD -
Size Dimensions WxHxD(Main unit) 90mm*61.3mm*39.2mm 3-9/16" x 2-7/16" x 1-9/16" 63mm*66mm*36mm 2-1/2" x 2-5/8" x 1-7/16"
Dimensions WxHxD(Bracket attached) 90mm*61.3mm*40.3mm 3/9/16" x 2-7/16" x 1-9/16" 63mm*66mm*36mm 2-1/2" x 2-5/8" x 1-7/16"
Weight(Main unit) 98g 334g
DC/Rear cam Cable Length 4m 8m
Bundled Accessory SD Card microSD 16GB -
DC Cable Hardwire Kit (same as CA-DR1030) -
Car Mount Bracket J Type Mount(Built-in GPS) Mounting Bracket (3M Tape) 3M Tape
Manual /Warranty card Quick Start Guide Yes
USB Cable Yes/110cm -
Spare 3M Adhesive Pad Yes/2pcs Yes/2pcs
Cable Clips Yes/4pcs -
Optional Accessory Hardwire Kit - -
Application PC Viewer Windows/Mac -
Requirement for Windows Windows 10, 8.1, 7 -
Requirement for Mac Mac OS X 10.11 -
(El Capitan) or later
Languages for PC Viewer EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO -
Smartphone App Android/iOS -
Requirement for Android Android 5.0.2 and above -
Requirement for iOS iOS 9.0 and above -
Languages for Smartphone App EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO -
