Compatible with all Qi-certified
receiver products,
including smartphones and
mobile phone covers.
Qi Wireless Charging Car MountCAX-HL10QI(Discontinued)
Compatible with all Qi-certified receiver products, including smartphones and mobile phone covers.
Provides up to 15 watts of fast charging power to compatible Qi enabled phones.
*Charging wattage varies by phone type.

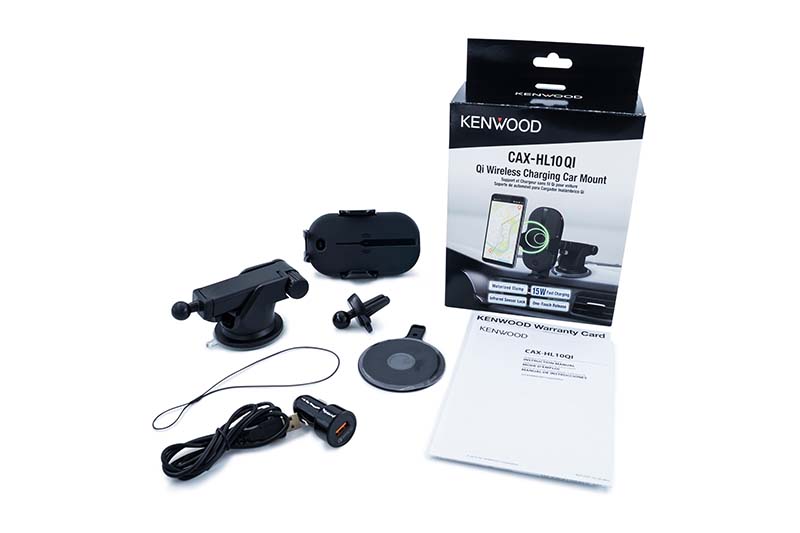

*QC3.0 USB car charger for fast wireless charging is included.
Qualcomm® Quick Charge™ is a product of Qualcomm Technologies, Inc.

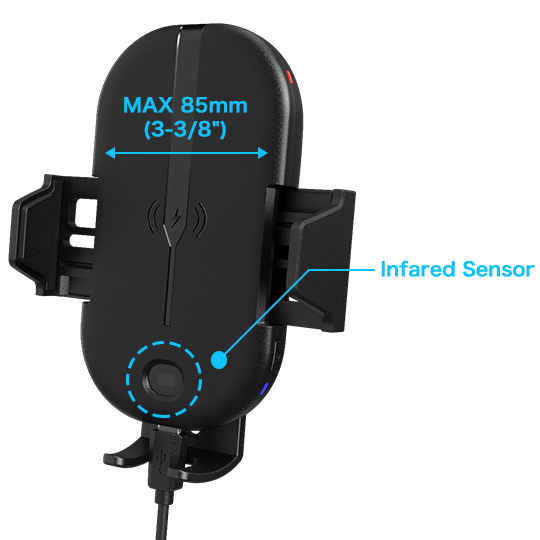

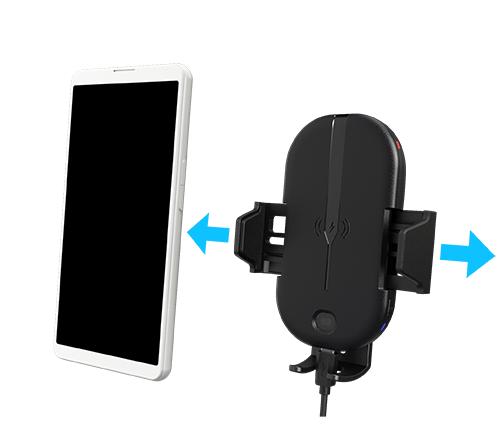

When the phone is placed near the infrared sensor, the clamping arms will automatically motorize open, allowing you to easily set the phone into the mount. After the phone has been placed into the mount, the clamping arms will automatically motorize closed to lock and hold the phone firmly in place.
To remove the phone, simply touch the sensor on the lower left side of the mount.
Allows mount to motorize open and closed even if your vehicle is turned off.

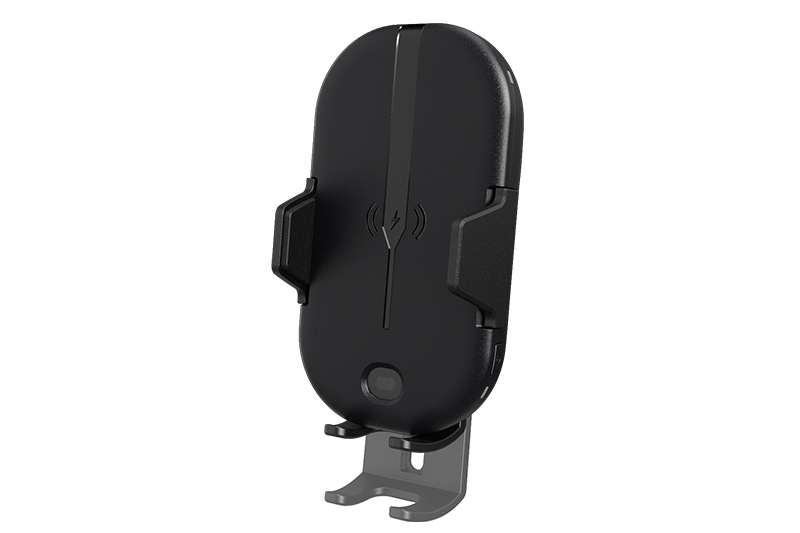

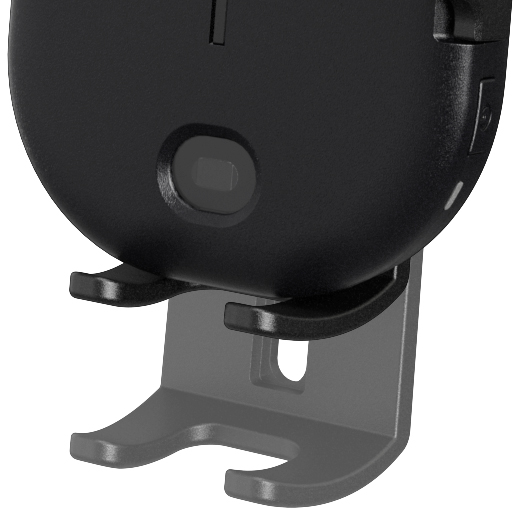

The adjustable hook ensures your phone stays securely in place, preventing a sudden drop even during the bumpiest of road conditions.

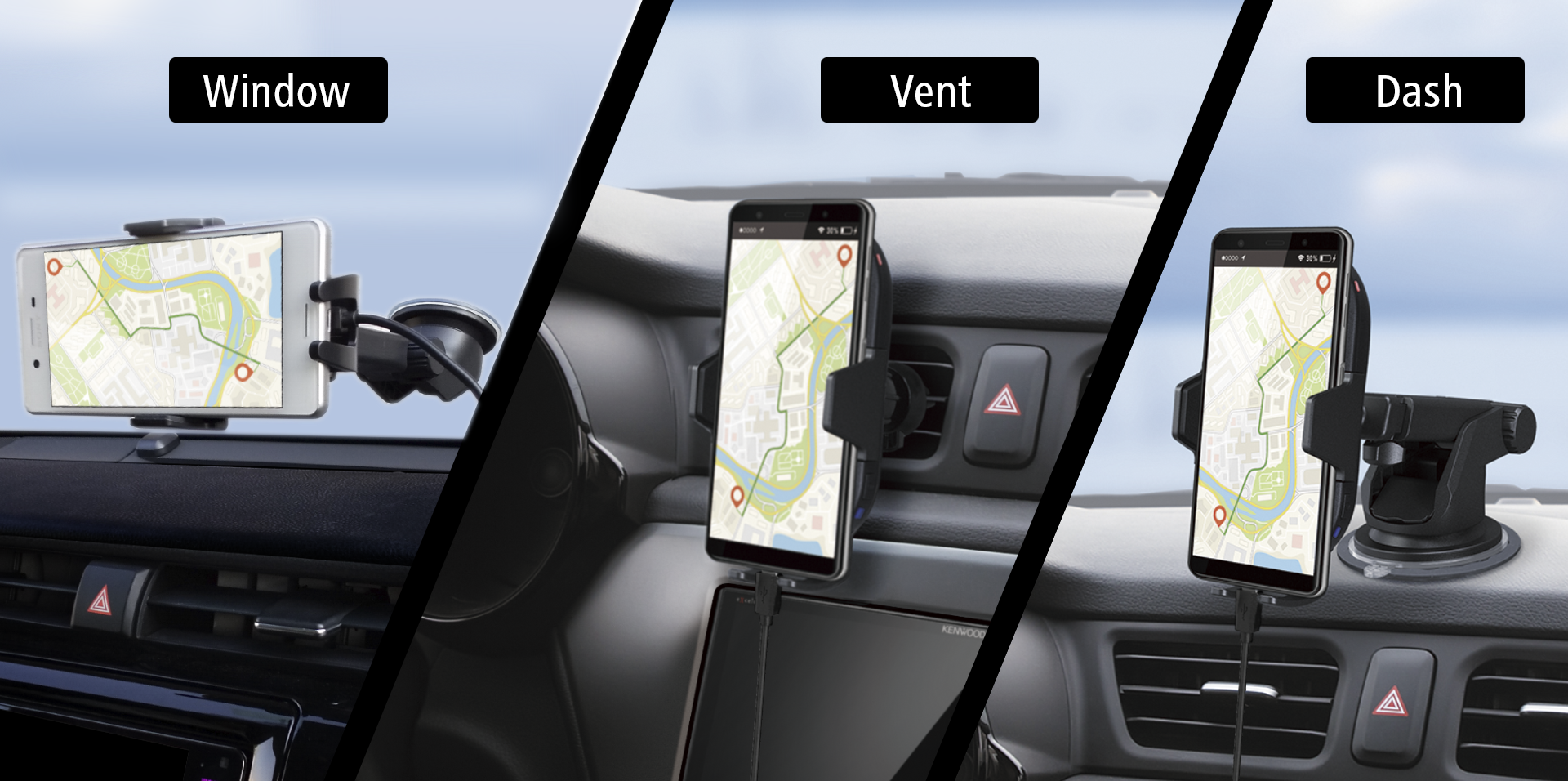

Air Vent Mount - Heavy duty mount that easily attaches to multiple types of air vents.
Suction Cup Mount - A sturdy scuction cup with locking function that holds firmly in place on a window.
Dashboard Mounting Plate - Attach this to your dashboard, then attach the suction cup mount for convenient mounting on your dash.
Dashboard car mount
Air vent car mount

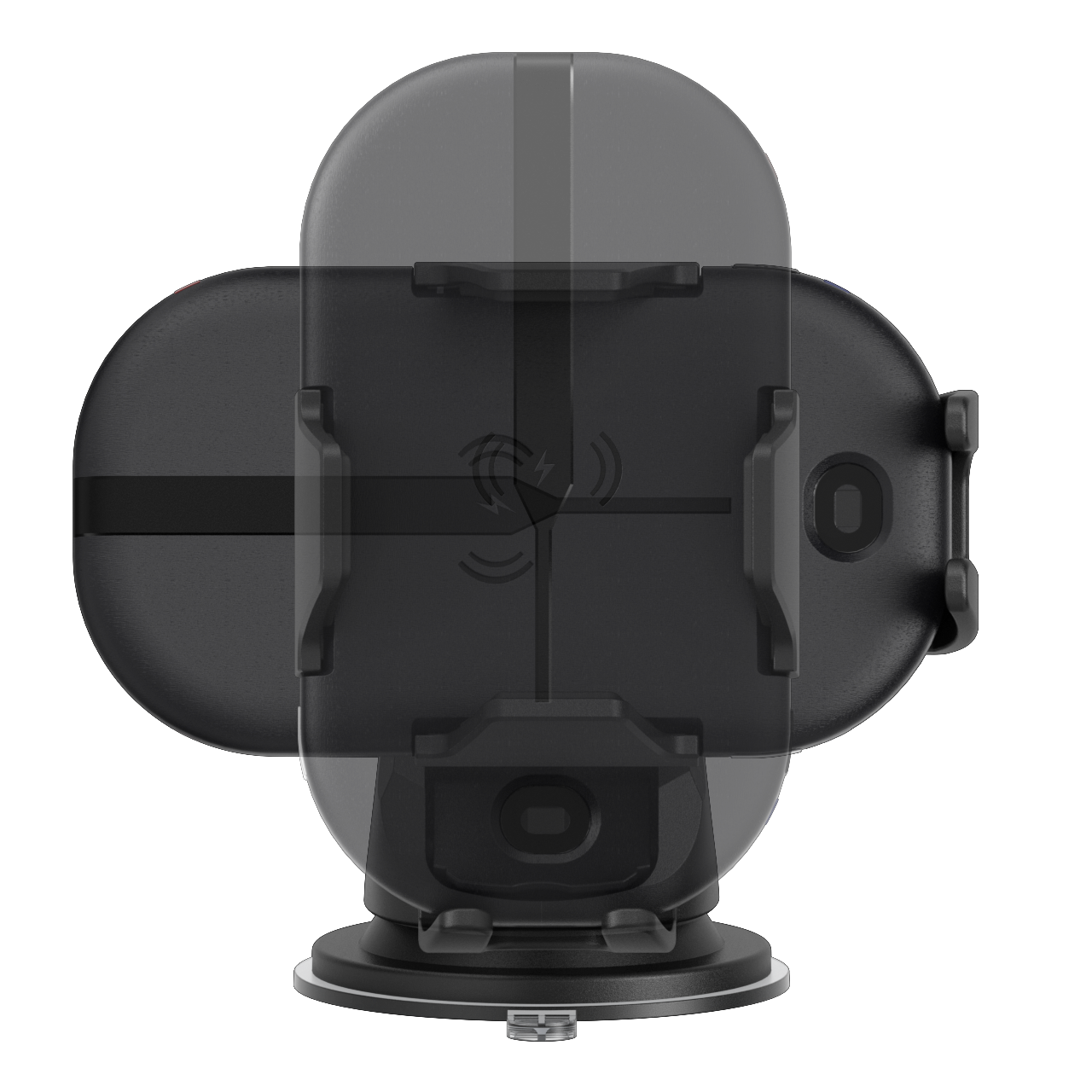

Horizontal / vertical
adjustable mount
Qi Charger |
|
| Input | DC.5V/3A ; 9V/2A ; 12V/1.5A |
|---|---|
| Output | 9V/1.67A ; 9V/1.12A ; 9V/0.83A ; 5V/1A |
| Rated frequency | 110kHz to 205kHz |
| Power | 15W Max |
| Operating temperature range | −10° C to +60° C |
| Transmission distance | ≤ 6mm |
| Dimensions | 69.8(W)mm × 123.0(H)mm × 65.9(D)mm |
| Weight | 145g |
USB Car Charger |
|
| Input | DC12V/24V |
| Operating | temperature range −10° C to +60° C |
| Output | DC.5V/3A ; 9V/2A ; 12V/1.5A (It is in line with the protocol standard of Qualcomm® Quick Charge™ 3.0.) |
| Over temperature Protection: When charging, if temperature goes over +60° C, the device will automatically stop charging and the transmitter light will flash red (1 second on/1 second off). When the temperature drops to +40° C, the device will automatically recharge. |
|
Qi Charger |
|
| Input | DC.5V/3A ; 9V/2A ; 12V/1.5A |
|---|---|
| Output | 9V/1.67A ; 9V/1.12A ; 9V/0.83A ; 5V/1A |
| Rated frequency | 110kHz to 205kHz |
| Power | 15W Max |
| Operating temperature range | −10° C to +60° C |
| Transmission distance | ≤ 6mm |
| Dimensions | 69.8(W)mm × 123.0(H)mm × 65.9(D)mm |
| Weight | 145g |
USB Car Charger |
|
| Input | DC12V/24V |
| Operating | temperature range −10° C to +60° C |
| Output | DC.5V/3A ; 9V/2A ; 12V/1.5A (It is in line with the protocol standard of Qualcomm® Quick Charge™ 3.0.) |
| Over temperature Protection: When charging, if temperature goes over +60° C, the device will automatically stop charging and the transmitter light will flash red (1 second on/1 second off). When the temperature drops to +40° C, the device will automatically recharge. |
|
