DMX125BTMonitor with Receiver
6.8" Digital Multimedia Receiver(Discontinued)
Enjoy convenient control and access to Bluetooth hands-free calls and streaming music,
as well as the ability to mirror select Android smartphones on the receiver’s screen.
Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
Clear glass display provides superior picture and touch panel control.
Allows you to display and control* your Android smartphone (Android OS 7.0+) on the screen of the receiver via USB. *Control functionality varies by device.
Search and select songs from your music collection through a Bluetooth connection.
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Allows you to display and control* your Android smartphone (Android OS 7.0+) on the screen of the receiver via USB. *Control functionality varies by device.
＊Before starting, just install the free app “Mirroring OB for KENWOOD” on your smartphone and connect it to DMX125BT via a USB cable and Bluetooth.
Listen to popular music applications and music stored on your device with basic audio controls.

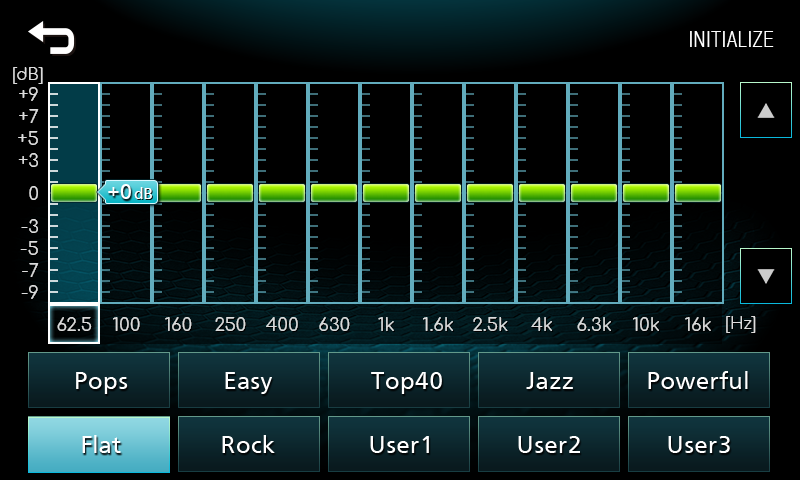

Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Compatible with various audio file formats from FLAC and WAV, to MP3, WMA and AAC.
| File format | High-Resolution Audio | Compression | Frequency |
|---|---|---|---|
| WAV | 〇 | - | ～96kHz / ～24bit |
| FLAC | 〇 | Lossless compression | |
| MP3 | - | Lossy compression | ～48kHz / ～16bit |
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Provides a high contrast ratio, crystal clear display and vivid text.
You can play back from USB devices audio and video files compressed in various formats.
| Video Codec | Playable up to |
|---|---|
| MPEG4 | 1920 × 1080p |
| H.264 | 1920 × 1080p |
| MKV | 1920 × 1080p |

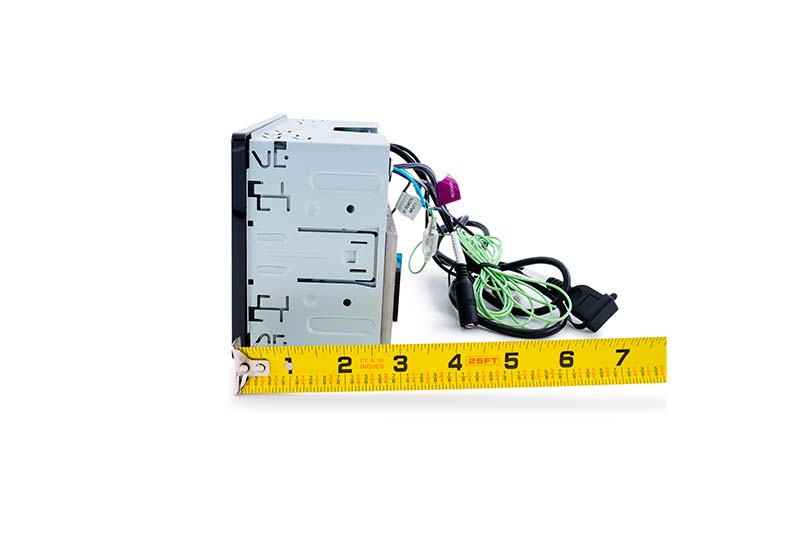

With multimedia receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
This receiver unit can be operated using the optional remote control KNA-RCDV331.
| Monitor Section | ||
|---|---|---|
| Picture size | 6.75inches(diagonal) wide | |
| W x H | 151.8mm x 79.7mm, 5-15/16. x 3-1/8 inch | |
| Display system | Transparent TN LCD panel | |
| Drive system | TFT active matrix system | |
| Number of pixels | 1,152,000 800H x 480V x RGB |
|
| Effective pixels | 99.99% | |
| Pixel arrangement | RGB striped arrangement | |
| Back lighting | LED | |
| USB I/F Section | ||
| USB Standard | USB2.0 High Speed | |
| File System | FAT 16 / 32 / NTFS | |
| Maximum Power Supply Current | DC 5V = 1.0A | |
| D/A Converter | 24Bit | |
| Audio Decoder | MP3/ WMA/ WAV/ AAC/ FLAC | |
| Video Decoder | MPEG1/ MPEG2/ MPEG4/ H.264/ MKV | |
| Frequency response | 96k Sampling | 20 - 20,000 Hz |
| 48k Sampling | 20 - 20,000 Hz | |
| 44.1k Sampling | 20 - 20,000 Hz | |
| Bluetooth Section | ||
| Technology | Bluetooth V4.2 | |
| Frequency | 2.402 – 2.480 GHz | |
| RF Output Power (E.I.R.P.) | +8dBm (MAX), Power Class 1 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Audio Codec | SBC | |
| Profile | HFP(Hands Free Profile) 1.6 | |
| A2DP(Advanced Audio Distribution Profile) | ||
| AVRCP(Audio/Video Remote Control Profile) 1.5 | ||
| PBAP(Phonebook Access Profile) | ||
| SPP(Serial Port Profile) | ||
| DSP Section | ||
| Graphics equalizer | BAND | 13Band |
| frequency(Hz) (BAND1-13) | 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k | |
| Gain | -9 to +9 (-9dB to +9dB) | |

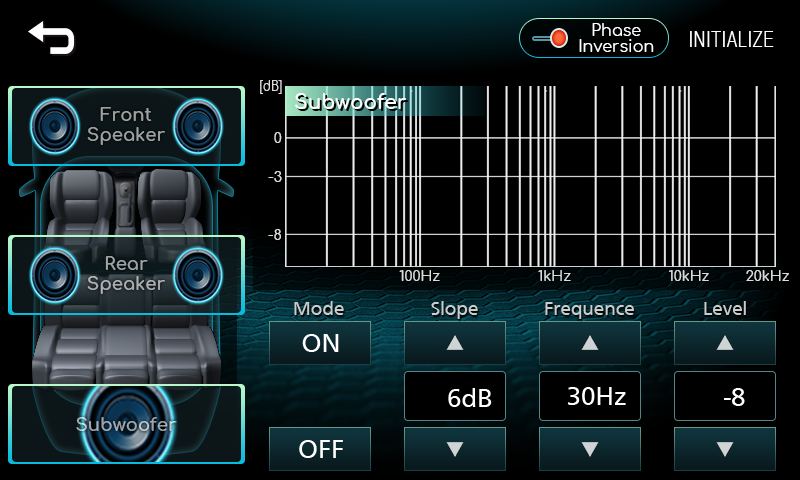

| X'Over | HIGH PASS FILTER frequency | Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz |
| SLOPE | -6/ -12/ -18/ -24 dB/Oct. | |
| LOW PASS FILTER frequency | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through | |
| SLOPE | -6/ -12/ -18/ -24 dB/Oct. | |
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | |

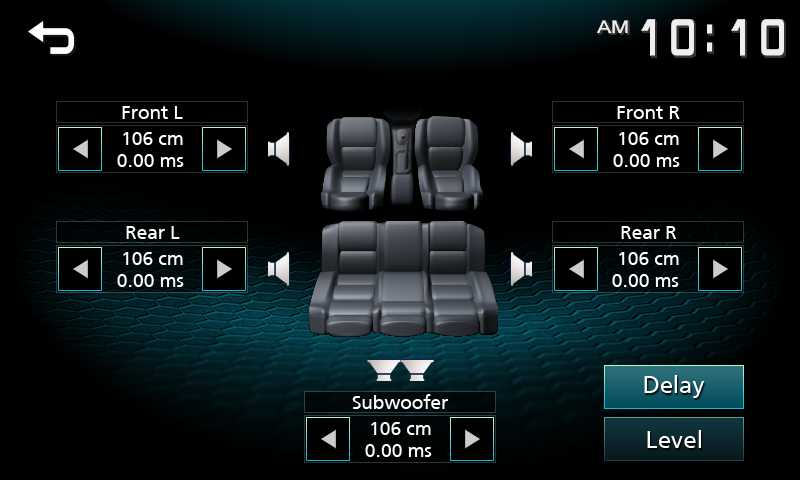

| Position | Front / Rear /Subwoofer Delay | 0 to 20.01ft (0.03 or 0.04ft Step) |
| Gain | -8 to 0dB | |
| FM | ||
| Frequency range (Frequency step) |
87.9 - 107.9 MHz (200kHz) |
|
| Usable sensitivity | 16.2dBf | |
| S/N30dB | 1.8μV/75 Ohms | |
| Frequency response(±3.0 dB) | 30 Hz - 14 kHz | |
| S/N( dB) | 50 dB(MONO) | |
| Stereo separation | 35 dB(1 kHz) | |
| AM | ||
| Frequency range (Frequency step) |
530 - 1700 kHz (10 kHz) |
|
| Usable sensitivity | 99μV (40dBμ) | |
| Video | ||
| Color system of external video input | NTSC / PAL | |
| External video input level (RCA jacks) | 1.0Vp-p / 75 Ohms | |
| External audio max input level(RCA jacks) | 1.5V / 25k Ohms | |
| Video Input level (RCA jacks) | 1.0Vp-p / 75 Ohms | |
| Video Output level (RCA jacks) | 1.0Vp-p / 75 Ohms | |
| Audio | ||
| Maximum Power (Front&Rear) | 45Wx4 | |
| Full Bandwidth Power (Front&Rear) | 16Wx4 | |
| Output frequency band | 20 - 20,000Hz | |
| Preout level(V) | 2V / 10k Ohms | |
| Preout impedance(Ω) | 1.4k Ohms | |
| Speaker Impedance(Ω) | 4-8 Ohms | |
| General | ||
| Operating voltage | 12V DC Car Battery | |
| Installation Dimensions WxHxD | 182mm x 112mm x 75mm 7-3/16 x 4-7/16 x 3inch |
|
| Main Unit Installation size W x H x D(w/o sleeve) | 178mm x 100mm x 75mm 7-1/16 x 3-15/16 x 3inch |
|
| Weight | Main unit | 1.2 kg |
| (Including Sleeve and Trim plate) | 2.7lbs | |
