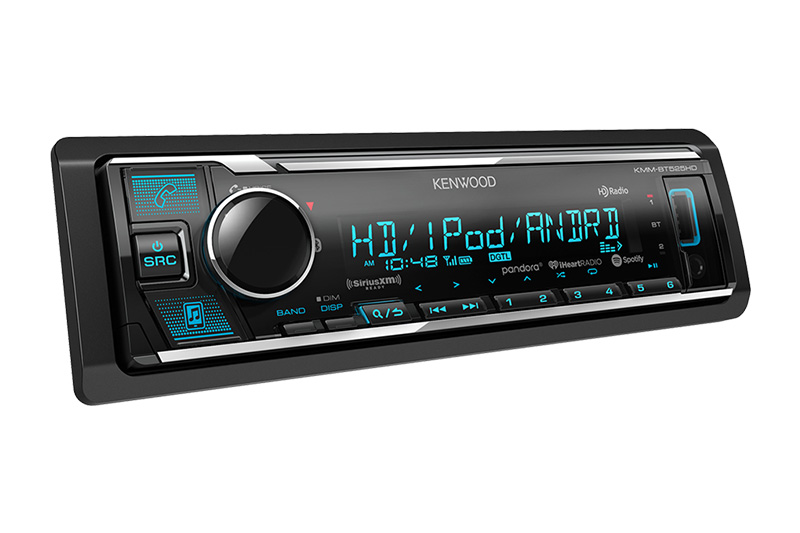

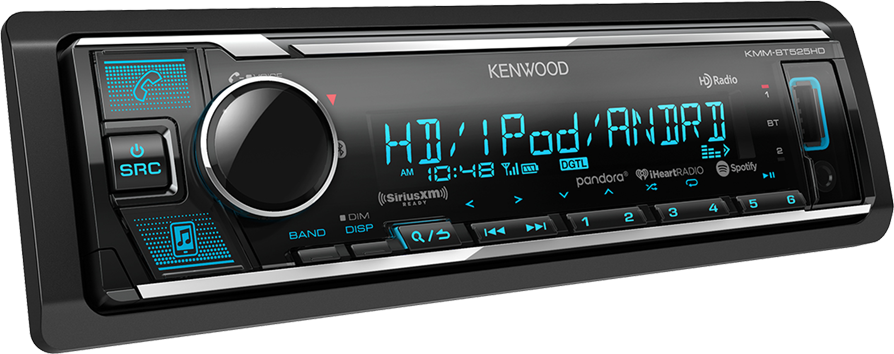

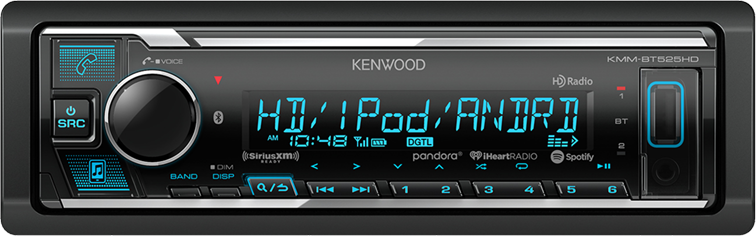

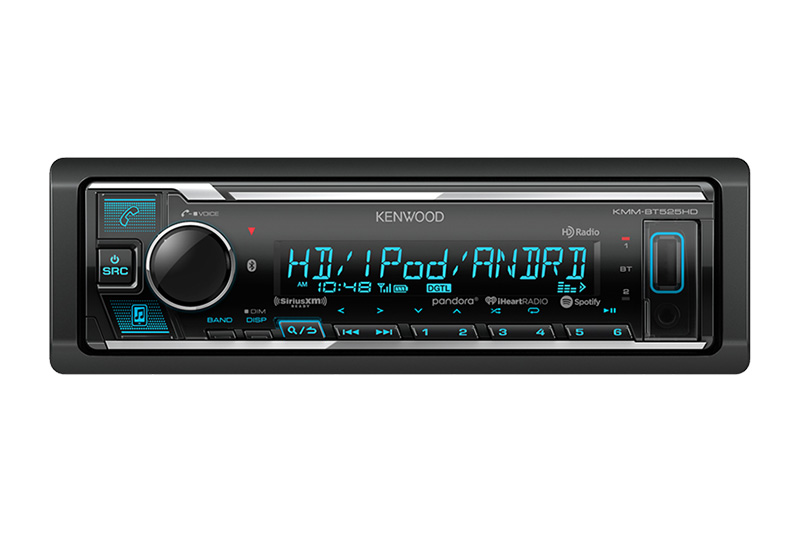

KMM-BT525HDDigital Media Receiver with Bluetooth & HD Radio
Enjoy convenient control of popular apps like Spotify and Pandora,
built-in Bluetooth for hands-free calls and streaming music,
as well as the ability to use your smartphone like a wireless remote control.
Sound quality enthusiasts will love the playback support of various types of music formats,
including compatibility with FLAC files.
Simple sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
The above "referred" online retailers are authorized by KENWOOD.
They are listed here based upon meeting specific operational criteria and offer a very informative shopping experience,
along with exceptional customer service.
KENWOOD's manufacturer's warranty and any rebates offered by KENWOOD are not valid when purchased from an unauthorized dealer.
Buying from an unauthorized dealer also increases your risk of buying fake or counterfeit products.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.

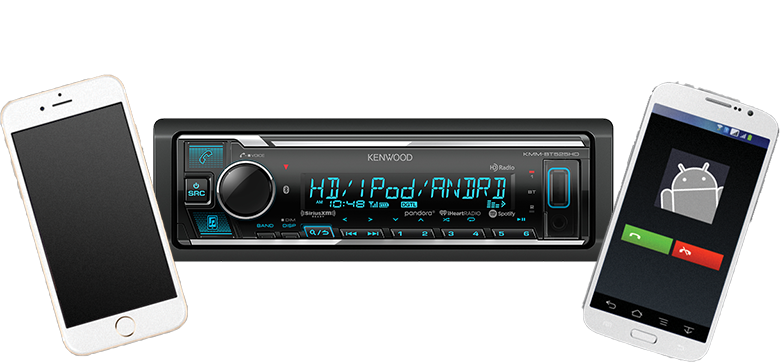

While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
Search and select songs from your music collection through a Bluetooth connection.
13-Band equalizer and DTA gives optimal tuning enhancements for the listener.
Boosts specific frequencies in the audio signal to overcome the negative impact of road noise.
Bright variable color LEDs can be adjusted to match any color dash lighting.
With audio receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Multiple USB ports provide additional inputs for music sources or smartphone battery charging.
| FM | Frequency Range (Frequency step) |
87.9MHz to 107.9MHz (200kHz) |
|---|---|---|
| Frequency Response (±3.0dB) |
30Hz to 15kHz | |
| S/N | 68dB(MONO) | |
| Stereo Separation | 40dB(1kHz) | |
| Digital FM |
Frequency Range (Frequency step) |
87.9MHz to 107.9MHz (200kHz) |
| Frequency Response (±3.0dB) |
20Hz to 20kHz | |
| S/N | 75dB(STEREO) | |
| AM | Frequency Range (Frequency step) |
530kHz to 1700kHz (10kHz) |
| Usable Sensitivity S/N:20dB |
29dBμ (28.2μV) | |
| Digital AM |
Frequency Range (Frequency step) |
530kHz to 1700kHz (10kHz) |
| Frequency Response (±3.0dB) |
40Hz to 15kHz | |
| S/N | 70dB(STEREO) | |
| USB I/F | USB | USB 1.1 / 2.0 Full speed |
| File System | FAT12 / 16 / 32 | |
| Maximum Supply current | DC5V(DC logo) 1.5A | |
| Frequency Response | 20Hz to 20kHz(±1dB) | |
| S/N Ratio (dB) | 99dB(1kHz) | |
| Dynamic Range | 93dB | |
| Channel Separation | 91dB | |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 | |
| （4Ω,1kHz,10%THD以下） | Compliant with Windows Media Audio | |
| AAC Decode | AAC-LC ".aac", ".m4a" files | |
| WAV Decode | Linear-PCM | |
| FLAC Decode | FLAC file (Up to 96kHz/24bit) | |
| Preout Level(mV)/Load -Unbalanced | 4000mV/10kΩ | |
| Preout Impedance(Ω) | ≦600Ω | |
| Speaker Impedance(Ω) | 4 to 8Ω | |
| AUX Input |
Frequency Response | 20Hz to 20kHz ±3dB |
| Input Maximum Voltage | 1000mV | |
| Input Impedance | 30kΩ | |
| AMP | Maximum Power | 50Wx4 |
| Full Bandwidth Power (at less than 1%THD) |
22Wx4 | |
| TONE | Band1 | 62.5Hz ±9dB |
| Band2 | 100Hz ±9dB | |
| Band3 | 160Hz ±9dB | |
| Band4 | 250Hz ±9dB | |
| Band5 | 400Hz ±9dB | |
| Band6 | 630Hz ±9dB | |
| Band7 | 1kHz ±9dB | |
| Band8 | 1.6kHz ±9dB | |
| Band9 | 2.5kHz ±9dB | |
| Band10 | 4kHz ±9dB | |
| Band11 | 6.3kHz ±9dB | |
| Band12 | 10kHz ±9dB | |
| Band13 | 16kHz ±9dB | |
| Bluetooth | Version | Bluetooth 3.0 |
| Frequency Range | 2.402 to 2.480GHz | |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) | |
| Profile | HFP 1.6 (Hands Free Profile) | |
| SPP (Serial Port Profile) | ||
| PBAP (Phonebook Access Profile) | ||
| A2DP (Advanced Audio Distribution Profile) | ||
| AVRCP 1.5 (Audio/Video Remote Control Profile) | ||
| General | Operating voltage | 12V DC car battery |
| Installation Size (W) (H) (D) |
7-3/16" 2-1/16" 3-15/16" |
|
| Net Weight (Trim plate and Mounting sleeve: Included) |
1.5(lbs) | |
