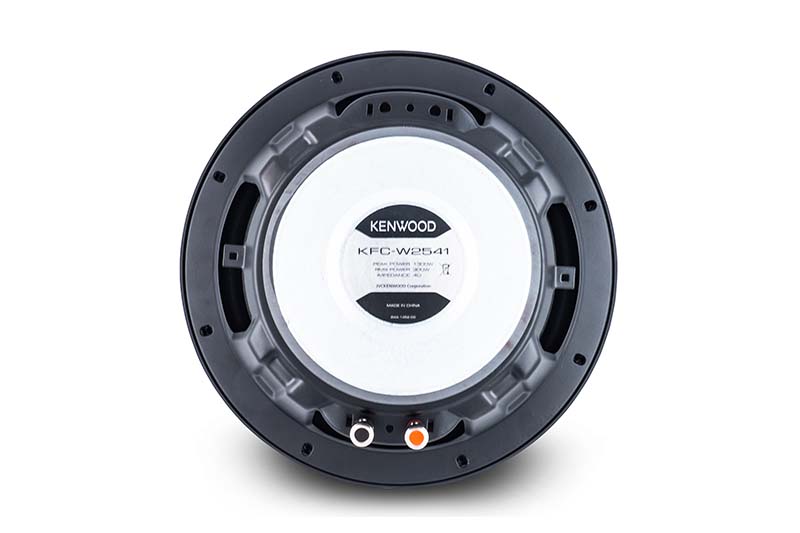

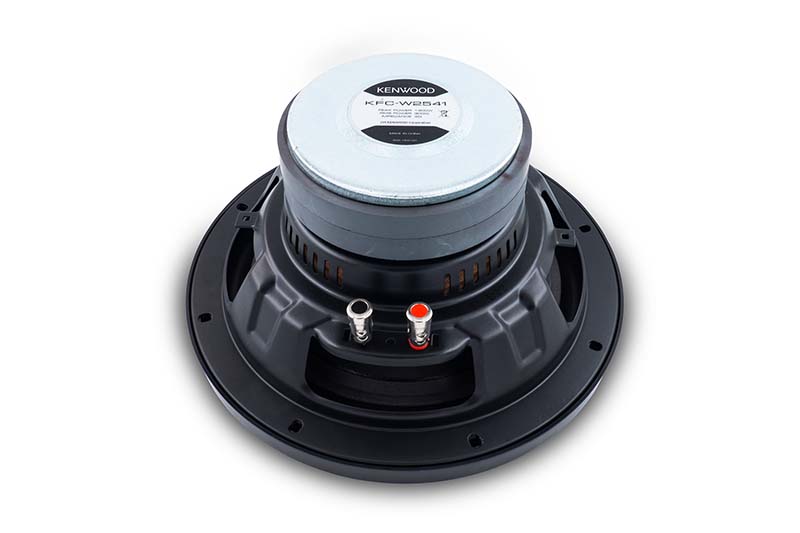

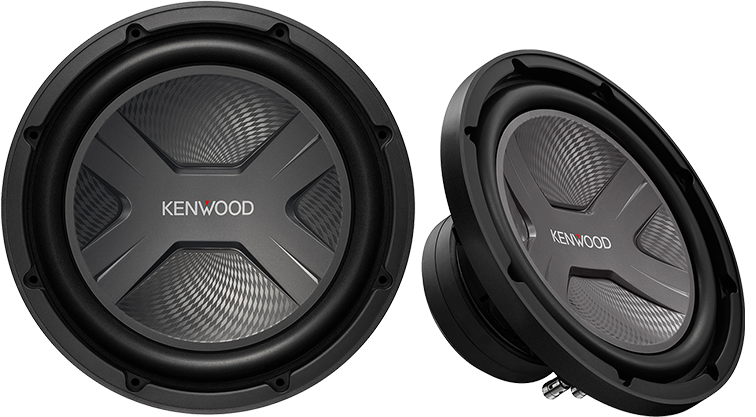

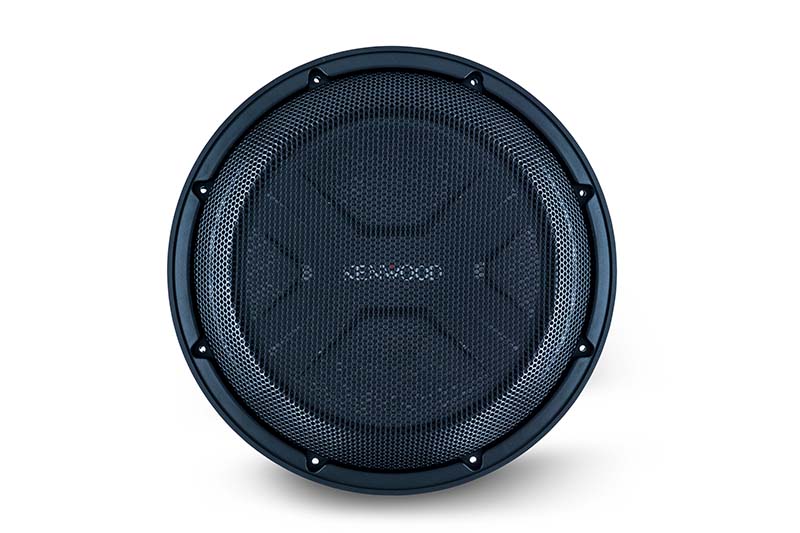

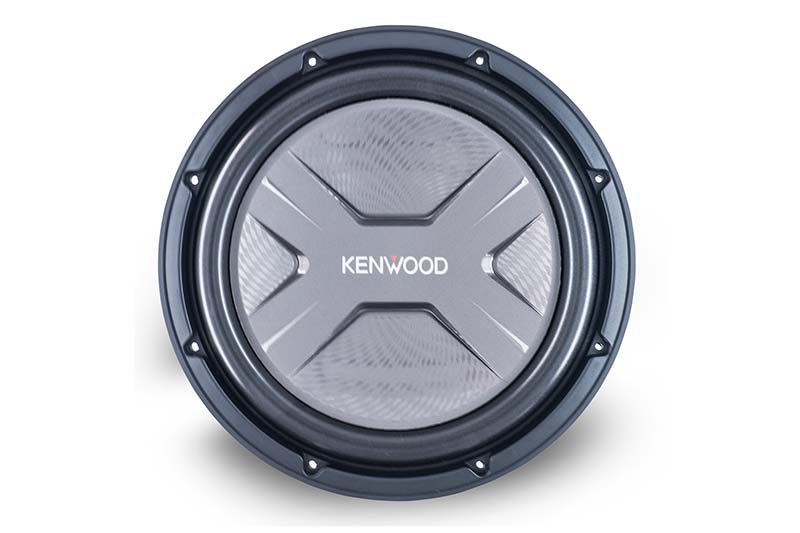

KFC-W254110" Subwoofer

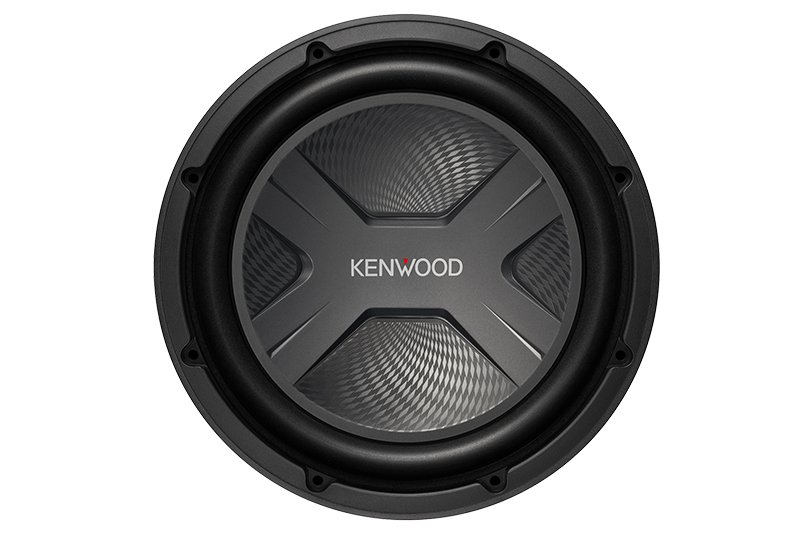

X-Motif Cone controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response.

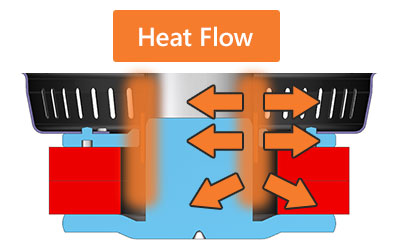

The KFC-W2541 has a robust thermal management system implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control.

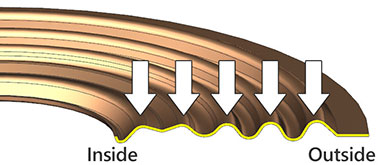

Computer-optimized damper controls stress and increases mechanical durability.

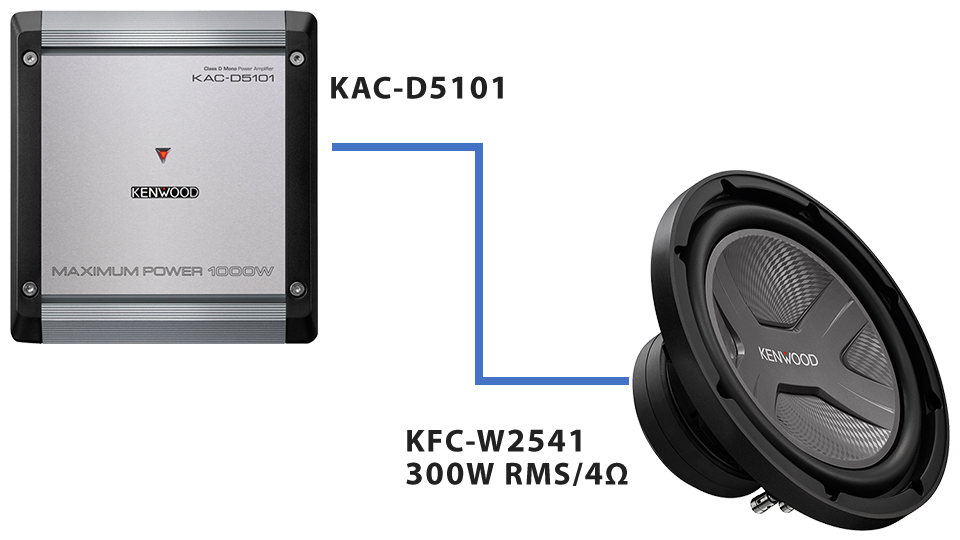

KFC-W2541 subwoofer is precisely power matched with the KAC-D5101 amplifier.

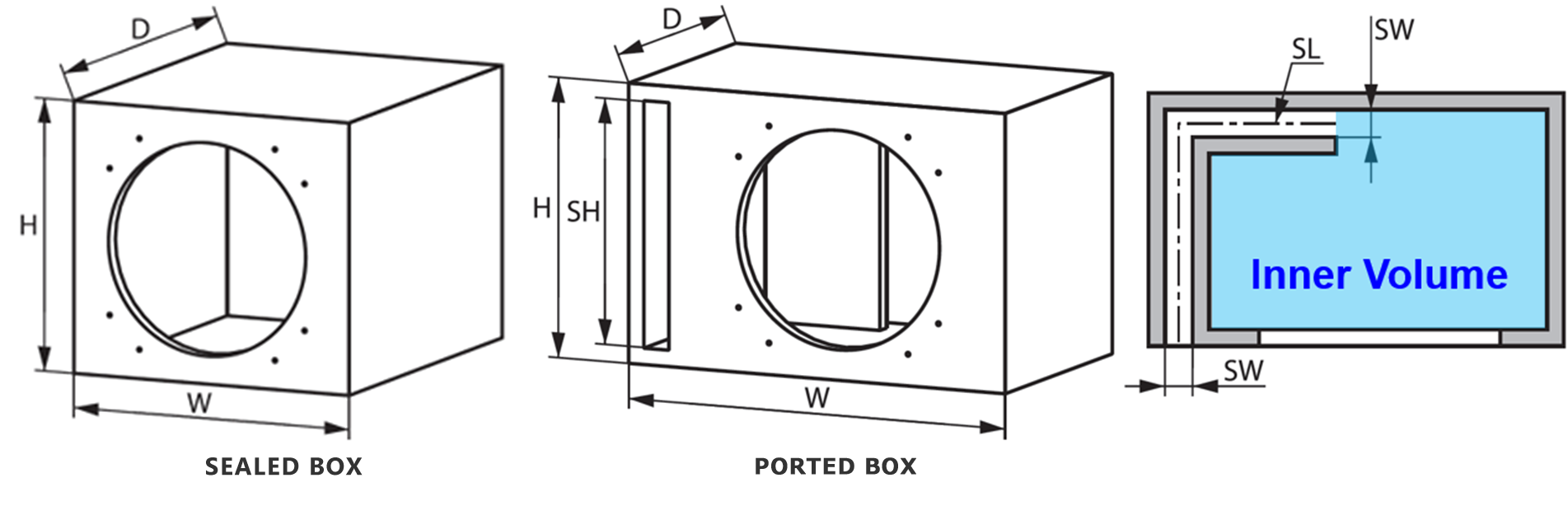

| Model | Type | Inner Volume | W | H | D | Mounting Hole | SW | SH | SL |
|---|---|---|---|---|---|---|---|---|---|
| KFC-W2541 | Sealed | 0.65cft (18.4 liter) | 14-3/4" (375mm) | 12-3/4" (324mm) | 9" (229mm) | 9-3/16" (233mm) | |||
| Ported | 0.9 cft (25.5 liter) | 18-1/4" (464mm) | 12-1/4" (311mm) | 13" (330mm) | 1-1/8" (29mm) | 10-3/4" (273mm) | 25-1/2" (648mm) |
| ELECTRICAL | ||
|---|---|---|
| Impedance (Ω) | 4 | |
| Peak Input Power (W) | 1300 | |
| RMS Power (W) | 300 | |
| Sensitivity (dB at 1m) | 84 | |
| Frequency Response (Hz) | 33 ~ 300 | |
| MOUNTED SPEAKER | ||
| Size | 250mm | 10 inch |
| Diaphragm | Paper | |
| Cap | Injection PP | |
| Surround | Urethane | |
| Basket | Steel | |
| Gasket | ABS | |
| Magnet | Ferrite | φ134-φ70-t30 |
| DIMENSION | ||
| Width | 275mm | 10 - 13/16 inch |
| Height | 275mm | 10 - 13/16 inch |
| Cut-out Diameter | 230mm | 9 - 1/16 inch |
| Depth | 142.2mm | 5 - 5/8 inch |
| Mounting Depth | 124mm | 4 - 7/8 inch |
| WEIGHT | ||
| Woofer without Gasket | 4.0 kg | 8.8 lb |
| Gross Weight | 4.6 kg | 10.1 lb |
| Weight of Magnet | 1560 g | 54.9 oz |
| ACCESSORY | Instruction Manual | |
| Warranty Card | ||
| SPECIAL FEATURE | Injection PP X-motif Cone with | |
| Diamond Array Pattern | ||
| Closed Yoke with Advanced | ||
| Airflow Control | ||
| Aluminum Bobbin | ||
| ELECTRICAL | ||
|---|---|---|
| Impedance (Ω) | 4 | |
| Peak Input Power (W) | 1300 | |
| RMS Power (W) | 300 | |
| Sensitivity (dB at 1m) | 84 | |
| Frequency Response (Hz) | 33 ~ 300 | |
| MOUNTED SPEAKER | ||
| Size | 250mm | 10 inch |
| Diaphragm | Paper | |
| Cap | Injection PP | |
| Surround | Urethane | |
| Basket | Steel | |
| Gasket | ABS | |
| Magnet | Ferrite | φ134-φ70-t30 |
| DIMENSION | ||
| Width | 275mm | 10 - 13/16 inch |
| Height | 275mm | 10 - 13/16 inch |
| Cut-out Diameter | 230mm | 9 - 1/16 inch |
| Depth | 142.2mm | 5 - 5/8 inch |
| Mounting Depth | 124mm | 4 - 7/8 inch |
| WEIGHT | ||
| Woofer without Gasket | 4.0 kg | 8.8 lb |
| Gross Weight | 4.6 kg | 10.1 lb |
| Weight of Magnet | 1560 g | 54.9 oz |
| ACCESSORY | Instruction Manual | |
| Warranty Card | ||
| SPECIAL FEATURE | Injection PP X-motif Cone with | |
| Diamond Array Pattern | ||
| Closed Yoke with Advanced | ||
| Airflow Control | ||
| Aluminum Bobbin | ||
