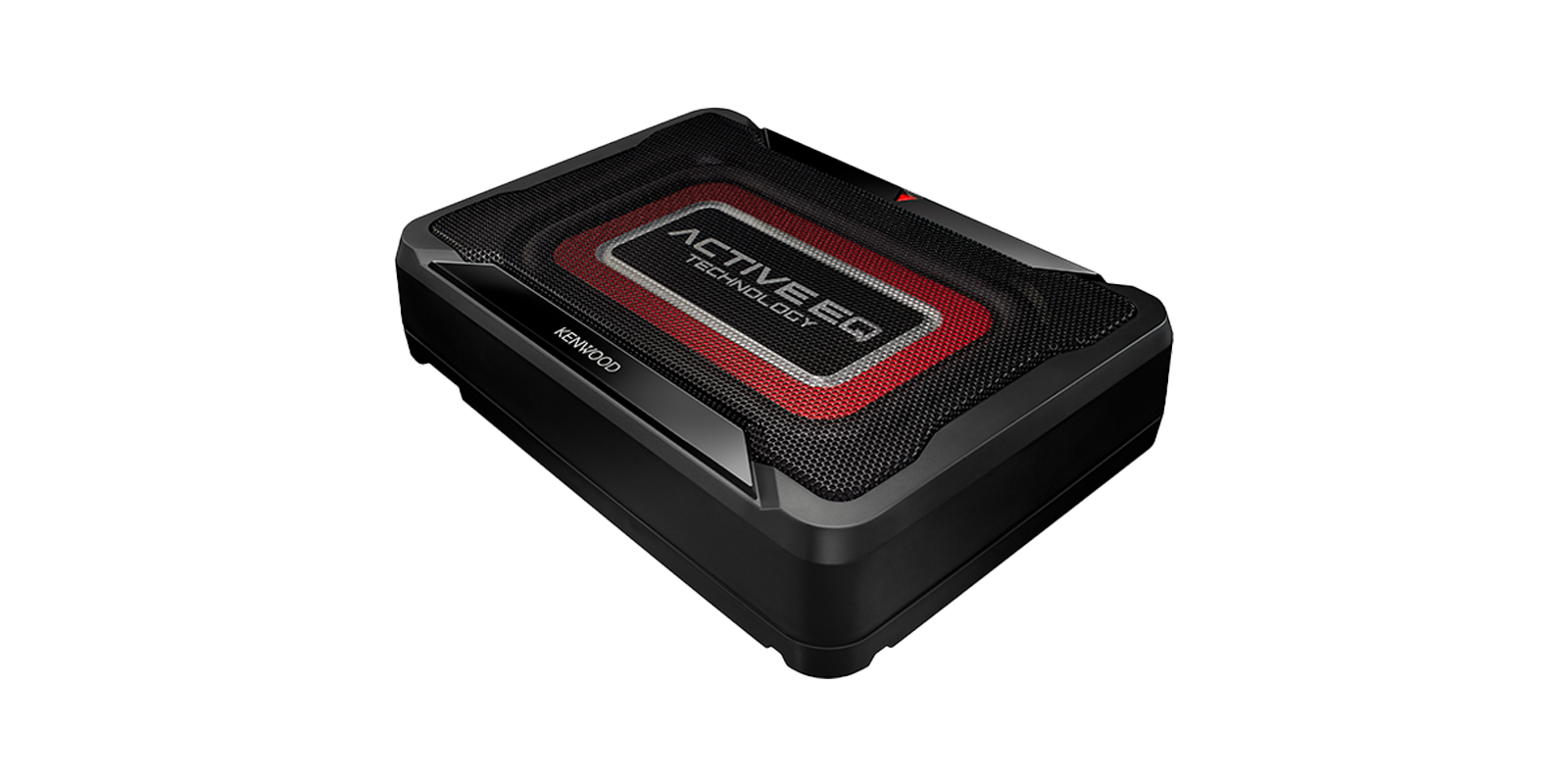

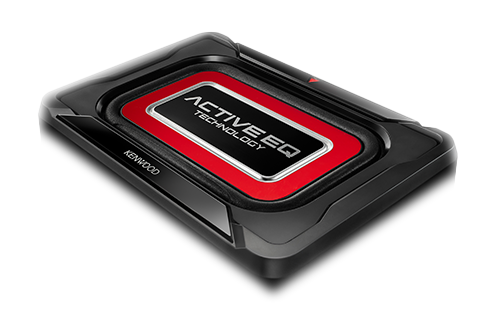

Compact Powered Subwoofer

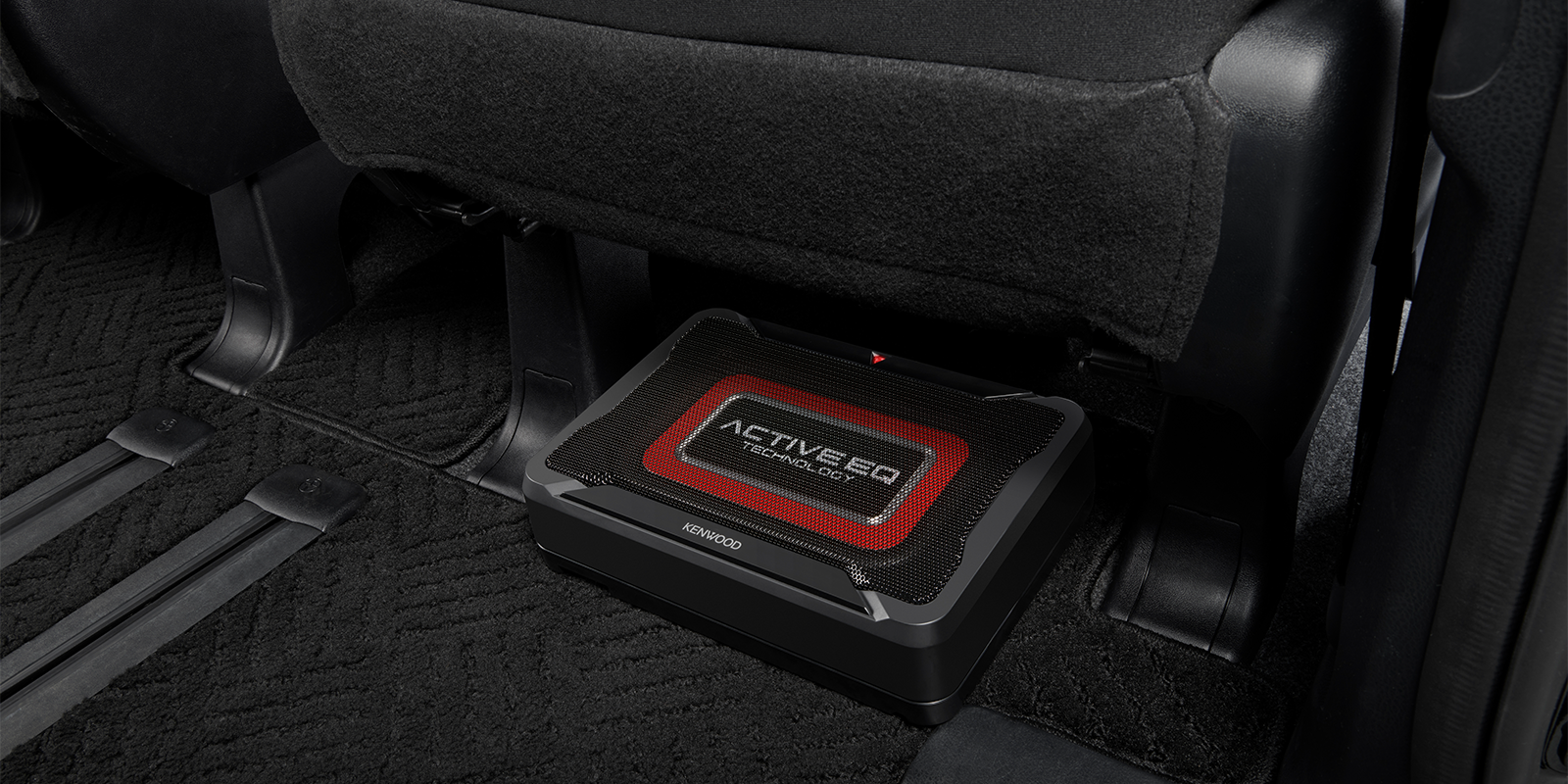

Allows for installation almost anywhere, including tight spaces such as under a seat or panel.

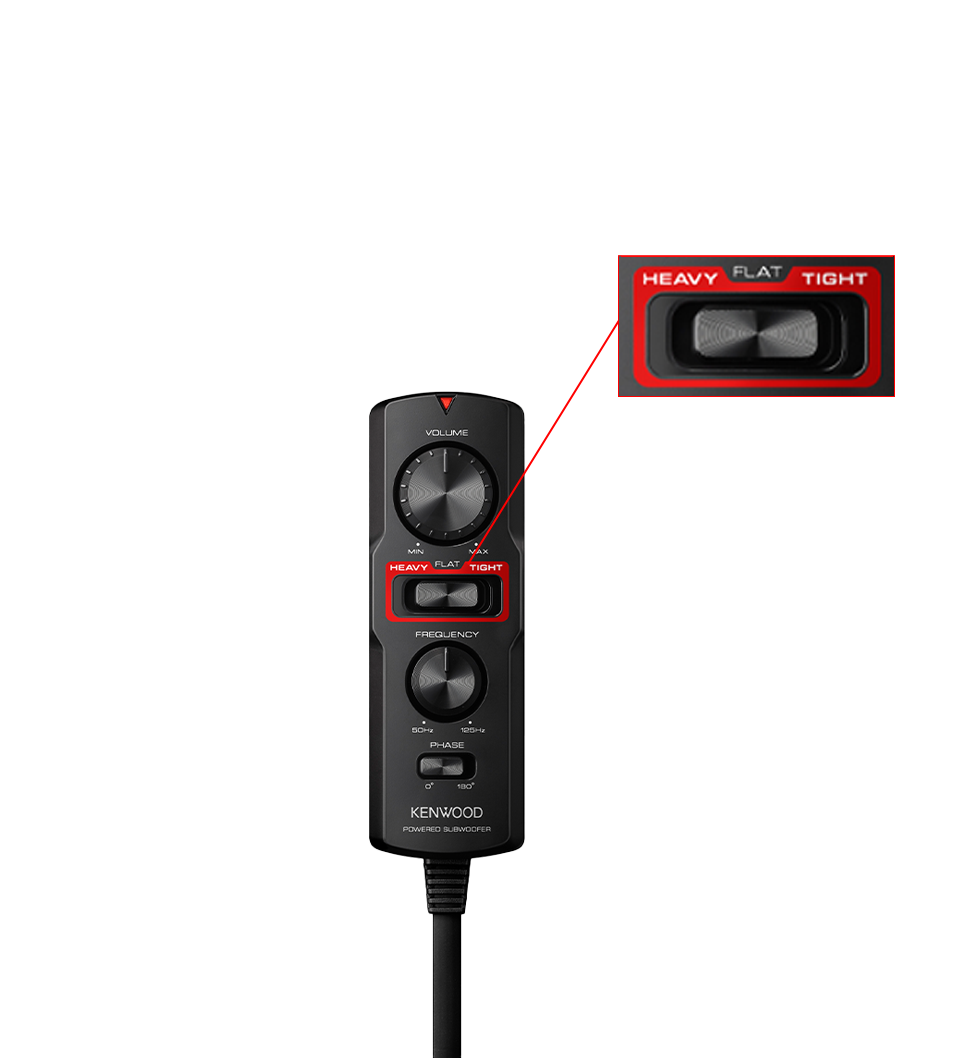

Volume : Input sensitivity control knob
ACTIVE EQ : Equalizer selector switch
Frequency : Cut-off freqeuncy control knob
Phase : Phase select switch
The KSC-PSW7EQ is equipped with a micro-step shape on the long edge of the diaphragm surrounding the diaphragm.
This suppresses the unwanted movement of the diaphragm, which vibrates like a seesaw in the longitudinal direction during operation, thereby supporting accurate vibration and reproducing accurate bass sound to the music.
Supports speaker level input to connect OEM receiver without RCA outputs.
Power turns on from either speaker level or RCA signal.
| Woofer Size | 8-1/4 x 5-1/2" |
|---|---|
| Max Power (W) | 160W |
| Current Consumption | 5.9A |
| Sensitivity (dB at 1m) | 89dB |
| Frequency Response (Hz) | 40Hz - 200Hz (-15dB) |
| Speaker Level Input | Yes (Speaker Level Input) |
| Signal Sensing Turn-on | Yes (Speaker Level or RCA) |
| Dimension (W x H x D) | 11" x 2-3/4" x 7-7/8" |
| 280mm x 70mm x 200mm | |
| Weight | 5.7lb / 2.6kg |
| Remote Control Cable Length | 16ft / 5m |
| AMPLIFIER | ||
|---|---|---|
| Class D | ● | |
| Maximum Output Power (W) | 160W | |
| Signal to Noise Ratio (1ohm at 14.4V) | 90dB | |
| Input Impedance | RCA 22k ohm | |
| Speaker 10k ohm | ||
| Sensitivity | RCA Voltage 20mV | |
| Speaker Voltage 0.4V | ||
| Signal Sensing Turn On(Speaker Level Input) | ● | |
| Automatic input swiching (Speaker Level or RCA) | ● | |
| Fuse(Battery Cord) | 10A | |
| Operating Voltage | DC 14.4V (11V～16V) | |
| Maximum Current Consumption | 5.9A | |
| SPEAKER（SYSTEM） | ||
| Woofer Size | 20 x 13cm | 8-1/4 x 5-1/2 inch |
| Cap Material | Aluminum | |
| Surround Material | Urethane | |
| Impedance | 1Ω | |
| Frequency Response | 40Hz-200Hz(-15dB) | |
| Sensitivity | 89dB | |
| Audio Section(Wired Remote Controller) | ||
| Gain Control (VOLUME) Variable | -∞ - 0dB | |
| Low-Pass Filter (FREQUENCY) Variable | 50Hz - 125Hz, -18dB/oct | |
| Phase Control (PHASE) Switched | 0° - 180° | |

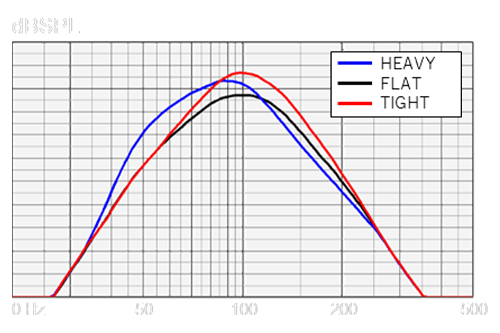

| ACTIVE EQ TECHINOLOGY | HEAVY | |
| TIGHT | ||
| FLAT（w/o HEAVY/TIGHT effect mode.） | ||
| DIMENSION / WEIGHT | ||
| Width | 11inch | 280mm |
| Height | 2-3/4inch | 70mm |
| Depth | 7-7/8inch | 200mm |
| WEIGHT | 5.7lb | 2.6kg |
| ACCESSORY | ||
| ・Cables w/ Connector | ||
| Battery Cord | 5.0m | 18AWG |
| Battery Fuse | 10A | |
| GND | 1.5m | 18AWG |
| RCAInput (Female) | 0.7m | |
| P-CON | 5.0m | 20AWG |
| ・Cables w/ Connector | ||
| Speaker Level Input (SP) with RCA （Male） | 4.3m | 18AWG |
| ・Remote Controller (Wired) | 5.0m | |
| ・Mounting Bracket | 2pcs | |
| ・Cord Crump | 1pc | |
| ・Screw | ||
| Tapping Screw for Bracket | 2pcs | Φ5 x 16mm |
| Tapping Screw between Under Case and Bracket | 2pcs | Φ5 x 12mm |
| Tapping Screw for Cord Cramp | 2pcs | Φ3 x 10mm |
| ・Double-faced tape for Wired Remote Controller | 1pc | |
| ・Warranty Card | 1pc | |
| ・Instruction Manual | 4pcs | |
