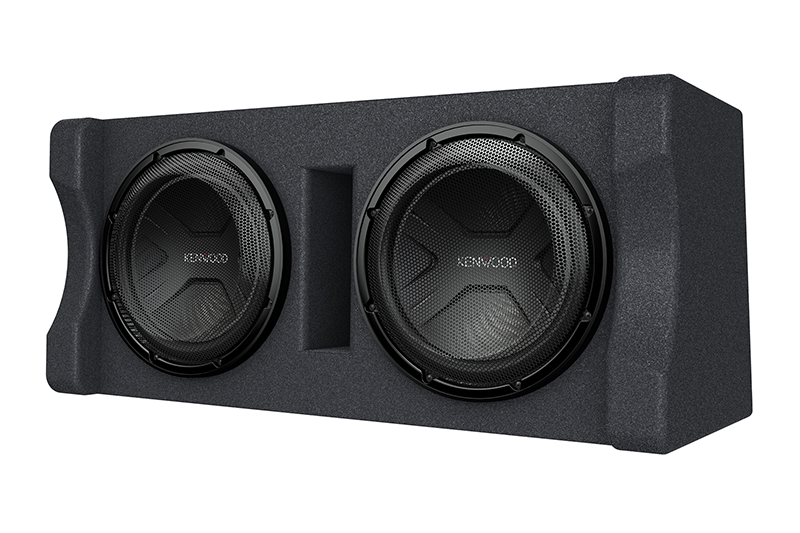

P-W3021DDual 12" Preloaded Subwoofer Enclosure(Discontinued)
X-Motif Cap controls resonance frequency and cuts unnecessary frequency, delivering powerful and solid bass response.

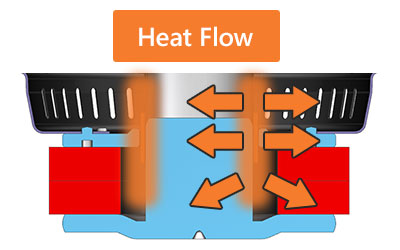

Subwoofers have a robust thermal management system, implemented with an Aluminum Bobbin, Closed Yoke Design, and Advanced Airflow Control.

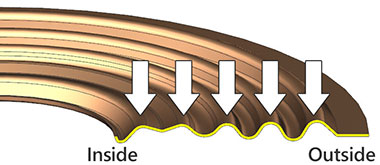

Computer-optimized damper controls stress and increases mechanical durability.

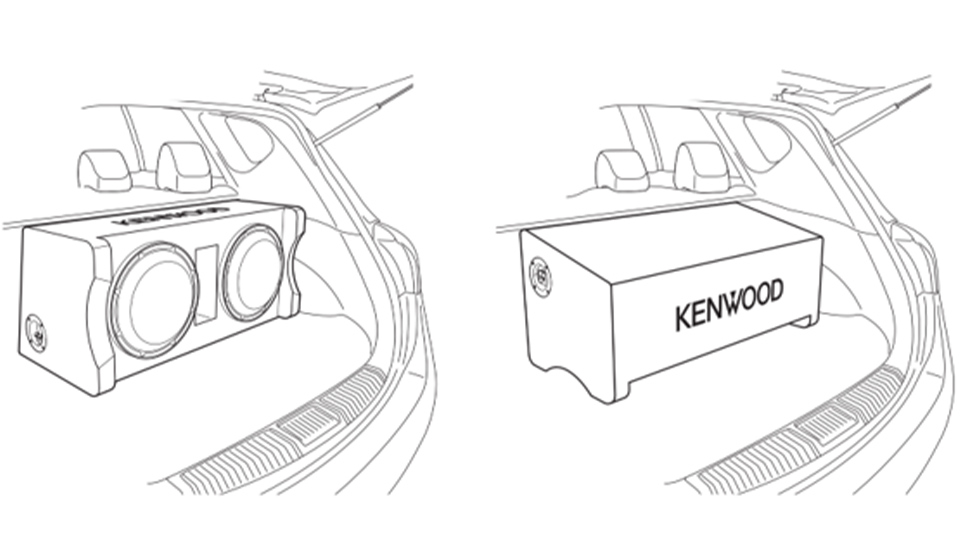

Forward, Rear, or Down-Firing installation available.

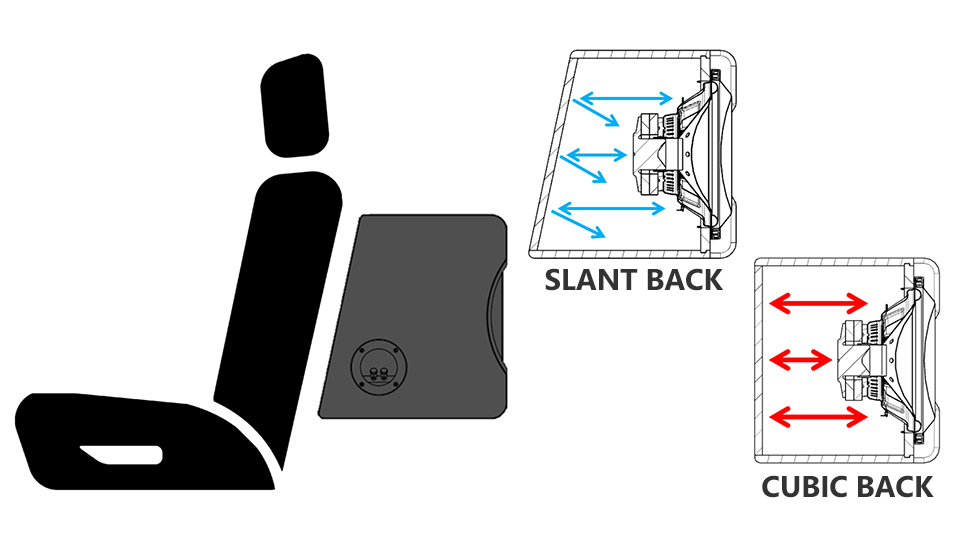

Easily fits behind the rear seat of an SUV and is more effective in suppressing standing waves that typically occur in a standard square enclosure.

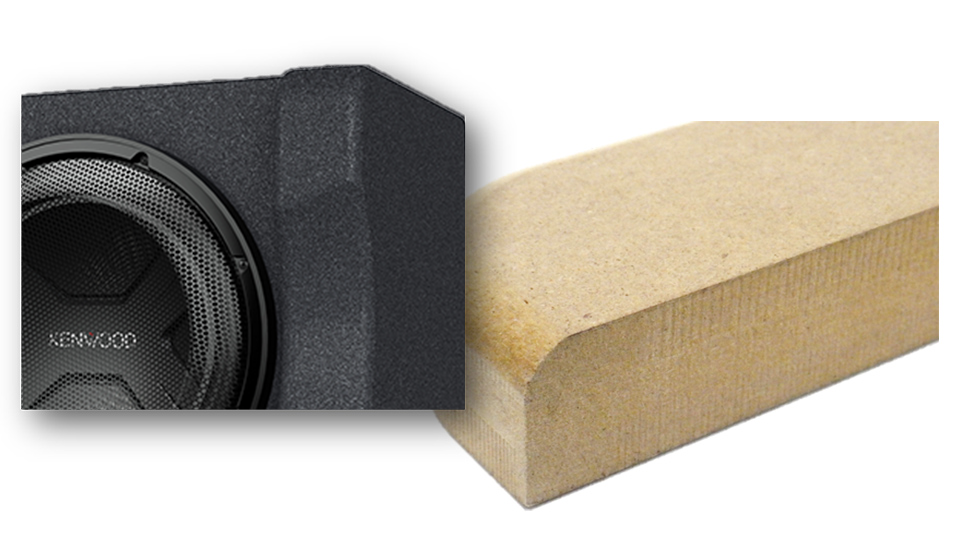

5/8” MDF construction with 3/4” THICK Baffle provides more strength and durability, ensuring accurate bass even at high volume.

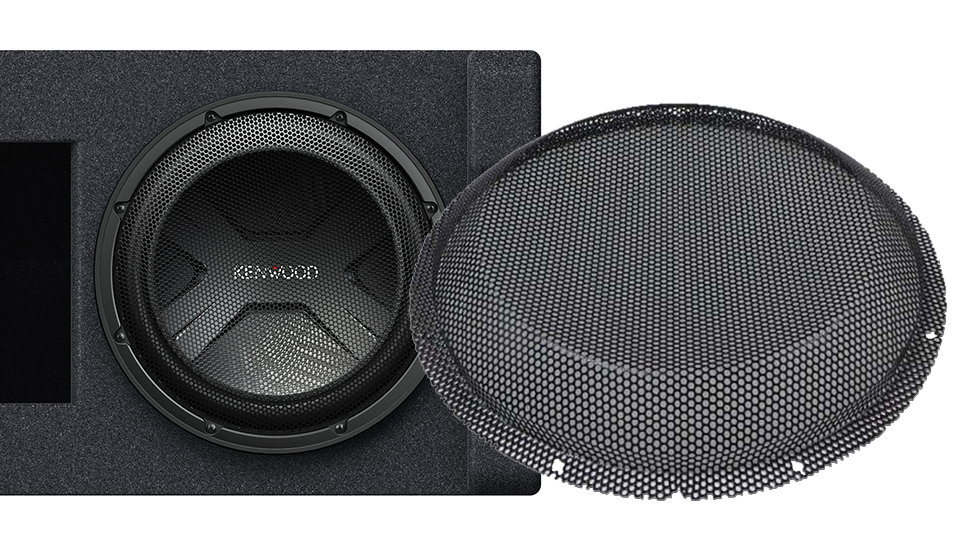

Valued at $30 each when sold separately, enclosure includes protective grilles for further enhanced durability.

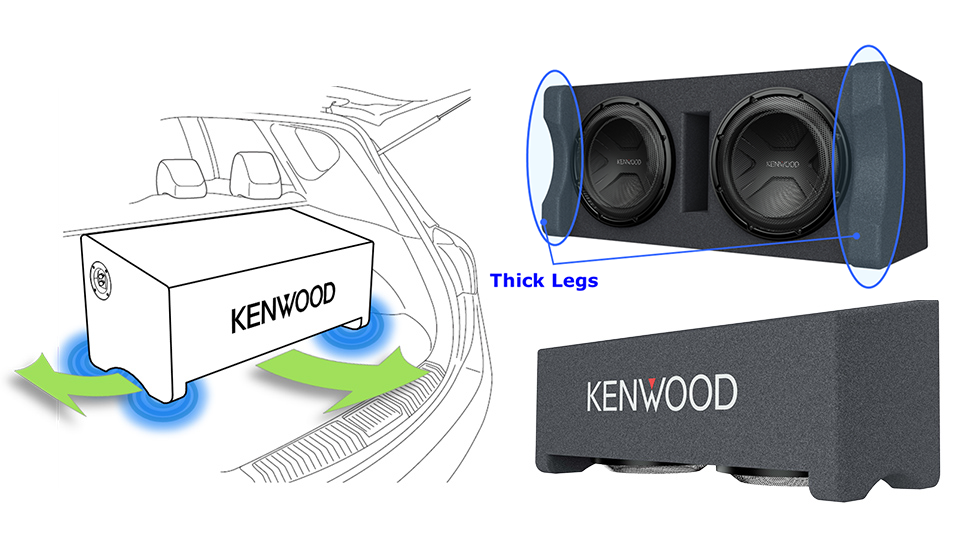

Extra thick legs support the weight of the system when installed in a down-firing application. This ensures the low frequency energy is transmitted without loss, resulting in powerful, impactful bass.

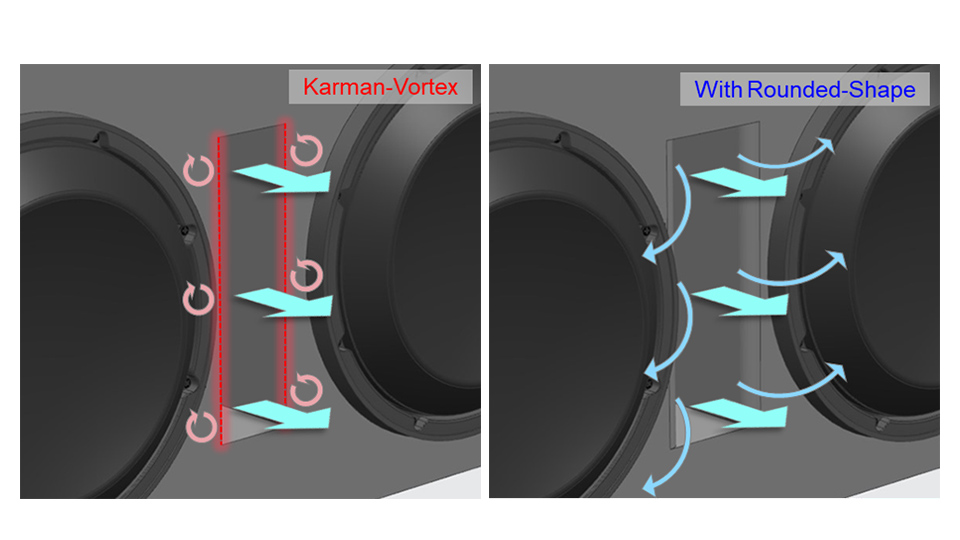

The port’s rounded shape reduces airflow resistance and noise generation.
P-W3021D Subwoofer enclosure provides optimal sound when matched with the KAC-D5101 amplifier.
| Model | P-W3021D |
|---|---|
| Subwoofer Specification | 12” Subwoofer |
| Peak Power | 2000W |
| RMS Power | 600W |
| Impedance | 2Ω |
| Frequency Response | 31Hz-300Hz |
| Features | Injection Polypropylene X-motif Cone with Diamond Array Pattern |
| Closed Yoke with Advanced Airflow Control | |
| Aluminum Bobbin | |
| Enclosure Specifications | Slant Back Design with Flared Port & Down Firing Capability |
| 5/8"MDF Construction with 3/4" MDF Baffle Board | |
| 8AWG-ready Nickel-plated Spring Posts | |

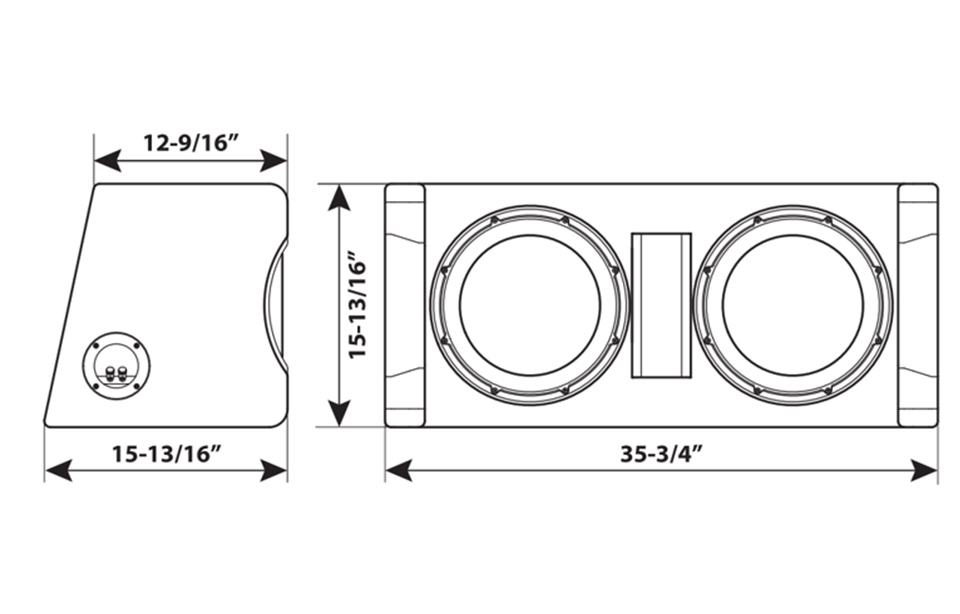

| Dimensions: 35-3/4"(W) x 15-13/16"(H) x 15-13/16"(D) |
| ELECTRICAL | ||
|---|---|---|
| Impedance (Ω) | 2 | |
| Peak Input / Maximum Power (W) | 2000 | |
| Maximum Input Power (W) | 1200 | |
| Rated/RMS Power (W) | 600 | |
| Sensitivity (dB at 1m) | 88 | |
| Frequency Response (Hz) | 31 ～ 300 | |
| MOUNTED SPEAKER | ||
| Woofer Size | 30cm | 12inch |
| # of Woofer | 2 | |
| Base Unit | KFC-XW1241 | |
| Cone | Injection Polypropylene | |
| Surround | Urethane | |
| Basket | Steel | |
| Gasket | ABS | |
| Magnet | Ferrite | φ134-φ70-t30 |
| ENCLOSURE | ||
| Type | Ported | |
| Material | Medium Density Fiberboard | |
| Terminal | Push Terminal | |
| Down Firing | Capable | |
| DIMENSION / WEIGHT | ||
| Width | 908mm | 35-3/4inch |
| Height | 402mm | 15-13/16inch |
| Depth | 402mm | 15-13/16inch |
| Gross Weight | 28.8kg | 63.5lb |
| ACCESSORY | Tapping Screw Φ5 x 25, 8pcs | |
| Mounting Plate, 2pcs | ||
| Warranty Card | ||
| SPECIAL FEATURE | Steel Mesh Grille Attached | |
| Slant Back Design with Flared Port | ||
| Down Firing Capable | ||
| 2-ohm Impedance | ||
| 5/8" MDF Construction with 3/4" Baffle Board | ||
| 8AWG-ready Nickel-plated Spring Posts | ||
| Injection Polypropylene X-motif Cone | ||
| with Diamond Array Pattern | ||
| Closed Yoke with Advanced Airflow Control | ||
| Aluminum Bobbin | ||
