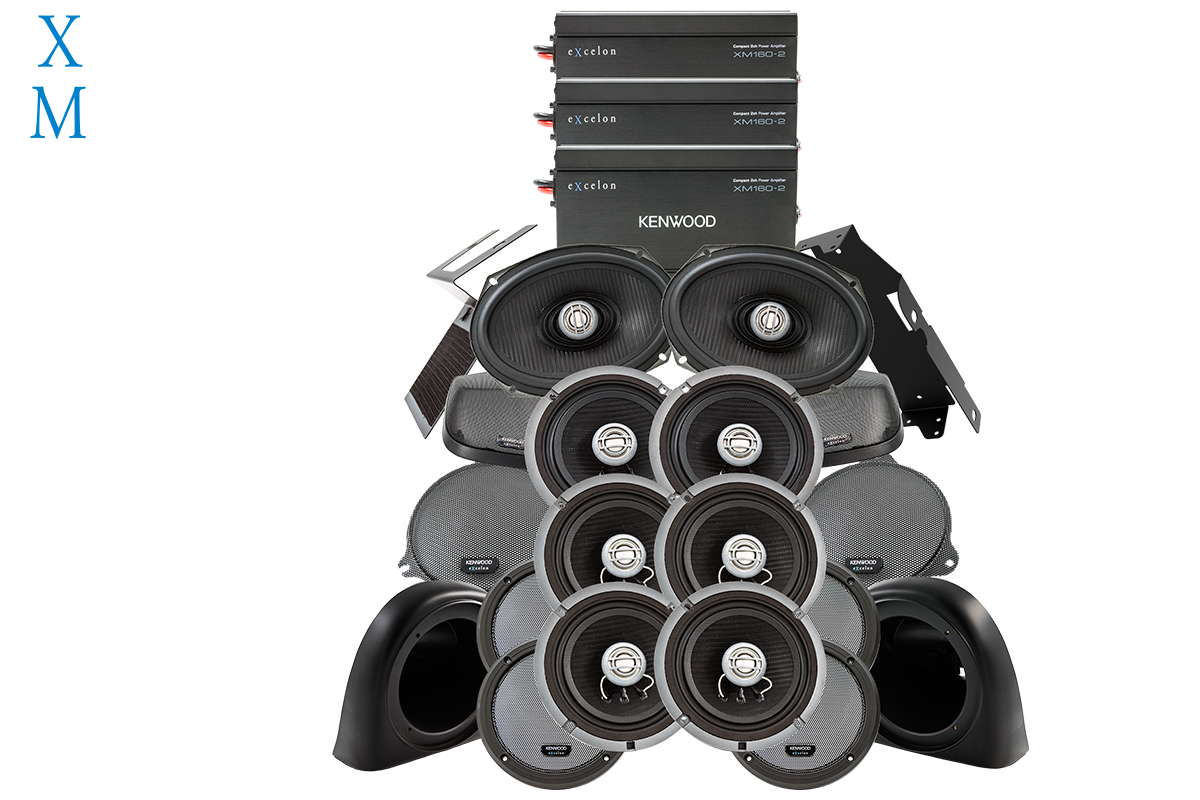

THREE 2-CHANNEL POWER AMPLIFIERS, THREE 6.5" SPEAKER PAIRS, 6X9" SPEAKERS, CUT-IN LID KIT, & POD PACKAGE DESIGNED AND ENGINEERED TO BE PLUG AND PLAY FOR SELECT 2014-UP HARLEY-DAVIDSON® MOTORCYCLES
Products Included In Package
- Qty: 3 XM160-2
- Qty: 1 XM65F
- Qty: 2 XM65R
- Qty: 1 XM69R
- Qty: 1 CA-CUT14
- Qty: 1 CA-PLT14RG3
- Qty: 1 CA-POD14AC
- Qty: 1 CA-HRN98UT
XM160-2
- Class D 2-Channel Power Amplifier
- 80W x 2 @ 2 ohms (RMS)
- No Radio Flash Required
- Bypass Port For System Expansion
- Street Glide®/Ultra® Mounting Plate
- Road Glide® Mounting Plate
- Plug & Play Power, Speaker, & Input Wiring
- Speaker Level Input For HD OEM Radio or Any Aftermarket Receiver
- Input Sensitivity Adjustment
- High Efficiency Design Will Not Overload HD Electrical Systems
Speaker Features
- IMPP Woofer Cones
- 1” (PEI) Dome Tweeters
- Silicone Gaskets Included (XM69R)
- Sealed Design Will Not Allow Water To Pass Through Speaker (XM69R)
- Impedance: 2 Ohm » Mounting Depth: XM65F/XM65R/XM69R 2.25”/2.0"/2.925”
- Sensitivity: XM65F/XM65R/XM69R 92dB/92dB/94dB
- Frequency Response: XM65F/XM65R/XM69R 40-25kHz/40-25kHz/ 20-25kHz
- RMS Power Handling: XM65F/XM65R/XM69R 150W/150W/200W
- Peak Power Handling: XM65F/XM65R/XM69R 300W/300W/400W
CA-CUT14
- Full Kit For Modifying HD Motorcycle Hard Saddlebag Lids for 6x9” Speakers
- Optimal Speaker Positioning Faces Rider
- Minimal Loss of Bag Space
- Built-in Water Drain Channels
CA-POD14AC
- Lower Fairing Speaker Pod Adaptors For 2014-Up Harley Davidson® Touring Model Motorcycles With OEM Or Aftermarket Air-Cooled Lowers
- Speaker Mount “Recess” Fits A Full Size 6.5” Speaker And Grille (No Custom Spacers Required)
- Lower Fairing Speaker Adaptors Are Matte Black To Compliment Engine Bay Area
- Made From High Quality Injection Molded ABS » Easily Painted If Desired
- Area Behind Speaker Is Larger Than Others To Give Better Speaker Performance
- No Special Tools Or Cutting Required
- Complete With All Required Installation Hardware And Wire Harnesses
CA-HRN98UT
- Designed and Engineered for Select 1998-2013 Harley-Davidson® Motorcycles
- Plug & Play Wiring Harness for Adding Rear Speakers
- Can also be used as universal speaker wiring when adding additional Tour Pak® speakers to select 2014+ Harley Davidson® Motorcycles.
* Using the CA-HRN98UT will provide speaker wiring for the rear pods without wiring modification.
2-Year Warranty for P-HD5RGAC2 Package.
