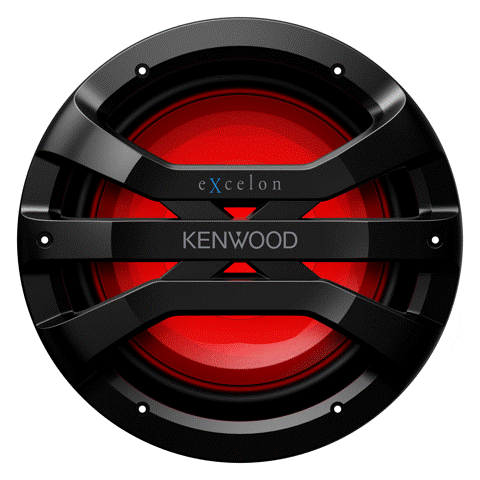

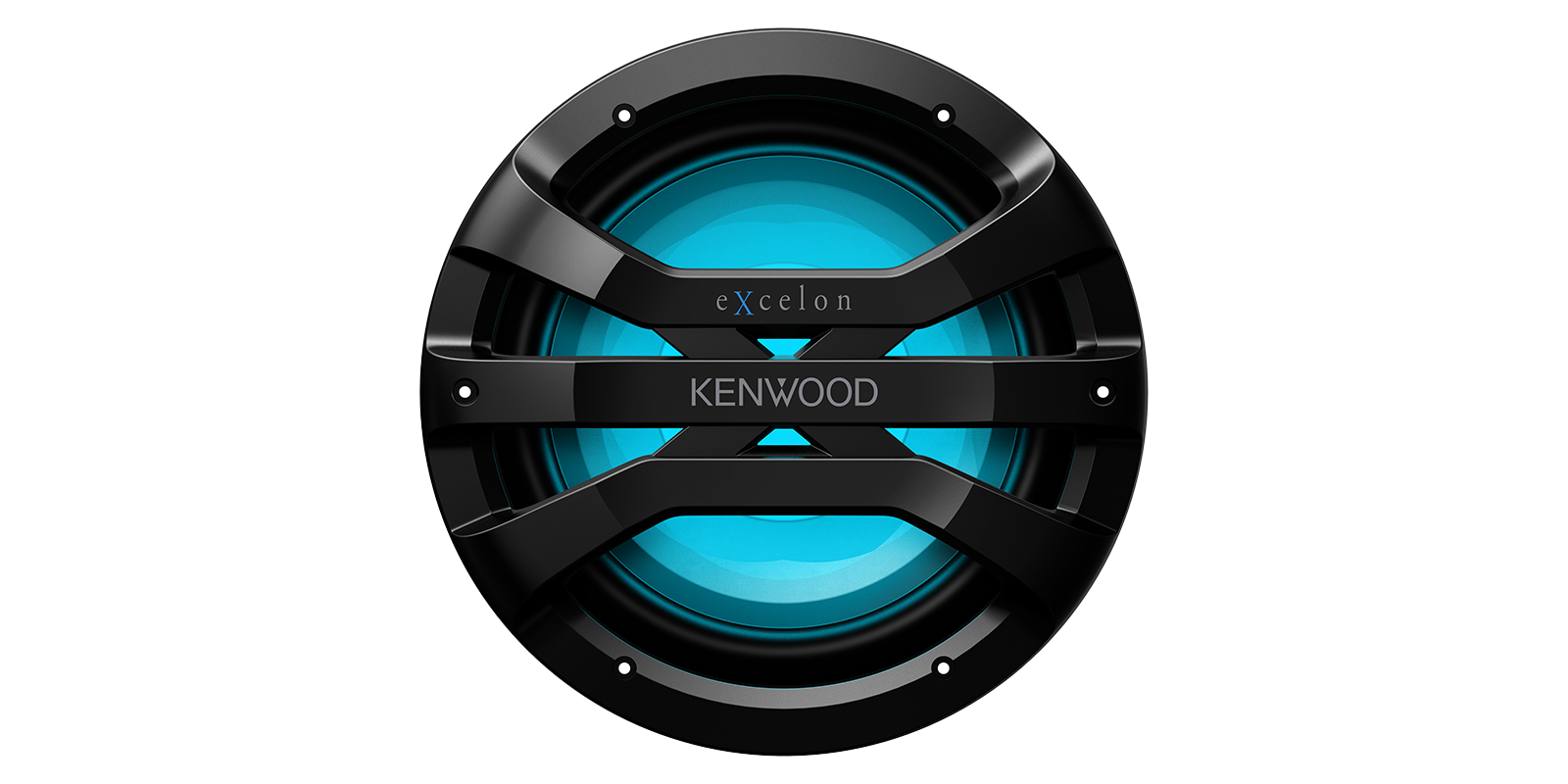

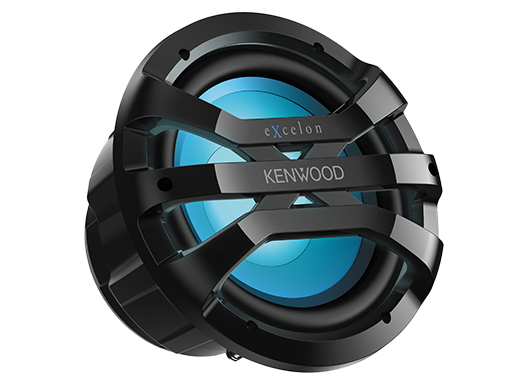

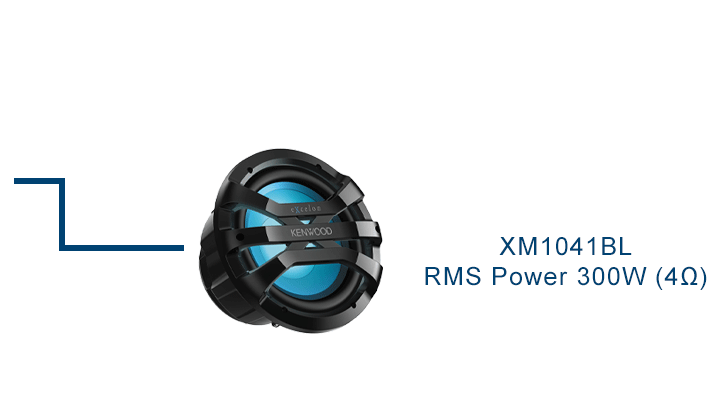

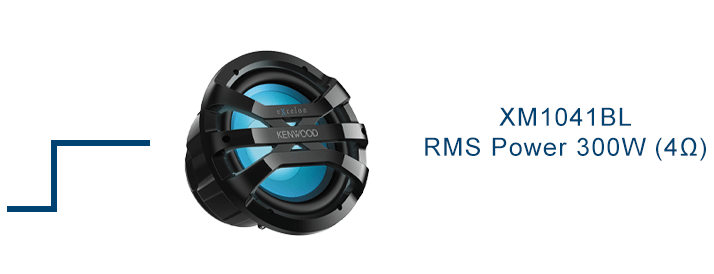

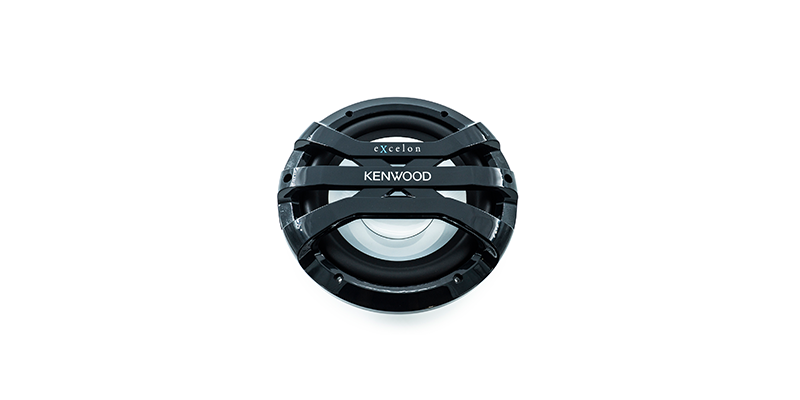

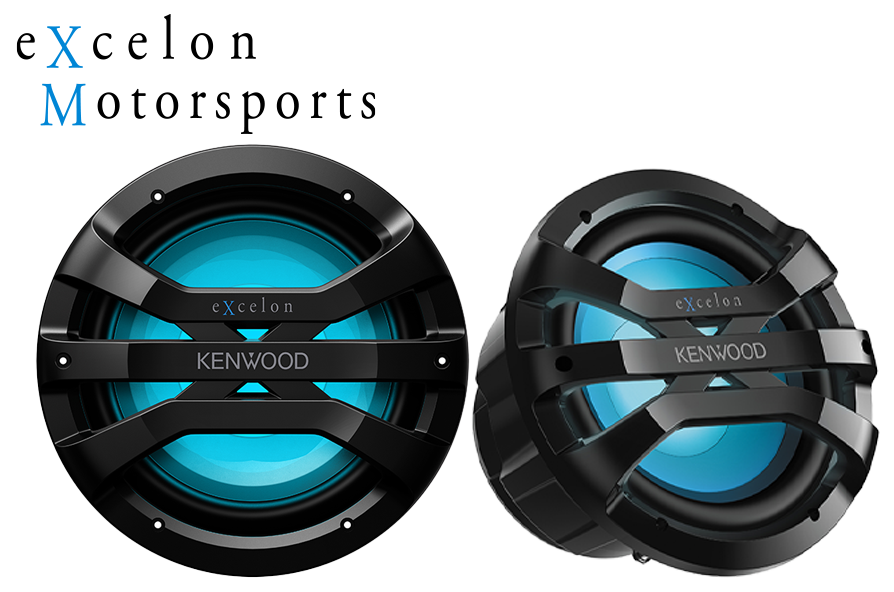

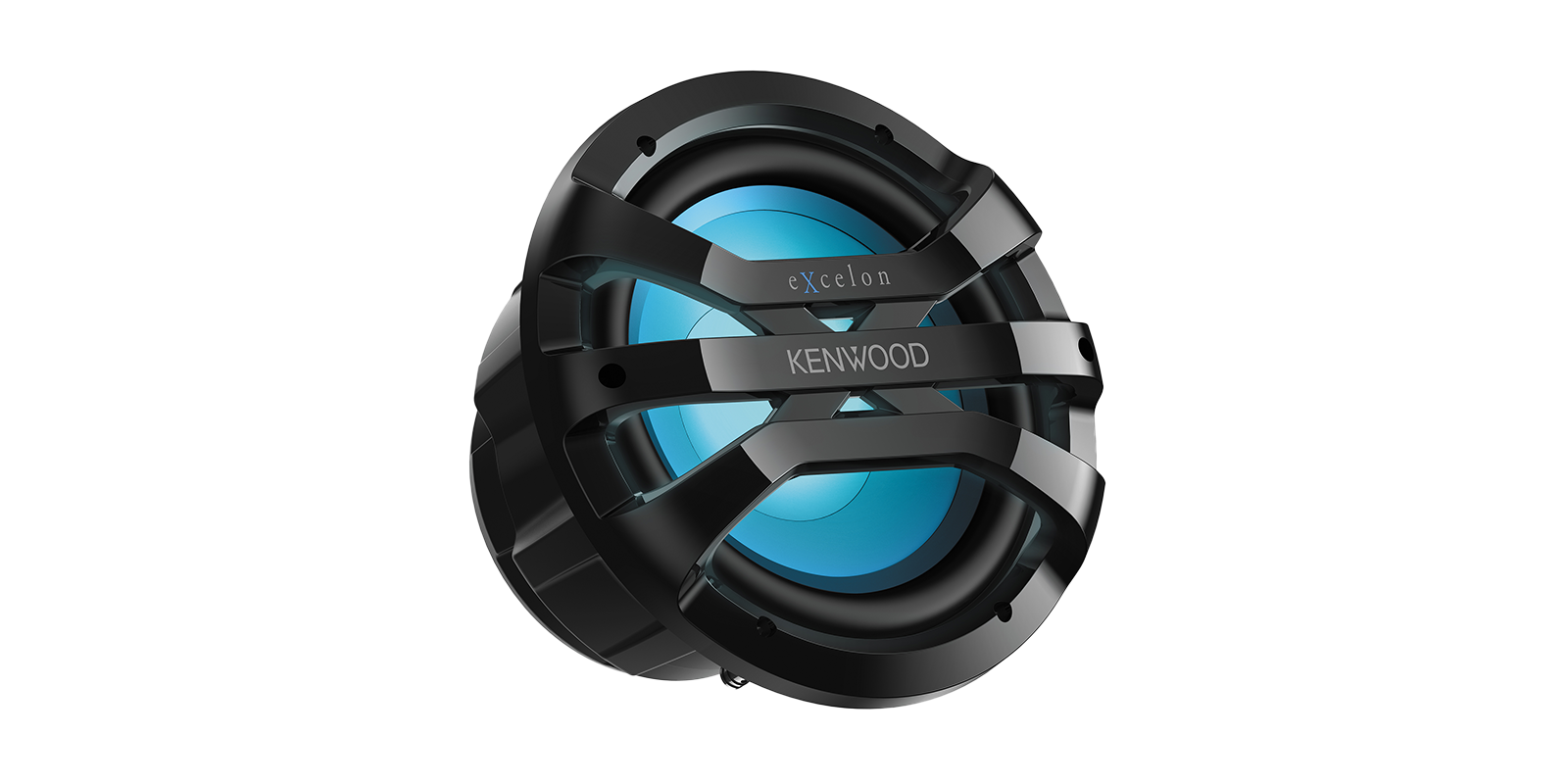

XM1041BL10" Subwoofer with Illumination
Water PROOF
IPX6 certified = Protection from powerful sprays of water.
ASTM B117 salt spray (or salt fog) corrosion testing ensures the subwoofer will not corrode or fail in saltwater and other harsh environments.
ASTM G154 UV resistant woofer cone and subwoofer grille prevents deterioration and discoloration from strong sunlight.

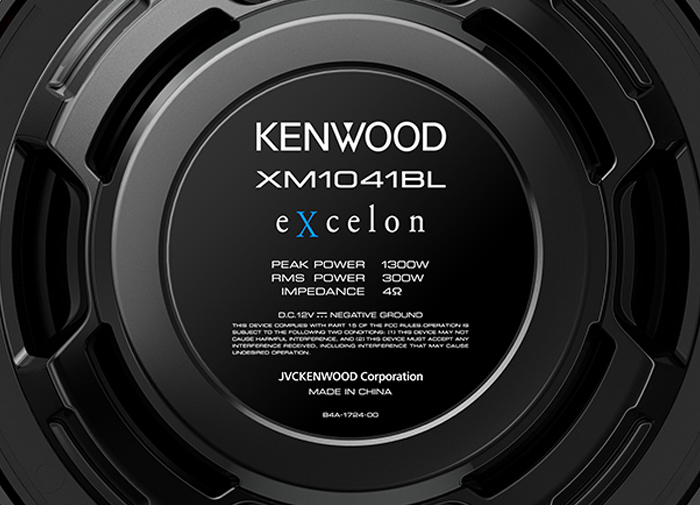

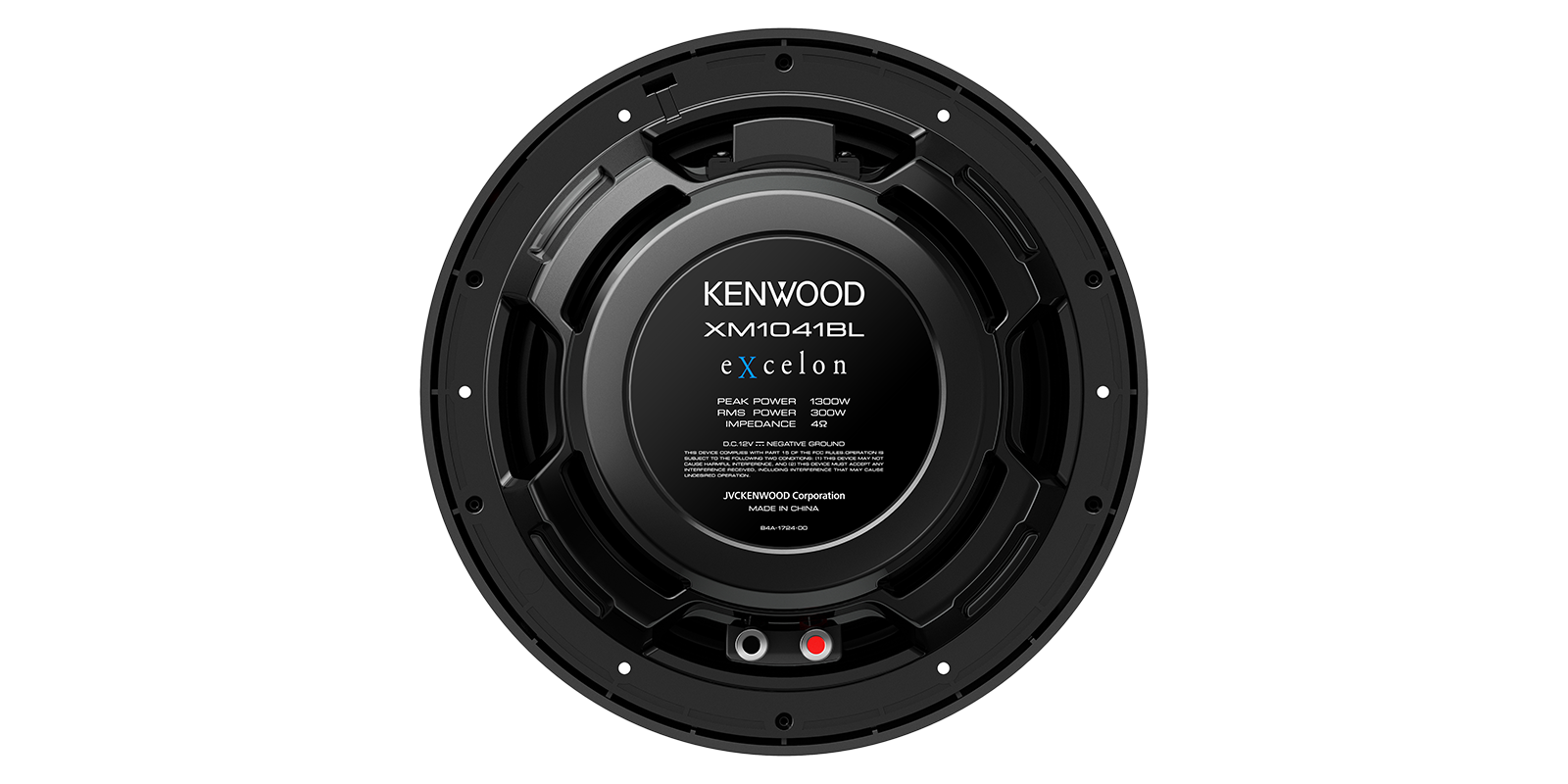

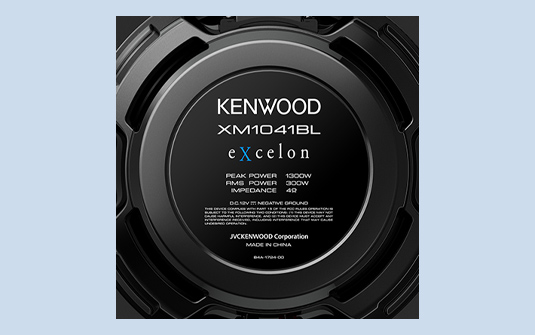

Large Magnet and 4 layer voice coil reproduces deep bass sound.

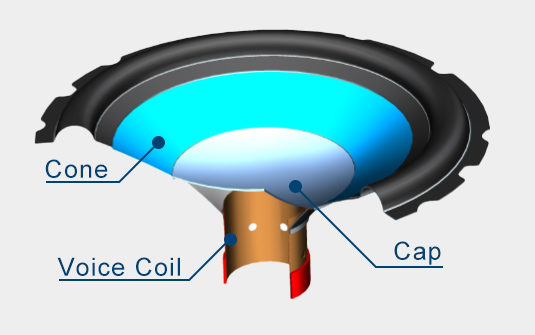

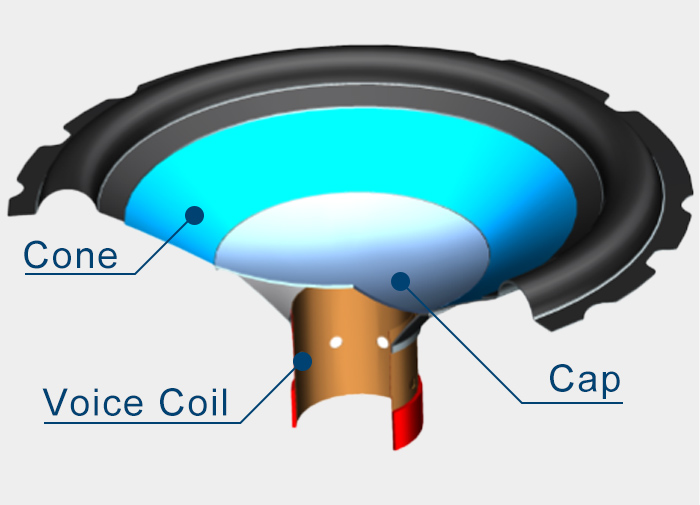

Thick 0.7mm Cone, 1.4mm Cap and Φ45.5mm Voice coil ensure sufficient strength and reduction of unnecessary noise.

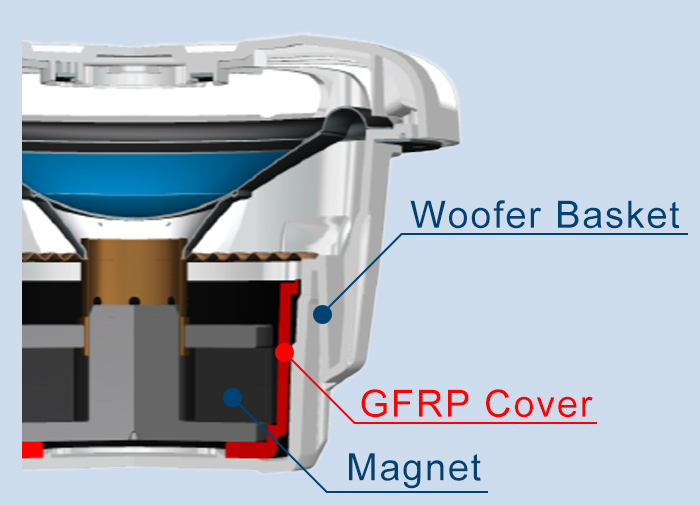

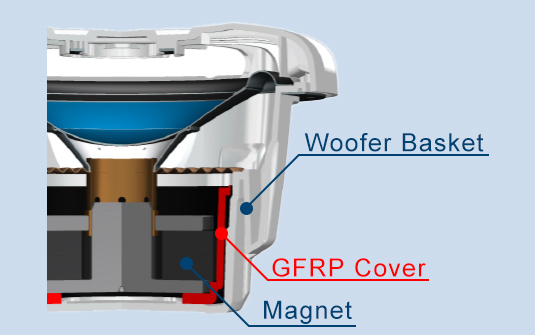

Glass Fiber Reinforced Plastics (GFRP) protect the woofer basket from the magnet’s heat, stabilizing its sound and condition.
21 Illumination Colors
21 Lighting Mode Patterns
8 Brightness Adjustments
7 Speed Adjustments

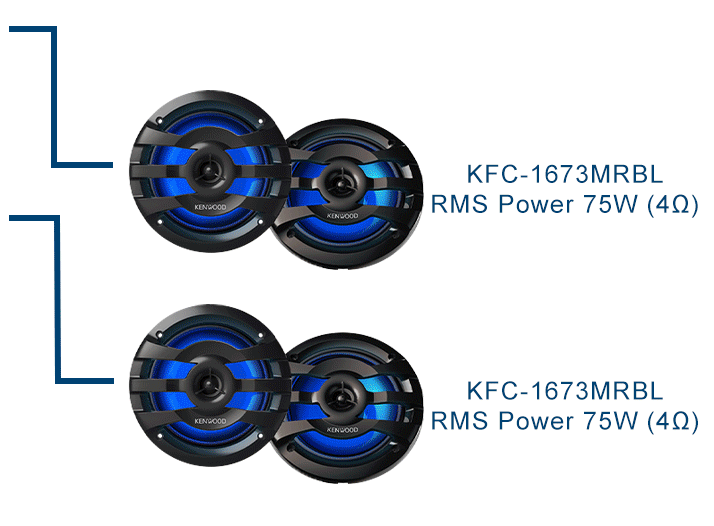

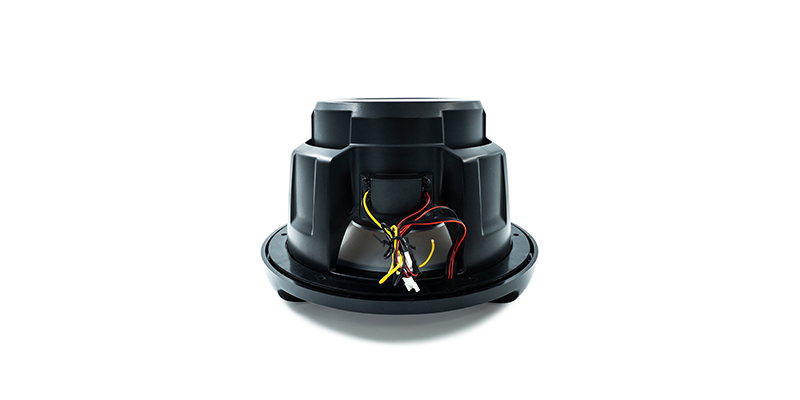

Illumination cable wiring image

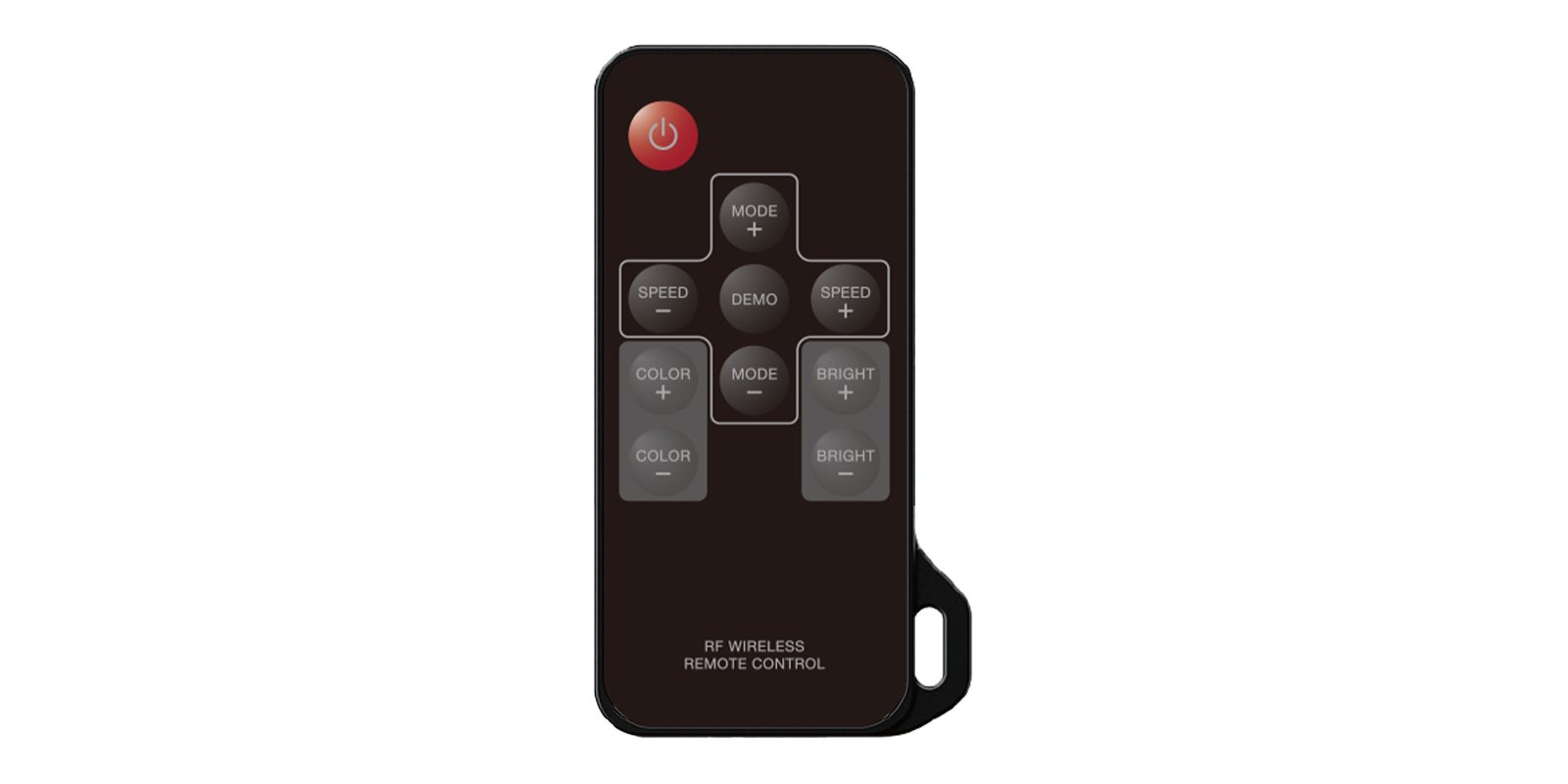

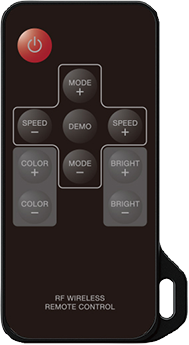

Illuminaiton ON/OFF Key
Demo Mode Key
Lighting Mode Key
Speed Adjustment Key
Brightness Adjustment Key
Color Adjustment Key
Strap Hole
| Peak Input Power | 1300W | |
|---|---|---|
| RMS Input Power | 300W | |
| Size | 10" | |
| Woofer Magnet Composition | Ferrite | |
| Nominal Impedance | 4ohms | |
| Frequency Response | 40Hz – 300Hz | |
| Sensitivity (dB/W at 1m) | 84dB | |
| Cutout Diameter | 9-1/8" | 232mm |
| Top Height | 1-13/16" | 46.5mm |
| Mounting Depth | 5-1/2" | 140mm |
| Weight | 12.1lbs | 5.5kg |
| Unit Size | |||
|---|---|---|---|
| Woofer Size | 30cm | 12inch | |
| ELECTRICAL | |||
| KITS | CTA | ||
| CTA | Impedance (Ω) | 4 | |
| RMS Power (W) | 300 | ||
| Sensitivity (dB at 1m) | 84 | ||
| Frequency Response (Hz) | 40 ~ 300 | ||
| Peak Input Power (W) | 1300 | ||
| IPXX | |||
| IPX(Subwoofer Only） | IPX6 | ||
| Mounting Speaker | |||
| Woofer | Diaphragm(Cone) | PP | Silver |
| Cap | PP | Silver | |
| Surround (Edge) | Rubber | Black | |
| Basket (Frame) | Resin Mold （Material ABS） | Black | |
| Cusion | Rubber | Black | |
| Magnet | Ferrite | φ135×φ60×t16mm x2 | |

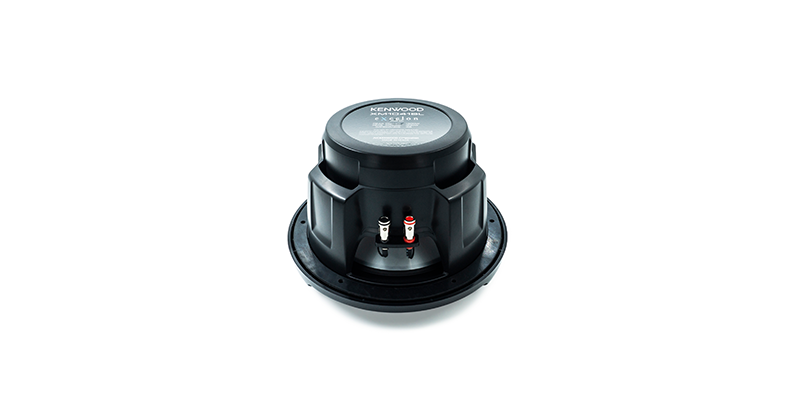

| Terminal | Push Terminal | ||
| Grille | Resin Mold （Material ASA） | Black | |
| DIMENSION/WEIGHT | |||
| Woofer Size | 250mm | 10 inch | |
| Width(with.G) | 282mm | 11-1/8 inch | |
| Height(with.G) | 282mm | 11-1/8 inch | |
| Cut-out Diameter | φ232mm | Dia.9-1/8 inch | |
| Top Height | 46.5mm | 1-13/16 inch | |
| Mounting Depth | 140mm | 5-1/2 inch | |
| Weight | 5.5 kg | 12.1 lbs | |

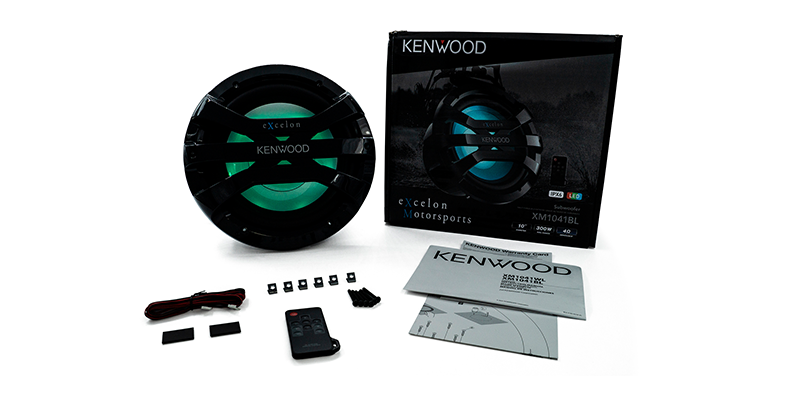

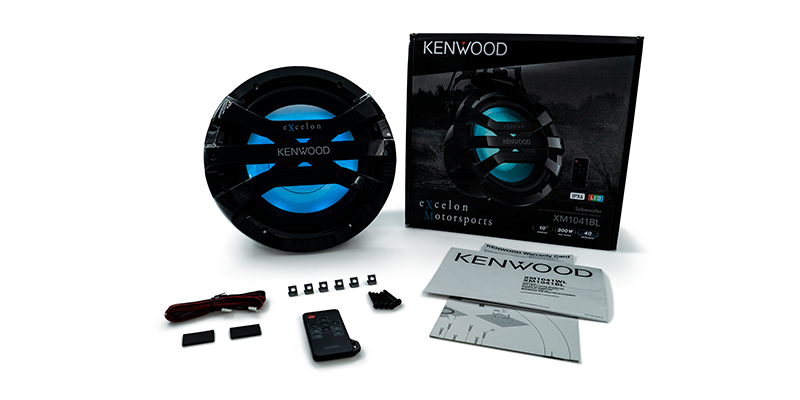

| ACCESSORY | |||
| Instruction Manual (Speaker&Remote) |
1pc | ||
| Warranty Card | 1pc | ||
| Tapping Screw(φ4x38mm) | 6pcs/Stainless | ||
| Mounting Screw Clips | 6pcs | ||
| RGB Connector Cord (3m) ※Link cable B |
1pc | ||
| Remote Controller(RF) | 1pc | ||
| Heat shrink tube | 2pcs | ||
| Template | 1pc | ||
