DMX1057XRMonitor with Receiver

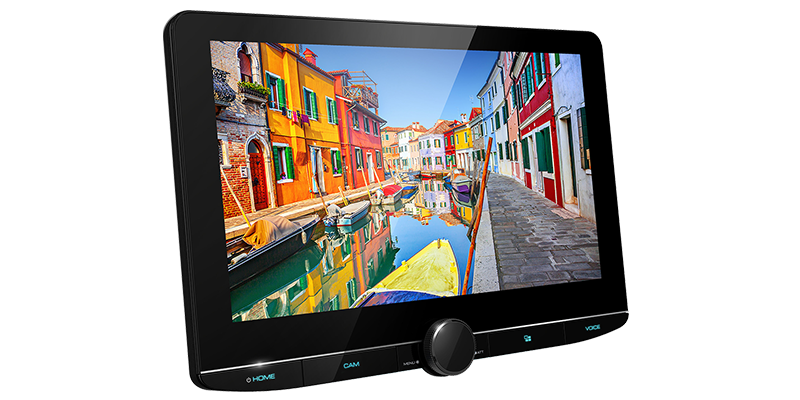

10.1" Digital Multimedia Receiver
Provides room for more information that is large and easy to see with just a glance.
Over 2x Area Size
of the 7 inch Display
10.1" Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.
2.4x Resolution
of the WVGA Display
Optical Clear Adhesive (OCA) is added between the touch screen and the LCD to eliminate the air layer and suppress light reflection and glare. This feature enhances the contrast and brightness and maintains the visibility of the display in various environments.
Reflection of natural light
Light from backlight
Loss due to reflection
Loss due to reflection
Conventional Model
Reduced reflection
of natural light
Less loss
due to reflection
10.1" Model
The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with the protective film which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.
from Above 85°
from Left 85°
from Right 85°
from Below 85°
The 10.1" home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.

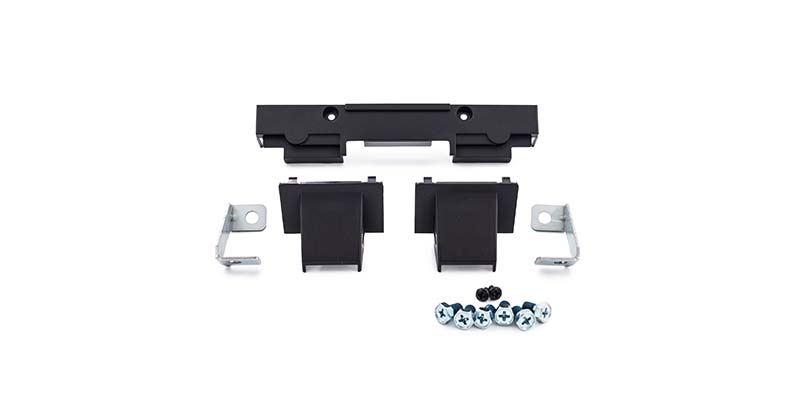

Fully adjustable display allows you to change the depth, height and angle for easy vehicle fitment.
Forward / Backward: 13/16"
Up / Down: 1-9/16"
Tilt: -10°/ +45°
Apple CarPlay™ is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps and Waze are also supported.
New KENWOOD Wi-Fi receivers now support Apple CarPlay™
wirelessly (compatible phone required).
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. New KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required).
To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 5.0 or higher, and the Android Auto app.
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 10.1" monitor. KCA-HD100 optional HDMI cable sold separately.
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.
High-Resolution Audio is high-quality sound that exceeds CD standard. High-Resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality listening experience. Select KENWOOD receivers now support Hi-Resolution Audio Wirelessly via LDAC. LDAC is an audio coding technology that enables the transmission of High-Resolution Audio over a Bluetooth connection.
* LDAC and LDAC logo are trademarks of Sony Corporation.
* “Hi-Res Audio” Logo and “Hi-Res Audio Wireless” Logo are used under license from Japan Audio Society.
You can fine-tune advanced sound properties to achieve professional audio sound quality in your vehicle. It allows you to set parameters of Q factor, slope, frequency and gain at 14 points separately (Common: 9 / Front: 2 / Rear: 2 / Subwoofer: 1). With adjustments such as high and low shelving filters, more realistic sound can be delivered.
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
To ensure the best possible sound quality, the receivers use custom-made and carefully selected parts, such as audio quality power supply capacitors, high quality coupling capacitors and cross-shaped panel structures. These parts are further optimized through meticulous tuning of the component values and circuit paths.
You can play back from USB devices audio and video files compressed in various formats.
| Video Codec | Playable up to |
|---|---|
| MPEG4 | 1920 × 1080p |
| H.264 | 1920 × 1080p |
| MKV | 1920 × 1080p |
| WMV | 1920 × 1080p |
USB sources are available on rear monitor via video output.
The powerful USB provides max 1.5A quick charge for selected Android and 1.0A charge for iPhone.
| Music Codec | Playable up to |
|---|---|
| FLAC | ～192kHz / ～24bit |
| WAV | ～192kHz / ～24bit |
| DSD | 2.8MHz, 5.6MHz, 11.2MHz / 1bit |
Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, these models feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget, Customizable Accessory Controls, and compatibility with specific ESCORT radar detector systems (sold separately).
*Available features vary by vehicle
The optional CMOS-740HD camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.
WVGA Camera
HD Camera
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately). Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).
Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.
This receiver can be operated using the optional remote control KNA-RCDV331.
Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.
Clear glass display with swipe functionality that provides superior picture and touch panel control.
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
Optional camera connection method for up to 4 cameras in various configurations.
HD Front/Rear Camera (CMOS-740HD) can be connected for High Definition viewing.
Parking guide lines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
Dash Camera (DRV-N520) can be controlled and viewed from the touchscreen.
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
High quality sound parts (custom-made or carefully selected capacitor, etc) are adopted to provide superior sound quality.
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
| Main Unit | Monitor Section | Picture size | 10.1 inches(diagonal) wide |
|---|---|---|---|
| W x H | 223.7 x 125.8 (mm), 8-13/16 x 4-15/16 (inch) | ||
| Display system | AAS LCD panel | ||
| Drive system | TFT active matrix system | ||
| Number of pixels | 2,764,800 | ||
| 1280H x 720V x RGB | |||
| Effective pixels | 99.99% | ||
| Pixel arrangement | RGB striped arrangement | ||
| Back lighting | LED | ||
| USB I/F Section | USB Standard | USB2.0 High Speed | |
| File System | FAT 16/32, exFAT, NTFS | ||
| Maximum Power Supply Current | DC5V=1.5A | ||
| D/A Converter | 24/32Bit | ||
| Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / DSD / Vorbis | ||
| Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV | ||
| Frequency response 192k Sampling | 20 - 88,000 Hz | ||
| 96k Sampling | 20 - 44,000 Hz | ||
| 48k Sampling | 20 - 22,000 Hz | ||
| 44.1k Sampling | 20 - 20,000 Hz | ||
| Total harmonic distortion 1kHz | 0.010% | ||
| Signal to Noise ratio | 98.5dB | ||
| Dynamic range | 89dB | ||
| Wireless Mirroring Section | Mode | Sink | |
| Copyright protection | HDCP2.2 | ||
| Touch Control | UIBC | ||
| Wi-Fi | IEEE Standard | 802.11 a/b/g/n/ac | |
| Frequency Range | Dual Band ( 2.4GHz / 5GHz ) | ||
| Channels | Auto(1-11ch) | ||
| Auto(149,153,157,161ch) | |||
| Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / | ||
| 11g: 54 Mbps / 11n: 300 Mbps / | |||
| 11ac: 867 Mbps | |||
| Output Power 2.4GHz/SISO | 11b:12dBm±2dB / 11g:4dBm±2dB / | ||
| 11n(20MHz):2dBm±2dB | |||
| Output Power 5GHz/SISO | 11a:6dBm±2dB / | ||
| 11n(20MHz):6dBm±2dB / 11n(40MHz):5dBm±2dB / | |||
| 11ac(20MHz):6dBm±2dB / 11ac(40MHz):5dBm±2dB / 11ac(80MHz):5dBm±2dB | |||
| Output Power 5GHz/MIMO | 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB / | ||
| 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB | |||
| Bluetooth Section | Technology | Bluetooth Ver5.0 | |
| Frequency | 2.402 – 2.480 GHz | ||
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 | ||
| Maximum Communication range | Line of sight approx.10m(32.8ft) | ||
| Audio Codec | SBC / AAC / LDAC | ||
| Multi Profile Support | Multi Profile | ||
| Profile | HFP (V1.7) (Hands Free Profile) | ||
| SPP (Serial Port Profile) | |||
| A2DP (Advanced Audio Distribution Profile) | |||
| AVRCP (V1.6) (Audio/Video Remote Control Profile) | |||
| PBAP (Phonebook Access Profile) | |||
| HDMI | Connector Type | Type A | |
| Input Resolution | VGA (640x480p @59.94Hz/60Hz) | ||
| 480p (720x480p @59.94Hz/60Hz) | |||
| 720p(1280x720p 59.94Hz/60Hz) | |||
| Input Audio Type | 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM | ||
| DSP Section | Graphics equalizer | ||
| BAND | 13Band | ||
| frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k | ||
| Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] | ||
| 2Way X'Over | |||
| HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] | ||
| SLOPE | -6/-12/-18/-24[dB/Oct.] | ||
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] | ||
| SLOPE | -6/-12/-18/-24[dB/Oct.] | ||
| 3Way X'Over | |||
| HIGH PASS FILTER frequency | 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k | ||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| Band PASS FILTER frequency | Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz] | ||
| 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through | |||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/Through[Hz] | ||
| SLOPE | -12/-18/-24[dB/Oct.] | ||
| Position | |||
| Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) | ||
| Gain | -8 to 0dB | ||
| Subwoofer Level | -50 to +10dB | ||
| Digital FM | Frequency Range | 87.9MHz - 107.9MHz | |
| (Frequency step) | (200kHz) | ||
| Frequency Response | 20Hz - 20kHz | ||
| (±3.0 dB) | |||
| S/N | 80dB (STEREO) | ||
| Digital AM | Frequency Range | 530kHz - 1700kHz | |
| (Frequency step) | (10kHz) | ||
| Frequency Response | 40Hz - 15kHz | ||
| (±3.0 dB) | |||
| S/N | 80dB (STEREO) | ||
| FM | Frequency Range | 87.9MHz - 107.9MHz | |
| (Frequency step) | (200kHz) | ||
| Usable sensitivity | 7.3dBf (0.7μV) /75Ω | ||
| S/N30dB | |||
| Frequency response | 30Hz - 15kHz | ||
| (±3.0dB) | |||
| S/N (dB) | 70dB (MONO) | ||
| Selectivity | 80dB (±400kHz) | ||
| Stereo separation | 45dB (1kHz) | ||
| AM | Frequency Range | 530kHz - 1700kHz | |
| (Frequency step) | (10kHz) | ||
| Usable sensitivity | 30dBμ (31μV) | ||
| Video | Color system of external video input | NTSC/PAL | |
| External audio max input level (Mini jacks) | 2 V / 25 kOhms | ||
| Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms | ||
| Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms | ||
| Audio Output level (Mini jacks) | 0.9 V / 10 kOhms | ||
| Audio | Maximum Power Output (Front&Rear) | 50Wx4 | |
| Typical Power Output (Front&Rear) | Full Bandwidth Power | ||
| (at less than 1%THD) | |||
| 22Wx4 | |||
| Output frequency band | 20 - 88,000Hz | ||
| Preout level (V) | 5V / 10kOhms | ||
| Preout impedance (Ω) | =< 300 Ohms | ||
| Speaker Impedance (Ω) | 4-8 Ohms | ||
| General | General | Operating voltage | 12V DC Car Battery |
| Installation Dimensions WxHxD | 178 × 100 × 155 (mm) | ||
| 7 × 3-15/16 × 6-1/8(inch) | |||
| Weight Main unit | 3.25 kg | ||
| 7.28lbs. | |||
