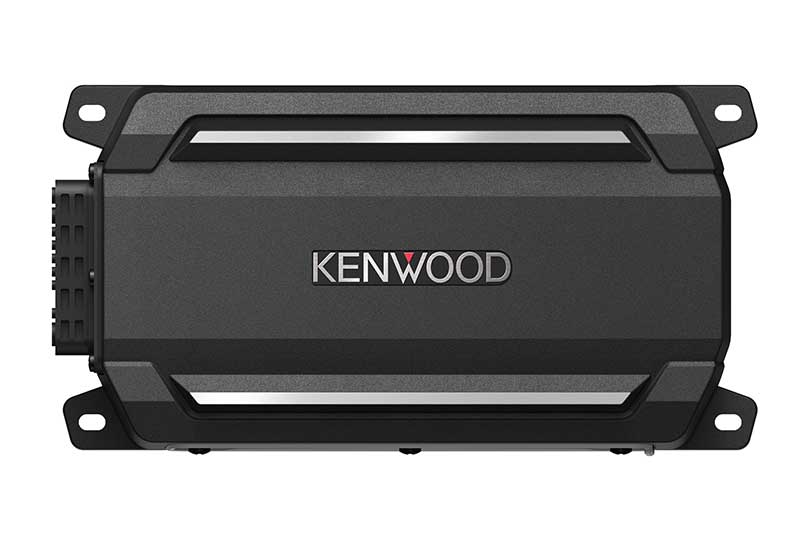

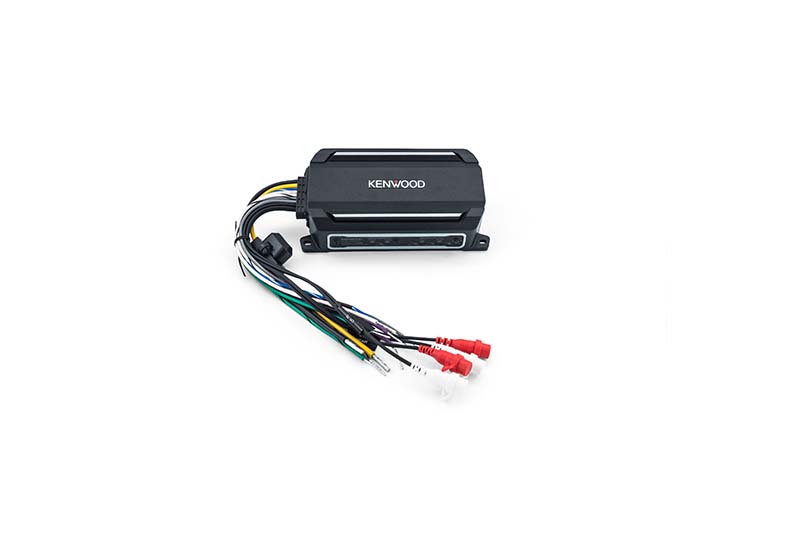

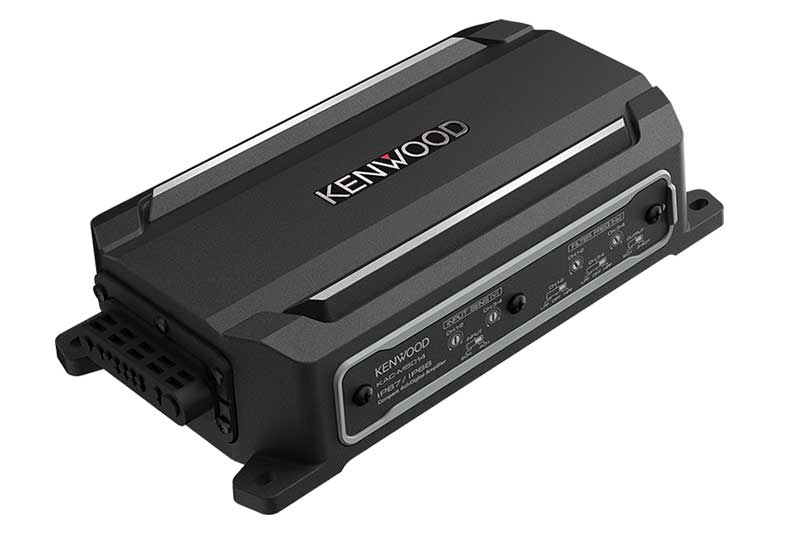

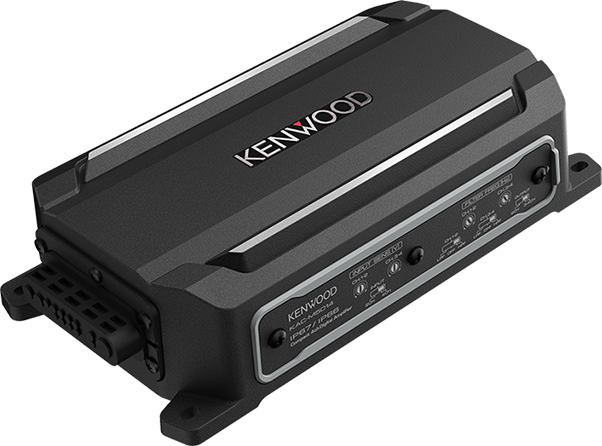

KAC-M5014Compact 4 Channel Digital Amplifier

Your EVERWHERE Audio Experience

KAC-M5014

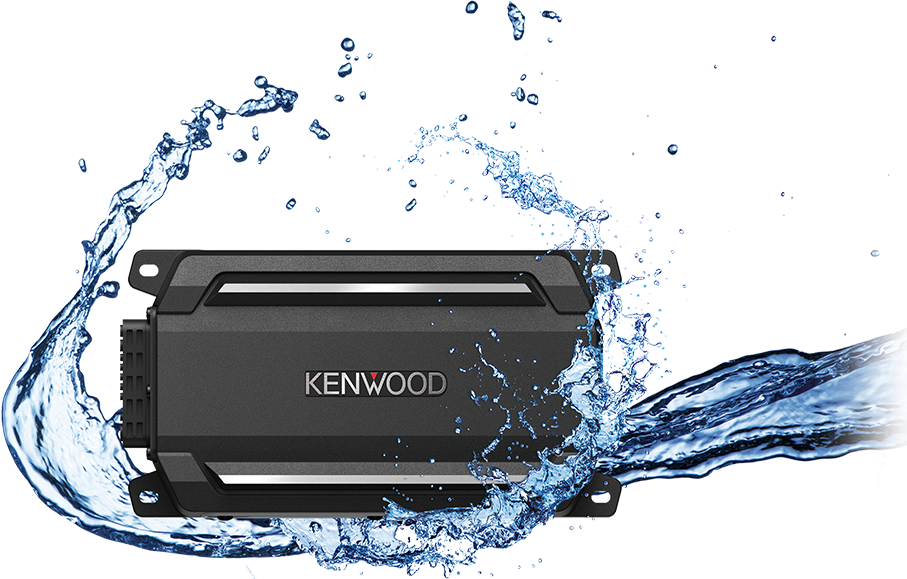

IP67/IP66 Certified Waterproof & Dustproof
RMS 50W x4 (4Ω)
RMS 75W x4 (2Ω)
Speaker Level Input
Signal Sensing Turn-on
Variable High & Low Pass Filter
(W)7-13/16” x (H)1-15/16” x (D)4-1/8”

EXTREME Durability

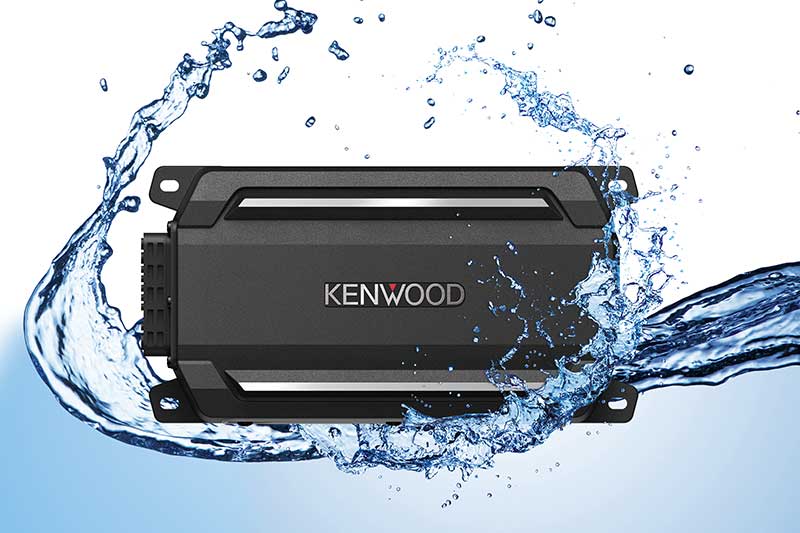

WaterPROOF & DustPROOF

IPX7/IPX6/IP6X certified. The amplifier can be submerged in up to 3.3 feet of water for 30 minutes, and can resist high-pressure, heavy sprays of water.

Salt Spray PROOF

ASTM B117 salt spray (or salt fog) corrosion testing ensures the amplifier will not corrode or fail in saltwater and other harsh environments.

Vibration PROOF

Thick 1/4" die-cast frame suppresses vibration.

Raised drain tunnel prevents moisture buildup.

ULTIMATE Performance

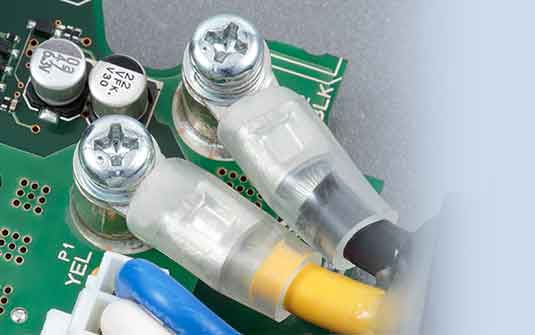

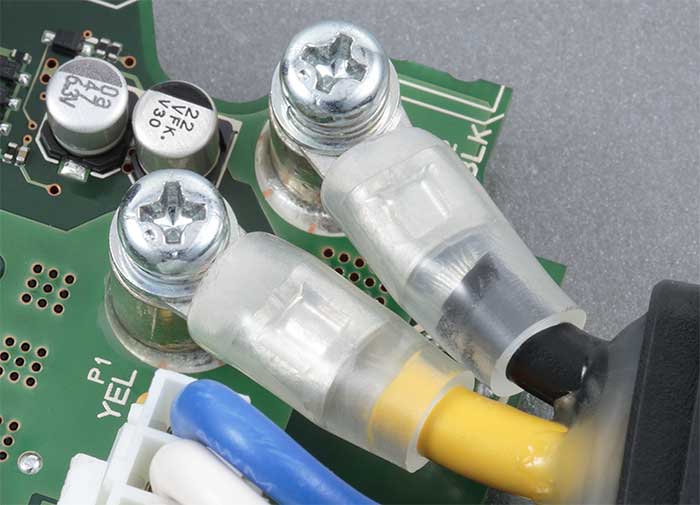

Increased Power Flow

Metal studs enable high current flow for connections between the amplifier and battery, resulting in powerful bass reproduction and enhanced overall sound quality.

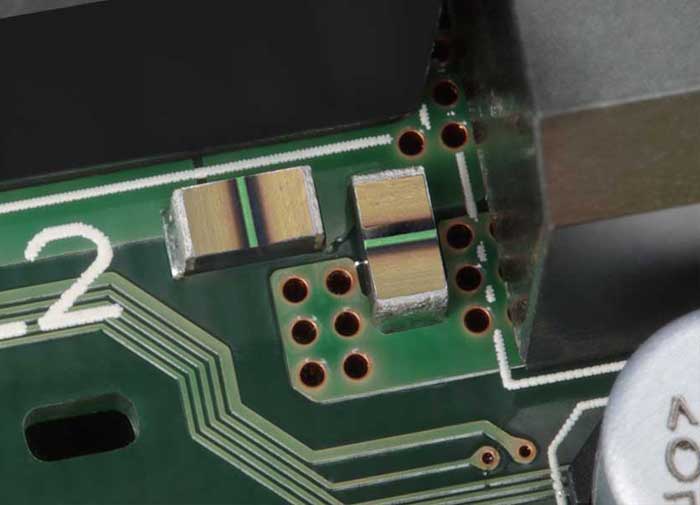

High Quality Capacitors

PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.

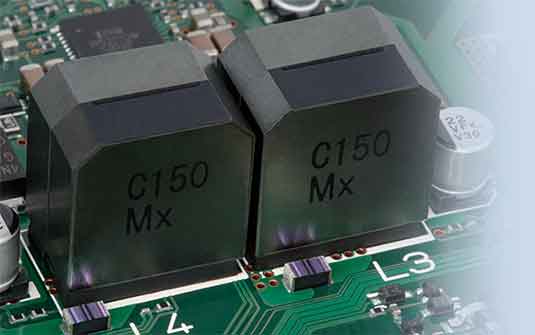

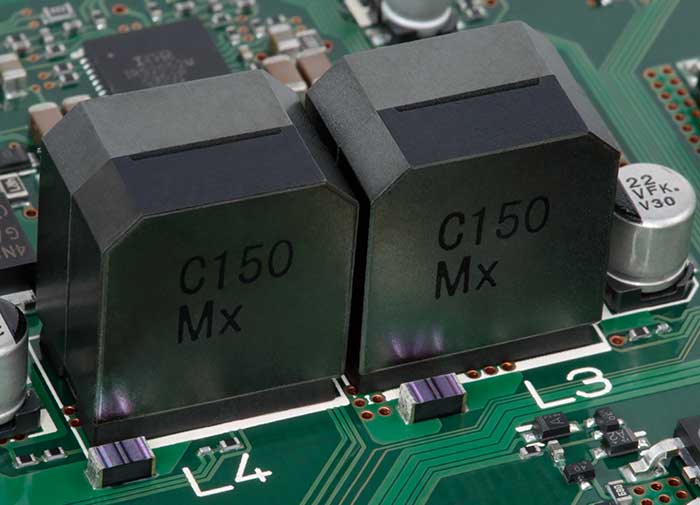

Magnetic Shielding

Magnetic shields for the output coils reduce radiated noise, further contributing to smooth and accurate sound.

Selectable Connection

Speaker Level Input

If your receiver does not have RCA outputs, you can connect your speaker cables directly to the KAC-M5014’s RCA cables to use as an audio signal input.

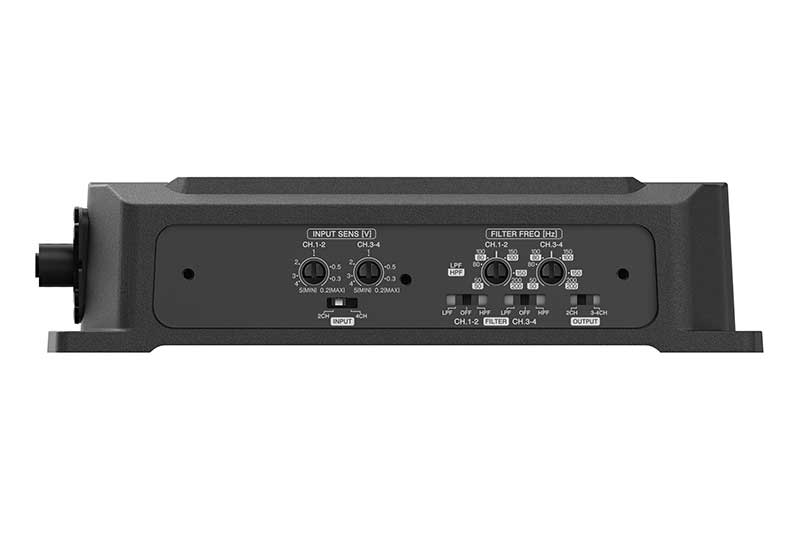

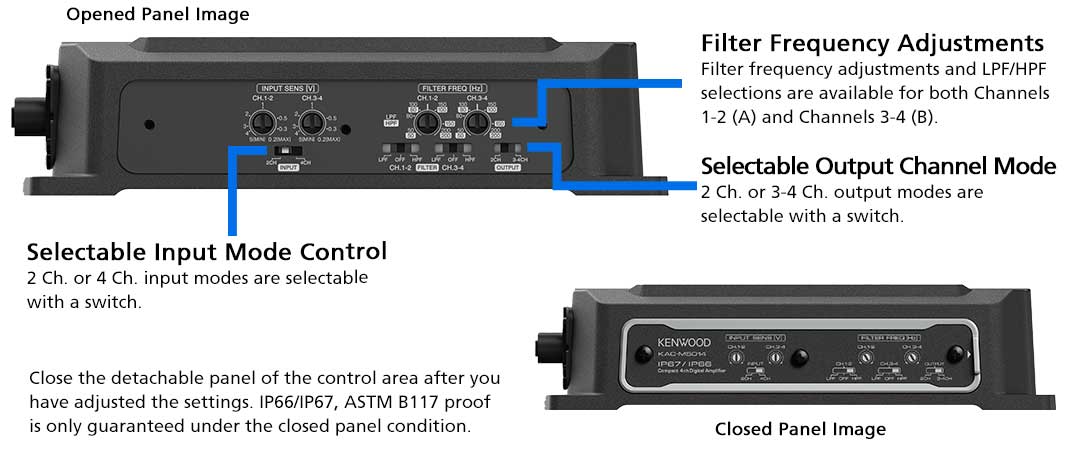

Take CONTROL

General Features

Max Power	600W
RMS Power	50W x 4 (4Ω)
	75W x 4 (2Ω)
	150W x 2 (Bridged)
S/N	Signal to Noise Ratio: 77 dB
Size	(W)7-13/16” x (H)1-15/16” x (D)4-1/8”
Low Pass Filter	50Hz-200Hz, -12dB/oct (A/B)
High Pass Filter	50Hz-200Hz, -12dB/oct (A/B)
Other Features	Class-D Amplifier
	IP67/IP66 Waterproof & Dustproof
	ASTM B117 Salt Spray Proof
	Variable High & Low Pass Filter
	Signal Sencing Turn-on
	Speaker Level Input
	Bridgeable

Retailers

Authorized KENWOOD Retailers

Purchase KENWOOD Products ONLY from Authorized KENWOOD Retailers! Because KENWOOD cannot guarantee that car audio product purchased from unauthorized dealers are genuine, new and/or fit for purchase, KENWOOD does NOT offer any manufacturer's limited warranty or rebates for car audio products purchased from a dealer that is not authorized by KENWOOD.

Where to Buy

KENWOOD Car Entertainment System

: Speakers

: Amplifiers

« scroll

Amplifier Type	Class D
CTA-2006-D Value	Maximum Dynamic Power	65W at 4ohms and ≤ 10% THD + N
	Continuous Power Output	50W at 4ohms and ≤ 1% THD + N
	Signal to Noise	77dBA reference 1 Watt RMS
Maximum Power Output	MAX POWER	600W
RMS Power at 14.4V	A/B (4 Ohms)	50Watts RMS x 4 at 4 Ohms, 20Hz-20kHz , ≤1% THD+N
	A/B (2 Ohms)	75Watts RMS x 4 at 4 Ohms, 1kHz, ≤1%THD+N
	A/B (Bridged 4 Ohms)	150Watts RMS x 2 at 4 Ohms, 1kHz, ≤1%THD+N
Specifications	Signal to Noise Ratio	89dB (Reference: Rated Power into 4Ohms at 14.4V)
	Frequency Response	10Hz-35kHz (+0dB, -3dB)
	Input Impedance	10k ohm
	Speaker Impedance	4Ω ( 2Ω to 8Ω allowable)
	Bridged Connection	4Ω to 8Ω allowable
Audio Section	Low-pass Filter	50-200Hz, -12dB/oct (A/B CH)
	High-pass Filter	50-200Hz, -12dB/oct (A/B CH)
	Filter Selecter	LPF/OFF/HPF (A/B CH)
	RCA Input Sensitivity	0.2 (V) - 5.0 (V)
	Speaker Level Input Sensitivity	4.0 (V) - 12.0 (V)
	Input Selecter	2ch, 4ch
	Output Selecter	2ch, 3/4ch

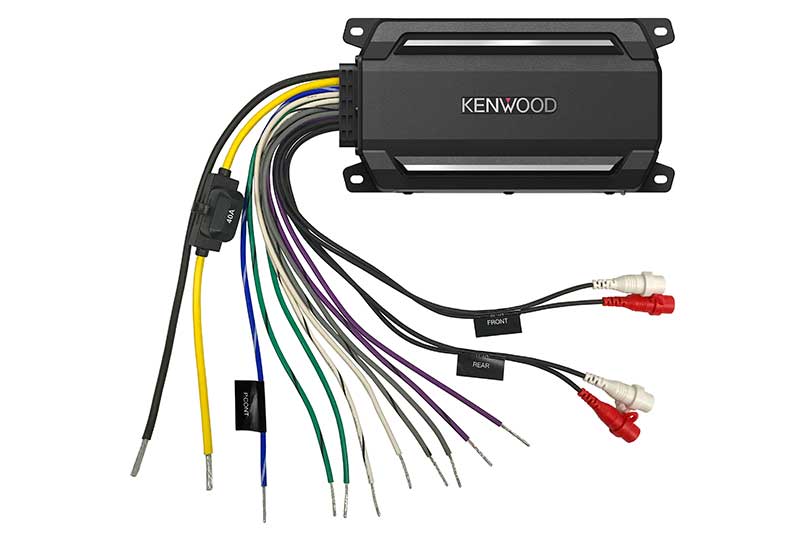

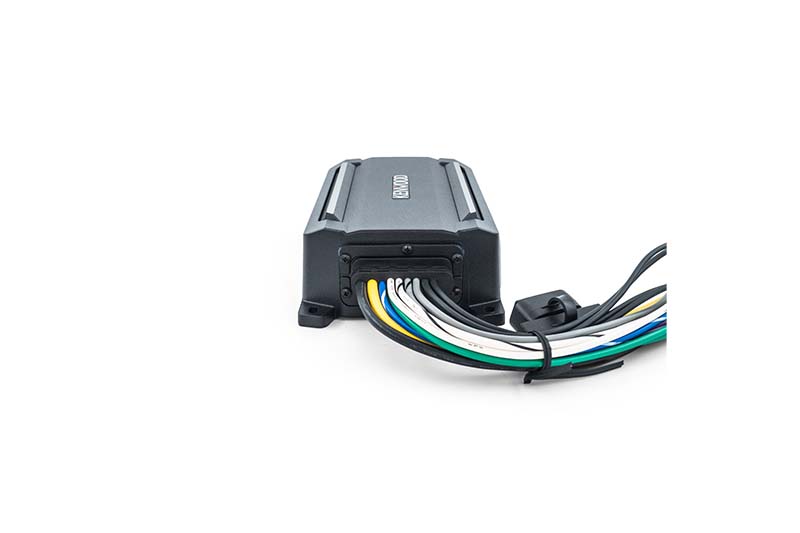

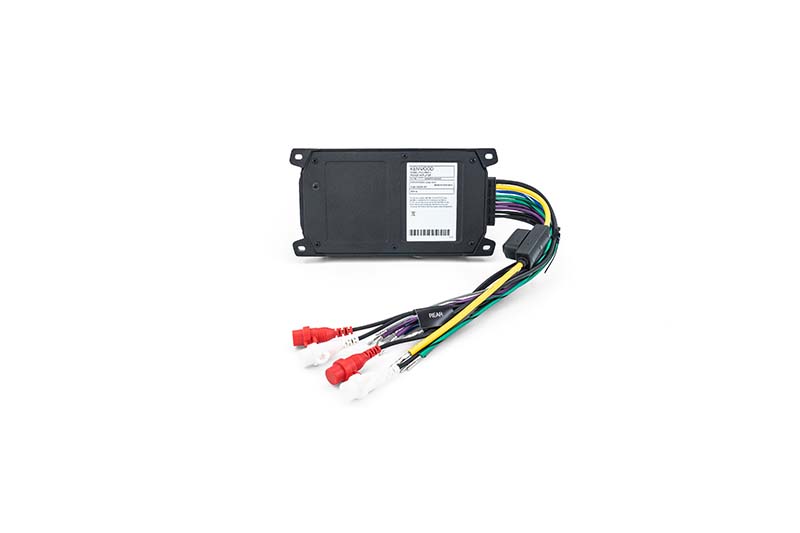

Terminal	Battery & Ground	12" 10-gauge Pigtail Cable with Molded Strain Relief Bushing
	Speaker Output	12" 16-gauge Pigtail Cable with Molded Strain Relief Bushing
	Line In (Pigtail RCA)	Yes (A/B)
	Pre Out (Pigtail RCA)	No
	Speaker Input (Pigtail RCA In)	Yes (A/B)
General	Dimensions(WxHxD)	198[mm] x 48.5 [mm] x 104 [mm]
		7-13/16" x 1-15/16" x 4-1/8"
	Weight (kg)	1.3 [kg] 2.9 [lbs]
	Operating Voltage	14.4V (11-16V allowable)
	Current Consumption	26A
	Fuse	40A
Key Features	CTA-2006 Compliant
	Class D
	Power MOS-FET Switching Power Supply
	2 Ohms Load Capability
	One-Sided Connection
	Line Input Terminals
	Speaker Level Input
	Signal Sensing Turn-on
	Remote Turn-on
	Terminal Cover
	AB/A Channel Input Selector with Independent Gain Adjustment
	Speaker Output Selector (2ch / 3ch4ch)

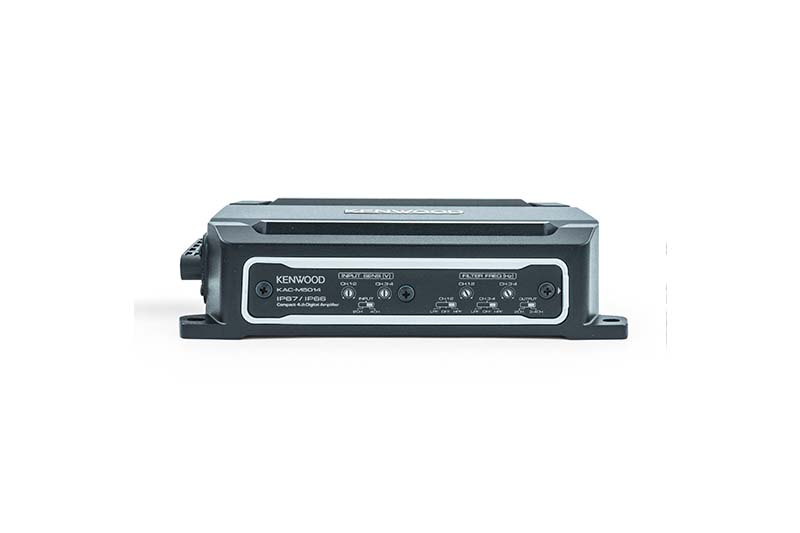

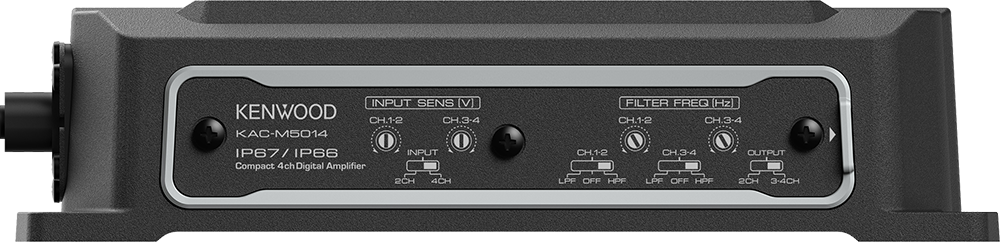

	Audio Controls on the Side
	Corrosion-Resistant Sealed Cast Aluminum Chassis
	Drain Tunnel
	Water-proof & Dust-proof (Main Unit/DC cable)
	ASTM B117 (Main Unit)
Other Features	Fuse Rubber Cover

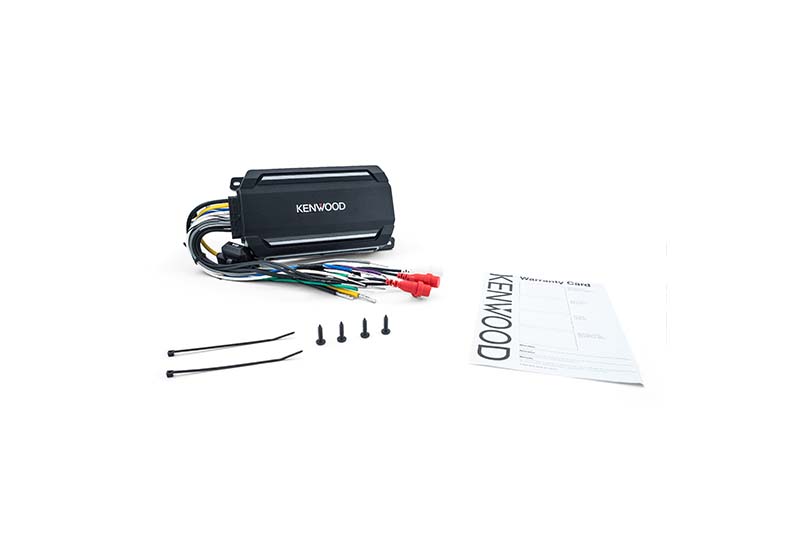

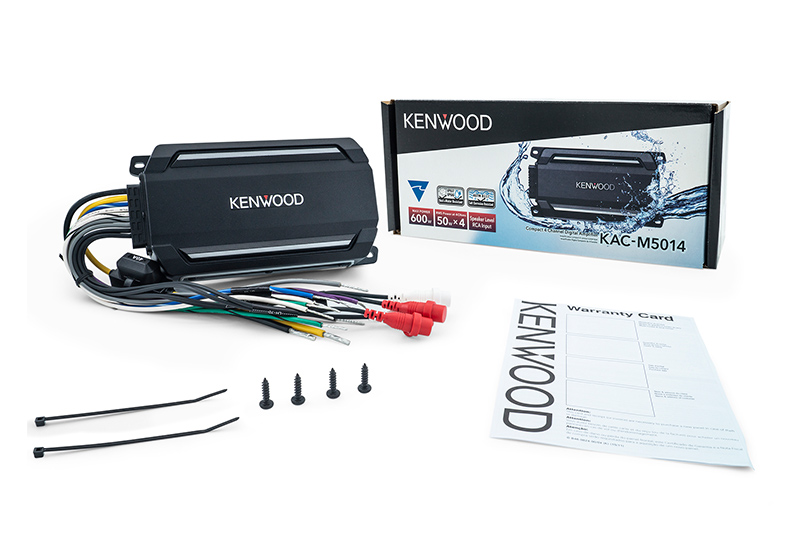

Accessories	Stainless Steel Self-tapping Screw (Φ4 x 16mm) 4pcs
	Wire band (100mm [3-15/16"]) 2pcs
	Instruction Manual
	Warranty Card
