NX-1202AV/1302AU

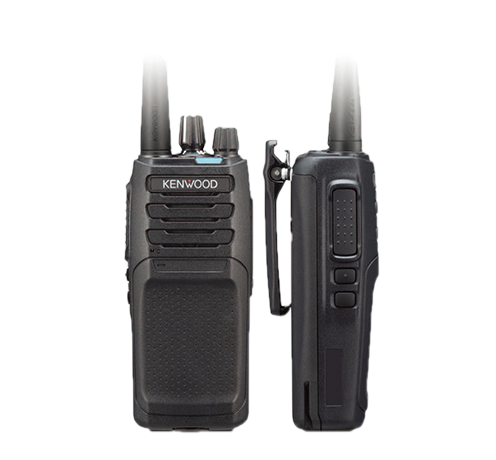

2W VHF/UHF ANALOG PORTABLE RADIOS NX-1202AV/1302AU
  • 2W VHF/UHF ANALOG PORTABLE RADIOS

NX-1202AV/1302AU

Analog - FM

  • FM Conventional Operation
  • FleetSync: PTT ID, Stun/Revive,Talk back, Selcall
  • MDC1200: PTT ID, Radio Inhibit/Uninhibit, Radio check, Emergency
  • QT / DQT, DTMF, 2-tone
  • Built-in Programmable Voice Inversion
  • Scrambler (per channel)
  • Built-in Compander (per channel)

Digital – NXDN® Mode (Optional License required)

  • FDMA – Very narrow 6.25 kHz & narrow 12.5 kHz bandwidths
  • NXDN Conventional Operation
  • Site Roaming
  • Digital / Analog Mixed mode
  • Group / Individual Call
  • Status / Short data, Paging Call
  • Remote Stun / Kill, Monitor, Check & Control
  • Digital Bit Scrambler
  • Late Entry
  • Over-the-Air Alias (OAA)

Digital – DMR Mode (Optional License required)

  • TDMA 2-slot 12.5 kHz bandwidth equivalent to 6.25 kHz very narrow bandwidth
  • DMR Tier II Conventional Operation
  • Site Roaming
  • DMR Auto Slot Select
  • Dual Slot Direct Mode
  • Digital / Analog Mixed mode
  • Call Interruption
  • Group / Individual Call
  • Status / Short data, Paging Call
  • Remote Stun / Kill, Monitor, Check & Control
  • Enhanced Encryption (ARC4)
  • Digital Bit Scrambler
  • Late Entry
  • Over-the-Air Alias (OAA)

Features

  • RF output power 2W both on VHF/UHF
  • Large 7-Color LED indicator on the top panel
  • Selective Power-on LED
  • Selective Call Alert LED
  • Battery Level Indication
  • Multi-status function indication
  • Renowned KENWOOD Audio Quality: TX/RX audio profile with optimizable
  • digital processor
  • Audio Equalizer: Flat, High, Low
  • Auto Gain Control: On, High, Low, Off
  • Noise Suppressor
  • Microphone type settings
  • Multiple Scan Functions; Dual Priority, Single Priority, Single Zone, Multi,
  • Normal Scan
  • VOX & PTT –triggered Semi- VOX, Voice-operated TX
  • Emergency Function: Customizable Emergency Profile
  • Lone Worker
  • Max / Min Volume setting & Volume control
  • Voice Announcement
  • Remote Stun / Kill / Check
  • Electronic Serial Number (ESN)
  • MIL-STD-810 C/D/E/F/G
  • IP54 and IP55
  • Multi-protocol digital radio: Designed to operate under NXDN or DMR digital and FM
  • analog protocols (Optional License required)
